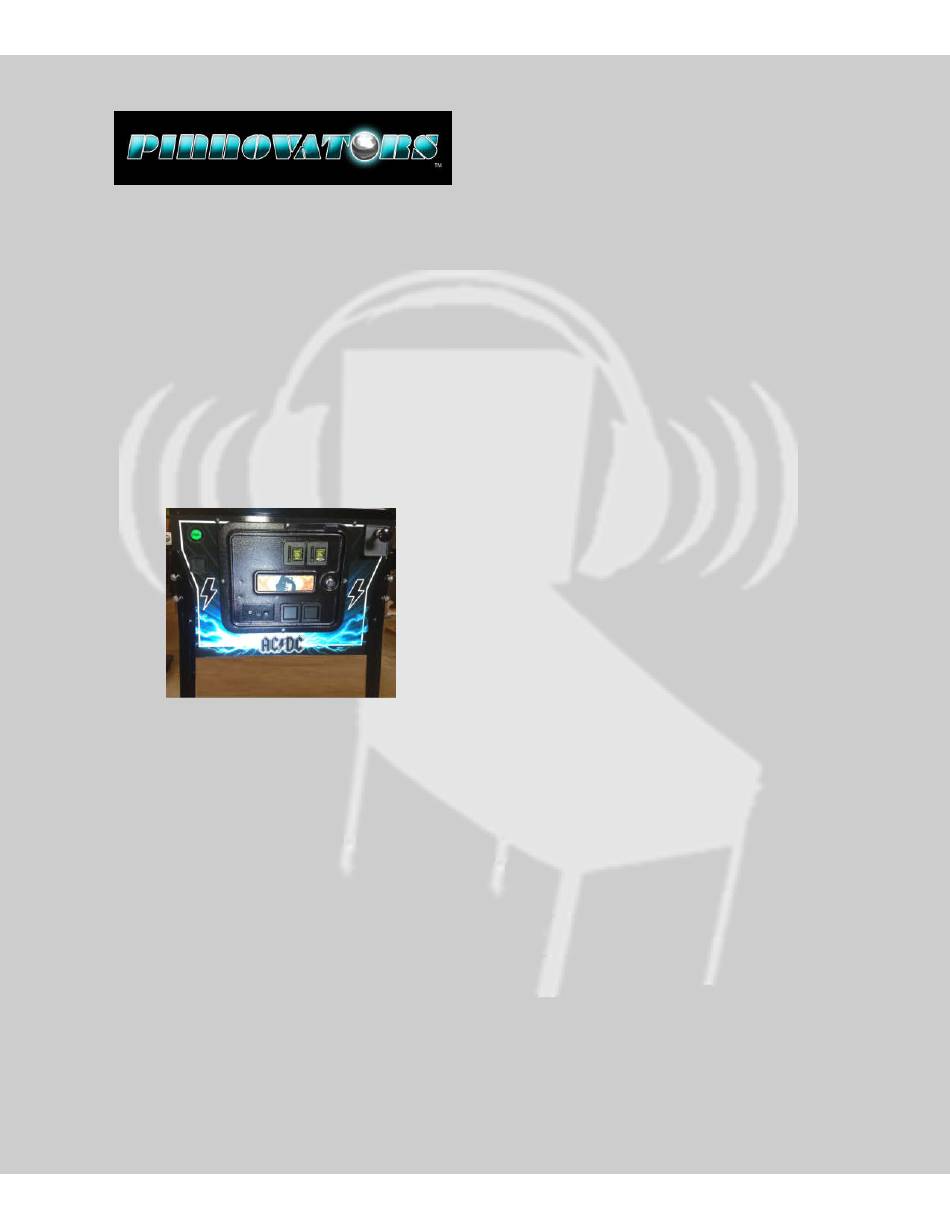

PinPAC1/PinPAC2/5
Installation Manual
Now with PinPAC2
MAC installation.
Version 3.2 Sept 22, 2015
1
Contents
Warnings and Agreements ................................ 2
1.
2.
Requirements: ........................................... 2
3.
Preparation ................................................ 3
4.
Back Box Installation .................................. 3
5.
Coin Door Installation PinPAC1: ................ 5
6.
Coin Door Installation PinPAC2: ................ 5
7.
Running the cable ...................................... 6
8.
Coin door Final installation ........................ 6
9.
Final Checkout ........................................... 6
10.
Back Box Boards ..................................... 7
11.
Trim Pot Function .................................. 9
12.
Recommended Headphones. ................ 9
13.
Addendum ....................................................... 10
14.
Requirements: ..................................... 10
15.
systems with connector) ................................. 10
Latest MAC Kits: ............................................... 11
16.
Posi-Taps!............................................. 11
bpog ................................................................. 11
17.
Final Checkout ..................................... 13
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pinnovators PinPAC1
Summary of Contents for Pinnovators PinPAC1
-
Page 1: Table Of Contents
Contents Warnings and Agreements ........ 2 What’s included in the PinPAC1 and 2 Kits 2 Requirements: ........... 2 PinPAC1/PinPAC2/5 Preparation ..........3 Installation Manual Back Box Installation ........3 Coin Door Installation PinPAC1: ....5 Coin Door Installation PinPAC2: ....5 Now with PinPAC2 Running the cable ........ -
Page 2: Warnings And Agreements
Sound Levels: Pinnovators recommends running 2. Requirements: your headphone sound level at a safe level to A. The Pinnovators PinPAC1 and 2 systems require prevent long term hearing loss. For a good example a Dollar Bill Acceptor slot on the machine’s Coin... -
Page 3: Preparation
System circuit boards. Star Trek The Next Generation is shown below as an example. 4. Back Box Installation Pinnovators offers many kits for five of the most popular pinball systems as of the writing of this document. Pinnovators Part... - Page 4 Plug supplied Pinnovators cable into the RJ45 jack on the Back Box Board Connector. Route the cable into the cable harness clip as shown.
-
Page 5: Coin Door Installation Pinpac1
Some coin doors have four threaded studs screw. Some coin doors have four threaded studs attached to the coin door. The PinPAC1 Universal attached to the coin door. The PinPAC2 Universal plate will fit most coin doors and can be secured plate will fit Stern coin doors. -
Page 6: Running The Cable
8. Coin door Final installation adjusted with the volume control knob. Insert the end of the Interface cable into the RJ45 Connector on the PinPAC1 or 2 front control panel as shown. Route the cable into the cable harness clip behind the door as shown. -
Page 7: Back Box Boards
All backboards now come with our “subwoofer output jack” The pictures show on the next page do not show the jack but the jack will be on your board. Please download our PINsub_Installation_Manual at http://www.pinnovators.com/manuals/ complete instructions on how to optional subwoofer cable. - Page 8 Sound Board connector location. Back Box Board installed with cable. 330_003_ WPC_DM Sample games: The Addams Family 330_004_WPC_DCS Sample games: Star Trek The Next Generation 330_005_WPC_95 Sample Game: Medieval Madness 330_012_STN_WST Sample Game: The Lord Of The Rings 330_013_STN_SAM Stern S.A.M. Sample Game: Transformers...
-
Page 9: Trim Pot Function
PCB only accessible when the coin door is open. Pinnovators tested the PinPAC1 and 2 on many different headphones. Our favorite was the beats by dr. dre. We also tested a moderately priced set of... -
Page 10: Pinpac2Mac Installation Manual Addendum
Route the PP2MAC remote cable over the top of the coin slots as shown. Route it down to the system control panel buttons. NOTE: The three color cable is now a flat three color ribbon PinPAC2MAC Installation cable. Manual Addendum SAM Machines with inline connector: Cut the tie-wrap as shown then disconnect the Requirements:... -
Page 11: Latest Mac Kits
This is a picture of the optional adapter along with a few YouTube video links showing how to install the Posi-Taps. Please watch the video first. (Note, Pinnovators did not make the videos) http://www.youtube.com/watch?v=NQWYWuNbpog http://www.youtube.com/watch?v=Yiimgl-Rdmw Some export Stern SAM systems do not have a... - Page 12 Connect the the Posi-tap adapter cable for export Connect the the Posi-tap adapter cable for Stern SAM systems as follows: Whitestar systems as follows: Poisi-Tap Wire Function Push Button Poisi-Tap Wire Function Push Button Adapter Cable Panel cable wire: Adapter Cable Panel cable wire: wire wire...
-
Page 13: Final Checkout
Final Checkout Power up the system and start a new game. Make sure the front panel switch on the PinPAC Control panel is in the “UP” position. Verify sound can be heard from the system speakers. Operate the System Volume UP button and verify the system volume increases.
