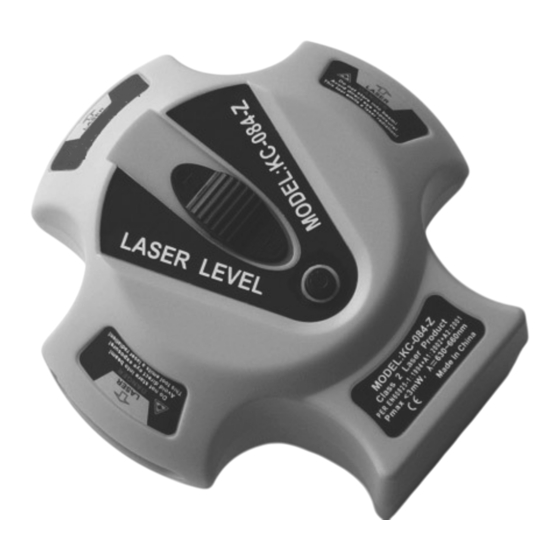

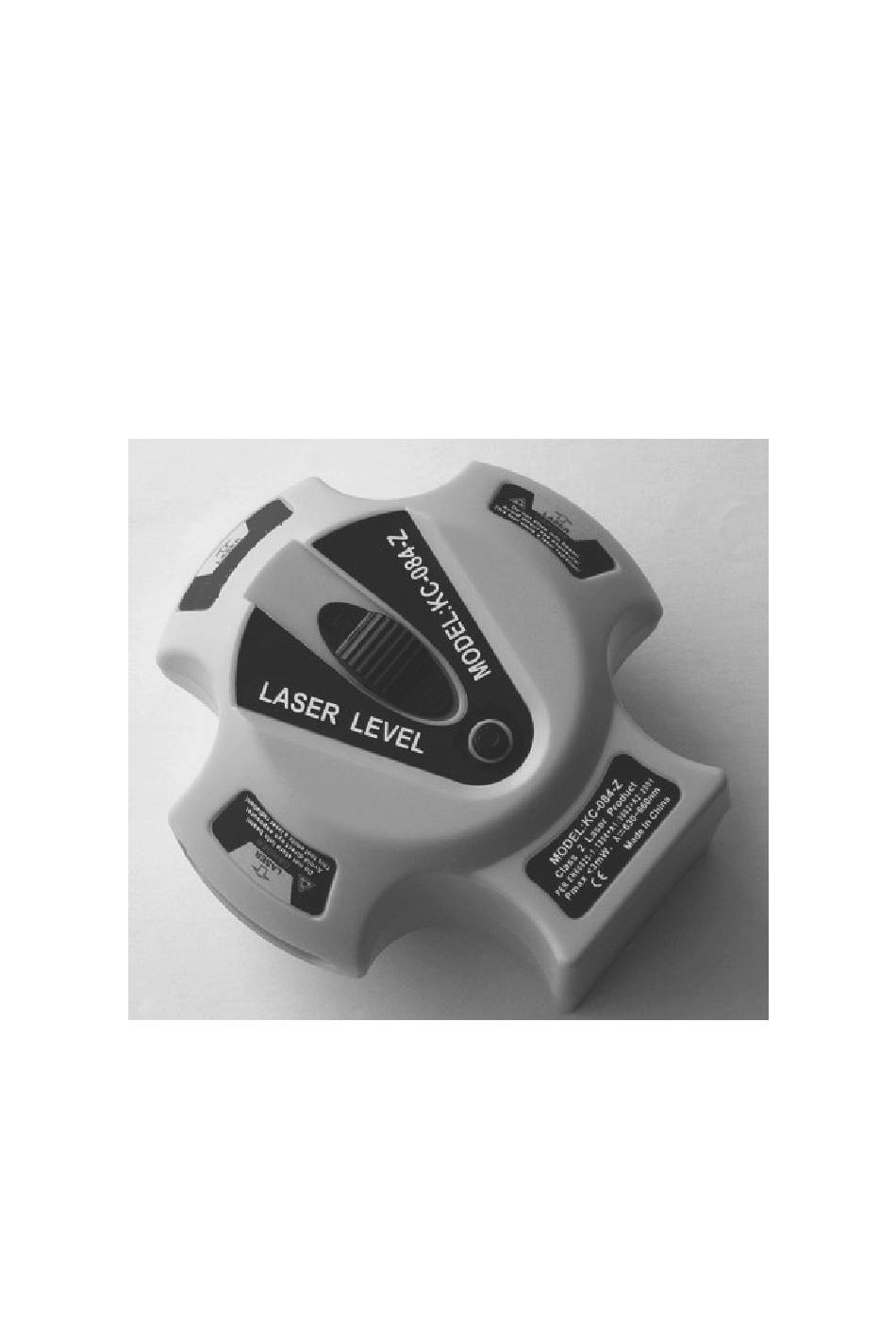

- Page 1 Automatically Level Laser Marker Model: KC-084-Z Operation Manual...
-
Page 2: Safety Instructions
Automatically Level Laser Marker OVERVIEW KC-084-Z Automatically Level Laser Marker can emit two red laser beams in horizontal and vertical at the same time. It is suitable for use in construction and indoor decoration, facture of doors and windows, machining on wood and stone materials, installation of pipelines and machines to provide various basis and necessary detecting and lofting tools. -
Page 3: Tool Components
Battery safety tips ● Please remove the battery when clean the product. ● Please remove the battery when do not use the product for a long time. ● Insert the battery with reference to the correct polarity. ● Please dispose the waste battery reasonably: battery placed under the environment of high temperature will cause the danger of explosion, please don't put the battery into the fire. - Page 4 ● Tool fixation The tool has many kinds for fixation. A. Push pins fixation Fix the tool on soft wall. 1. Take out the push pins from the groove. (See Fig.2) 2. Determine the fixed place. Push the pin into the wall ( the hook upside). (See Fig.3) 3.
- Page 5 ● Automatical leveling 1. Automatically adjusting level function is only applied to the vertical wall and not applied to the floor or other level surface. 2. When operated on the surface of the wall, make sure the laser head is fixed upward. When is on the unlocked position, the automatic level function is ±8°.
-
Page 6: Technical Specifications
Remove the battery when not in use for an extended period of time ● in case of damage of tool by deterioration of battery. TECHNICAL SPECIFICATIONS Product Name Automatically Level Laser Marker Model KC-084-Z Recommended use Indoor or indirect sunlight Length of laser line Width of laser <5mm Accuracy ±1mm/m...
