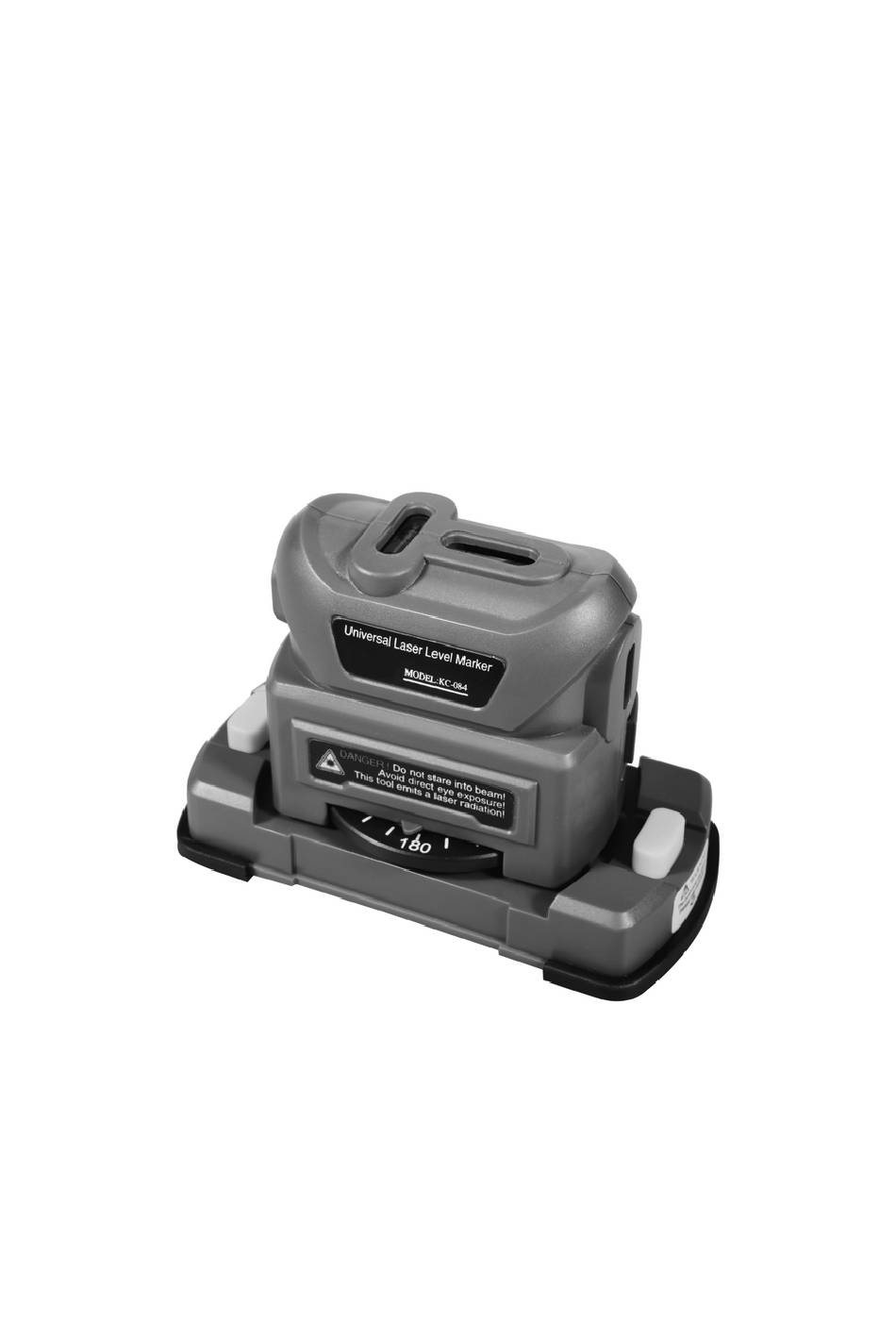

- Page 1 Universal Laser Level Marker Model: KC-084 Operation Manual...
-
Page 2: Safety Instructions
Universal Laser Level Marker OVERVIEW KC-084 Universal Laser Level Marker can generate a striking red laser line on the surface of objects. It is suitable for use in construction and indoor decoration, facture of doors and windows, machining on wood and stone materials, installation of pipelines and machines to provide various basis and necessary detecting and lofting tools. -
Page 3: Battery Safety Tips
Battery safety tips ● Please remove the battery when clean the product. ● Please remove the battery when do not use the product for a long time. ● Insert the battery with reference to the correct polarity. ● Please dispose the waste battery reasonably: battery placed under the environment of high temperature will cause the danger of explosion, please don't put the battery into the fire. - Page 4 ● Operation instruction For level surface use: ● 1.Determine the start place and laser direction on the level surface. 2. Place the tool on the start place to the laser direction. 3. Fix the tool. (if needed, please press the push pin button on the base when operating on the soft surface.) 4.
- Page 5 3. Press the push pin button on the base to locate the tool. 4. Turn on the laser (do not stare into the laser beam) 5. Adjust the laser line to desired position. 6. When need to project the horizontal line on the wall, turn the tool until the bubble in the horizontal level is between the two lines.
-
Page 6: Technical Specifications
TECHNICAL SPECIFICATIONS Product Name Universal Laser Level Marker Model KC-084 Recommended use Indoor Length of laser line Width of laser <5mm Accuracy ±1mm/m Power of laser <1mW Laser wavelength 630-660nm Laser class Class 2 Power supply A 9V block battery Working current <40mA...
