Tiger PWO-A Series Instructions

Replacing and Purchasing
Consumable Parts
The gasket and lid are consumable parts. Check once
a year for damage/deterioration. If heavily stained or
loose, replace them.
For replacement parts, contact customer service or
the shop where purchase was made.
For the purpose of performance improvement, designs, specifications and parts shown in this publication are subject to
change without notice.

Specifications

Model No. PWO-A120
Capacity 1.2 L / 40.6 oz
Heat retention (10 hours) Greater than 66°C / 150°F
Cold retention (10 hours) Less than 10°C / 50°F
Size W 13.0 x D 16.6 x H 20.8 cm
W 5.12 x D 6.54 x H 8.19 inch
Weight 0.69 kg / 1.52 lbs
Heat retention has been calculated under the condition of adding hot water at 95°C±1°C / 203°F±2°F and
leaving it in a room temperature of 20°C±2°C / 68°F±4°F for 10 hours.
Cold retention has been calculated under the condition of adding cold water at 4°C ±1°C / 39°F±2°F and
leaving it in a room temperature of 20°C±2°C / 68°F±4°F for 10 hours.
Capacity is the actual volume of water that can be stored into the product when the spout is closed. This is
not the "Maximum level" volume described in "Safety Precautions".
Head Office: 3-1 Hayami-cho, Kadoma City, Osaka 571-8571, Japan
TIGER CORPORATION HONG KONG LIMITED
Rm. 1006B, 10/FI., Join-in Hang Sing Centre, 71 - 75 Container Port Road,
Kwai Chung, N.T.
Tel: (852) 2418-0912 Fax: (852) 2418-0911
URL : http://tiger-corporation.hk/
TIGER CORPORATION U.S.A.
1815 W 205th Street, Unit 106, Torrance, CA 90501
Tel: 1-866-55-TIGER (84437)
Email: support@japantigercorp.com
URL : https://tiger-corporation-us.com/
Before Contacting Customer
Service
The utmost measures have been taken to ensure
the quality of this product. Should you have any
problems or questions, however, contact your
dealer and provide the following information:
1. Product name 3. Description of issue
2. Model Number (as detailed as possible)
4. Purchase date
Feel free to send any questions or comments about
this product to the shop where you purchased it.
PWO-A160 PWO-A200
1.6 L / 54.1 oz 2.0 L / 67.6 oz
Greater than 71°C / 159°F Greater than 74°C / 165°F
Less than 9°C / 49°F Less than 8°C / 47°F
W 13.0 x D 16.6 x H 24.5 cm W 13.0 x D 16.6 x H 28.2 cm
W 5.12 x D 6.54 x H 9.65 inch W 5.12 x D 6.54 x H 11.10 inch
0.76 kg / 1.68 lbs 0.84 kg / 1.85 lbs
Approximate value
For household use

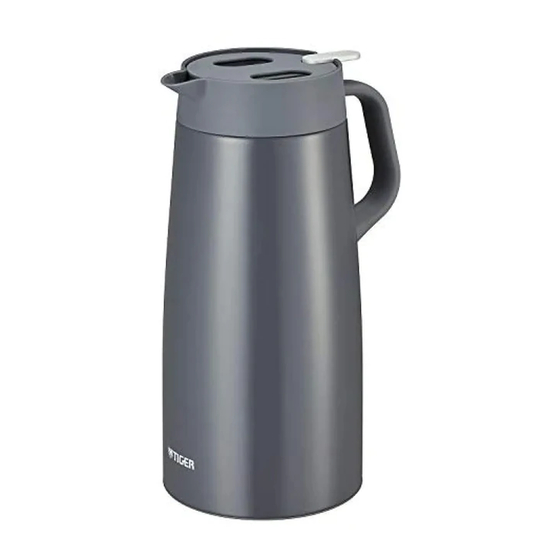

Stainless Steel Handy Jug
Push lever type
Instructions
Thank you for purchasing a "TIGER"
Stainless Steel Handy Jug.
Please read the instructions thoroughly
before use.
Keep these instructions for future reference.
Lower part of
inner stopper
Brim
Handle
MODEL
PWO-A
Push lever
The stopper opens
when you press the
push lever.
Open/close lever
Upper part of
inner stopper
Top gasket
Inner
Middle gasket
stopper
Bottom gasket
Spout
Main body
Please make sure that all parts are present before use.
