Super Gym SG8021MT Assembly Instructions Manual

Multi-press combo
Hide thumbs

Advertisement

Quick Links

Download this manual
SG8021MT Multi-Press Combo
Assembly Instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the SG8021MT and is the answer not in the manual?

Questions and answers

Related Manuals for Super Gym SG8021MT

Summary of Contents for Super Gym SG8021MT

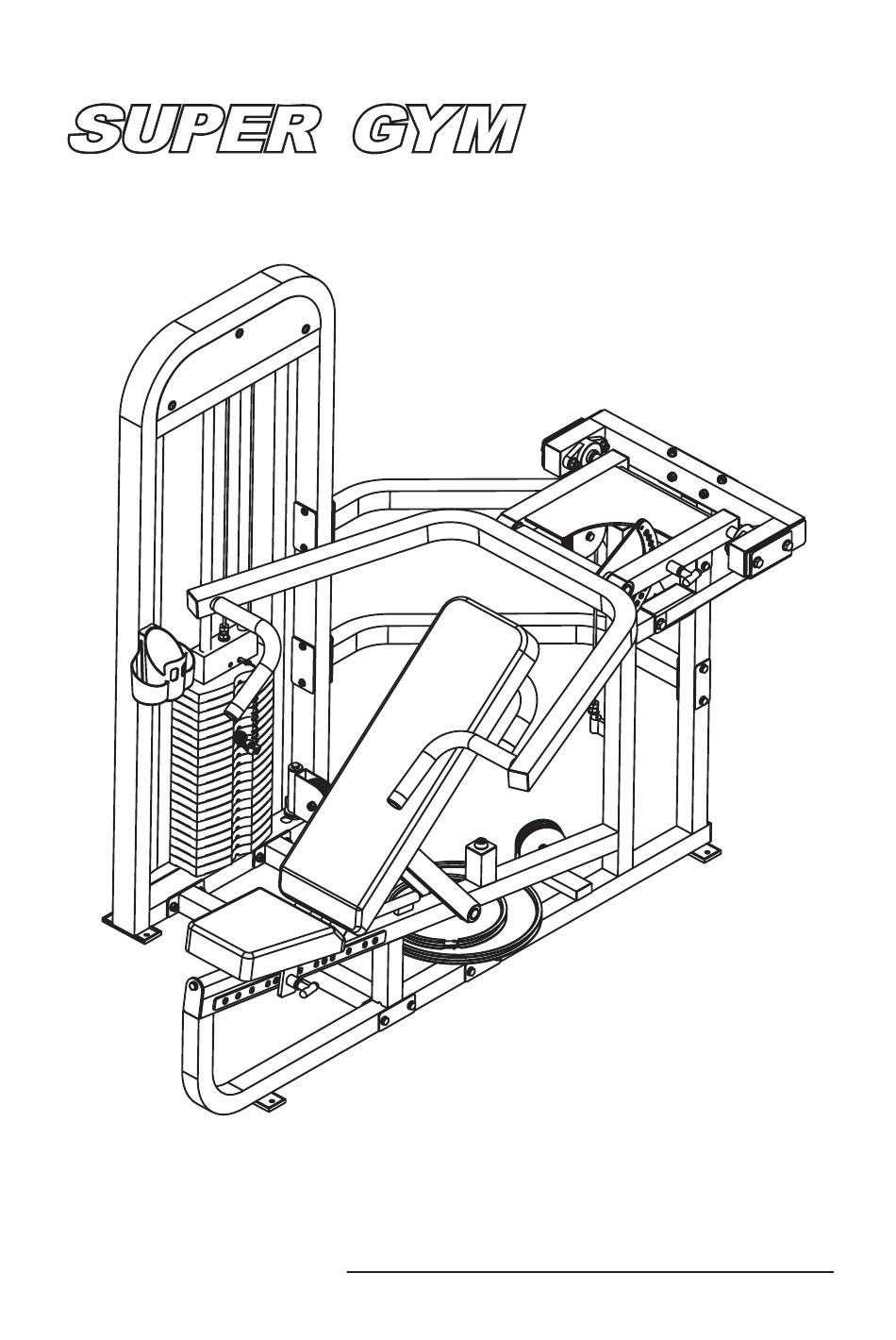

  • Page 1 SG8021MT Multi-Press Combo Assembly Instructions...

  • Page 2: Table Of Contents

    Table of contents Important Safety Instructions-------------------------------------------------------- 1 Exploded View Diagram---------------------------------------------------------------- 2 Hardware List----------------------------------------------------------------------------- 3 Parts List----------------------------------------------------------------------------------- 5 Assembly instructions----------------------------------------------------------------- 6...

  • Page 3: Important Safety Instructions

    Important Safety Instructions Before beginning any fitness program, you should obtain a complete physical examination from your physician. When using exercise equipment, basic precautions should always be taken, including the following: * Read all instructions before using the Multi-Press Combo. These instructions are written to ensure your safety and to protect the unit.

  • Page 4: Exploded View Diagram

    Multi-Press Combo Exploded View Diagram...

  • Page 5: Hardware List

    Hardware List 1 0 0 1 10 1 20 1 30 1 40 1 50 Millimeters Inches...
  • Page 6 Hardware List Millimeters Inches...

  • Page 7: Parts List

    Parts List Description Description Item No. Item No. Main Upright Long FOAM Seat Frame Short FOAM Support Base Upper Shroud Above Cross Brace Plat Screw M8*8 Press Arm Support Washerφ13*φ24*1.5 Cross Brace Allen bolt M12*95 Press Arm Nylon Locknut M12 Washerφ11*φ20*1.5 Foot Frame Nylon Locknut M10...

  • Page 8: Assembly Instructions

    Assembly Instructions Assembly of the Multi-Press Combo takes professional installers about 2 hours. If this is the first time you have assembled this type of equipment, plan to spend more time. It is strongly recommended to assemble the equipment by professional installers. You may find it quicker, safer, easier to assemble this equipment with the help of a friend, as some of components may be large, heavy or awkward to handle alone.
  • Page 9 Step 1 Install The Sub_support Components 1. Attach the Cross Brace (#06) and Foot Frame(#09) and Cam Bracket(#24) to Main Upright(#01) using: four Allen bolts (#72) M10*95 four Allen bolts (#52) M10*75 eight Nylon Locknuts(#49) M10 sixteen Washer (#48) φ11*φ20*1.5 2.
  • Page 10 Step 2 Assemble The Seat Pad Support and Back Pad Support 1. Attach the Linear Bearing (#63) to Short Guide Rod(#20) . 2. Attach the Seat Pad Support(#12)and Back Pad Support (#11) to Linear Bearing (#63) using: eight Philip Bolts (#66) M6*15 two Washers (#48) φ11*φ20*1.5 one Bolt (#50) M10*180 one Nylon Locknuts(#49) M10...
  • Page 11 Step 3 Assemble The Press Arm 1. Attach the Pollow Block Bearing(#62)to Press Arm Support(#05). 2. Attach the Support Base(#03)to Seat Frame (#02) using: two Allen bolts (#74) M12*75 four Washers (#45) φ13*φ24*1.5 two Nylon Locknuts(#47) M12 3. Attach the Press Arm Support(#05)and Above Cross Brace(#04)to Seat Frame (#02) and Support Base(#03)using: four Allen bolts (#46) M12*95 two Allen bolts (#54) M10*70...
  • Page 12 Step 4 Assemble The Weight Stack and Cam 1. Attach the Cam(#08)to Cam Bracket(#24)using: one Allen bolt (#70) M10*25 one Washer (#67)φ11*φ38*2 2. Attach the Pulley Bracket(#13)and Nylon Washer (#36) to Main Upright (#01) using: one Allen bolt (#70) M10*25 one Washer (#68)φ11*φ30*2 3.
  • Page 13 Step 5 Route Cable 1. Screw Weight Pin(#29) to Top Plate(#73). 2. Route the Long Cable(#31) and Short Cable(#32) using: five Allen bolts (#55) M10*50 ten Washers (#48) φ11*φ20*1.5 five Nylon Locknuts(#49) M10 two Philip Bolts(#35) M4*20...
  • Page 14 Step 6 Assemble Pads and Shroud 1. Attach two Upper Shrouds(#43) and Weight Shroud(#23) to Main Upright (#01) using: ten Allen bolts(#58) M8*15 ten Washers (#57)φ9*φ22*1.6 2. Attach the Back Pad (#14) to Back Pad Support (#11) using: four Allen bolts (#70) M10*25 four Washer (#48) φ11*φ20*1.5 3.
