Summary of Contents for TrekStor WBX5005

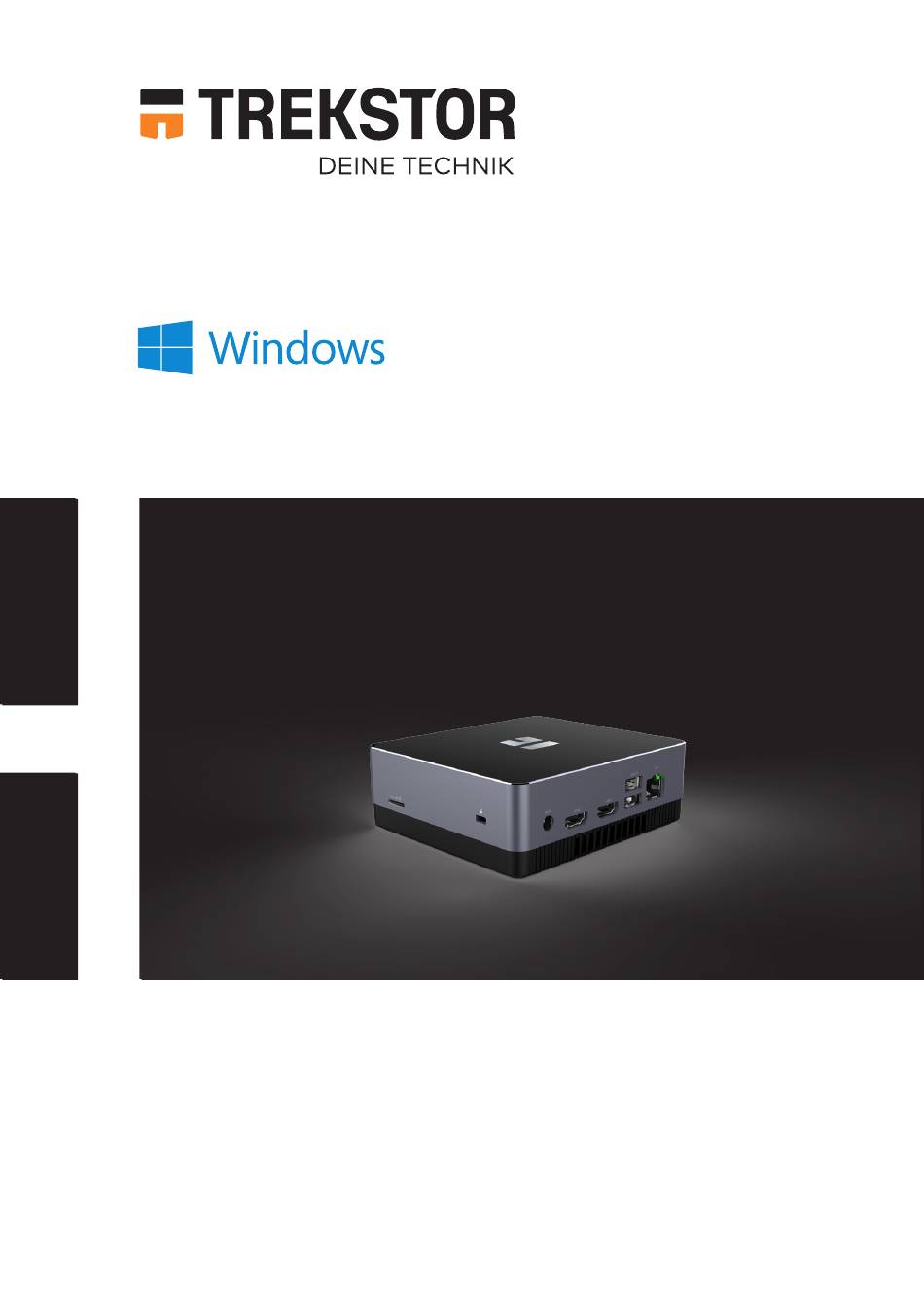

- Page 1 MINIPC WBX5005 OPERATING INSTRUCTIONS...
-
Page 2: Table Of Contents
CONTENT Welcome Intended use Explanation of Safety Symbols and Keywords General Safety Information Technical specifications Technical specifications of the power adapter Content Controls and ports Insert M.2 SSD MODULE (optional) Starting up the MiniPC for the first time Connect MiniPC to external devices Switching on the MiniPC Unlocking the display 10. - Page 3 19. Transferring files between the MiniPC and other devices Transferring files via Bluetooth Transferring files between the MiniPC and an external storage device 20. Reset 21. Switching off/Restarting the MiniPC 22. Useful tips on saving energy 23. Troubleshooting/FAQ 24. Glossary 25.
-
Page 4: Welcome
Welcome We hope you enjoy your new TREKSTOR MiniPC WBX5005. The online operating instructions, the enclosed Quick Guide and the additional brochure "Product Safety and Legal Information" are direct components of the product. Please read all three documents carefully before you turn on your device. They contain important information about device safety, usage and disposal. -
Page 5: Explanation Of Safety Symbols And Keywords
3. Explanation of Safety Symbols and Keywords This booklet uses the following safety symbols and keywords: WARNING Indicates possible danger to life and/or danger of severe, irreversible injuries CAUTION Follow instructions to avoid injuries and material damage NOTICE Follow instructions to avoid material damage ADVICE Additional information about using the device... -
Page 6: General Safety Information
4. General Safety Information WARNING Risk of multiple injuries due to reduced physical, sensory, or mental capabilities and/or lack of knowledge or practical experience Children and vulnerable individuals may only use the device under direct ■ supervision. Risk of suffocation and severe injuries from accessories and packaging materials Keep accessories and packaging materials out of reach of babies, young ■... - Page 7 When using headsets, earbuds, or headphones, make sure the acoustic ■ emissions do not exceed an A-weighted sound level of 80 dB. Always set the volume at the lowest level where you can still clearly hear the ■ audio track being played without causing discomfort. Do not increase the volume once you have become accustomed to that ■...
- Page 8 NOTICE To avoid potential malfunctions and/or damage to the device caused by environmental factors, please note the following: The recommended humidity for operating, charging, and storing the device ■ is between 30 and 70 percent. The recommended ambient temperature for operating, charging, and ■...
-
Page 9: Technical Specifications
5. Technical specifications Processor (CPU): IIntel® Broadwell-U i3-5005U (up to 2.0 GHz) dual core Operating system*: Windows 10 Pro, Windows 10 Home, Windows 10 Home in S mode, no operating system RAM*: 4/8 GB Storage capacity*: 128/256 GB SSD Graphics processing unit (GPU): Intel®... -
Page 10: Technical Specifications Of The Power Adapter
Average active efficiency: 88,3 % Efficiency at low load (10%): 87,7 % No-load power consumption: 0,07W 6. Content TREKSTOR MiniPC WBX5005 ■ Power adapter (100 V - 240 V) ■ Quick start guide ■ Important safety and legal information ■... -
Page 11: Controls And Ports
Controls and ports USB 3.1 USB 3.1 A) Vents H) On/Off switch B) LAN RJ45 I) Audio port C) USB-A 2.0 J) USB-Type-C™ connector D) HDMI® 1.4 K) USB-A 3.1 Gen 1 E) DC IN L) Vents F) Security slot M) M.2 SSD extension slot G) Memory card slot N) Attachment VESA adapter... -
Page 12: Insert M.2 Ssd Module (Optional)
Make sure that the computer is switched off before inserting the SSD. ADVICE The MiniPC WBX5005 is only compatible with an SSD module with form factor M.2 2242 in version B & M key and B key. Step 1: Unscrew SSD extension slot Use a screwdriver to loosen the screw in the cover of the SSD extension slot. -
Page 13: Starting Up The Minipc For The First Time
ADVICE The SSD can only be inserted in one direction. Depending on the connection type that your device features, the SSD may have to be rotated along its longitudinal axis to fit correctly. You know the SSD has been inserted correctly if the semicircular recess is secured firmly to the screw base. -
Page 14: Unlocking The Display
Unlocking the display As soon as the device has been set up (and every time it is subsequently switched on and booted up), the lock screen appears. Press any key on the keyboard to unlock the screen. ADVICE If your MiniPC is password-protected, you must then enter the password. ADVICE Alternatively, you can also log into your MiniPC via Windows Hello. -
Page 15: Important Elements On The Start Screen
11. Important elements on the start screen Task bar Windows icon: Opens the Start menu Cortana: Your digital assistant reminds you of pending tasks and appointments and gives hints and tips Task View: Enables the Task View and shows all open programs including the "+ New Desktop"... -
Page 16: Info Center
12. Info Center The Info Center is a bar with quick links to some important MiniPC functions, which you can either display or hide. To access the Info Center, click the memo symbol on the bottom right of the display. ADVICE Among other things, the Info Center includes a quick link to what is known as Tablet mode". -
Page 17: Navigating/Selecting An Item In The Start Menu
Here, you can "pin" apps and favourites in the form of live tiles and organise them. This gives you quick and easy access to your most frequently used apps and content. ADVICE In the navigation list (A) you find a list of all installed apps in alphabetical order. An alphabetic quick access to the navigation list appears when you click on a respective first letter. - Page 18 Now left-click the app you want (or press the left button on the touchpad). Keep your finger on the app you want and drag it to the desired position in the app area of the Start menu. Organising and removing apps To access the edit mode for a particular live tile, right-click the desired tile (or press the right button on the touchpad).
-
Page 19: Accessing The Settings
14. Accessing the settings The button for accessing Settings (a cogwheel symbol) can be found in the bottom-left corner of the Start menu. Alternatively, you can access the settings by opening the Info Center and clicking "All settings". You can also access Settings by using the cogwheel symbol on the keyboard. 15. -
Page 20: Launching The Internet Browser/Entering An Internet Address
ADVICE You may be asked whether the MiniPC should search for additional devices in the selected network and whether it should automatically connect to these devices (for example, printers or television sets). This is recommended in private home networks that you can trust. If you connect to a public wireless network, we recommend that you decline this option by tapping "Nein". -
Page 21: Changing The Display Language
If you do not yet have a Microsoft account or are not signed in with it, you must perform these steps. Open the Windows Store and select the desired app. Click the app and then click "Install". An assistant now appears to guide you through the process of setting up a Microsoft account. -
Page 22: Transferring Files Between The Minipc And Other Devices
19. Transferring files between the MiniPC and other devices Transferring files via Bluetooth Enable the Bluetooth function on the device you want to connect and make the device visible to other devices if necessary. To do so, refer to the operating instructions of the device to be connected. -
Page 23: Transferring Files Between The Minipc And An External Storage Device
ADVICE After a successful file transfer, deactivate the Bluetooth function to save energy. To deactivate the Bluetooth connection move the slider for Bluetooth from right to left. The word "Off" now appears next to the slider. Transferring files between the MiniPC and an external storage device Please connect an external storage device (for example, a USB drive or a hard drive) to a USB port on your MiniPC. -
Page 24: Reset
20. Reset If the MiniPC "freezes" and no longer responds, you can reset it. Press and hold down the on/off switch for at least 10 seconds until the device switches off. Wait for about 20 seconds and then turn the device on normally. ADVICE Any files that have not been saved will be lost when the MiniPC is reset. -
Page 25: Troubleshooting/Faq
23. Troubleshooting/ In the following, you will find a list of frequently asked questions along with the appropriate answers and proposed solutions. When I attempt to start a video recording, I get an error message and recording does not start. What can I do? Please first install all available updates on your MiniPC (see the question FAQ "How can I install Windows Updates on my MiniPC?"). -
Page 26: Glossary
24. Glossary Apps/Applications An app (abbreviation of the word "application") or application is a program that you can download from the Windows Store, for example, and install on your MiniPC. Games, programs for playing back images and music files, word processing programs and a lot more are available. -
Page 27: Notes On Copyright And Trademarks
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by TREKSTOR GmbH is under license. Other trademarks and trade names are those of their respective owners. -
Page 28: Notes On Recycling
27. Notes on the warranty TREKSTOR GmbH grants a manufacturer's warranty to the buyer of a TREKSTOR GmbH product bought and used in Germany, but not to a second buyer. This is in addition to the statutory rights to which the buyer is entitled from the seller and does not restrict those rights. -
Page 29: Support Information
Directly contacting us, the manufacturer, via our service hotline or by filling out our service form allows us to address your concern more quickly and allows you to benefit from high-quality consulting and support. You can find out how to reach our service team here: www.trekstor.de/support... - Page 30 The manufacturer hereby confirms that the MiniPC WBX5005 device complies with the requirements and other relevant provisions of Directive 2014/53/EU. You can request the complete declaration of conformity by telephone or email on our support website: www.trekstor.de/support Frequency range BT/BT LE:...
- Page 31 TREKSTOR GmbH Berliner Ring 7 64625 Bensheim, Germany www.trekstor.de BA-MPCWBX5005-V1-40-EN-200317...
