C O N N E C T I N G T H E B AT T E RY A N D
TURNING DC POWER ON
1. Connect the red battery wire to its spade
terminal. Figure 16.
2. Turn DC power ON. The USAGE CLASS
appears the fi rst time power is supplied to the
operator.
3. To navigate within the Setup Menu, use the
SELECT, NEXT, and PREV buttons as shown
in Table 2.
ON
DC
POW
OF
Turn DC
power ON

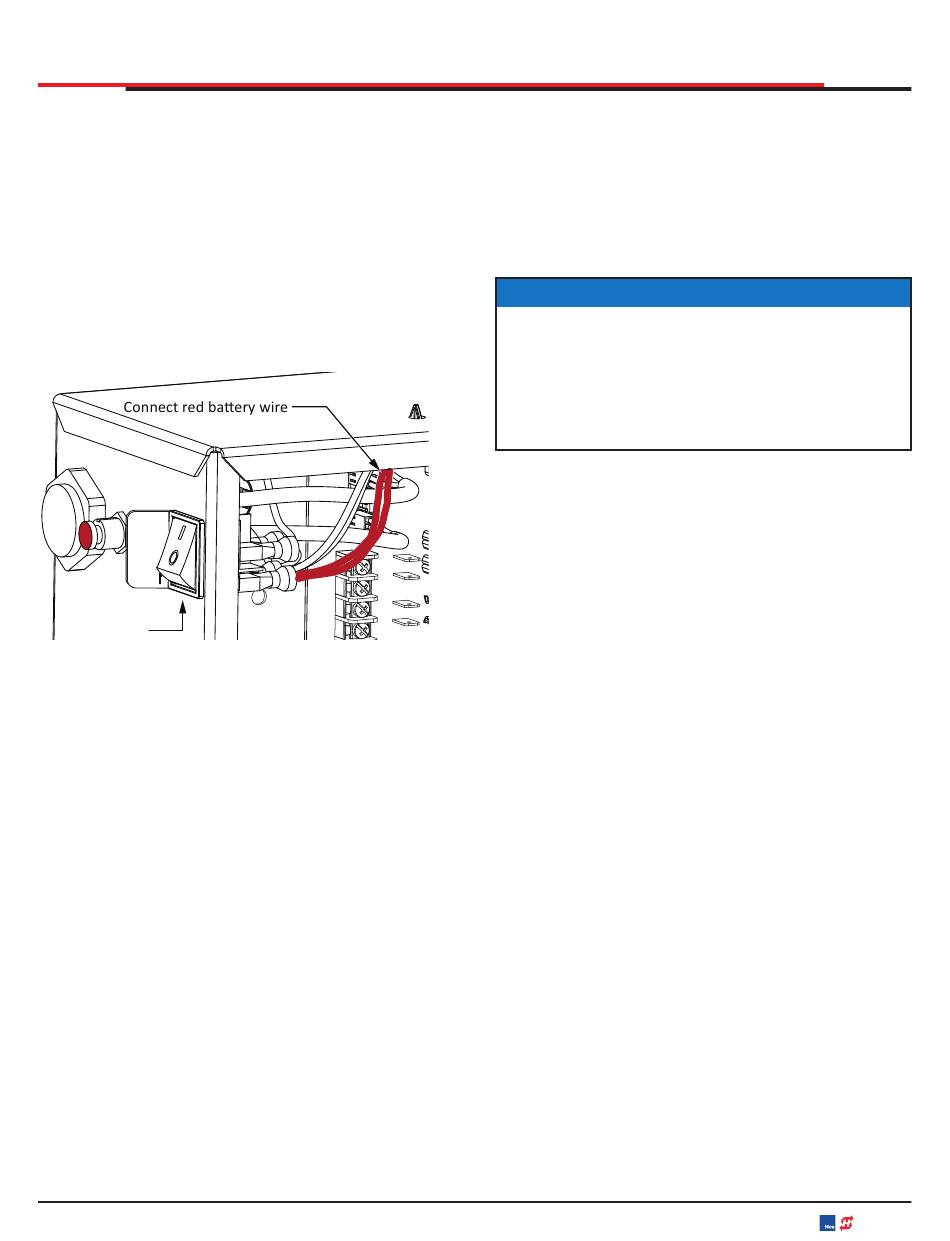

Figure 16. Connect Battery and Power On
MX4505 Rev. E ©2020
SlideSmart DC Programming and Operations
PROGRAMMING THE INITIAL SETUP
MENU
Several sequential displays present information
which must be confi gured before SlideSmart HD
will function. Once the confi guration is complete,
the information is retained even when a power
loss occurs.
NOTICE
Programming the Setup Menu is usually a
one-time occurrence unless factory defaults
are reinstated through the Installer Menu. The
RESET and MENU buttons do not function
during the initial confi guration of the Setup
Menu.
hysecurity.com | 800-321-9947
INSTALLATION
25
