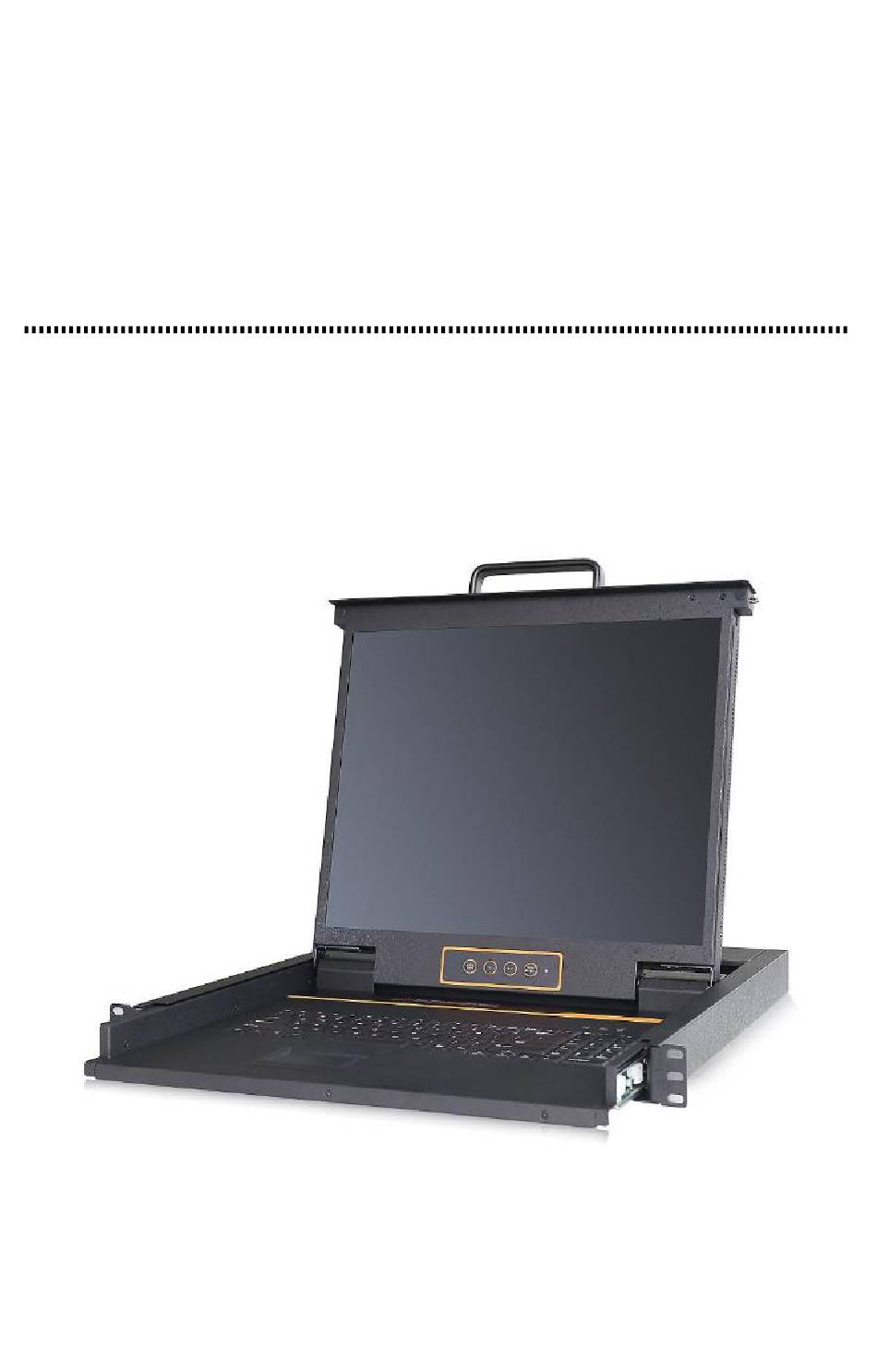

- Page 1 Rackmount LCD Console (Single port) User Manual www.kinankvm.com @all right reserved Shenzhen Kinan Technology Co., Ltd Print date: 2019 / 03 Version: V1.0...
- Page 2 LD1901 User Manual Description The rack mount 19” LCD console integrates the video, keyboard and mouse in a 1U rack space; it is fit for installing in a standard 19” server rack. It can control one computer from a complete keyboard, video and mouse control unit.
- Page 3 LD1901 User Manual Front View Figure 1-1.2 front view LCD Display Rear Bracket Slot OSD Controls Front Bracket Keyboard Touchpad Handle Lock Latch Display Panel - 2 -...
-
Page 4: Cable Connection
LD1901 User Manual Rear View 100-240Vac 50-60Hz Figure 1-1.3 Rear View PC port: 1 port(integrated DVI/keyboard/mouse signal) Grounding Screw Power Switch Power Input Socket(AC or DC) Cable Connection 1.2 cable connection - 3 -... -
Page 5: Rack Mounting
LD1901 User Manual Rack Mounting A standard rack mounting kit is provided to mount the switch in a depth of 510-700mm rack. With one person hold the switch in place and the other person slides the L bracket into the switch’s side mounting brackets from the front to the back, and then screws the brackets to the rack. - Page 6 LD1901 User Manual Opening the Console Power on the KVM after connecting cables. Power on the server or PC after power on the KVM. Release the release catch. Figure 1-2.3 unlocking *Note: The release catch can only do horizontal locking, it can’t bear any load.
-
Page 7: Osd Controls
LD1901 User Manual OSD Controls Figure 1-2.6 OSD controls Buttons Functions Opens the menu function and brings up the main MENU SELECT menu. Press this button exits the current menu and return to the previous menu or press this button exits the EXIT/AUTO LED OSD. -
Page 8: Specifications
LD1901 User Manual Specifications Model LD1901 Direct Computer Connections Port emulation Keyboard, mouse PS/2，USB LCD model SXGA TFT View area 19 " Optimum resolution 1280×1024@60Hz LCD monitor Display color 16.7 M 250cd/m² （ T y p ） Brightness 1000 : 1 （ T y p ）...
