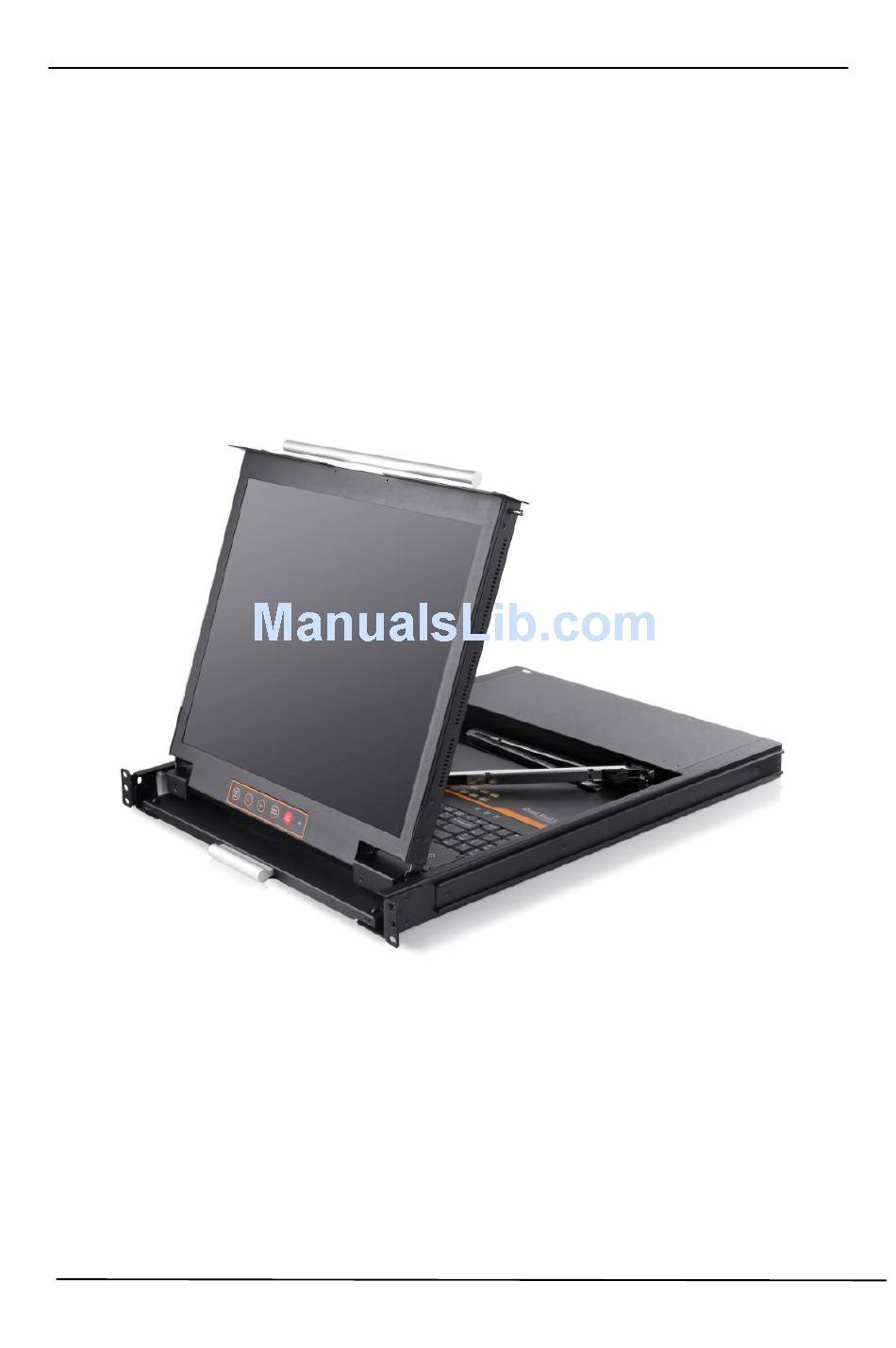

Page 1: Kvm Console
User Manual Rack Dual Rail CAT5 LCD KVM Console （8 Port /16 Port/24 Port /32 Port） User Manual www.szkinan.com @all right reserved Shenzhen Kinan Technology Co.,Ltd Printing date: 2015/05 Version: V3.0 - 1 -... -
Page 2: Table Of Contents
User Manual Contents Overview....................... 3 Description ..................... 3 Features ....................3 Structure and Size .................. 5 Model: ....................5 Hardware Installation .................. 6 Rack Mounting ..................6 KVM Adapter ....................7 Single Station Installation ................8 Cascade Installation ................... 9 Opening the Console ................ -
Page 3: Overview
User Manual Overview Description The LED panel and keyboard/touchpad modules slide independently of each other, the keyboard/touchpad module slides back to “hide away” when not in use, while the thin profile LED monitor rotates backflush against the rack allowing administrators to easily monitor computer. To make it more convenient, external USB or PS/2 keyboard/mouse/monitor are added to rear panel The CAT5 LCD KVM console integrates multiple-port CAT5 KVM switches in a... -
Page 4: Front View
User Manual Hot pluggable --add or remove computers without having to power down the switch Auto scan feature for monitoring user-selected computers Broadcast mode--operations simultaneously performed on all selected computers Keyboard and mouse emulation function. Front View 1-1.1 front view 1. -
Page 5: Structure And Size
User Manual Structure and Size 19.6 31.76 1-1.3 Model: - 5 -... -
Page 6: Hardware Installation
User Manual Hardware Installation Rack Mounting A standard rack mounting kit is provided to mount the switch in a depth of 650-850mm (17”), 670-800mm (19”) in a standard 19”rack. With one person hold the switch in place and the other person slides the L bracket into the switch’s side mounting brackets from the front to the back, then screws the brackets to the rack. -
Page 7: Kvm Adapter
User Manual KVM Adapter PS/2 CPU module USB CPU module Diagram 2-3 Table1.3: Module LEDs Components Functions Green light The module is power on flashing Power LED Green light is The module is connected to the normally on Fast blinking Communicating with the host Link LED Orange... -
Page 8: Single Station Installation
User Manual Single Station Installation 1) Make sure the KVM console has connected to the ground. 2) Connect the adapter to the KVM and the host. 3) Connect any available KVM port and KVM adapter with CAT5 cables. 4) Plug the female port of the power cable in the KVM power socket, and plug the male port in the AC power port. -
Page 9: Cascade Installation
User Manual Cascade Installation 2-5 cascade installation Explanation: Connect one port of the CAT5 cable to any RJ45 port of LC1932, and connect the other port to the RJ45 port with “Chain in “of KC1232. Repeat above operation to cascade more KVM switches. 8 Port: max cascade 8 levels 16 Port: max cascade 16 levels 24 Port: max cascade 24 levels... -
Page 10: Opening The Console
User Manual Opening the Console Release the release catch 2-1.3 unlocking Pull the LED panel all the way out until it clicks into place. - 10 -... - Page 11 User Manual Rotate the LED module all the way back to expose the LED screen, the LED module can be rotated up to108° . Pull the keyboard module all the way out until it clicks into place. Note：the keyboard module can’t bear extra load or any surface pressure. - 11 -...
-
Page 12: Closing The Console
User Manual The KVM makes two “beep” sounds after power on, an OSD window appears for you to input user name and password. 8 Port /16 Port: The orange LED and LED tube are flashing before you enter your password. 24 Port /32 Port: appears on LED tube without user name and password. -
Page 13: Led Osd Configuration
User Manual Push the module all the way in, it automatically locks and shut down LED power. LED OSD Configuration The LED OSD allows you to set up and configure the LED display. Buttons Functions Press this button invokes the menu function MENU SELECT and brings up the main menu. -
Page 14: Osd Operation
User Manual OSD Operation Double click the right button of the mouse or double click hotkey【Scroll Lock】 to invoke below OSD main menu. You can customize the OSD hotkeys; find more details in OSD function instructions. Headings Explanation Port No. of the host computer means this post has been cascaded a KVM It shows the computer port... -
Page 15: Osd Functions
User Manual OSD Functions Menu Keys Submenu/Explanation Set User login-Set User login account and password Set accessible-Set access permissions BRC Mode -monitor multiple computers at the same time Load Default-reset the menu to the original factory default settings All-Lists all the ports on the installation Power On-lists only powered on ports that have Scan attached computers. - Page 16 User Manual Menu Overview Operating instructions 1） Press 【F1】 or 【←】 【→】 enters the F1 submenus. 【↑】【↓】moves the 2）Press highlight bar to select the submenu. 3）Press【Enter】selects and exits ADM menu. 4 ） Press 【 Esc 】 cancels the operation exits menu.
- Page 17 User Manual 2. Set accessible—press [Enter] to select Set Accessible, then below menu appears: （diagram 4-1.3） 4-1.3 Menu Explanation Full access function to the station and can do any FULL operation to the ports Read only function, you can only read the port but VIEW you can’t operate it if set this function.
- Page 18 User Manual 2) If you want to set access permission of cascade port, press【Page Down】 moves to next level, and the SN changes into Bank – Port( e.g.: 02-01), then press【Space】to select the permission options you need to set. 3) [User1] log in OSD menu, as shown in below diagram 4-1.5. 3.
- Page 19 User Manual F1->BRC Mode OFF ->[Enter] ,enter the main menu, all symbols turn into speaker symbol(diagram 4-1.8 ) 4-1.8 Load Default--- press [Enter] to select the submenu, all the set values are restore to original factory default settings. Menu Overview Operating instruction 1）Press【F2】or 【←】【→】...
- Page 20 User Manual Menu Overview Operating instructions 1）Press【F3】or 【←】【→】 enters the F3 submenus from other menus. 2）Press 【↑】【↓】moves the highlight bar to select the submenu. 3） Press 【Enter】 selects and exits Set menu. 4 ） Press 【 Esc 】 cancels the operation exits menu.
- Page 21 User Manual Menu Overview Operating instructions 1） Press 【F4】 or 【←】 【→】 enters the F4 submenus. 2）Press 【↑】【 ↓ 】moves the highlight bar to select the submenu. 3）Press【Enter】selects and exits Tool menu. 4 ） Press 【 Esc 】 cancels the operation and exits Tool menu.
-
Page 22: F6-Edit Port Name
User Manual F6-Edit port name Choose the port with【↑】【↓】 key; Press F6 and key in the new name or modify the old one, then press Enter to save the name and exit editing. Press 【Esc】to cancel and exit the editing. -
Page 23: Cascade Function
User Manual Cascade Function 1. Operate the host computer under cascade 4-1.5 4-1.6 Note: Shows that we have already connected an 8 port KVM to port 2(see diagram 4-1.5), we can connect 8 computers to the 8 port KVM. Press 【 Pa UP】 to select port on current station, then press 【Enter】 to operate the port. -
Page 24: Usb Keyboard Emulation
User Manual USB keyboard emulation Mac keyboard The PC compatible (101/104 keys) keyboard can emulate the functions of the Mac keyboard. The emulation mappings are listed in the below table: PC Keyboard MAC Keyboard [Shift] Shift [Ctrl] Ctrl L_Win& "1" L_Win&... -
Page 25: Sun Keyboard
User Manual Sun keyboard The PC compatible (101/104 keys) keyboard can emulate the functions of the Sun keyboard when the control key [L_Win] is used in conjunction with other keys. The corresponding functions are shown in the below table: PC Keyboard Sun Keyboard L_Win&L_Alt Stop... -
Page 26: Appendix
User Manual Appendix Specifications Model DL2908 DL2916 DL2924 DL2932 Direct Computer connections 1024 Port emulation Keyboard, mouse PS/2, USB LED model SXGA TFT 19″ View area Optimum 1280×1024@60Hz resolution LED monitor Display color 16.7 M Brightness 250cd/m² (T y p )
