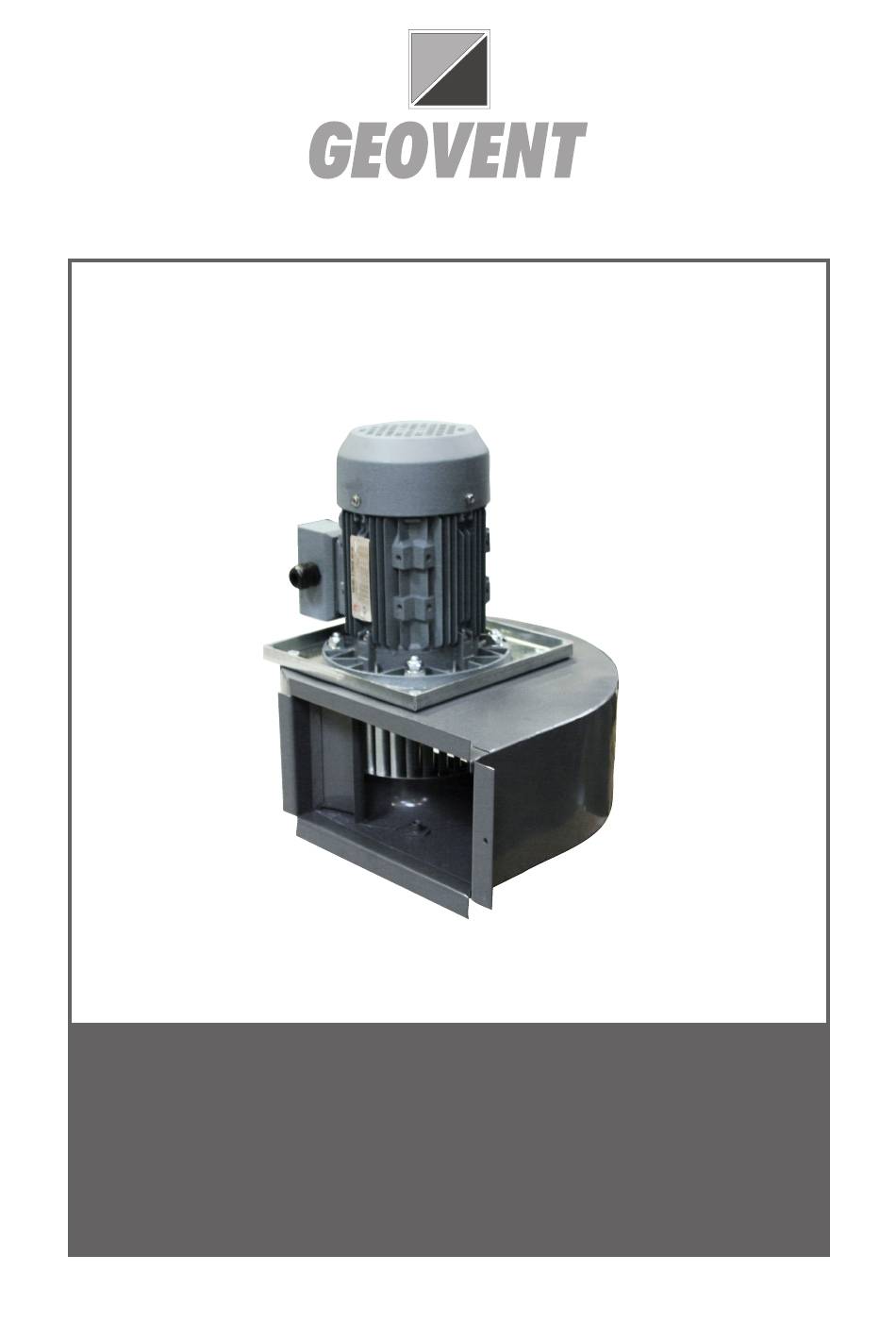

- Page 1 I N S T R U C T I O N S M A N U A L F a n MSQ 200 www.geovent.com Version 1.0 16.03.17...
- Page 3 The Fan is not suitable for the extraction of aluminium dust, flour, textile dust nor for sawdust or other media, which are connected with danger of explosion, without specific approval from Geovent A/S. 1.3 Handling Aleays use gloves when handling the fan.
- Page 4 Fan wheel: forward curved scirocco-wheel (F-wheel) Warm galvanized steel Motor: B5 flange motor, Direct drive, Protection class:IP 55. Dimensions: MSQ 200 with flange for extraction arm mounting. Mounting on hose reel MSQ 200 2.0 Installation The fan is supplied assembled and ready for piping and connection to power.
- Page 5 2.1 Fitting accessories The following installation should only be carried out by a trained professional. Fitting motor protection and pressure switch. Connect fan to power grid: For installation of control device in connection with Only a trained electrician should connect the fan to process ventilation, see seperate documentation.
- Page 6 Geovent. Wear parts like the wheel is not covered by this warranty. Liability In order for Geovent to be capable of granting the declared warranty, the user/fitter must follow this Instruction Manual in all respects.
- Page 7 6.0 EU declaration of conformity. HOVEDGADEN 86 • DK-8831 LØGSTRUP Tlf.: (+45) 8664 2211 • e-mail: salg@geovent.dk Hereby declares that: Date: 16-03-17 The product: MSQ Fan Position: Director have been manufactured in compliance with the dire- Name: Thomas Molsen ctions of the Directive Council of 17th of May 2006 in...
