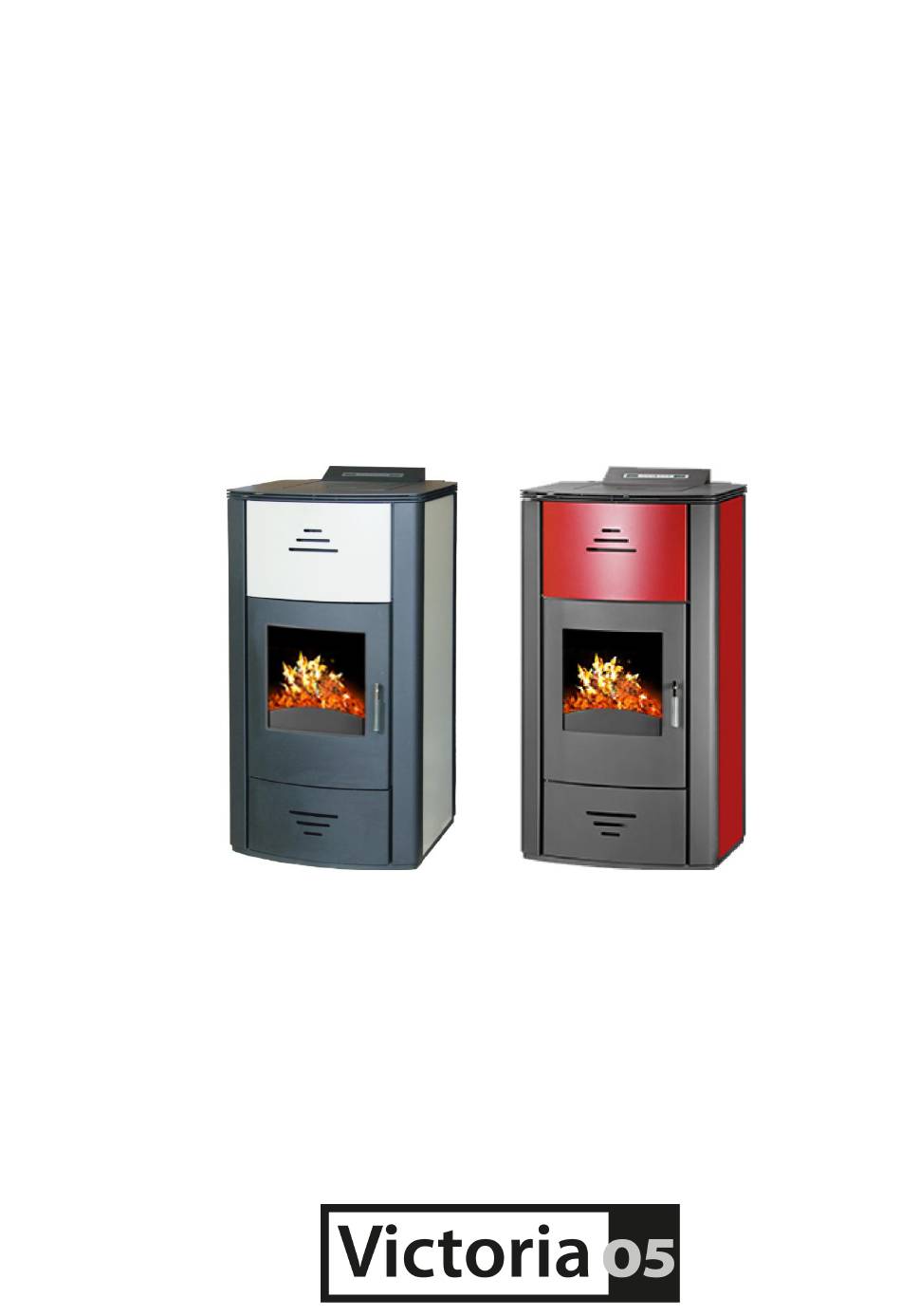

- Page 1 Instruction for installation and operation of pellet burning stove with integral water boiler VITTORIA В*...
-
Page 2: Table Of Contents
Contents 1. Introduction: …………………………………………….……………………………………….. 3 2. Safety information: …………………………………….…………………..…………………. 3 3. Technical parameters: ………………………………….…………………..……………….. 4 4. Safety devices: ……………………………………………….………………………………….. 6 5. Electronic circuit board: ………………………………….………………..……………….. 6 6. Principle of operation: …………………………………….………………………….……… 7 7. Operation ………………………………………………………….……………………..………… 8 8. Safety and detection devices: …………………………….…………………….………… 8 9. -
Page 3: Introduction
1.Introduction: We congratulate you on the excellent choice! We wish you many pleasant moments with your new pellet stove. Do not leave the instructions unread. The installation and exploitation of the pellet stove should be made in accordance with different legal obligations, which are explained in this instruction. According to the laws and regulations for safety, when using an appliance of such class, the buyer and the user are obliged, with the help of this instruction, to inform themselves for the assembling and the right operation of the appliance. -
Page 4: Technical Parameters
Durring the stove is in operation, the exhaust pipes and door become very hot. Do not place anything that is not heat resistant near the stove. NEVER use liquid fuel to ignite the stove or rekindle the embers ... - Page 5 Technical and heating parameters: Specifications: Performance parameters: Distance to flammable materials Minimum distance, in mm. side=400 back=400 front=800 Flue outlet Ø 8 cm СО emissions [13% О 0,0132 % Output flue gas amount 12,23g/s Working pressure of the water 1,5 bar Maximum test pressure of the water 3 bar °...
-
Page 6: Safety Devices
4.Safety devices: -Thermocouple: Placed at the smoke outlet to detect temperature. Turns the stove on and off and also controls its operation based on defined parameters. -Vacuum gauge: (electronic pressure sensor) Placed on the smoke extractor which detects the vacuum value (compared to the installation enviroment) in the combustion chamber -Safety thermostat: Switches off when the temperature in the stove is too high. -
Page 7: Principle Of Operation
The pellet stove is equipped with system which ensures optimal burning. The system ensures excellent operation thanks to two sensors measuring the pressure level in the combustion chamber and smoke temperature. The detection of and subsequent optimisation of these two parameters is continuous in order to correct opera- tion anomalies in real time. -
Page 8: Operation
7.Operation: The required temperature of the water in the system is adjusted and set by the control panel (recommended C) and the stove manually or automatically changes the power to reach and keep the temperature. Fuel notes: - The stove is designed and programmed to use and burn wood pellets with diameter 6 mm. - The pellets are type of fuel which is made from heavily compacted under very high presure chopped waste wood and saw dust. -
Page 9: Installation
Closed expansion tank Absorbs the differences in the volume of the water caused by the heating. Technician has to decide is it needed to add second tank to the existing one, depending from the volume of the water in the system. Venting valve (deaerator) Positioned on the top part, allowing to bleed the system from any air inside, present during filling with water. - Page 10 The room where the stove is placed must have an air inlet with a cross-section of at least 80 cm² so as to guarantee sufficient air supply to the stove for combustion. Alternatively, the stove air may be taken directly from outside through a 5 cm steel extension of the pipe.
-
Page 11: Basic Instructions For Use
Water treatment. Consider and ensure adding the appropriate antifreeze or other compounds against freezing and corrosion. If the water is exceeding the hardness value of 35˚F, you should use water softener. Note: the person responsible for the heating system should consider and ensure additional heat extension tank depending from the system. -
Page 12: Instructions For Use
- Check and verify the correct installation of the components in the system and also is the system equipped with appropriate expansion tank to ensure safe work. The presence of heat expansion tank in the stove itself, does not guarantee adequate protection from overheating the water. - Connect the electric supply and make a cold test (performed by the dealer) - Fill up the system form the filling tap (recommended not to exceed 1 bar pressure.) During filling up the system, bleed the circulation pump. - Page 13 When the stove is operational by pressing button 0/1 for 2 seconds, the process for shutting down the stove is started and OFF is displayed for 10 minutes. Shutdown phase includes: Pellet feeding is stopped. Stopping the circulation of the water. Never pull off the plug during shutdown process! Please have a note that the circulation pump will work till the temperature of the water drops under 40 Setting the clock:...
-
Page 14: Maintenance
From this moment the display will show the remaining quantity of the pellets in kg. (15 … 14 … 13). Every time when pellets are loaded you must enter the quantity. When loaded 15 kg. just press “pellet load” button. For different quantity or if there is a mistake, you can specify the quantity by using the menu as follows: Press “MENU”... -
Page 15: Possible Troubleshooting
Picture 10 Picture 11 The amount of dust depends from the used fuel. Failure to do the cleaning procedure can cause the stove to block. After the cleaning procedure is completed, make sure that all service openings are closed and sealed properly. Seasonal maintenance (performed by the dealer): The dealer firstly is setting the amount of pellets consumed after which the message “Maiten??”... - Page 16 2. VERIFIC./EXTRACT: Shuts down due to the revolution sensor of the smoke extractor motor detecting an anomaly. - Check smoke extractor functionality (connection of the revolution sensor) - Check smoke channel for dirt. 3. STOP/FLAME: Shuts down due to a drop in smoke temperature (intervenes if the thermocouple detects a smoke temperature that is lower than that which is set, thereby interpreting it as a flame failure).
-
Page 17: Check List
16. Check list: Positioning and instalation: - Enough room ventilation. - Only the stove outlet passes through the smoke channel/chimney. - Smoke pipes have maximum 2 curves, maximum length 2 meters and at least 1,5 m vertical pipeline. - The exhaust pipes are made by appropriate material (stainless steel recommended) - When using any flammable materials (wood for example) all precisions have been taken to prevent fire hazard. -
Page 20: Warranty Conditions
Warranty conditions: The producer guarantees the proper working of the stove in 24 months term from the day of selling in the store, except for the parts which are consumptives, in case that all requirements for proper storing, transportation, installation and use are kept. Installing of the stove and the heating system must be completed by authorized licensed organization in accordance with the instructions given in this instruction manual! When claiming the stove you must present receipt and invoice for buying the stove and the original of the warranty card. - Page 21 Victoria-05 Ltd. 61A Anton Strashimirov Str. 5100 Gorna Oryahovitsa Bulgaria phone: +359 618 60282 fax: +359 618 60200 e-mail: info@v05.bg...
