CoLiDo Heat Bed Installation

For print-rite diy

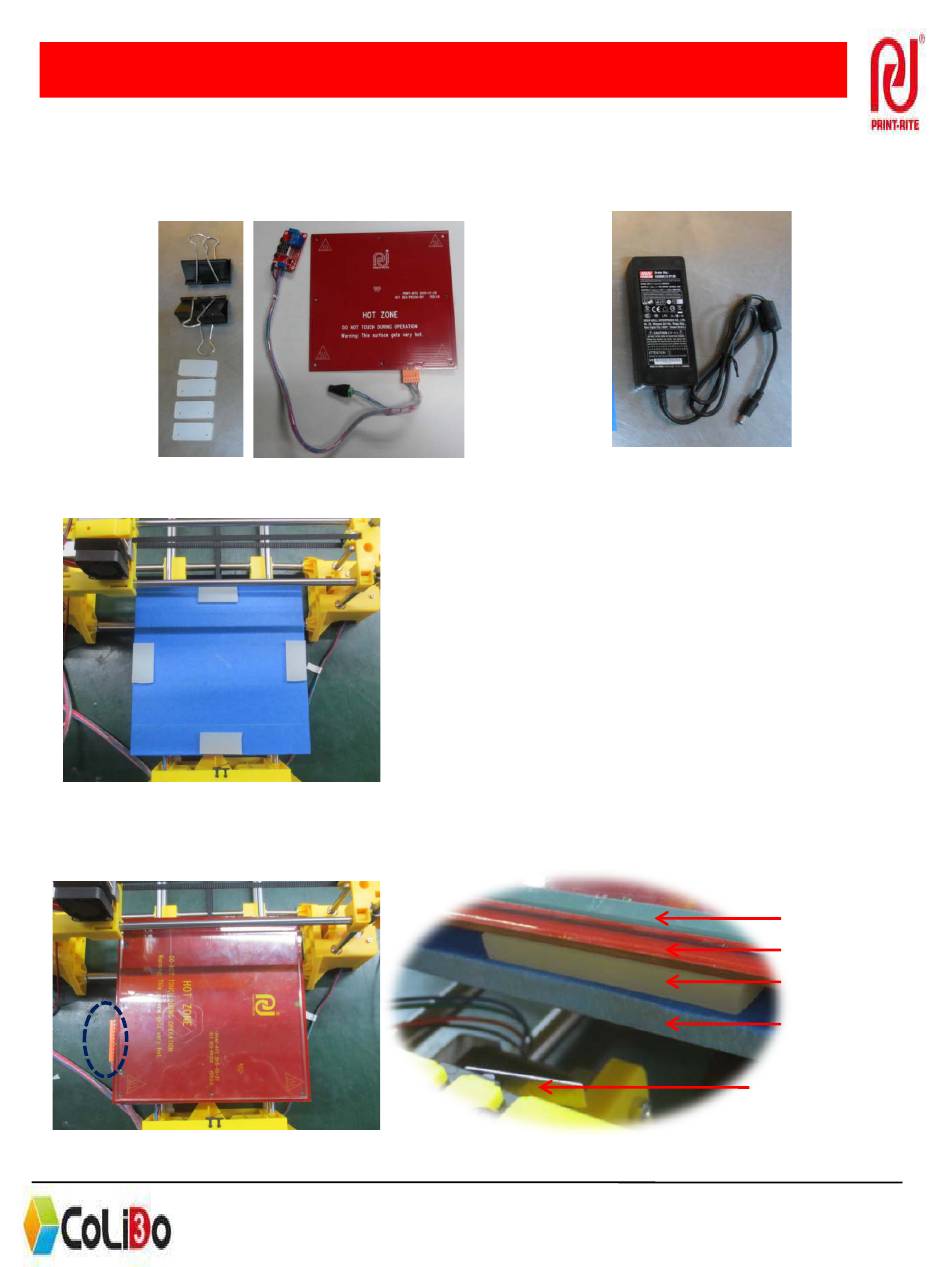

DIY Heat Bed Installation

Prepare: 1pc Heat Bed with wire and regulator,

4pcs silicon pads, 2pcs Metal Clips, 1pc glass platform,

1pc power supply (owned by customer with output 80W)

1. Place 4pcs Silicon Pad on the DIY platform;

2. Place the Heat Bed and Glass on the DIY Platform. The wire slot

should be facing left.

Wire Slot

NOTE: The silicon pad is used for heat

insulation from heat bed to the DIY

platform, or the DIY platform will be

deformed.

Limit Switch

3Dsupport@utec.com.mo

Glass

Heat Bed

Silicon Pad

DIY Platform

Table of Contents

Need help?

Do you have a question about the Heat Bed and is the answer not in the manual?

Page 1 NOTE: The silicon pad is used for heat insulation from heat bed to the DIY platform, or the DIY platform will be deformed. 2. Place the Heat Bed and Glass on the DIY Platform. The wire slot should be facing left. Glass Heat Bed...
Page 2 DIY Heat Bed Installation 3. Fix the heat bed and glass to the DIY platform using the metal clip, then remove the handle of the metal clip ; 4. Plug the Heat Bed wire to the power supply and power on, the heat bed will start to heat up.
Page 3 DIY Heat Bed Installation Remark: 1. We can provide STL file to print the regulator case; 2. Due to the bed sample made urgently, we made the thermocouple simply by ourselves and not beautiful (Pic-A), the actual temperature variance will be 5~10℃;...
