AURES JAZZ-BASE151 User Manual

Hide thumbs Also See for JAZZ-BASE151:

Advertisement

Quick Links

Download this manual
FCC Notice
FCC Statement
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with
USER'S MANUAL
JAZZ-BASE151
MZ935PU044001-BLACK / MZ935PU044002-WHITE
l
ART-0414X
Rev.A

Advertisement

loading
Need help?

Need help?

Do you have a question about the JAZZ-BASE151 and is the answer not in the manual?

Questions and answers

Related Manuals for AURES JAZZ-BASE151

Summary of Contents for AURES JAZZ-BASE151

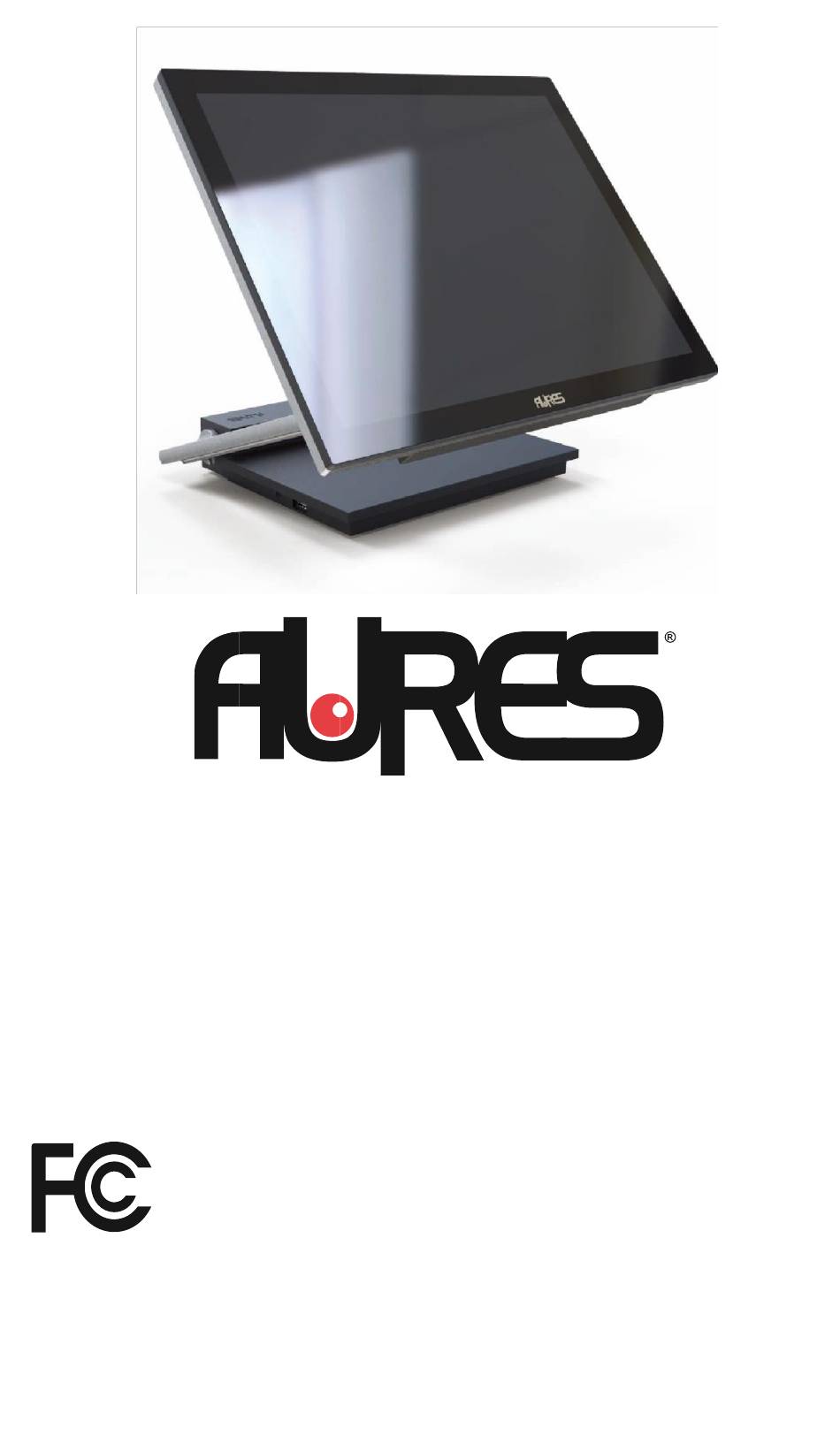

  • Page 1 USER'S MANUAL JAZZ-BASE151 ART-0414X MZ935PU044001-BLACK / MZ935PU044002-WHITE Rev.A FCC Notice FCC Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 2 the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. This equipment complies with Part 15 of the FCC Rules.
  • Page 3 The wall socket must be easily accessible and in close proximity to the machine. Read these instructions carefully. Save these instructions for future reference. Follow all warnings and instructions marked on the product. Do not use this product near water. Do not place this product on an unstable cart, stand, or table.

  • Page 4: Table Of Contents

    Table of Contents Package Overview ....................2 Product Overview ....................2 Specification ......................3 How to install the CPU box ..................6 How to Install Cables ..................... 7 Product Dimensions ....................8 Appendix A: Driver Install ..................8...

  • Page 5: Package Overview

    Power Cord DC Power Supply (MZ935PU044001-BLACK/ MZ935PU044002-WHITE) RJ-50 to DB- Cable EMV Reader (Optional) (Optional) iButton Reader (Optional) (Optional) (Optional) User Manual Product Overview JAZZ-BASE151(MZ935PU044001-BLACK/MZ935PU044002-WHITE) is an 15 inch touch display module designed for point of sale applications. • Front View...

  • Page 6: Specification

    • Bottom View Specification Model Name JAZZ-BASE151 (MZ935PU044001- BLACK/MZ935PU044002-WHITE) Intel® Core™ Intel® Core™ CPU support Intel® Kabylake i5-7300U BayTrail Skylake i3-6100U Processor (3M Processor Processor Cache, up to 3.50 J1900 (2M (3M Cache, GHz) Cache, up to 2.30 GHz) 2.42 GHz)
  • Page 7 Aspect Ratio Backlight Type LED Life Time 70,000 Hours (min.) Touch Sensor P-CAP Touch Touch Screen 10 points Controller IC EETI 3188 Interface Storage M.2 2280 Monitor System Power button 1 x with Power indicator (Blue color when power ON) 4 x Type-C female *From CPU BOX by one (DP + USB3.0) *Accessory device Left said by one (USB2.0 only,...
  • Page 8 Windows® 7 Professional for Embedded Systems, OS support Windows® Embedded POSReady 7, Windows® 10 * This specification is subject to change without prior notice.

  • Page 9: How To Install The Cpu Box

    How to install the CPU BOX 1. Lay the LCD flat on an even surface. 2. Move the stand into position as seen in the step 2 diagram. 3. Remove the MB cover as seen in the step 3 diagram. 4.

  • Page 10: How To Install Cables

    How to Install the cables 1. Lay the LCD flat on an even surface. 2. Push out the 4 screws to remove the stand cover as seen in the step 1 diagram. 3. Connect the USB and power cable to the appropriate connectors as seen the step 2 diagram.

  • Page 11: Product Dimensions

    Product Dimensions Appendix A: Driver Installation To download the most recent drivers and utilities, and obtain advice regarding the installation of your equipment, please visit the AURES Technical Support Website www.aures-support.fr (French) www.aures-support.fr/EN (English) www.aures-support.fr/DE (German)

This manual is also suitable for:

Art-0414x
