R
USB Micro-B
1
VBUS
2
D-
D-
3
D+
D+
4
ID
5
GND
C1
10 pF
A-Star 32U4 Prime LV
©2019 Pololu Corporation
www.pololu.com
nRESET
SW1
VBUS
ATmega32U4
13
RESET
7
R2
VBus
D-R
3
D-
4
R1
22
D+
D+R
22
RXLED
8
PB0 (SS/PCINT0)
SCK
9
PB1 (PCINT1/SCK)
MOSI
10
PB2 (PDI/MOSI/PCINT2)
MISO
11
PB3 (PDO/MISO/PCINT3)
D8
28
PB4 (PCINT4/ADC11)
D9
29
PB5 (OC1A/OC4B/PCINT5/ADC12)
D10
30
PB6 (OC1B/OC4B/PCINT6/ADC13)
D11
12
PB7 (OC0A/OC1C/PCINT7/RTS)
D3
18
PD0 (INT0/SCL/OC0B)
D2
19
PD1 (INT1/SDA)
D0
20
PD2 (INT2/RXD1)
D1
21
PD3 (INT3/TXD1)
D4
25
PD4 (ICP1/ADC8)
TXLED
22
PD5 (XCK1/CTS)
D12
26
PD6 (T1/OC4D/ADC9
D6
27
PD7 (T0/OC4D/ADC10)
Y1 16 MHz
XTAL2
16
XTAL2
XTAL1
17
XTAL1
C2
10 pF
6
UCap
14
VCC
34
VCC
2
UVcc
24
AVCC
44
AVCC
42
AREF
AREF
33
HWB
PE2 (HWB)
1
PE6 (INT6/AIN0)
31
PC6 (OC3A/OC4A)
32
D13
PC7 (ICP3/CLK0/OC4A)
36
PF7 (ADC7/TDI)
37
PF6 (ADC6/TDO)
38
PF5 (ADC5/TMS)
39
PF4 (ADC4/TCK)
40
PF1 (ADC1)
41
PF0 (ADC0)
Page 1 of 6

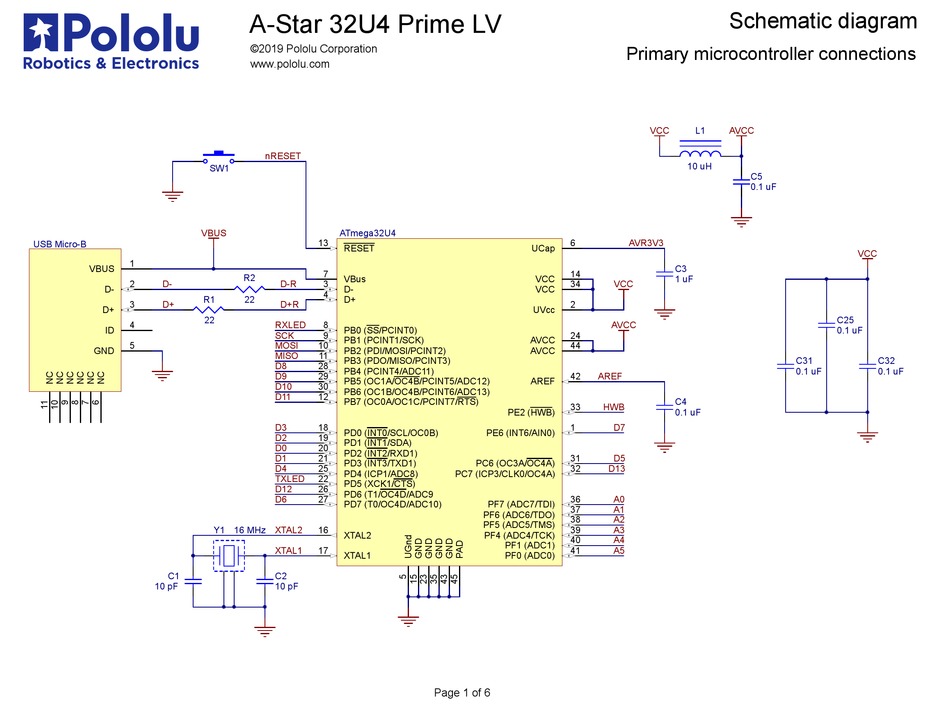

Primary microcontroller connections
VCC
L1
AVCC
10 uH
C5
0.1 uF
AVR3V3
C3
1 uF
VCC
AVCC
C4
0.1 uF
D7
D5
A0
A1
A2
A3
A4
A5
VCC
C25
0.1 uF
C31
C32
0.1 uF
0.1 uF
