3.1.3. Diamond Tip
The Diamond Tip
different coarseness and exfoliation grades to enable a specified treatment per patient.
The User Manual provides detailed explanations about each tip and its uses.

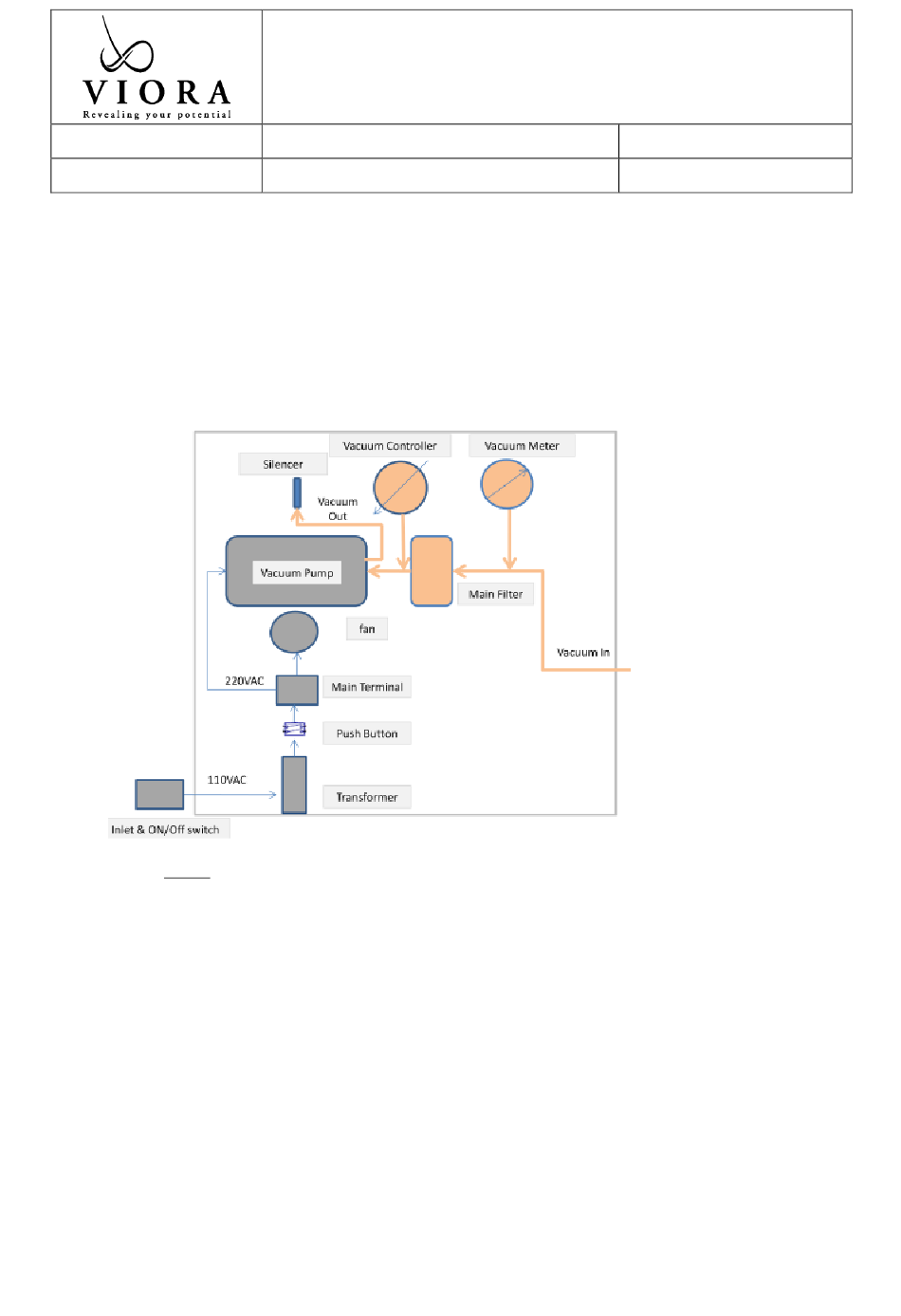

3.2.1. System Block Diagram
Note: The above block diagram defines 110V AC systems. In 220VAC systems there
is no transformer.
