R
DS1 Network Interface Unit with Performance Monitoring
CONTENTS
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.

GENERAL

1.1
Document Purpose
This document describes the Westell 3115-80 DS1 Network In-
terface Unit (NIU) with Performance Monitoring, shown in
Figure 1.
1.2
Document Status
Whenever this practice is updated, the reason will be stated in
this paragraph. The Revision B practice adds Paragraph 6.11.3,
and updates Paragraphs 9.2.4.4 through 9.2.4.7, Paragraph
9.2.9, Table 7, Table 11, Table 12, Figure 13, Figure 15,
Figure 16, Figure 17, Figure 25 and Figure 27. The Issue B
equipment provides the following improvements:
S
Manufacturability
S
ESF & B8ZS LEDs added
S
SPRM generation added
S
XMT LBO with Auto Binder added
S
RCV LBO added
S
RCV (FAC-to-CPE) regeneration added
S
Test pattern generation added
S
Craft accessible Log Reports added
S
Alarm thresholds added
S
Application modes combined
ECopyright 2004 EWestell, Inc. All rights reserved. Printed in the United States of America.
*CLEI is a trademark of Telcordia Technologies. 200 MECHANICSr in a registered trademark of
and PROACTt is a trademark of Westell, Inc.
Model 3115-80 Issue B
Part of the Westell PROACTt Family
CLEI* Code: T1S1ABTAAA
PAGE #
1
2
. . . . .
3
. . . . . . . . .
5
. . . . . . .
7
.
8
. . . . . . . . . .
11
12
. . . . . . . . . . . . . . . . . . . .
13
. . . . . . . . . . . . .
21
. . . . . . . .
22
. . . . . . . . . . . . . . . . . . . . . .
22
22

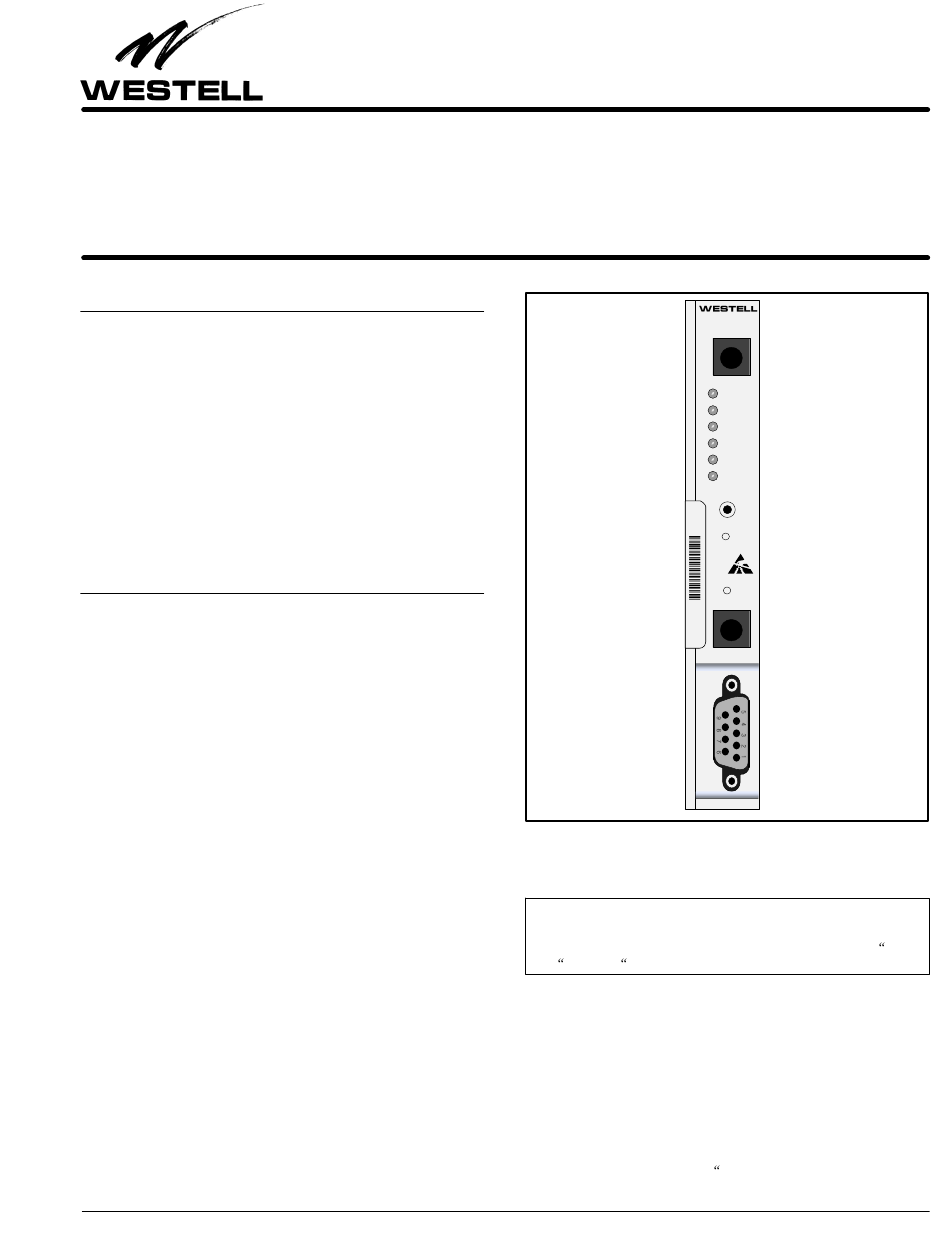

Figure 1.
3115-80 NIU with Performance Monitoring
- NOTE -
Hereafter, the 3115-80 DS1 Network Interface Unit with
Performance Monitoring also may be referred to as the NIU,"
the unit," or 3115-80."
1.3
Product Purpose and Description
The Westell 3115-80 Issue B T1 Network Interface Unit with
real-time Performance Monitoring serves as an interface be-
tween a T1 metallic span, or a customer premises-based fiber
multiplexer, and the intra-building Customer Premises Equip-
ment (CPE). The 3115-80 Issue B is a member of the Westell
PROACTt family of T1 NIUs that provide standard mainte-
nance loopback plus collection and reporting of DS1
performance statistics. These performance monitoring capabili-
ties allow service providers to PROACTively" respond to facility
Section 311-580-20B
Equipment Issue B
030-101527 Rev. B, July 2004
B90-311580
NIU-PM
C
P
E
LB
ESF
B8ZS
TP1
TP2
F
A
C
0407IBRB
Page 1 of 26

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROACT Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Westell PROACT Series

Summary of Contents for Westell PROACT Series

  • Page 1: Table Of Contents

    T1 metallic span, or a customer premises-based fiber Test pattern generation added multiplexer, and the intra-building Customer Premises Equip- ment (CPE). The 3115-80 Issue B is a member of the Westell Craft accessible Log Reports added PROACTt family of T1 NIUs that provide standard mainte-...

  • Page 2: Applications

    Front-panel test points for measuring span current primary protection. Westell offers a wide range of single and multiple slot mountings available in both backboard (wall) and Monitor-type bantam jacks on FAC IN and FAC OUT ports rack mount versions for NIUs.

  • Page 3: Transmission Features And Options

    Section 311-580-20B 030-101527 Rev. B certain wireless and PCS (Personal Communication Service) Transmission Design sites. In the local power mode, the NIU completes the T1 span simplex power loop and drops negligible span voltage. 2.1.1 T1 Span - Copper Applications 2.1.1.1 Normal T1 span design allows from 0 to 15dB of loss 2.2.2...
  • Page 4 Section 311-580-20B 030-101527 Rev. B FAC-to-CPE REGEN PERFORMANCE FLOS MONITOR & LOS CONTROL CODE DETECTOR DETECTORS TO/FROM (FAC-to-CPE PATH - A-Z) TO/FROM CUSTOMER TELCO INTERFACE PERFORMANCE FACILITY REGISTERS (CPE) PERFORMANCE CLOS MONITOR & LOS DETECTOR (CPE-to-FAC PATH - Z-A) Provisionable/ Self-Aligning 0 dB 7.5 dB...

  • Page 5: Loopback Features And Options

    Section 311-580-20B 030-101527 Rev. B FAC-to-CPE Regen RCV In CPE Out FLOS Performance Control AIS to CPE Monitor & Code TO CPE Generator FROM LOS Detector Detector 10 Ω FACILITY B8ZS LOCAL SPAN P201 System Controller And PM Registers Relay Power Network Converter...
  • Page 6 Section 311-580-20B 030-101527 Rev. B enabled, is activated. Figure 6 shows a simplified view of the cir- Remote Loopback Activation/Deactivation cuit during loopback . Loopback activation/deactivation is done from a remote test center, such as a Hi-Cap Center or Central Office, by sending in- Facility Loopback band or ESF Data Link loopback control codes toward the NIU During Facility Loopback, the LB LED is solid yellow and the...

  • Page 7: Sectionalization Alarm Features

    Section 311-580-20B 030-101527 Rev. B 4.6.2 To loop back the unit when it is configured for when the MAN LB switch is pressed for > 5 seconds. addressed loopback operation, the test person first sends the in- SECTIONALIZATION ALARM FEATURES band or ESF Data Link Loop-Up command (see Table 1) for the proper duration.

  • Page 8: Performance Monitoring & Reporting

    Section 311-580-20B 030-101527 Rev. B able for remote retrieval or local retrieval via the front-panel enter loopback upon loss of signal from the CPE craft terminal interface port. send AIS to the network upon loss of signal Performance Primitives Performance primitives are basic error events, or other perfor- send Idle to the network upon loss of signal mance-related occurrences, monitored by the unit and stored as send AIS-CI to the network upon loss of signal...
  • Page 9 Section 311-580-20B 030-101527 Rev. B the craft interface port or can be retrieved remotely via TL1 PM Retrieval, SF/ESF Circuits (Craft Port) commands. The 3115-80 provides a front-panel RS-232 connector for local access of performance statistics data without placing the unit Message Type Event/Alarm Log Message into loopback.
  • Page 10 Section 311-580-20B 030-101527 Rev. B DCS or other Test Head Device TL1z Command/ Response T1 LINE RPTR Test Access Encapsulated 3115-80 Digroup TL1 Messages (Split Access) in ESF Data Link TEST RESOURCES TL1 PM Commands/Responses to Performance Monitoring System Figure 7. TL1 PM Retrieval Diagram - Intrusive Mode Shown NPRM MONITOR...

  • Page 11: Hardware Options & Features

    Section 311-580-20B 030-101527 Rev. B own SPRM in order to provide performance information on the T1 circuit at the point of the network interface. The R", U1" B90-311580 NIU-PM and U2" bits of the 3115-80-generated PRM provide the addi- tional performance information into the PRMs. The use of each bit is given in the following paragraphs.

  • Page 12: Installation

    Unit is configured for AMI line coding. tion company and to Westell (see Part 11 for telephone number). *The on/off cycle of a flashing LED is faster than a blinking LED.

  • Page 13: Set-Up And Operation

    Section 311-580-20B 030-101527 Rev. B CAUTION 200 MECHANICS or 400-type mounting Risk of electric shock. Voltages up to 140 VDC (with reference to assembly ground) may be present on telecommunications circuits. NIU’s DB-9 - PRECAUTIONARY STATEMENT - Connector - Never install telephone wiring during a lightning storm. Standard RS-232 - Never install telephone jacks in wet locations unless the jack is...
  • Page 14 Figure 13. A Directory Tree/Path of Software Menus Accessed Via the Craft Interface & VT100 Terminal Westell B90-311580 CLEI: T1S1ABTAAA MAIN MENU PROACT T1 PERFORMANCE MONITORING NIU WESTELL TECHNOLOGIES, INC. AURORA, IL. 1-800-323-6883 SELECTIONS O) PROVISIONING P) PERFORMANCE STATISTICS S) CIRCUIT STATUS...
  • Page 15 Section 311-580-20B 030-101527 Rev. B Westell B90-311580 CLEI: T1S1ABTAAA PROVISIONING MENU Option Current > Monitored Line Coding: B8ZS Monitored Framing: CPE LOS Response: AIS-CI RAI-CI Option: ENABLED Real Time PM mode NPRM/SPRM CPE-to-FAC Regen: REGEN ON CPE-to-FAC LBO: DISABLED FAC-to-CPE Regen:...
  • Page 16 Section 311-580-20B 030-101527 Rev. B Westell B90-311580 CLEI: T1S1ABTAAA 02/28/2003 09:02:48 15 MINUTE PM STATISTICS (CURRENT) FAC-to-CPE CPE to FAC Date: 02/28/2003 Time: 08:00:00 CV-L ES-L Stat Register Key SES-L −−−−−−−−−−−−−−−−−− LOSS-L Loopback Data Incomplete CV-P Loss of Signal ES-P...
  • Page 17 Section 311-580-20B 030-101527 Rev. B Westell B90-311580 CIRCUIT STATUS CLEI: T1S1ABTAAA LVL: -13.0dBdsx LVL: -13.8dBdsx FRMG: SF 3115-80 FRMG: SF SIG: OK SIG: OK TO FAC TO CPE 7.5dB LBO LVL: -12dBdsx LVL: -4.0dBdsx FRMG: SF FRMG: SF SIG: OK...
  • Page 18 Section 311-580-20B 030-101527 Rev. B Westell B90-311580 CIRCUIT STATUS CLEI: T1S1ABTAAA LVL: -13.0dBdsx 3115-80 LVL: 0.0dBdsx FRMG: SF FRMG: SIG: OK SIG: TO FAC TO CPE 0dB LBO LVL: -0.5dBdsx LVL: 0.0dBdsx FRMG: SF Dual Loopback FRMG: SIG: OK SIG:...
  • Page 19 Section 311-580-20B 030-101527 Rev. B Westell B90-311580 CLEI: T1S1ABTAAA EVENT/ALARM LOG Events 1 - 15 of 100 Date Time Event 2/28/00 13 : 00 : 00 MANUAL LOOP DOWN 2/28/00 12 : 50 : 00 MANUAL LOOP UP 2/28/00 12 : 60 : 15...
  • Page 20 Section 311-580-20B 030-101527 Rev. B Westell B90-311580 CLEI: T1S1ABTAAA SET CLOCK Current Time 08/28/2003 11:50:23 New Time 08/25/2003 09:50:00 Use <tab> to select field, <return> to save, or <Esc> to return to main menu Figure 23. Set Clock Menu Screen (Typical)

  • Page 21: Testing & Troubleshooting

    Local Power Input Lead Fusing operate correctly, the original unit may be faulty and should be returned to Westell for repair or replacement (Paragraph 12.2). The NIU offers a flexible powering option which will allow the unit to operate directly from T1 metallic spans, or from a locally- 10.2...

  • Page 22: Customer & Technical Services

    Heat Release (LOCAL PWR): 0.91 Watts, typ. Replacements will be shipped in the fastest manner consistent with the urgency of the situation. Westell will continue to repair M. Equipped with a 3 V Lithium battery to maintain the real- or replace faulty equipment beyond the warranty period for a time clock.
  • Page 23 Section 311-580-20B 030-101527 Rev. B Appendix A - Remote Provisioning Codes Field Parameter TL1 Command & Response 16-Bit Code Hex Code Bit Error fault Response (See Note 1) (See Note 2) Monitored Line WSTMONLC=AMI 1100 0101 1011 0001 C5B1 C di Coding B8ZS WSTMONLC=B8ZS...
  • Page 24 Regen On WSTRCVLBO 1900 LBO 0dB 2070 LBO 7.5dB 2150 LBO 15dB Product I.D. WSTPNUM B90-311580 1101 0101 1101 1010 WESTELL 3115-80 (D5DA) Loopback Mode Query WSTLBMODE NORM 1100 0101 1111 0000 1100 Normal Mode (C5F0) (C5F0) ADDR 2100 Addressed Mode Table 12 −...
  • Page 25 Section 311-580-20B 030-101527 Rev. B Table 12 - Continued. Appendix B - Remote Query and Response Codes Query Function TL1 Command TL1 Command 16-Bit Command Code Bit Error Setting/Parameter Default Response Response (See Note 1) (See Note 2) CPE-to-FAC Path WSTTRMTRGN Regen Off Query...
  • Page 26 Section 311-580-20B 030-101527 Rev. B APPENDIX C NIU QUERY AND RESPONSES VIA TL1 COMMANDS 1. TL1 Commands TL1 Command and responses are transmitted in the Facility Data Link using the command SND−CMD−FDL via the modified LAPB protocol. Below is a short glossary of characters used in the TL1 Command: <cr>Carriage Return <lf>Line Feed ^Space...
