Westell 3116-10 Issue B Manual

Network interface unit with performance monitoring
Hide thumbs
Table of Contents

Advertisement

Quick Links

R
DS1 Network Interface Unit with Performance Monitoring
CONTENTS
1. GENERAL
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3. TRANSMISSION FEATURES AND OPTIONS
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11. CUSTOMER & TECHNICAL SERVICES
12. WARRANTY & REPAIRS
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.
GENERAL
1.1
Document Purpose
This document describes the Westell 3116-10 DS1 Network In-
terface Unit (NIU) with Performance Monitoring, shown in
Figure 1.
1.2
Document Status
Whenever this practice is updated, the reason will be stated in
this paragraph. Revision C updates Figure 5. Revision B up-
dated Paragraph 4.7.1, 5.3.2.1, 6.3 and 7.1.1, added the CLEIt
code, and removed the previous Paragraph 4.2. This practice re-
flects the Issue B equipment, which provides the following
improvements:
S
Manufacturability
S
PM storage increased to 90 days
S
Event log increased for 200 events
S
Test pattern generation
S
XMT binder level added
S
ESF and B8ZS LEDs added
S
SPRM generation added
S
Craft port Notepad screen added
S
LED labels changed for improved path identification
S
Application modes combined
ECopyright 2005 EWestell, Inc. All rights reserved. Printed in the United States of America.
*CLEI is a trademark of Telcordia Technologies. 200 MECHANICS in a registered trademark of Westell, Inc.
Model 3116-10 Issue B
Part of the Westell PROACTt Family
CLEI* Code: T1L8AC0AAA
PAGE #
1
2
. . . . .
3
. . . . . . . . .
5
. . . . . . .
7
.
8
. . . . . . . . . . .
9
11
. . . . . . . . . . . . . . . . . . . .
13
. . . . . . . . . . . . .
21
. . . . . . . .
21
. . . . . . . . . . . . . . . . . . . . . .
21
22

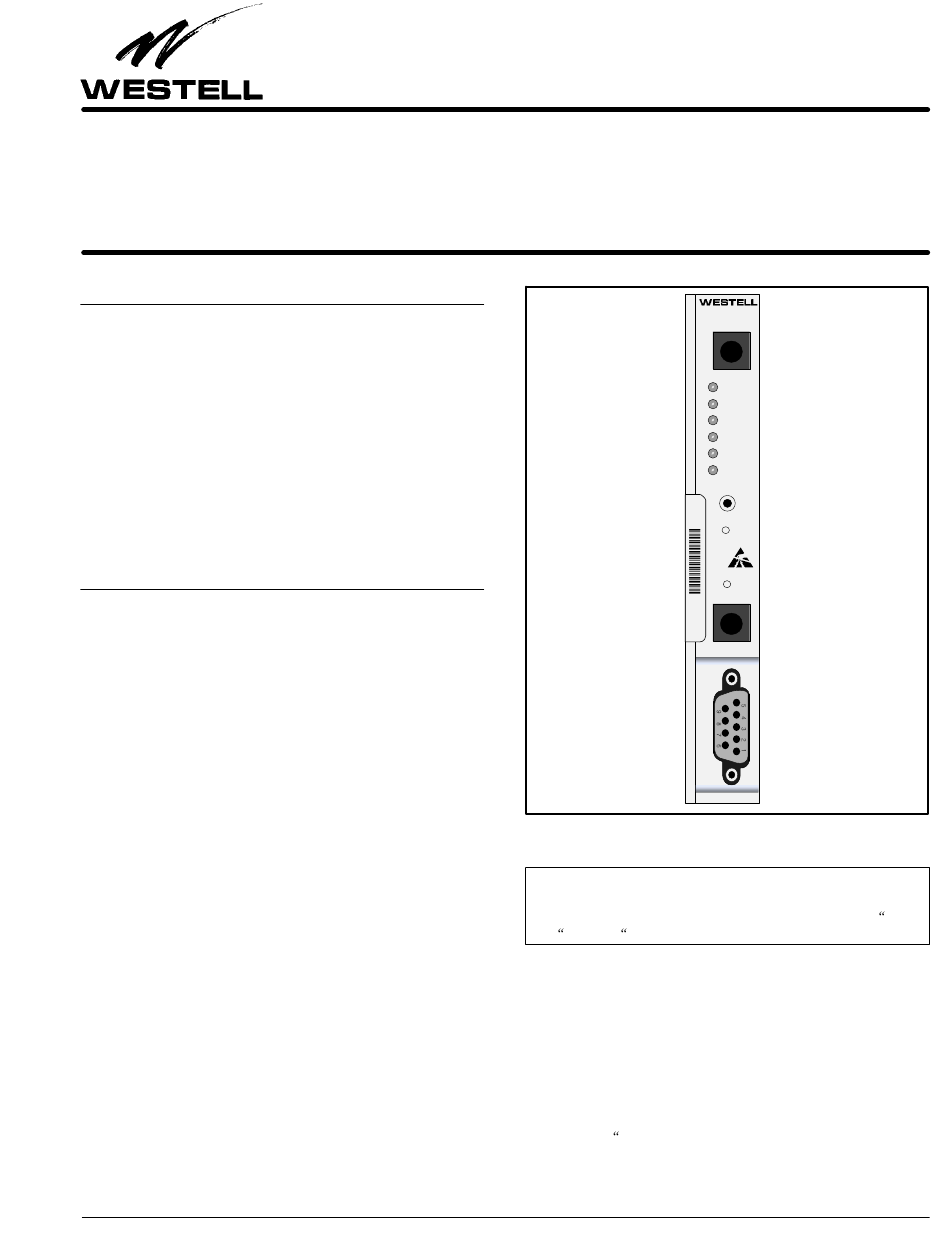

Figure 1.
3116-10 NIU with Performance Monitoring
- NOTE -
Hereafter, the 3116-10 DS1 Network Interface Unit with
Performance Monitoring also may be referred to as the NIU,"
the unit," or 3116-10."
1.3
Product Purpose and Description
The Westell 3116-10 Issue B T1 Network Interface Unit with
real-time Performance Monitoring serves as an interface be-
tween a T1 metallic span, or a customer premises-based fiber
multiplexer, and the intra-building Customer Premises Equip-
ment (CPE). The 3116-10 Issue B is a member of the Westell
PROACT family of T1 NIUs that provide standard maintenance
loopback plus collection and reporting of DS1 performance sta-
tistics. These performance monitoring capabilities allow service
providers to PROACTively" respond to facility performance
degradation, thereby improving the availability of Hi-Cap T1
circuits.
Section 311-610-20B
Equipment Issue B
030-101522 Rev. C, September 2005
B90-311610
NIU-PM
C
P
E
B
R
G
PWR
LB
FAC
CPE
ESF
B8ZS
MAN
LB
TP1
TP2
F
A
C
B
R
G
0509IBRC
Page 1 of 26

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3116-10 Issue B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Westell 3116-10 Issue B

Summary of Contents for Westell 3116-10 Issue B

  • Page 1: Table Of Contents

    Hi-Cap T1 Application modes combined circuits. ECopyright 2005 EWestell, Inc. All rights reserved. Printed in the United States of America. 0509IBRC *CLEI is a trademark of Telcordia Technologies. 200 MECHANICS in a registered trademark of Westell, Inc. Page 1 of 26...

  • Page 2: Applications

    Front-panel test points for measuring span current primary protection. Westell offers a wide range of single and multiple slot mountings available in both backboard (wall) and Bridge-type bantam jacks on FAC IN and FAC OUT ports rack mount versions for NIUs.
  • Page 3 Section 311-610-20B 030-101522 Rev. C a maximum loss of 7.5dB for inside wiring to the CPE (see to 56Vdc and can be either a positive or negative ground refer- Figure 2). This represents a total loss of 22.5dB. This mode pro- ence.
  • Page 4 Section 311-610-20B 030-101522 Rev. C FAC-to-CPE REGEN PERFORMANCE MONITOR & LOS CONTROL CODE DETECTOR DETECTORS TO/FROM (FAC-to-CPE PATH - A-Z) TO/FROM CUSTOMER TELCO INTERFACE PERFORMANCE FACILITY REGISTERS (CPE) PERFORMANCE MONITOR & LOS DETECTOR (CPE-to-FAC PATH - Z-A) Provisionable/ Self-Aligning 0 dB 7.5 dB CPE-to-FAC 15 dB...

  • Page 5: Loopback Features And Options

    Section 311-610-20B 030-101522 Rev. C 3.1.3 FAC-to-CPE Regen - NOTE - With FAC-to-CPE Regen enabled, the NIU will regenerate in- The Auto-Binder Level" circuitry only introduces additional put levels that have been attenuated from 0 to 30dB to a nominal loss when the customer fails"...
  • Page 6 Section 311-610-20B 030-101522 Rev. C path to the opposite path and is passed back to the network via 4.4.2 ESF Codes the FAC OUT port. During Network-side Loopback, AIS is sent ESF codes are bit-oriented messages sent in the ESF Data Link toward the CPE.

  • Page 7: Sectionalization Alarm Features

    Section 311-610-20B 030-101522 Rev. C Manual Loopback CPE LOS Modes The NIU loopback state can be controlled by pressing the front- 5.1.1 LB Upon CPE LOS panel MAN LB push button. Depression of the MAN LB push In this mode, the unit continuously monitors the DS1 signal button will cycle through the loopback states.

  • Page 8: Performance Monitoring & Reporting

    Section 311-610-20B 030-101522 Rev. C accordance to the setting of the CPE LOS option. These options pendently for each direction. Performance primitives are are as follows: collected and stored as performance parameters which are avail- able for remote retrieval or local retrieval via the front-panel enter loopback upon loss of signal from the CPE craft terminal interface port.

  • Page 9: Hardware Options & Features

    Section 311-610-20B 030-101522 Rev. C time-stamped entries for the most important types of events statistics. The unit records and time stamps these performance such as loss of signal, power outages, PM registers cleared, alarm statistics in non-volatile memory for retrieval at a later time. detection, and more.
  • Page 10 Section 311-610-20B 030-101522 Rev. C DCS or other Test Head Device Command/ Response T1 LINE RPTR Test Access Encapsulated 3116-10 Digroup TL1 Messages (Split Access) in ESF Data Link TEST RESOURCES TL1 PM Commands/Responses to Performance Monitoring System Figure 7. TL1 PM Retrieval Diagram - Intrusive Mode Shown NPRM MONITOR...

  • Page 11: Installation

    Section 311-610-20B 030-101522 Rev. C When first depressed, the LB LED will go off and remain off during the first 3 seconds that the MAN LB is depressed. B90-311610 If released during this 3 second period, all existing loopback NIU-PM conditions will be deactivated.
  • Page 12 Visually inspect the unit for damages prior to installation. If the equipment was damaged in transit, immediately report the dam- age to the transportation company and to Westell (see Part 11). Mounting the Module The 3116-10 is a 200 MECHANICSr-type plug-in module that...

  • Page 13: Set-Up And Operation

    Figure 14. A Directory Tree/Path of Software Menus Accessed Via the Craft Interface & VT100 Terminal Westell B90-311610 CLEI: T1L8AC0AAA MAIN MENU PROACT T1 PERFORMANCE MONITORING NIU WESTELL TECHNOLOGIES, INC. AURORA, IL. 1-800-323-6883 SELECTIONS O) PROVISIONING P) PERFORMANCE STATISTICS S) CIRCUIT STATUS...
  • Page 14 Section 311-610-20B 030-101522 Rev. C Westell B90-311610 CLEI: T1L8AC0AAA SET CLOCK Current Time 08/28/2003 11:50:23 New Time 08/25/2003 09:50:00 Use <tab> to select field, <return> to save, or <Esc> to return to main menu Figure 16. Set Clock Menu Screen (Typical)
  • Page 15 Section 311-610-20B 030-101522 Rev. C Field/Option Parameter Default* Description Monitored Line Coding Configures unit for AMI line coding. B8ZS Configures unit for B8ZS line coding. Monitored Framing Monitors SF parameters for PM. Monitors ESF parameters for PM. CPE LOS Response None No response to customer LOS.
  • Page 16 Section 311-610-20B 030-101522 Rev. C Westell B90-311610 CLEI: T1L8AC0AAA 02/28/2003 09:02:48 15 MINUTE PM STATISTICS (CURRENT) FAC-to-CPE CPE to FAC Date: 02/28/2003 CV-L Time: 08:00:00 ES-L SES-L Stat Register Key LOSS-L −−−−−−−−−−−−−−−−−− Loopback CV-P Data Incomplete ES-P Loss of Signal...
  • Page 17 Section 311-610-20B 030-101522 Rev. C Westell B90-311610 CIRCUIT STATUS CLEI: T1L8AC0AAA LVL: -13.0dBdsx LVL: -13.8dBdsx FRMG: SF FRMG: SF SIG: OK SIG: OK TO FAC TO CPE 7.5dB LBO LVL: -12dBdsx LVL: -4.0dBdsx FRMG: SF FRMG: SF SIG: OK Normal Operation...
  • Page 18 Section 311-610-20B 030-101522 Rev. C Westell B90-311610 CIRCUIT STATUS CLEI: T1L8AC0AAA LVL: -13.0dBdsx LVL: 0.0dBdsx FRMG: SF FRMG: SIG: OK SIG: TO FAC TO CPE REGEN LVL: -0.0dBdsx LVL: 0.0dBdsx FRMG: SF Dual Loopback FRMG: SIG: OK SIG: SELECTIONS ^D) deactivate loopback Enter selection or <Esc>...
  • Page 19 Section 311-610-20B 030-101522 Rev. C Westell B90-311610 CLEI: T1L8AC0AAA TEST MODE PROVISIONING MENU Option Current > Test Pattern: Framing for Pattern Test Pattern to CPE ENABLED Test Pattern to NET: DISABLED User Pattern: 10111110 SELECTIONS S) Save D) Set to default settings Use <tab>...
  • Page 20 Section 311-610-20B 030-101522 Rev. C Westell B90-311610 CLEI: T1L8AC0AAA ALARM THRESHOLDS PARAMETER 15-MINUTE 1−DAY > >CV-L 3865 ES-L SES-L CVP-P 3820 ESP-P SESP-P UASP-P SELECTIONS S) SAVE D) SET DEFAULT THRESHOLDS X) DISABLE All THRESHOLDS NOTE: Setting a threshold to a value of 0 will disable it Enter selection or ESC to go back to previous menu Figure 26.

  • Page 21: Testing & Troubleshooting

    12.1 Warranty ternal fault of the unit. Westell warrants this product to be free of defects at the time of - NOTE - shipment. Westell also warrants this product to be fully func- The 3116-10 is equipped with an on-board 3V Lithium battery. If power...

  • Page 22: Specifications

    030-101522 Rev. C or replace faulty equipment beyond the warranty period for a Power nominal charge. Contact Westell for details. G. Span Power Voltage Drop: 24V (nom.) at 60 mA SPECIFICATIONS H. Span Power Operating Current: 57 to 63 mA 13.1...
  • Page 23 Section 311-610-20B 030-101522 Rev. C Appendix A - Remote Provisioning Codes Field Parameter TL1 Command & Response 16-Bit Code Bit Error fault Code Response (See Note 1) (See Note 2) Monitored Line Coding WSTMONLC=AMI 1100 0101 1011 0001 C5B1 C5B2 B8ZS WSTMONLC=B8ZS 1100 0101 1011 0010...
  • Page 24 TL1 Returns actual LBO setting (Auto Binder) FAC-to-CPE Path WSTRCVRGN 1100 0100 1010 0000 1000 Regen OFF [C4A0] [C4A0] 2000 Regen ON Product I.D. WSTPNUM B90-311610 1101 0101 1101 1010 WESTELL 3116-10 [D5DA] Table 11 − Continued on Next Page... 0509IBRC...
  • Page 25 Section 311-610-20B 030-101522 Rev. C Table 11 - Continued. Appendix B - Remote Query and Response Codes TL1 Command Query Function TL1 Command 16-Bit Command Bit Er- Setting/Parameter ror Re- fault Response Code (See Note 1) sponse 1000 REGEN OFF; LBO 0dB CPE-to-FAC Path WSTTRMTLBO Query...
  • Page 26 Section 311-610-20B 030-101522 Rev. C APPENDIX C NIU QUERY AND RESPONSES VIA TL1 COMMANDS 1. TL1 Commands TL1 Command and responses are transmitted in the Facility Data Link using the command SND−CMD−FDL via the modified LAPB protocol. Below is a short glossary of characters used in the TL1 Command: <cr>Carriage Return <lf>Line Feed ^Space...
