Zotac B150ATX Series User Manual page 8

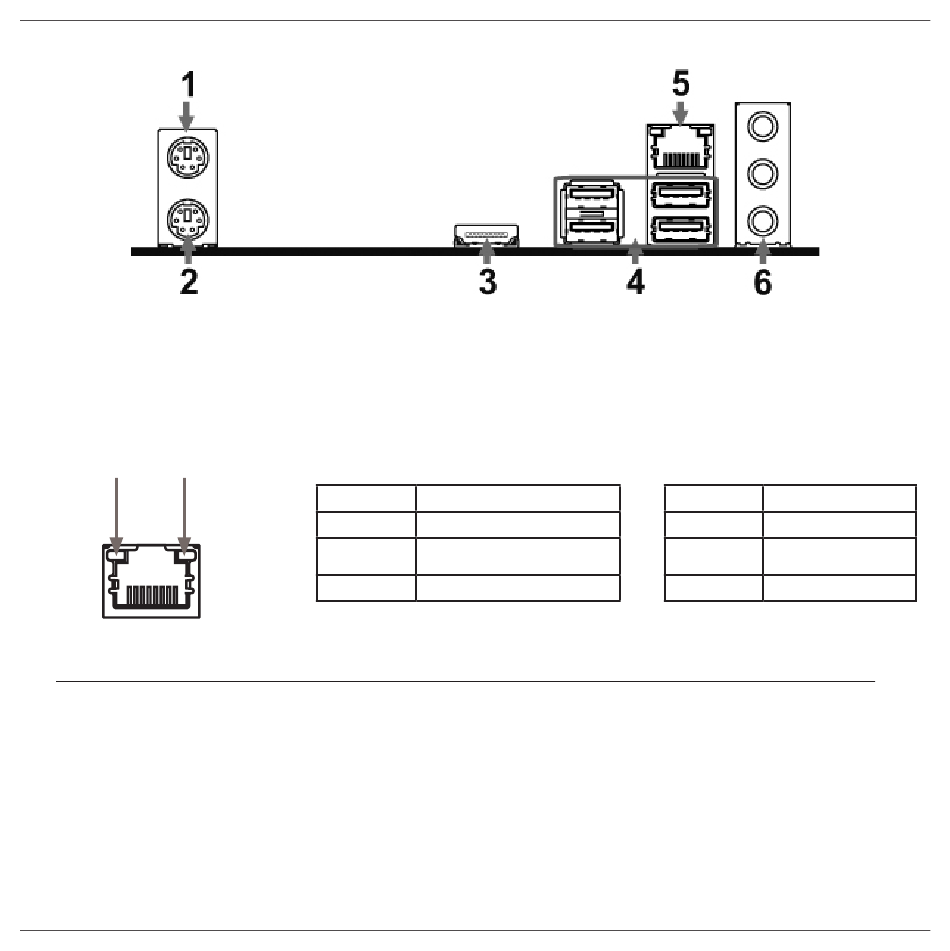

Figure 2. Backpanel connectors
1. PS2 Mouse Port
3. HDMI Port
5. LAN port LED indicators
Speed LED Activity LED
6. Port
Blue
Green
Pink
Speed LED
Status
Off
Green
Orange
2-Channel
Line-In
Line-Out
Mic In
2. PS2 Keyboard Port
4. USB 3.0 Ports
Description
Speed: 10 Mbps
Speed: 100 Mbps
Speed: 1000 Mbps
4-Channel
Rear Speaker Out
Front Speaker Out
Mic In
B150ATX series Motherboard
Activity LED
Status Descritption
Off No link
Orange Linked
Blinking Data activity
6-Channel
Rear Speaker Out
Front Speaker Out
Center/Subwoofer
