Kit Components:
(A) 1x solar panel
(B) Redilight light fitting
(C) 10m of twin DC solar cable
(D) 4x Solar panel mounting brackets
(E) 1x Rubber flashing for metal roo f
(F) 4x 25mm Hex Head Type 17
(G) 4x 12mm button head SDS
(H) 4x 25mm button head needle
point
(I) 4x Rubber washes for metal roof
(J) 1x sticker to be placed in meter
E
box
E
H
Helpful hints when Installing
When determining a suitable location for the solar panel a northerly aspect is beneficial.
Be mindful of potential shading from larger objects over the course of the day.
ALWAYS adhere to local safety guidelines regarding working at heights, a safety harness may be
require d.
Visit www.redilight.com for installation videos.
Redilight
|
Unit 2
Redilight SPECTRA offers a Green Energy Solution for light starved
areas in the home or office. It works much the same as a skylight with
a sun up and sun down effect. As the sun rises the light gets brighter
then as the sun sets in the afternoon the light intensity reduces.
Note: Optional Day/Night kits available for night time use.
A
F
I
/
15-17 Ace Cres, Tuggerah, NSW 2259

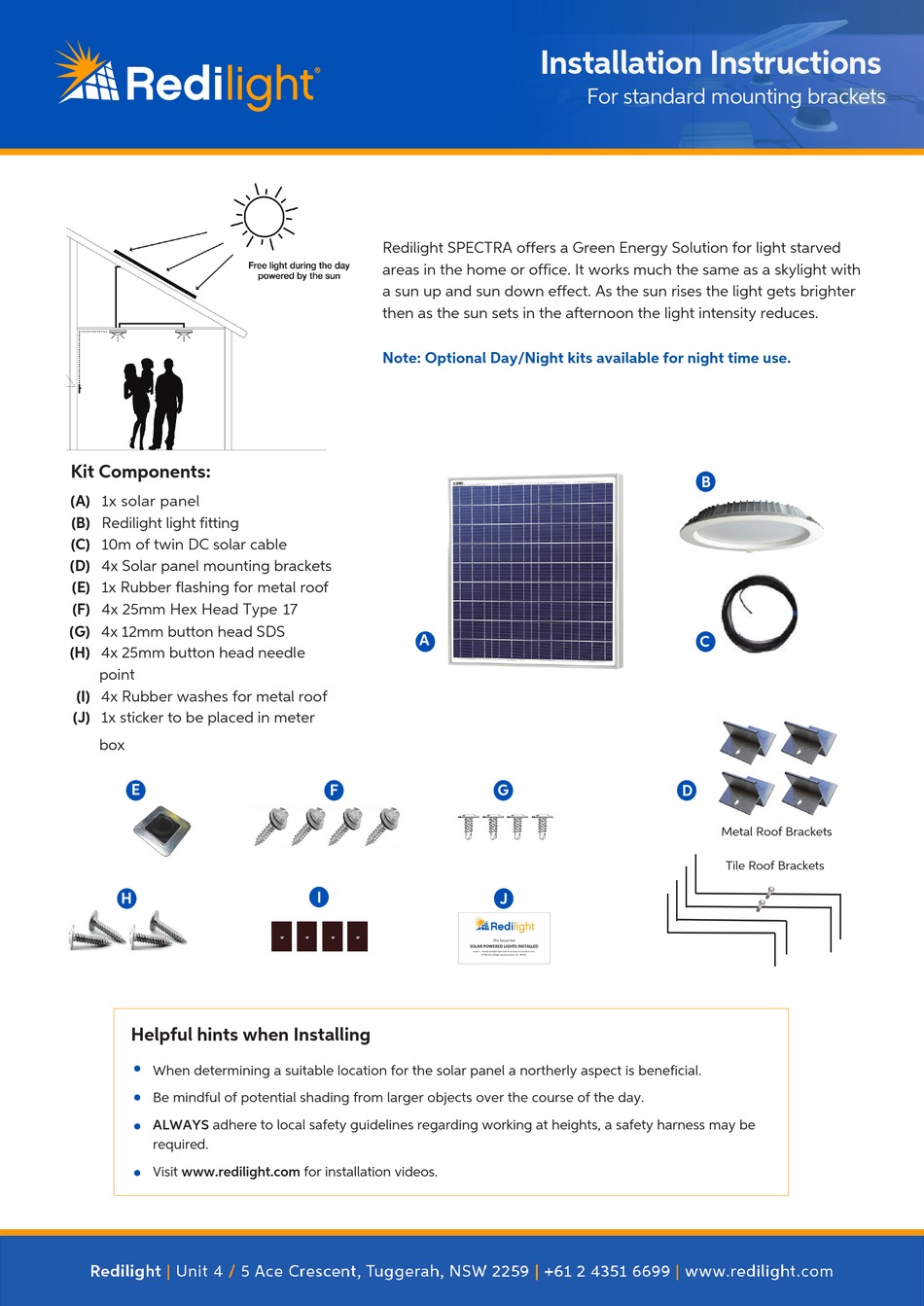

Installation Instructions
For standard mounting brackets
G
J
|
1300 559 986
|
www.redilight.com
B
C
D
Metal Roof Brackets
Tile Roof Brackets
Advertisement
Table of Contents
Related Manuals for Redilight SPECTRA
Summary of Contents for Redilight SPECTRA
- Page 1 Installation Instructions For standard mounting brackets Redilight SPECTRA offers a Green Energy Solution for light starved areas in the home or office. It works much the same as a skylight with a sun up and sun down effect. As the sun rises the light gets brighter then as the sun sets in the afternoon the light intensity reduces.
- Page 2 Repeat step 2 in screwing both brackets to the timber batten for a secure fix (Fig 7) then pull both tiles down to original position over brackets. (Fig 8) Proceed to step 4. Fig 5 Fig 6 Fig 7 Fig 8 Redilight Unit 2 15-17 Ace Cres, Tuggerah, NSW 2259 1300 559 986 www.redilight.com...
- Page 3 Caution: Take care not to drill into the solar panel glass. Mount screws approx mid way down the aluminium frame. Once you’ve connected and finished mounting the solar panel you are now ready to go down and connect the light fitting. Proceed to Step 6. Redilight Unit 2 15-17 Ace Cres, Tuggerah, NSW 2259 1300 559 986 www.redilight.com...
- Page 4 Place solar panel on the 4 brackets and use the 4 self drilling screws (G) to attach the panel (Fig 16) Caution: Take care not to drill into the solar panel glass. Fig 14 Fig 15 Fig 16 Redilight Unit 2 15-17 Ace Cres, Tuggerah, NSW 2259 1300 559 986 www.redilight.com...
- Page 5 Recessed Step 8: Connecting Redilight driver Connect the solar panel cable to the green plug on the Redilight driver (Fig 22) The red wire connects to positive (+) and the black wire to the negative (-) . Once solar panel connection is complete, plug in the light fitting connector (Fig 23) and you will have light (Note: If no lights come on once connection is complete then check polarity.)
- Page 6 2. The limited warranty is void if the product is not used for the purpose for which it has been designed. 3. The limited warranty is void if any external products that are not approved by Redilight are used in con-junction with the Redilight system.
