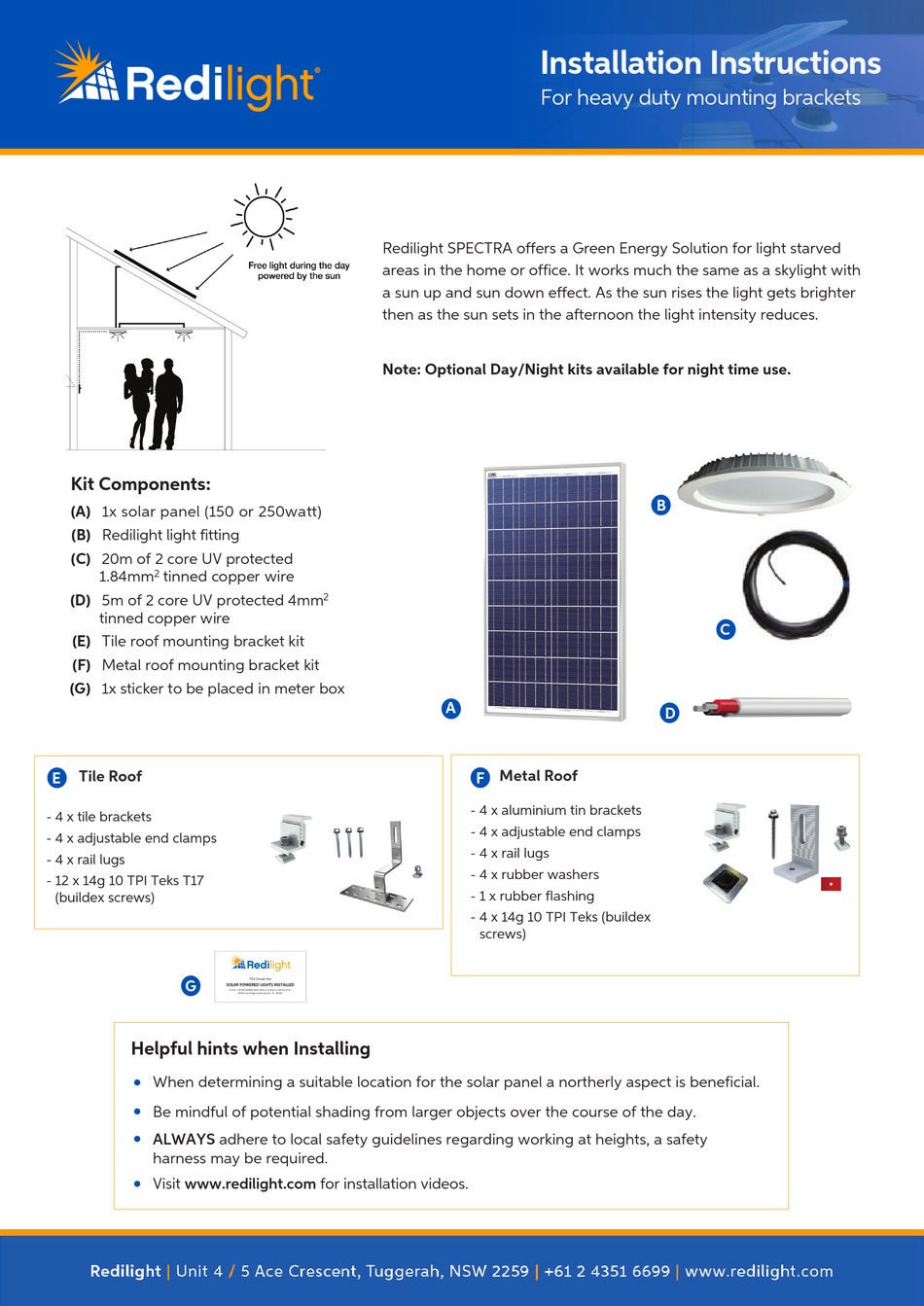

Kit Components:
(A) 1x solar panel (150 or 250watt)
(B) Redilight light fitting
(C) 20m of 2 core UV protected
1.84mm
2
tinned copper wire
(D) 5m of 2 core UV protected 4mm
tinned copper wire
(E) Tile roof mounting bracket kit
(F) Metal roof mounting bracket kit
(G) 1x sticker to be placed in meter box
Tile Roof
E
- 4 x tile brackets
- 4 x adjustable end clamps
- 4 x rail lugs
- 12 x 14g 10 TPI Teks T17
(buildex screws)
G
Helpful hints when Installing
When determining a suitable location for the solar panel a northerly aspect is bene cial.
Be mindful of potential shading from larger objects over the course of the day.
ALWAYS adhere to local safety guidelines regarding working at heights, a safety
harness may be required.
Visit www.redilight.com for installation videos.
Redilight
|
Unit 2
Redilight SPECTRA offers a Green Energy Solution for light starved
areas in the home or office. It works much the same as a skylight with
a sun up and sun down effect. As the sun rises the light gets brighter
then as the sun sets in the afternoon the light intensity reduces.
Note: Optional Day/Night kits available for night time use.
2
A
/
15-17 Ace Cres, Tuggerah, NSW 2259
Installation Instructions
For heavy duty mounting brackets
A
Metal Roof
F
- 4 x aluminium tin brackets
- 4 x adjustable end clamps
- 4 x rail lugs
- 4 x rubber washers
- 1 x rubber flashing
- 4 x 14g 10 TPI Teks (buildex
screws)
|
1300 559 986
B
C
D
|
www.redilight.com
Advertisement
Table of Contents
Related Manuals for Redilight Spectra
Summary of Contents for Redilight Spectra
-
Page 1: Installation Instructions
Installation Instructions For heavy duty mounting brackets Redilight SPECTRA offers a Green Energy Solution for light starved areas in the home or office. It works much the same as a skylight with a sun up and sun down effect. As the sun rises the light gets brighter then as the sun sets in the afternoon the light intensity reduces. - Page 2 Once you have securely fixed all 4 brackets you can now fix the top and bottom rail to the brackets with the Allen key head screw, washers and nut modules provided. Tighten Allen key screws nice and firm. See below… Fig 3 Fig 4 Redilight Unit 2 15-17 Ace Cres, Tuggerah, NSW 2259 1300 559 986 www.redilight.com...
- Page 3 Be sure to use the supplied rubber washer under the bracket for a weather proof seal. Fig 10 Fig 11 Fig 12 Redilight Unit 2 15-17 Ace Cres, Tuggerah, NSW 2259 1300 559 986 www.redilight.com...
- Page 4 Installation Instructions For heavy duty mounting brackets Lighting configurations 150watt SPECTRA Fig 13 250watt SPECTRA Fig 14 Redilight Unit 2 15-17 Ace Cres, Tuggerah, NSW 2259 1300 559 986 www.redilight.com...
- Page 5 Once the location for the light fitting is established, centrally create a 20mm hole to allow the light fitting plug & cable to pass through (Fig 15) for connection to the Redilight driver which is located in the ceiling cavity. Then mount the light fitting to the ceiling (Fig 16) using three screws for a secure fix.
-
Page 6: Warranty Policy
2. The limited warranty is void if the product is not used for the purpose for which it has been designed. 3. The limited warranty is void if any external products that are not approved by Redilight are used in con-junction with the Redilight system.
