Assembly Instructions for Velocifero MAD
In order to make more efficient use of space, when
our vehicle is packaged and transported, some
parts are not installed, so you need to do simple
assembly by yourself. The installation process is as
follows:

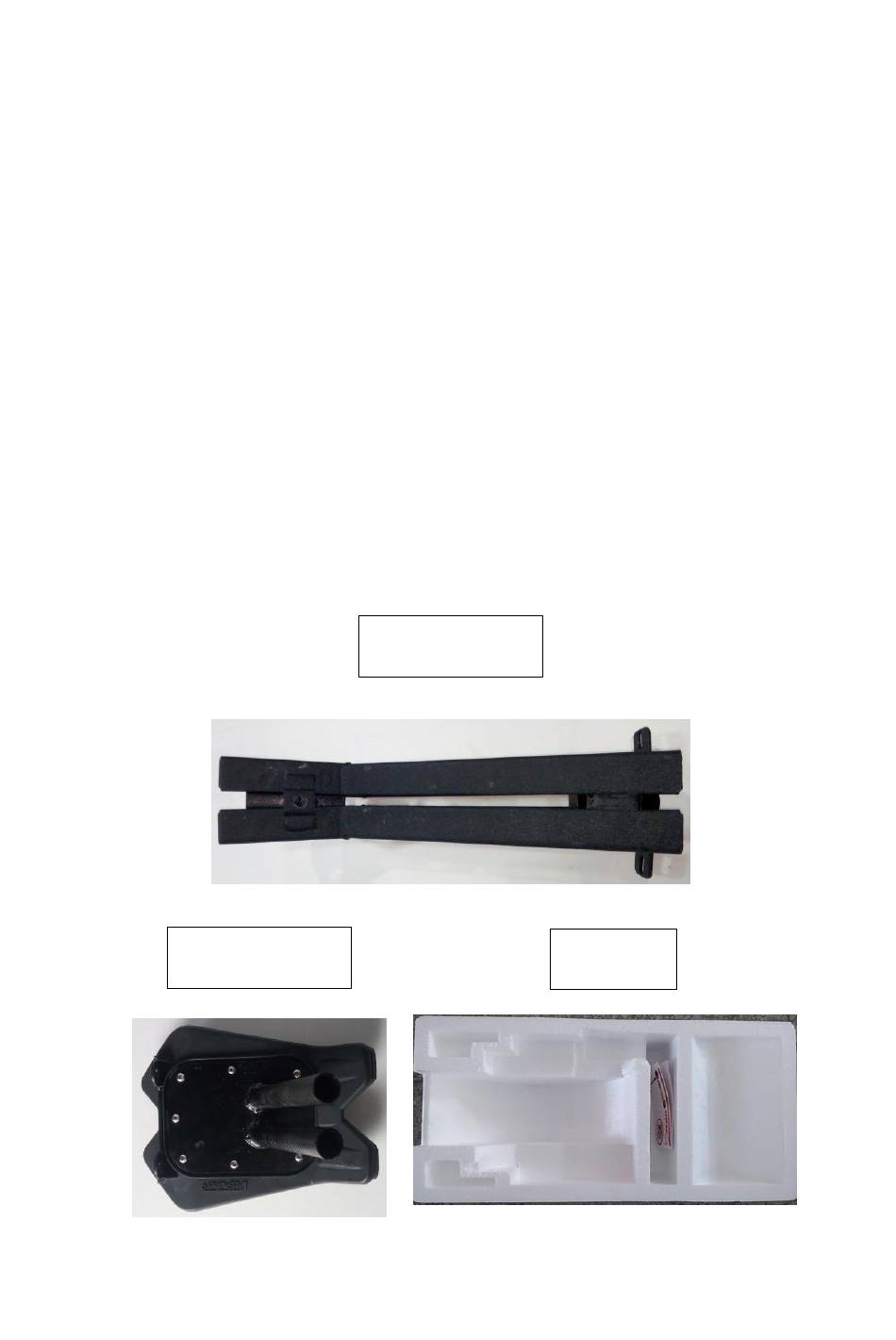

Step 1: Open the packing box and confirm that all
the installation parts are there.
seat support
seat cushion
mannul
Advertisement
Related Manuals for Velocifero MAD
Summary of Contents for Velocifero MAD
- Page 1 Assembly Instructions for Velocifero MAD In order to make more efficient use of space, when our vehicle is packaged and transported, some parts are not installed, so you need to do simple assembly by yourself. The installation process is as...
- Page 2 Main body of vehicle Charger Step 2: Reset the steering column The resetting of the steering column is also very simple. Just to fix the steering column on the board the following steps can be followed: As shown in the picture below, when open the...
- Page 3 parking, the steering column fixing bolt, gasket, spring pad and nut are through the upper plate. First remove the bolts and nuts and place the steering column upright on the upper plate of the column. Then position the quick release. As shown in mark 2 below, the quick release button should be stuck to the corresponding hole position of the steering column.
- Page 4 Then, use the removed bolt to go through the steering column and upper plate of the column, add the gasket and the spring pad, then tighten the nut, as shown in the figure below. Finally, tighten the quick release. Attention: When installing the steering column, do not pull the cable too much to avoid damaging the...
- Page 5 cable and joint, causing failure. Step 3: Reset the handlebar The unpacking state of the handlebar is shown below. It's easy to reset it when you use it. Hold the handle sleeve and turn the handle upward to a horizontal position. The spring installed on the handle will lock it automatically.
- Page 6 Step 4: Mount the seat cushion nsert the mounting bracket tube of the seat cushion into the corresponding position of the seat support as shown in the figure below. Adjust the quick release shown in mark 1 to tighten. When adjust the height of the seat cushion, you will have to operate the quick release too.
- Page 7 Step 5: Install the seat The mounting of the seat cushion shall first remove the seat cushion lock nut as shown in mark 3 from the body of the vehicle. Then install the seat cushion on the sleeve as shown in figure 4. The base hole passes through the retaining bolt as shown below.
- Page 8 Finally, screw the cushion lock nut.it turns to be like figure below.
- Page 9 Step 6: Connect the cable When MAD is packed, most of the electrical wiring has been connected. Only the wire of battery, speed limit, taillight and rear license lamp have not been connected, so you have to connect them by yourself.
- Page 10 2、speed limit interface 3、horn interface 4、taillight interface 5、Rear license lamp interface Connect all the wires and hide the joints under the foot pedal. After completing the above 6 steps, the installation of the vehicle will be completed. However, you are not done yet, there are still a few more things to be done.
- Page 11 When there is a red light, the MAD should be stopped and charged. After repeated charging and discharging for 4 times, the battery can be fully activated, and then it can be used normally.
