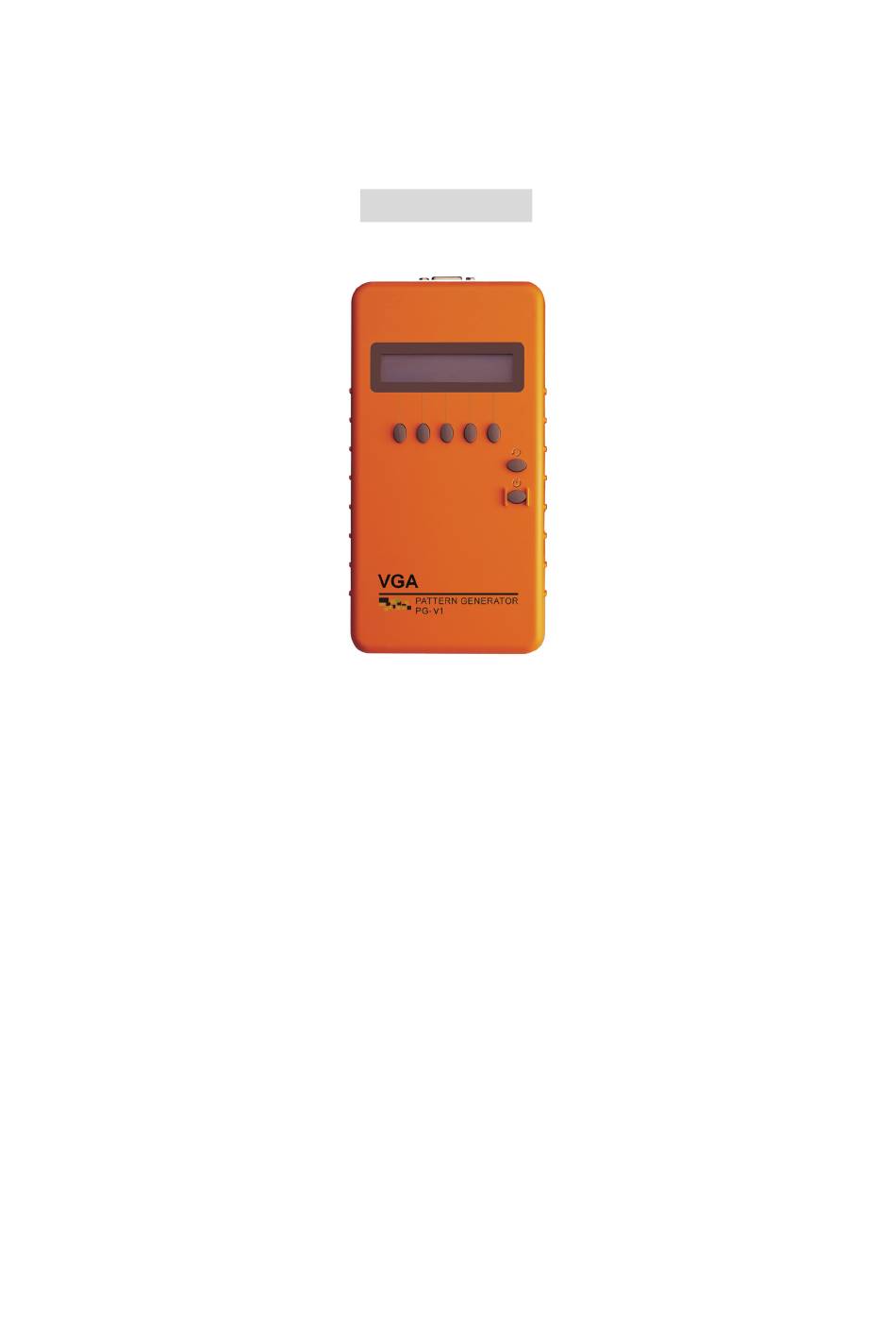

PATTERN
GENERATOR
PG-V1
USER MANUAL
V.2009PGV101.00
Copyright and Trademarks:
All rights reserved by C&C TECHNIC TAIWAN CO., LTD. No part of this
document may be reproduced in any form or by any means without written
permission from the product manufacturer.
Changes are periodically
made to the information in this document. They will be incorporated in
subsequent editions. The product manufacturer may make improvements
and /or changes in the product described in this document at any time.
All the registered trademarks referred to this manual are belonging to their
respective companies.
0
Advertisement
Table of Contents
Related Manuals for C&C TECHNIC PG-V1
Summary of Contents for C&C TECHNIC PG-V1
- Page 1 PATTERN GENERATOR PG-V1 USER MANUAL V.2009PGV101.00 Copyright and Trademarks: All rights reserved by C&C TECHNIC TAIWAN CO., LTD. No part of this document may be reproduced in any form or by any means without written permission from the product manufacturer.
-
Page 2: Table Of Contents
1.6.3 Power Jack...........5 Chapter 2 Connection ..........6 2.1 Preparation............6 2.1.1 Plugs ............6 2.1.2 Plug replacement .........6 2.2 Connect PG-V1 to Monitor ......7 Chapter 3 Operation..........8 3.1 Starting Status..........8 3.2 Power and Battery ..........9 3.3 MENU Configurations .........10 3.3.1 Tim configuration ......10 3.3.2 Ptn configuration .......10... -
Page 3: Chapter 1 Introduction
Further, it also can improve the quality of digital monitor with side by side comparisons. Through the friendly interface and smart design, not only you can easy to use the PG-V1 but also you can reduce your test expenditure. Caution... -
Page 4: Resolution
Auto Power-off on Battery mode. Provide total 34 patterns, Include: Color bar, Gray, Grid, Block… By 16x2 Character LCD and key buttons, easily control. 1.4 Specifications Function PG-V1 Video Output Connector 1 HD-15 Female Select Switch LCD Module: 16*2 Character Display Max. -
Page 5: Front Panel
4. “ ” Return: Return to up configuration page. 5. “ ” Power On/Off: Press at least more than 3 seconds to power on/ff the PG-V1 6. Power Jack: Connect to the DC 12V 1.25A power adapter. -
Page 6: Side Panel
Analog ground Ground 1.6.3 Power Jack Use for the DC 12V 1.25A power adapter. The Power Jack is on the right side of the device. PG-V1 supports 4 replaceable plugs (for USA, UK, Europe and Australia DC plugs.) Power Jack... -
Page 7: Chapter 2 Connection
Please power off the digital monitor and PG-V1 before you begin the connection 2.1.1 Plugs PG-V1 supports you up to 4 replaceable plugs (for USA, UK, Europe and Australia DC plugs.). Please depend on where the location is to exchange the suitable plug. -
Page 8: Connect Pg-V1 To Monitor
(outlet). Connect the VGA cable from PG-V1 to the Monitor/TV. Power on the Monitor/TV. Press the power key of PG-V1 for more than 3 seconds to power on/off the PG-V1. Caution Please power off the Monitor/TV before begin the... -
Page 9: Chapter 3 Operation
Chapter 3 Operation 1. After pressing the power On/Off key for 2~3 seconds to sound a long “beep”. 2. Only for the valid key of PG-V1 will sound a short confirmed “beep” after pressing the key. 3. The chosen option will blink. -
Page 10: Power And Battery
The device is suited to the DC 12V 1.25A power adapter and 4 inside Re-chargeable batteries. The signals of PG-V1’s battery on the lower right are described as below: “ ”: The power of battery is charging. “ ”: The power of battery is in full charging. -
Page 11: Menu Configurations
3.3 MENU Configurations he figures in this chapter are for P01 640x480 @60 mode reference After you power on the PG-V1, please press the MENU indicated key. The MENU configuration screen will be showed as below: 3.3.1 Tim configuration Press the Tim indicated key, the Tim configuration screen will be showed as below: “▲”: Adjust the Resolution and Refresh Rate with up... -
Page 12: Sync Configuration
P02 Blinking mode configuration: Press the set indicated key to enter the black and white setting configuration as below (you can set the black and white blinking frequency (frames/value) here): “▲”: Increase the BLK or WHT blinking frequency value. The value is up to 255. “▼”: Decrease the BLK or WHT blinking frequency value. - Page 13 Hor (Horizontal Frequency Option): Under the Sync/INFO configuration, please press the “ ” to enter the Info/Hor configuration screen including: (Press “▲” and “▼” indicated key to select below items.) Pixel Clock H Sync Polarity Hor Left Border Hor Back Porch Hor Sync Time Hor Front Porch H Right Border...
-
Page 14: Hky (Hot Key) Configuration
b. MODE: Show you the option for output synchronization is H/V or SOG mode that setting mode will also be showed on the lower left of main screen. 3.3.4 Hky (Hot key) configuration Press the Hky indicated key, the Hky configuration screen will be showed as below: “O”: Represent for “Enable”. -
Page 15: Chapter 4 Troubleshooting
Chapter 4 Troubleshooting 1. If there is no image when using the PG-V1, please ensure the following matters: a. If it is unable to switch on there is a possibility of fault battery or inferior battery. Please connect it with the transformer. - Page 16 Appendix A VGA Output Signal Specification Chart: Sync Refresh Pixel Freq Polarity NO Resolution Rate (MHz) (Hz) 640x350 31.5 640x400 31.5 640x480 25.175 640x480 31.5 640x480 31.5 640x480 720x400 35.5 800x600 800x600 800x600 800x600 49.5 800x600 56.25 848x480 33.75 1024x768 1024x768 1024x768 78.75...
- Page 17 1280x960 148.5 1280x1024 1280x1024 1280x1024 157.5 1360x768 85.5 1400x1050 60 RB 1400x1050 121.75 1400x1050 1600x1200 1920x1200 60 RB 1280x800 83.5 1366x768 1440x900 106.5 1440x1050 125.25 1680x1050 146.25 RB: Reduced Blanking P: Positive N: Negative...
- Page 19 Appendix B Pattern chart: 1. FLAT 2. Blinking 3. GRADUALLY 4. GRID_4x3 5. GRID_16x12 6. COLOR_GRID 7. COLORBAR_1 8. COLORBAR_2 9. COLORBAR_3 10. COLORBAR_4 11. GRAY_8 12. GRAY_16 13. GRAY_32 14. GRAY_64 15. DYNAGRAY 16. GRAY_1 17. COLORGRAY64 18. BWSWING 19.
- Page 20 29. BLOCK_1 30. BLOCK_4x3 31. BLOCK_16x12 32. HLINE_1 33. HLINE_2 34. HLINE_3...
