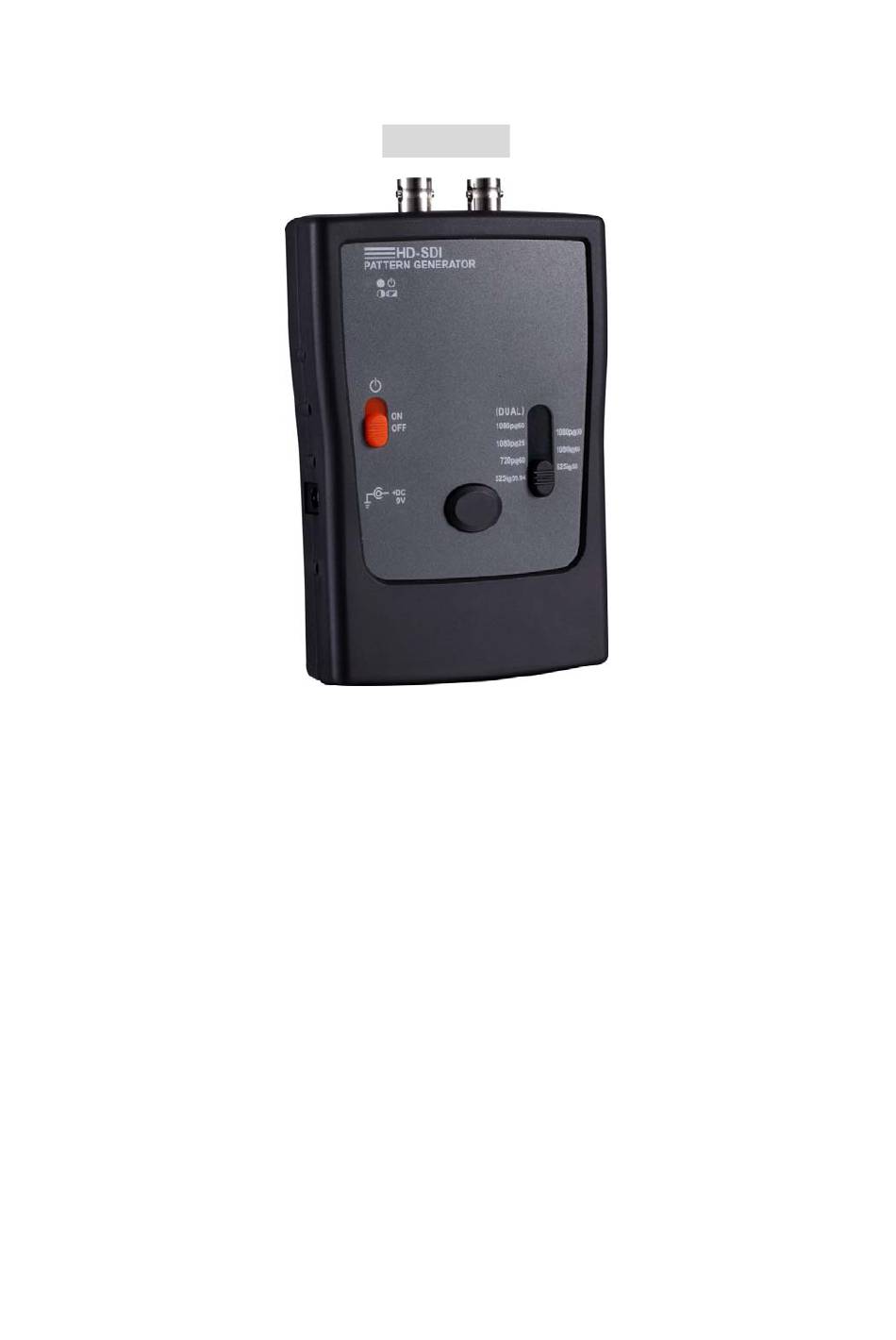

PATTERN GENERATOR
PG-HD1X
USER MANUAL
V.2011PGHD1X100.00
Copyright and Trademarks:
All rights reserved by C&C TECHNIC TAIWAN CO., LTD. No part of this
document may be reproduced in any form or by any means without written
permission from the product manufacturer.
Changes are periodically
made to the information in this document. They will be incorporated in
subsequent editions. The product manufacturer may make improvements
and /or changes in the product described in this document at any time.
All the registered trademarks referred to this manual are belonging to their
respective companies.
1
Advertisement
Table of Contents
Related Manuals for C&C TECHNIC PG-HD1X
Summary of Contents for C&C TECHNIC PG-HD1X
- Page 1 PATTERN GENERATOR PG-HD1X USER MANUAL V.2011PGHD1X100.00 Copyright and Trademarks: All rights reserved by C&C TECHNIC TAIWAN CO., LTD. No part of this document may be reproduced in any form or by any means without written permission from the product manufacturer.
-
Page 2: Table Of Contents
Chapter 1 Introduction ..........3 Package Contents ..........3 Resolution.............4 Features ..............4 Specifications ............5 Top Panel ..............6 Side Panels ............7 HD-SDI A Output /HD-SDI B Output ..7 Power Jack............7 Chapter 2 Connection ..........8 Connect PG to Monitor ........8 Chapter 3 Troubleshooting ........9 Appendix A: Pattern Chart........10... -
Page 3: Chapter 1 Introduction
Chapter 1 Introduction PG-HD1X is an advanced SDI pattern generator for checking the transmission of the coaxial cable laid in a HD-SDI system and designing to be a useful tool for the new generation of digital video/monitor products. It supports multi-format (HD/SD) and multi-pattern up to 8 patterns for you to test and calibrate a digital video/monitor. -
Page 4: Resolution
Resolution Using to test and calibrate a TV/Monitor. Using to test and calibrate an SDI image input device. Using to test and maintain studio equipment as monitors, cabling and recording equipment. Using to test the arrangement of the circuit layout during the process of construction. -
Page 5: Specifications
Specifications Functions Description Serial Digital BNC Connectors BNC Connector 75Ω Interlocking Socket Select Switch HD/SD-SDI Unit Description Pattern Generator Audio Support SMPTE 274M + 372M Supported Protocols SMPTE 296M, ITU-R BT.601 SDI Standards SD-SDI & HD-SDI Max. Resolution 1080p@ 60(Dual Link) Bit Rate 1.485G (2.97G Dual Link) Cable Distance... -
Page 6: Top Panel
Top Panel 1. Power/Battery Status 2. Power On/Off 3. Resolution Switch 4. Pattern Switch Button 1. Power/Battery Status: “●”“ ”LED light Power on. “ ” “ ”LED Flash The battery is in low voltage status. Using the 9V battery singly without a 9V transformer, the power LED status will flash when the voltage of battery go down to about Low Voltage. -
Page 7: Side Panels
Side Panels The PG-HD1X supports SDI interface. The SDI standard transfers signals are uncompressed and are self-synchronizing between the source (transmitter) and destination (receiver). Most errors caused by noise or interference can be detected, and the lost data recovered by means of a specialized code called the Hamming code. A signal in SDI can contain up to four independent digital audio signals along with the video signal. -
Page 8: Chapter 2 Connection
Chapter 2 Connection Caution Please power off the digital monitor and the device before you begin the connection. Connect PG to Monitor One or Two Digital monitor/TV SDI Cable Connect the attached adapter cable from your device to the power source (outlet). Switch off the monitor. -
Page 9: Chapter 3 Troubleshooting
Chapter 3 Troubleshooting 1. If there is no reaction when using the device, please ensure the following matters: a. If it is unable to power on there is a possibility of fault battery or inferior battery. Please connect it with the transformer. -
Page 10: Appendix A: Pattern Chart
Appendix A: Pattern Chart...
