Summary of Contents for HT Italia HT204

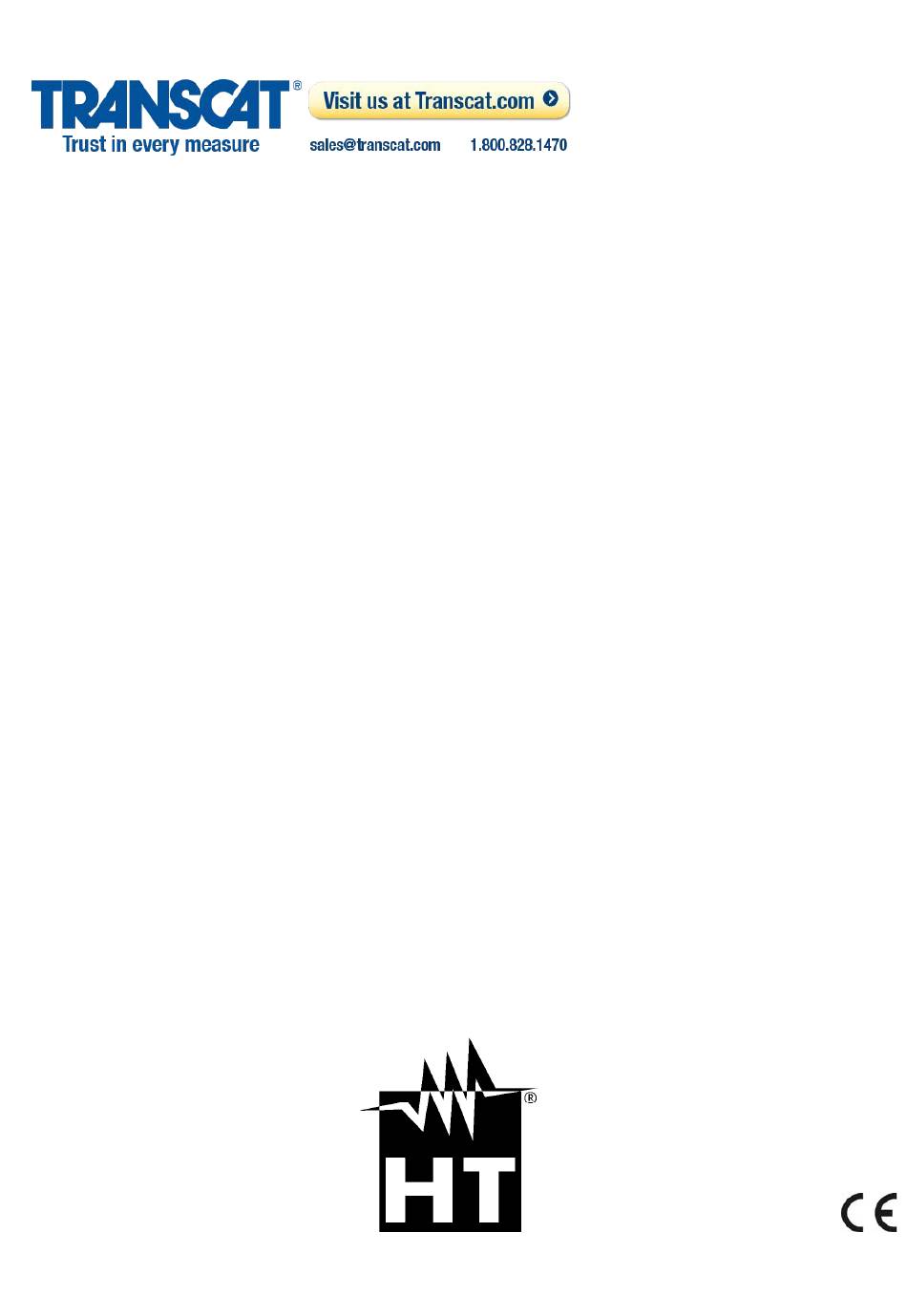

- Page 1 ENGLISH User’s manual © Copyright HT ITALIA 2012 Release EN 1.01 - 09/02/2012...
-
Page 2: Table Of Contents
HT204 Table of contents: 1. SAFETY PRECAUTIONS AND PROCEDURES ............. 2 1.1. Preliminary ......................2 1.2. During use ......................2 1.3. After use ........................ 2 2. GENERAL DESCRIPTION ....................3 2.1. Features ........................ 3 2.2. Instrument description ................... 3 2.3. -
Page 3: Safety Precautions And Procedures
HT204 1. SAFETY PRECAUTIONS AND PROCEDURES This meter is in compliance with safety standard EN 61010-1 related to electronic measuring instruments. For your own safety and to avoid damaging the instrument follow the procedures described in this instruction manual and read carefully all notes preceded by this symbol . -
Page 4: General Description

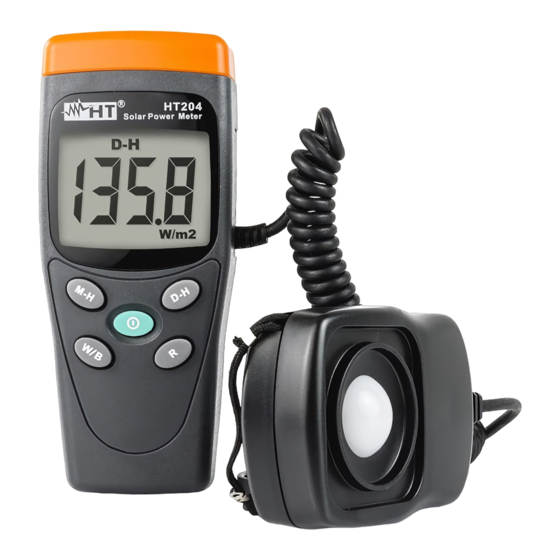

HT204 2. GENERAL DESCRIPTION The digital solar power meter HT204 is used to measure the sunlight. Possible applications are the evaluation of the solar power in industrial installations (photovoltaic plants) or its danger level for people’s skin. The sunlight is usually expressed in W/m BTU/(ft *h). -
Page 5: W/B Key
HT204 2.3.3. W/B key By pressing key the manual selection of measuring unit is possible. The cyclically pressure of the key changes the measuring unit among W/m and BTU/(ft *h). 2.3.4. D-H key By pressing key the measured value is frozen on the display where the symbol "HOLD"... -
Page 6: Operating Instructions
HT204 4. OPERATING INSTRUCTIONS 4.1. MEASUREMENT DESCRIPTION 1. Press the power key to turn on the meter 2. Press the key to select W/m or BTU/(ft *h) measurement 3. Remove the protection cap of the photo detector and expose it to the light source in horizontal position. -
Page 7: Technical Specifications
Max. 2000m (6561ft), pollution degree 2 This instrument complies with the requirements of the European Directive EN61326 (1997) + A1 (1998) + A2 (2001) 6.3. ACCESSORIES 6.3.1. Standard accessories The packaging contains: • Instrument HT204 • Carrying case • Instruction manual EN - 6... -
Page 8: Service
HT204 7. SERVICE 7.1. WARRANTY CONDITIONS This instrument is guaranteed against material or production defects, in accordance with our general sales conditions. During the warranty period the manufacturer reserves the right to decide either to repair or replace the product.
