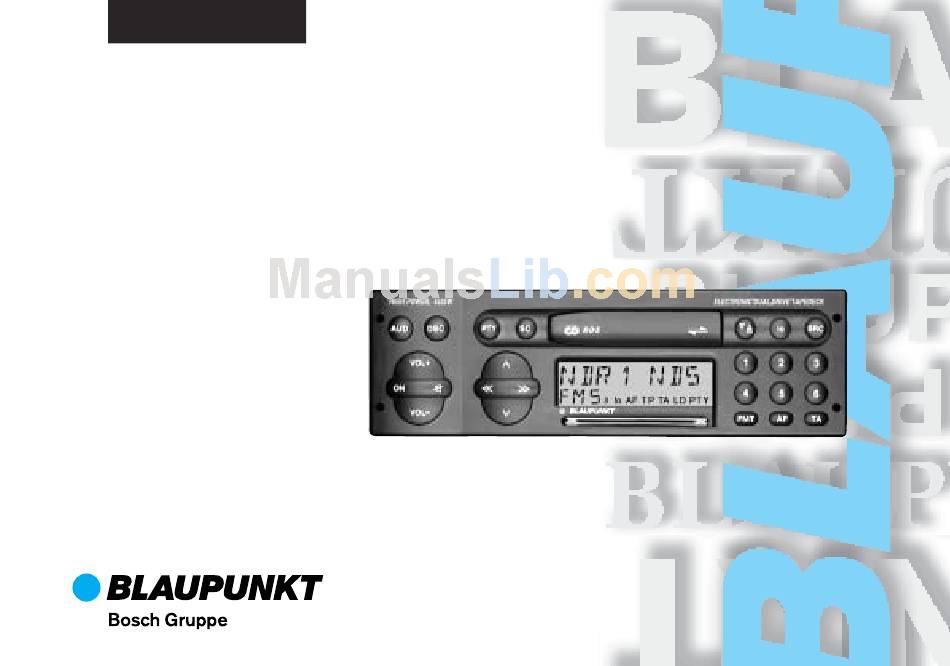

- Page 1 Radio / Cassette Freiburg RCR 127 Montreux RCR 127 Colorado RCR 127 Operating instructions...
- Page 2 Freiburg RCR 127 Colorado RCR 127 Montreux RCR 127...
-
Page 3: Table Of Contents
Listening to the radio during fast tape winding with RM (Radio Monitor) ... 39 Care notes ... 39 DSC programming ... 40 Overview of DSC factory settings ... 41 Appendix ... 42 Specifications ... 42 Blaupunkt telephone hotline ... 42... -
Page 4: Quick Reference
Quick reference 1 Switching on/off with the ON button: Press ON. When switching the set on with the ON button, the KeyCard has to be insert- ed. The unit will play with the pre-ad- justed volume. Switching on/off with the KeyCard: The set has to be turned on with the ON button. - Page 5 Tape operation Title selection (S-CPS) Down Fast forward Fast rewind Stop function by pressing the opposite key. Extra rocker switch functions: Further setting functions with DSC Mode Condition: The corresponding function is activated. 5 Display e f g a) NDR1 NDS - Station name b) TR 1 - Track (side) 1 of the cas- sette...
- Page 6 7 FMT (Freiburg RCR 127, Colorado RCR 127) BND (Montreux RCR 127) For selection of the FM memory banks I, II and T (Travelstore). To switch over: Press button repeatedly. The selected memory bank will appear in the display. Travelstore To store and recall the six most power- ful stations with Travelstore.
- Page 7 To switch the tape side: Press briefly. To eject the tape: Press for approxi- mately 1 sec. Extra function Frequency display during radio opera- tion: Press button briefly. The frequency will be briefly displayed. > Cassette loading slot Insert the tape with side A or 1 facing up, the open side showing to the right.
-
Page 8: Important Notes
In order to ensure that the set operates prop- erly it is necessary that the positive power supply line is connected to the ignition and the permanent +12 V lead. Do not ground the loudspeaker outputs! Accessories Use only the accessories and spare parts approved by Blaupunkt. -
Page 9: Keycard Theft Protection System
KeyCard theft protection system This car radio is supplied with one KeyCard as standard, though it can also be operated with a second card. If you have lost your KeyCard or if it was damaged, you can buy a new one from your specialised dealer. -
Page 10: Short Additional Memory (S.a.m.)
Short Additional Memory (S.A.M.) Using the second KeyCard to be purchased at any specialised dealership, you can pro- gram a short text by selecting the DSC menu item READ KC. This text will be moved through the display and might be the tele- phone number of a car repair service or the emergency call number of your auto club. -
Page 11: Switching The Audio Source
Switching the audio source Using the SRC button you can switch be- tween radio and tape operation. Tape operation is only available if a cassette is inserted. To switch to another source, • press SRC briefly. Radio operation with RDS (Radio Data System) The Radio Data System offers you more convenience when listening to FM radio sta- tions. -
Page 12: Selecting A Waveband (Only Montreux Rcr 127)
If you leave the service area of the regional programme tuned into, or if you would like to take advantage of the full RDS service, switch to “REG OFF”. • Press the AF button for approximately 1 sec. until “REG OFF” appears. If the REG function is active, “REG ON”... -
Page 13: Changing The Memory Bank
Changing the memory bank You can shift between the memory banks I, II and T in order to store stations and recall them later. The currently selected memory bank is in- dicated in the display. • Press the FMT or BND button as many times until the desired memory bank lights up in the display. -
Page 14: Scanning Stations With Radio-Scan
Scanning stations with Radio- Scan You can also scan all stations which can currently be received. To start the Scan function: • Press SC briefly. The scanned frequency or the station name will start flashing in the display. During the actual scanning process “FM-SCAN”... -
Page 15: Checking The Programme Type Of The Station
The letters printed in bold are identical to the actual short-time indication in the dis- play. NEWS CURRENT AFFAIRS INFORMATION SPORT EDUCATE DRAMA CULTURE SCIENCE VARIED POP MUSIC ROCK MUSIC M.O.R. M (middle of the road music) LIGHT M (light classical) CLASSICS (serious classical) OTHER M (other music) WEATHER... -
Page 16: Storing Programme Types
Storing programme types At the factory, one programme type was assigned to each of the preset buttons 1-6. If desired, you can also store other availa- ble programme types. To do so, make sure that “PTY” lights up in the display. •... -
Page 17: Receiving Traffic Programme Stations With Rds-Eon
Receiving traffic programme stations with RDS-EON The abbreviation “EON” stands for En- hanced Other Networks, meaning the ex- change of information within a radio network. Many FM broadcasters offer traffic messag- es for their service area at regular intervals. All traffic programme stations transmit a special carrier signal alongside their pro- grammes, which is decoded by your car ra- dio. -
Page 18: Adjusting The Volume For Traffic Announcements And The Beep Tone
Adjusting the volume for traffic announcements and the beep tone This volume was preset at the factory, though you can alter the value using the DSC function (see “DSC programming, TA VOL”). If the volume level is altered while a mes- sage is being played, this will only affect the current announcement. -
Page 19: Switching The Tape Side (Autoreverse)
Switching the tape side (autoreverse) To change the tape direction during cassette playback: • Press briefly. At the end of a tape side the mechanism changes directions automatically to play the other side (autoreverse). The display shows “TR 1” for track (side) 1 or “TR 2” for track 2. Notice: If there is too much tension on the tape dur- ing playback, the set may switch over by it-... -
Page 20: Dsc Programming
DSC programming DSC (Direct Software Control) allows you to customise certain programmable, basic settings to suit your personal needs and preferences and then store them. The basic settings for this audio equipment were made at the factory. In the following you can find an overview of these settings, so that you can always reset to these if desired. -
Page 21: Overview Of Dsc Factory Settings
LEARN KC To “train” a second Key- Card. Please read the information in chapter “KeyCard theft protection system - Training a second KeyCard”. READ KC To read out the KeyCard data. The KeyCard supplied with the radio is used to display the model name, type number (7 6..) and the serial number. -
Page 22: Appendix
Address of the next service centre in your vicinity (only for Germany) If you would like to know the address of the next Blaupunkt service centre of your area without having our service list at hand: Find out your area code. - Page 23 Blaupunkt-Werke GmbH Bosch Gruppe 2/97 Pf K7/VKD 8 622 400 926...
