Then, Remove The Wheel By The Belts; To Replace Brush Rolls - Bissell ProHeat 2X Revolution Pet Pro Quick Start Manual

•

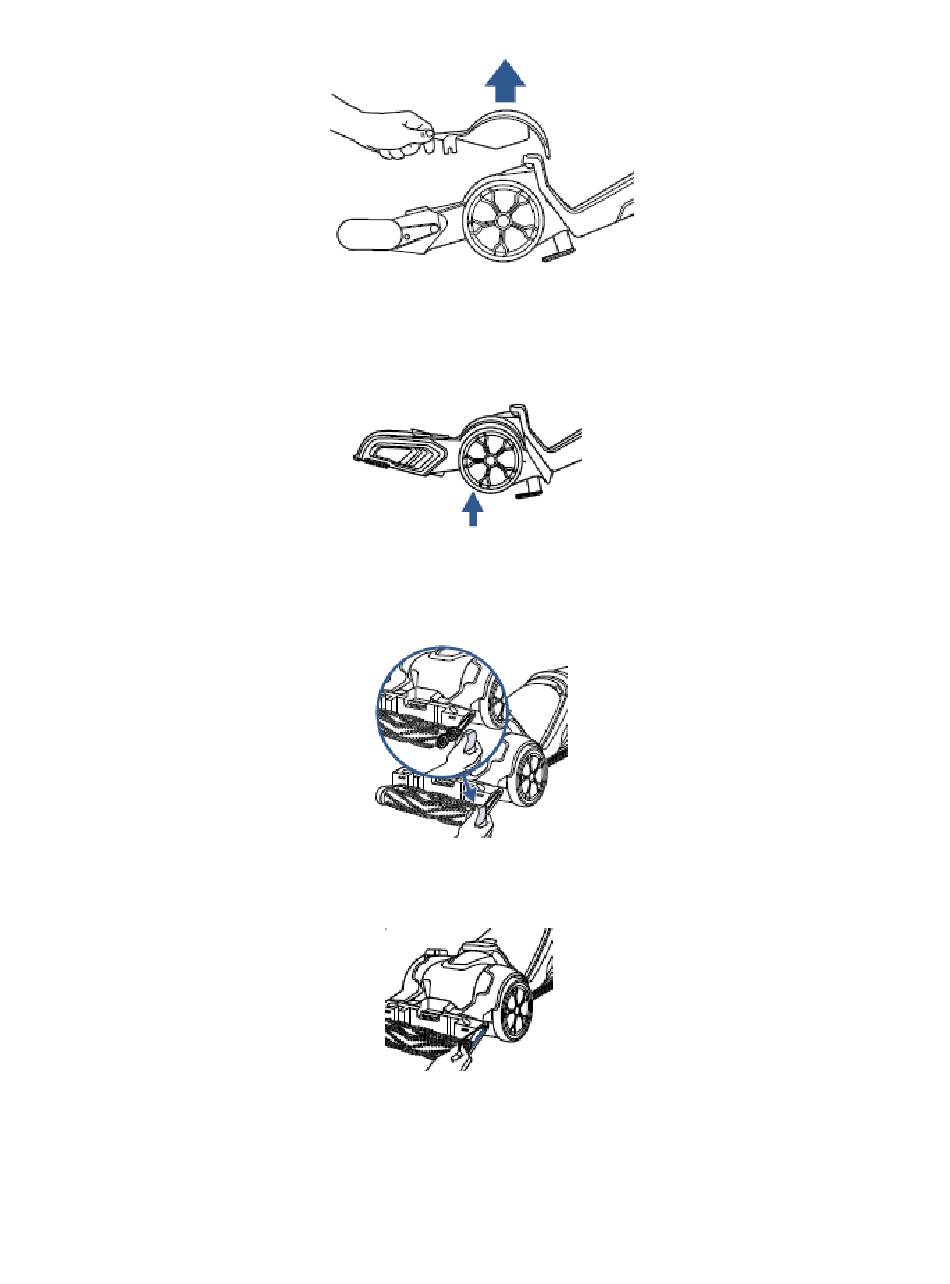

Then, remove the wheel by the belts

•
Turn the machine on its side and use a Philips screwdriver to remove the screw just underneath the
wheel
•
Slide the wheel down to remove
•
Lay the machine back down on its back
•
Use a Phillips-head screwdriver to remove the screw on the brush roll end cap
•
If the gear belt is broken, gently remove it
•
If you are replacing your brush rolls, gently remove the belt
•
There are washer at the ends of the brush rolls, be careful that these do not fall off or get lost
•
To replace brush rolls, remove them from the metal posts and replace
•
Make sure the metal post goes completely through the end of the brush roll
•
The brush roll bristles should be aligned in a 'V' pattern
