RQuest USB to PR13 Bridge (USB2PR13) Quickstart Guide
Please follow the steps below to set up the PrismPlus USB Adaptor

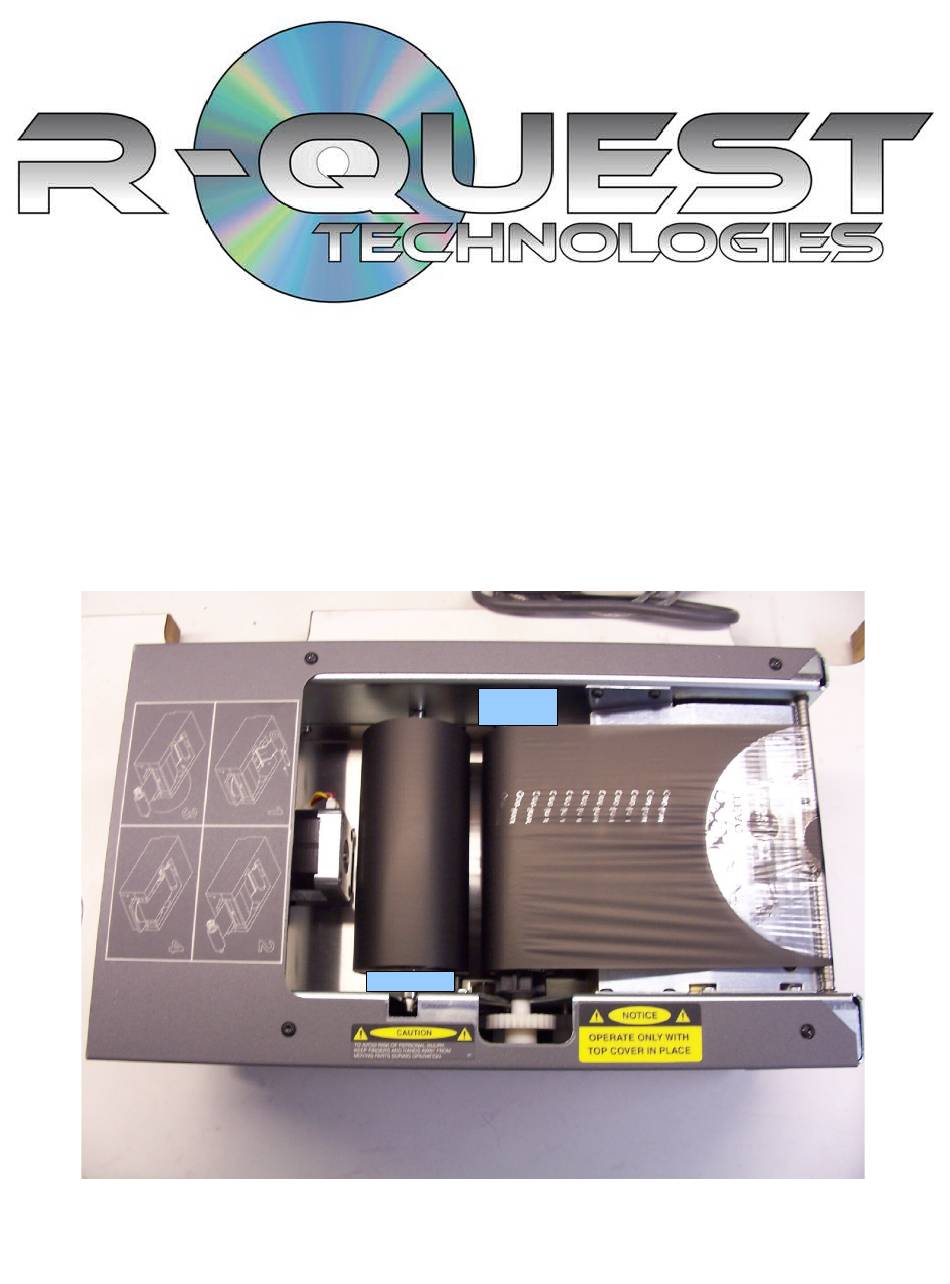

Unpack your Prism printer from its original box.
●
Make absolutely sure to remove the 2 pieces of packing foam from the inside of the printer.
●
Power down your TP5100 print station, or other RQuest duplication system.
●
.
Advertisement
Related Manuals for R-Quest USB2PR13
Summary of Contents for R-Quest USB2PR13
- Page 1 RQuest USB to PR13 Bridge (USB2PR13) Quickstart Guide Please follow the steps below to set up the PrismPlus USB Adaptor . Unpack your Prism printer from its original box. ● Make absolutely sure to remove the 2 pieces of packing foam from the inside of the printer. ● Power down your TP5100 print station, or other RQuest duplication system. ●...
- Page 2 Make sure that your Rimage Prism printer has the RQuest adaptor plate bolted onto the bottom. ● Prepare the locating pins of the printer plate of the 5100, as shown. ●...
- Page 3 Place the Prism printer on the printer plate of the 5100, using the locating pins. ●...
- Page 4 Connect the power cable directly to your Prism Printer. ● Connect the small end of the Rimage parallel cable to the rear of the Prism printer. ● Connect the small end of the Rimage traycontrol cable to the rear of the Prism printer. ●...
- Page 5 Connect the large end of the Rimage parallel cable to the RQuest USB adaptor. ● Connect the large end of the Rimage traycontrol cable to the RQuest USB adaptor. ● Connect a USB cable from the back of your 5100 to the RQuest USB adaptor. ●...
- Page 6 Flip on the Power switch, on the rear of the Prism printer. ● Wait until the Prism printer is fully initialized. ● Power on your 5100. ● When your 5100 reaches a certain point in the boot up process, it should show a screen like this: ● | | |Found 1 Hard Disk | |Found RQ Prism Plus | | [Self Test 32] | If that screen has the "Prism Plus" line, then your printer is ready. ● If you miss that screen, you can go to your "Setup" Menu, and enter "Printer Setup" to verify ● that your printer is ready. From the 5100's main menu, enter the "Utilities" Menu. Go to "Loader Utilities", "Loader ● Utilities", "Extended Diags". After the Loader calibrates from your entry into Extended Diags, place a disc on the pick ○ finger. Enter "Set Printer", and align your loader robot to your printer. ○ You may have to adjust the thumbscrew on the printer plate, to make larger adjustments. ○ At this point, your printer should be completely ready to use. ●...
