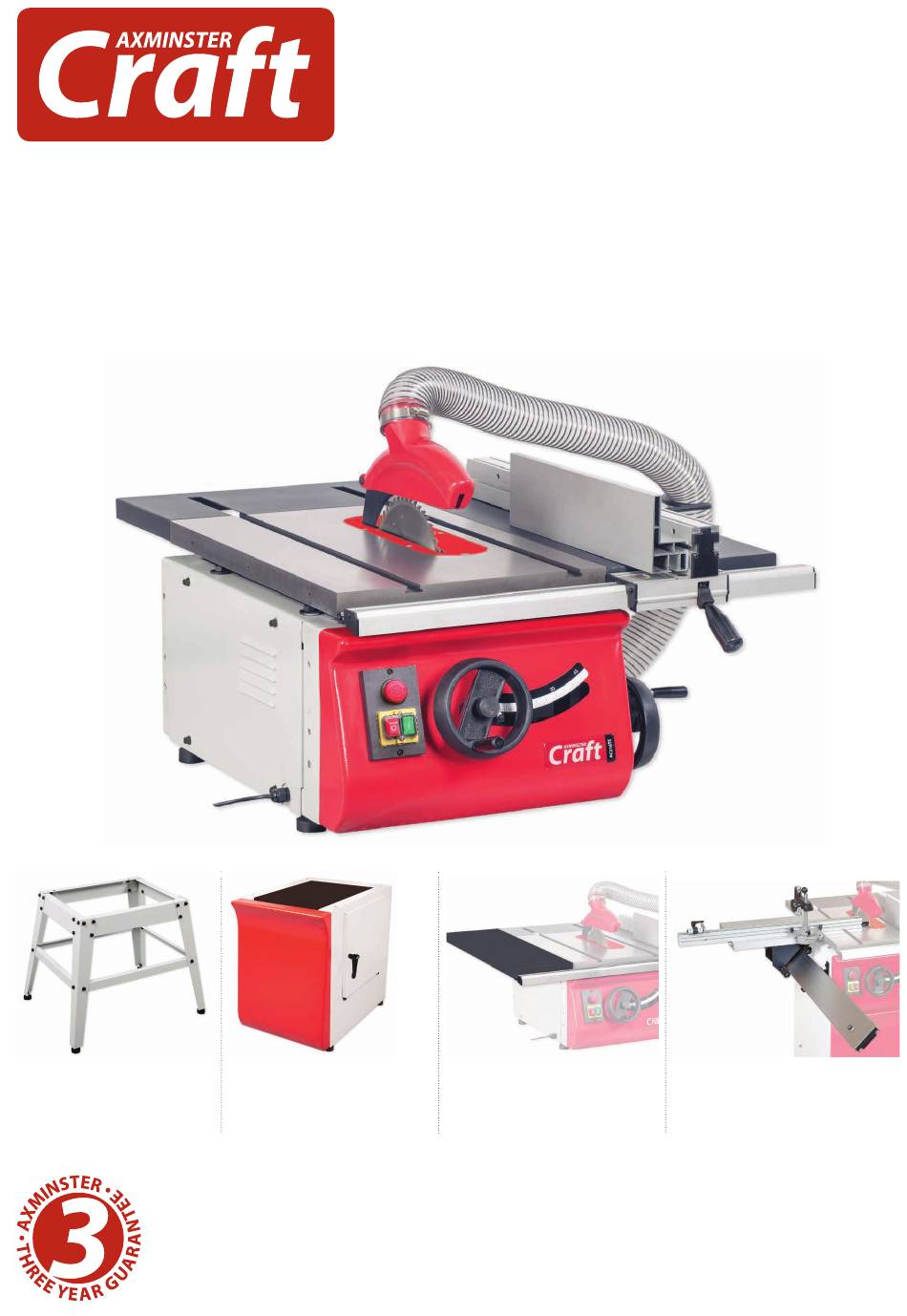

AC216TS & AC254TS
216mm & 254mm Table Saw
Floor Stand
Code: 104931 for AC216TS
Code: 106804 for AC254TS
Cabinet Stand
Code: 104932 for AC216TS
Code: 106806 for AC254TS
Left Hand Extension Table
Code: 106808 for AC216TS
Code: 106809 for AC254TS
AC216TS Code 104926
AC254TS Code 106803
Original Instructions
Sliding Table Kit
Code: 104930 for AC216TS
Code: 106805 for AC254TS
AT&M: 06/03/2020
BOOK REF: 105785
BOOK VERSION: 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC216TS and is the answer not in the manual?

Questions and answers

Summary of Contents for Axminster Craft AC216TS

  • Page 1 216mm & 254mm Table Saw Floor Stand Cabinet Stand Left Hand Extension Table Sliding Table Kit Code: 104931 for AC216TS Code: 104932 for AC216TS Code: 106808 for AC216TS Code: 104930 for AC216TS Code: 106804 for AC254TS Code: 106806 for AC254TS...
  • Page 2 EN 60204-1:2006+A1+AC Table Saw Type Model AC216TS & AC254TS and conforms to the machinery example for which the EC Type-Examination Certificate No BM 50424431 has been issued by Laizhou Fulin Machinery Co., Ltd. Signed at: Wenchang Road Street Nanwuli Industry Yard Laizhou, Shandong261400 China and complies with the relevant essential health and safety requirements.
  • Page 3: What's Included

    What’s Included Quantity Item Part Model Number AC216TS, AC254TS Basic Table Saw Outer Flexible Hose Side Extension Table Hose Clips Rear Extension Table Push Stick Operating Handle Wheel Knobs Blade Locking Bar Rip Fence Assembly 24mm Spanner Rip Fence Extension...
  • Page 4: Optional Accessories

    Optional Accessories Code 104931 Floor Stand Assembly Quantity Item Part Leg Brackets Long Upper Support Struts Short Upper Support Struts Long Lower Support Struts Short Lower Support Struts Threaded Rubber Feet Floor Stand Bag of Fixings Code 104932 Cabinet Stand Assembly Quantity Item Part...
  • Page 5 Optional Accessories Code 104930 Sliding Table Kit (AC216TS) Code 106805 Sliding Table Kit (AC254TS) Quantity Item Part Quantity Item Part Sliding Carriage Support Bracket Sliding Carriage Support Bracket Threaded Adjuster Assembly Threaded Adjuster Assembly Height Adjusting Blocks Height Adjusting Blocks...
  • Page 6: General Instructions For 230V Machines

    Table Insert for the AC216TS Code: 104933 Table Insert for the AC254TS Code: 106807 19mm Mitre Fence Left Hand Extension Table with Long Rip Fence Rail/Scale AC216TS Code: 106808 Left Hand Extension Table with Long Rip Fence Rail/Scale AC254TS Code: 106809 General Instructions for 230V Machines The following will enable you to observe good working •...
  • Page 7 Specific Instructions for Table Saws Make sure the saw blade is the correct type for the job in hand. After switching off, never try to slow the saw down more Do not force the saw, if the saw begins to ‘stall’ you are ‘forcing quickly by applying side pressure (with a piece of wood?) to the cut’...
  • Page 8: Specification

    Specification Code 104926 Code 106803 Model AC216TS Model AC254TS Rating Craft Rating Craft Power 1.1 kW 50Hz 230V 1ph Power 1.5 kW 50Hz 230V 1ph Blade Dia/Bore 216 mm / 30 mm Blade Dia/Bore 254 mm / 30 mm Blade Tilt 0°...
  • Page 9 Assembly Fig 06-07 Fig 10-11-12 3. Locate the inner flexible hose (V) and two hose clips (M). Place a clip over each end of the hose and secure the hose over the extraction outlets, see fig 06-07. Fig 08 Fig 13-14-15 Line up the holes 4.
  • Page 10 Assembly Fig 16-17 Clamping knob Levelling grub screws Insert plate 7. Raise the saw by first releasing the rise & fall operating wheel clamping knob, remove the five cross head screws 9. Locate the crown guard (K), flexible hose (L) and hose holding the table insert and place safely aside, see 16-17.
  • Page 11 Assembly Fig 35 Fig 38-39-40 11. Put to hand four M8 Bolts with washer/nuts (U) and rip fence rail with scale (G). Insert two bolts with washers up through the holes to the underside end of the side extension ‘T’ Slot table (B) and lightly screw on two bolts.
  • Page 12 Mounting the Stand to the Saw Remove the rip fence, crown guard and hose and lower saw AC216TS Table Saw assembled for work bench set up blade below the table. With assistance turn the saw assembly (A) over & remove the four rubber feet (T). Place the base plate 104931 Optional Floor Stand for AC216TS (W) on top and align the holes as shown in step 5.
  • Page 13 Assembly 104932 Optional Cabinet Stand for AC216TS Step 5 106806 Optional Cabinet Stand for AC254TS Locate all the components for the cabinet stand as shown on page 04-05 and follow the instructions below. Step 1 Mounting the Cabinet to the Saw Turn the saw assembly (A) over, place the base plate (W) on top and align the holes as shown in step 6.
  • Page 14 Assembly Fig 45-46-47 104930 Optional Sliding Table Kit for AC216TS 106805 Optional Sliding Table Kit for AC254TS Cap head bolt 1. Locate the carriage support brackets (20). Offer up the elongated slots in both support brackets with the threaded holes in the side of the saw assembly (A). Using the supplied Hex key (R) secure the bracket in place using the threaded adjusters (21), see fig 42-43-44.
  • Page 15 Assembly Fig 50-51-52 Fig 54-55-56-57 Table stop pin knob Pivot Self tapping screws Locking nuts 6. Place a level across both tables, using the supplied hex key 4. Locate the sliding table (28), turn the table over and pull (R) adjust both height adjusting blocks (22) and the threaded out and twist the table stop pin knob so it’s in the unlocked adjusters on each support bracket (20), until the sliding table position, see fig 50-51.
  • Page 16 Assembly Fig 59 Fig 62 9. Remove the washer/nut from the tool post (25), insert the post down through the machined holes in both mitre casting (24) and sliding table (28) and secure using the washer/nut, see fig 62. 10. Loosen the hold down clamping knob (26) and slide the assembly down the tool post (25) and clamp in position, see fig 63.
  • Page 17 Assembly 90˚ Stop 14. Using a 90˚ square check that the blade is at 90˚ to the fence assembly (29) and make adjustments until correct, see fig 70. Fig 70 Butterfly knob 12. Slide the fence (29) near the blade but not touching, tighten the butterfly knobs, see fig 66-67.
  • Page 18: Illustration And Parts Description

    Illustration and Parts Description Code 104926 Basic Table Saw Code 106803 Basic Table Saw Crown guard Flexible hose Riving knife Rear extension table Saw blade Rip fence rail Rip fence clamping handle Saw assembly access panel 45˚ Scale NVR Control panel Main Table Saw Rip fence extension Rip fence...
  • Page 19 Illustration and Parts Description ON/OFF control switch (A), Emergency stop button (B) Optional 104928 Mitre Fence Rise and Fall operating wheel (C) Tilt scale pointer and adjusting screw 100mm Dust extraction moulding Rip fence magnifying glass and index marker Motor and saw assembly Optional 104933 insert gives better material support for cutting thin strips...
  • Page 20 Illustration and Parts Description Table Saw Optional Accessories Code 104931 AC216TS Floor Stand Code 106804 AC254TS Floor Stand Code 106808 AC216TS Left Hand Extension Table Code 106809 AC254TS Left Hand Extension Table Code 104932 AC216TS Cabinet Stand Code 104930 AC216TS Sliding Table...
  • Page 21 Illustration and Parts Description Cabinet stand storage door Distance stop (27) with micro adjusting wheel (a) Fence mitre scale, pointer Fence mitre adjusting screw stops for -45˚ to +45˚ and clamping handle Table stop pin knob, engage to Hold down clamp assembly Sliding carriage stop, prevent the table from sliding prevents the sliding table...
  • Page 22: Setup And Adjustment

    Set Up and Adjustment The Riving Knife Adjusting the Rip Fence to the Blade 1. Raise the saw blade to its highest point and remove the saw The fence assembly must be parallel to blade crown guard (K) and the table insert, place safely aside, the saw blade for producing accurate cuts.
  • Page 23 Set Up and Adjustment Adjusting the Pivot Release the locking knob to the centre of the operating wheel (a) to the side of the saw assembly and turn clockwise to pivot the saw to a maximum of 45˚ degrees, indicated on the scale, see fig 82-83-84.
  • Page 24 Operating Instructions NOTE: BEFORE USING YOUR SAW, GO ROUND AND MAKE SURE EVERYTHING IS SECURE, FASTENED DOWN, THAT ALL TOOLS ARE CLEARED AWAY FROM THE WORK AREA! NOTE: Secure larger pieces of timber to the table by using the hold down clamp. CHECK: THE BLADE FOR SHARPNESS, MISSING TEETH, RESIN BUILD UP ETC., Cutting Narrow Pieces...
  • Page 25: Changing The Saw Blade

    Changing the Saw Blade Fig 95-96-97-98 DISCONNECT THE MACHINE FROM THE MAINS SUPPLY! 1. Raise the saw blade to its highest point, remove the saw blade crown guard, remove the five cross head screws that secure the table insert, place carefully aside and remove the table insert, see fig 91-92.
  • Page 26: Maintenance

    Maintenance Fig 99-100 1. Keep the saw as clean and free from saw dust build up as is practical. Periodically, remove the saw gullet by removing the side access panel to the side of the machine and undo the two Hex screws on either side of the gullet, see fig 99-100.
  • Page 27 Exploded Diagrams/Lists 104926 AC216TS Basic Table Saw Diagram A Continues over...
  • Page 28 Exploded Diagrams/Lists 104926 AC216TS Basic Table Saw Diagram A Description Front Rail Rip Fence Adjusting Thread Rod Right End Captor Front Rail Eccentric Wheel Locking Knob Left End Captor Front Rail Locking Shaft Semi-circle key 3x16 Taping Screw ST4.2 x 10...
  • Page 29 Exploded Diagrams/Lists 104930 AC216TS Optional Sliding Table Kit Diagram B Continues over...
  • Page 30 Exploded Diagrams/Lists 104930 AC216TS Optional Sliding Table Kit Diagram B Description Washer 12mm Mounting Bracket Cir-Clips for Shaft 12mm Mitre Guage Stud Hold Down Scale Mount Disc Hold Down Wing Nut Spring Hold Down Bolt Guide Hex.Nut M12 Locating Bracket Hex.
  • Page 31 Exploded Diagrams/Lists 104932 AC216TS Optional Cabinet Stand Diagram C Description Washer 8mm Right Panel,Cabinet Stand Hex.Nut M8 Left Panel, Cabinet Stand Spring Washer 8 Rear Panel,Cabinet Stand Cross Recessed Pan Head Screw M6 x 12 Sidelong Support Front Panel Access Door, Cabinet Stand Ratchet Lever Hex.
  • Page 32 Exploded Diagrams/Lists 106803 AC254TS Basic Table Saw Diagram A...
  • Page 33 Exploded Diagrams/Lists 106803 AC254TS Basic Table Saw Diagram A Description Bottom Panel Hex.Bolt M8 x 20 Motor Pulley Switch Hex.Nut M10 Pulley Pointer Block Levelling Foot Motor Washer 6mm Cross Recessed Pan Head Screw M6 x 12 Shaft Base Blade Guard Front Rail Saw Blade Sleeve Riving Knife...
  • Page 34 Exploded Diagrams/Lists 106805 AC254TS Optional Sliding Table Kit Diagram B...
  • Page 35 Exploded Diagrams/Lists 106805 AC254TS Optional Sliding Table Kit Diagram B Description Disc Hold Down Mitre Gauge Spring Hold Down Scale Mount Hex.Nut M12 Wing Nut Hex. Socket Cap Head Bolt M5 x 12 Bolt Guide Washer 5mm Locating Bracket Star-Type Knob Hold Down Locating Plate Ratchet Lever Scale...
  • Page 36 Exploded Diagrams/Lists 106806 AC254TS Optional Floor Stand Diagram C Description Stand Leg Upper Long Bracket Stand Leg Upper Short Bracket Stand Leg Lower Long Bracket Stand Leg Lower Short Bracket Stand Leg Levelling Foot Hex.Nut M8 Washer 8mm Hex.Bolt M8 x 16 106806 AC254TS Optional Cabinet Stand Diagram D Description Access Door Cabinet Stand...
  • Page 37: Wiring Diagram

    Wiring Diagram...
  • Page 38 Notes...
  • Page 39 Notes...
  • Page 40 The Axminster guarantee is available on Craft, Trade, Engineer, Air Tools & CNC Technology Series machines Buy with confidence from Axminster! So sure are we of the quality, we cover all parts and labour free of charge for three years! For more information visit axminstertools.com/3years The packaging is suitable for recycling.
