PROFESSIONAL QUALITY COOKING EQUIPMENT
OWNER'S MANUAL FOR
PASTA COOKER
MODEL NUMBER: ARPC-18

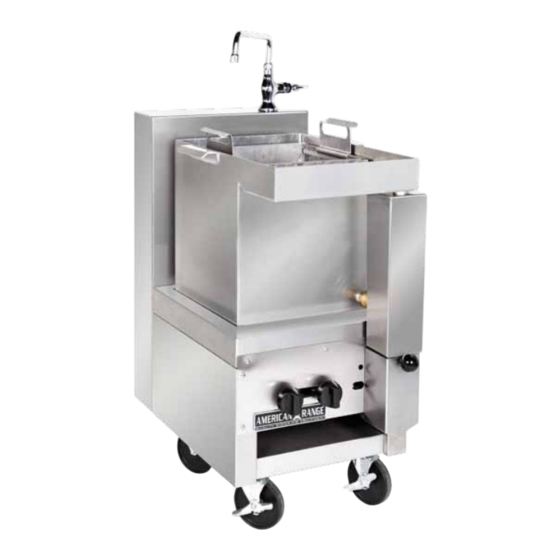

Shown with optional casters
DESIGN
CLASS
FUNCTION
RETAIN THIS MANUAL FOR FUTURE REFERENCE
© 2012 American Range
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
All Rights Reserved
