Summary of Contents for Dongcheng DJG04-355B

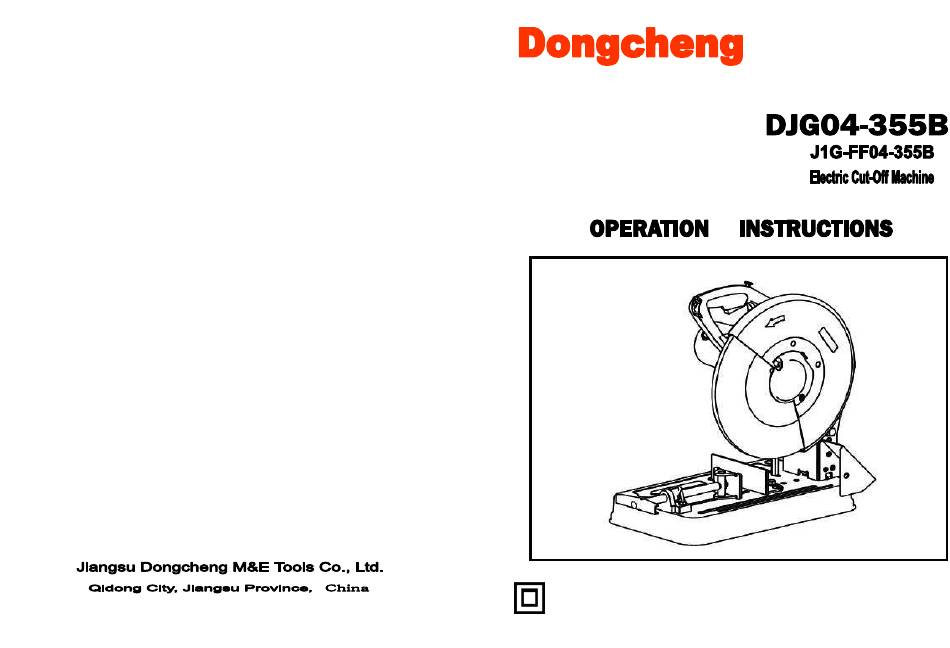

- Page 1 Read through carefully and understand these instructions before use. Edition 3 Jan., 2017...
-
Page 2: General Power Tool Safety Warnings
9. If operating a power in a damp location is unavoidable, use a residual current GENERAL POWER TOOL SAFETY WARNINGS device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. NOTE: The term “residual current device (RCD)” may be replaced by the term (For All Power Tools) “ground fault circuit interrupter (GFCI)”... -
Page 3: Specifications
18. Do not use tool if switch does not turn it on or off. Any power tool that SPECIFICATIONS cannot be controlled with the switch is dangerous and must be repaired. 19. Disconnect the plug from the power source and/or the battery pack from Rated Power Input 2000 W the power tool before making any adjustments, changing accessories, or... - Page 4 Use only flanges specified for this tool. 22. Always switch off and wait for the wheel to come to a complete stop before moving Be careful not to damage the spindle, flanges (especially the installing surface) workpiece or changing settings. or bolt.
-
Page 5: Instructions For Operation
INSTRUCTIONS FOR OPERATION Stop Screw Stop screw is used to prevent cut-off wheel from contacting with worktable or ground. When installing the cut-off wheel, set the stop screw at a higher position. When the wheel is worn to less than 330 mm in diameter, set the stopper at lower position and remove the hex bolt, outer flange and the wheel. -
Page 6: Securing Workpiece
machine cannot be used to bevel cutting. wood (spacer) over 190mm long and 45mm wide to the guide plate. (Fig. 11) To change the cutting angle, loosen the two hex bolts which secure the guide plate. Attach this spacer with screws through the holes in the guide plate. Move the guide plate to the desired angle (0°... -
Page 7: Operation
Operation MAINTENANCE AND INSPECTION CAUTION: CAUTION: Proper handle pressure during cutting and maximum cutting efficiency can be Always be sure that the machine is switched off and unplugged before attempting to determined by the amount of sparks that is produced while cutting. Your pressure on perform inspection or maintenance. - Page 8 replaced at the same time. Use only identical carbon brushes. Use a screwdriver to remove the brush holder caps. Take out the worn carbon brushes insert new ones and secure the brush holder caps. (Fig. 17) ※ Damaged cord must be replaced by a special cord purchased from authorized service center.
- Page 9 EXPLANATION OF GENERAL VIEW EXPLANATION OF GENERAL VIEW Safety Guard Screw Ball Bearing Spring Round Pin Gear(Large) Gear Housing Chain Hook Small Shaft Flat Washer Ball Bearing Compression Spring Left Handle Dead Plate Drive Spindle Lock Pin Screw Washer Stator Wire（long） Sleeve Hex Lock Nut M6 Spring Washer...
