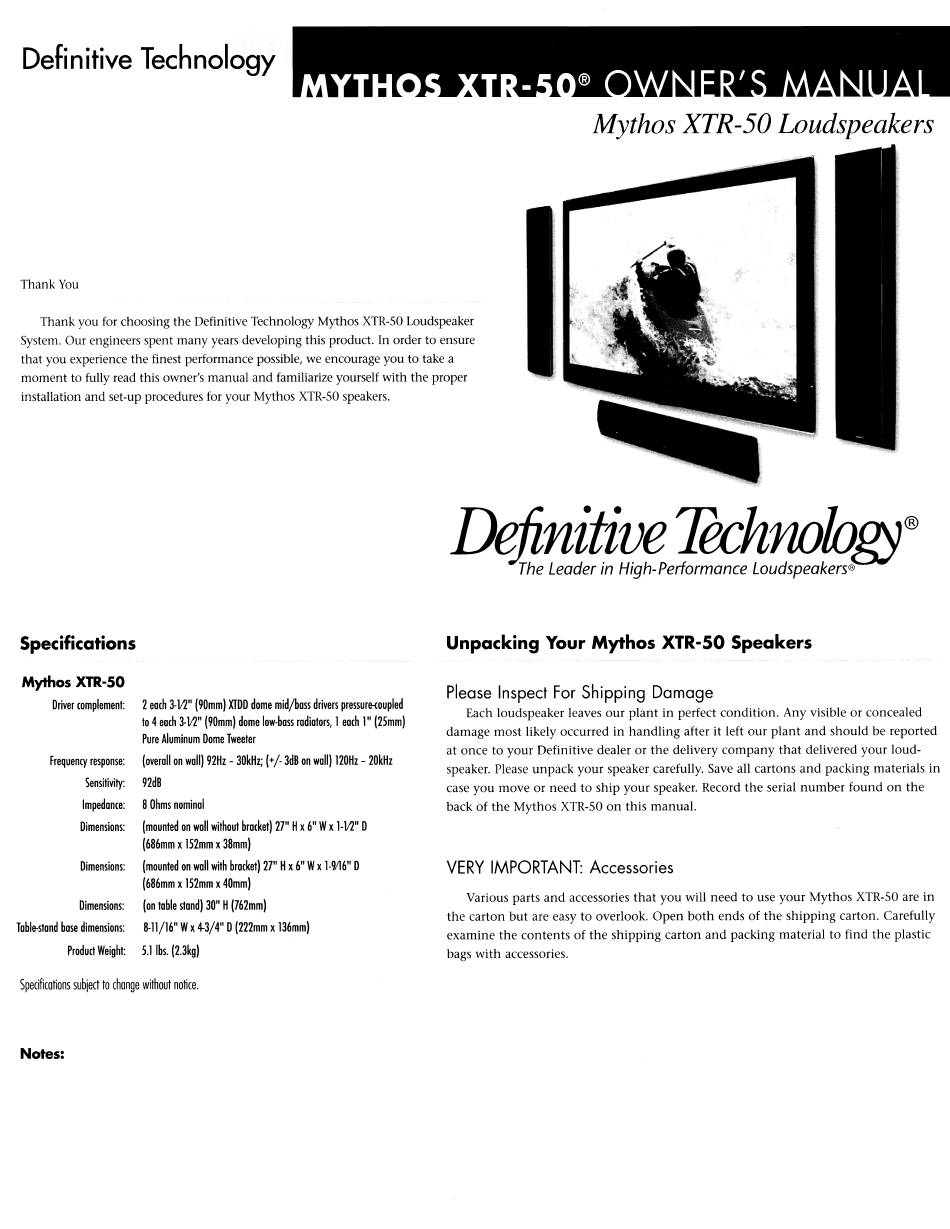

Definitive Technology Mythos XTR-50 Manual

Definitive Technology
Thank You
Thank you for choosing the Definitive Technology Mythos XTR-SO Loudspeaker
System. Our engineers spent many years developing this product. In order to ensure
that you experience the finest performance possible, we encourage you to take a
moment to fully read this owner's manual and familiarize yourself with the proper
installation and set-up procedures for your Mythos XTR-SO speakers.
Specifications
Mythos XTR-SO
Driver complement:
Frequency response:
Sensitivity:
Impedonce:
Dimensions:
Dimensions:
Dimensions:
Toble-stond base dimensions:
Product Weight:
2each 3-lIZ" (90mm) XTDD dame mid/bass drivers pressurlHaupled
to 4each 3-lIZ" (90mm) dame law-bass radiators, I each 1" (25mm)
Pure Aluminum Dame Tweeter
(overall an wall) 92Hz - 30kHz; (+1- 3dB an walll120Hz - 20kHz
92dB
8Ohms nominal
(mounted on wall without bracket) 27" Hx6" W xI-lIZ" 0
(686mm x152mm x38mm)
(mounted an wall with bracket) 27" Hx6" W x].11116" 0
(686mm x152mm x40mm)
(on table stand) 30" H(762mm)
8-11/16" W x4-3/4" 0(222mm x136mm)
5.1Ibs·12.3kg)
Definitive Technologj®
The Leader in High-Performance Loudspeakers®
Unpacking Your Mythos XTR-50 Speakers
Please Inspect For Shipping Damage
Each loudspeaker leaves our plant in perfect condition. Any visible or concealed
damage most likely occurred in handling after it left our plant and should be reported
at once to your Definitive dealer or the delivery company that delivered your loud-
speaker. Please unpack your speaker carefully. Save all cartons and packing materials in
case you move or need to ship your speaker. Record the serial number found on the
back of the Mythos XTR-SO on this manual.
VERY IMPORTANT: Accessories
Various parts and accessories that you will need to use your Mythos XTR-SO are in
the carton but are easy to overlook. Open both ends of the shipping carton. Carefully
examine the contents of the shipping carton and packing material to find the plastic
bags with accessories.
Specificafions subject to chonge without nofice.
