LockState RemoteLock openEDGE RG Hardware Installation

Lever
Hide thumbs Also See for RemoteLock openEDGE RG:

Advertisement

Quick Links

Download this manual

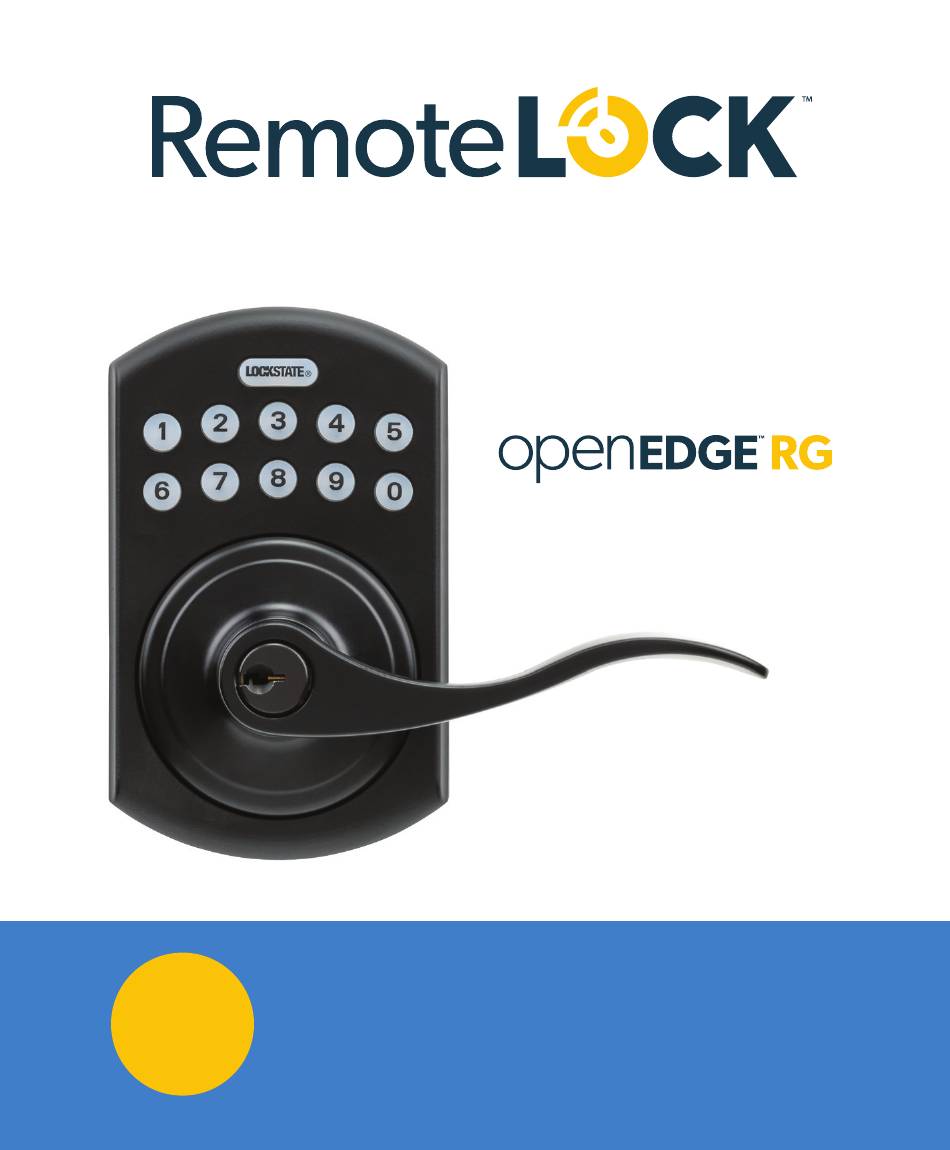

LEVER
1
Hardware Installation
Do this first:

Advertisement

loading
Need help?

Need help?

Do you have a question about the RemoteLock openEDGE RG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LockState RemoteLock openEDGE RG

Summary of Contents for LockState RemoteLock openEDGE RG

  • Page 1 LEVER Hardware Installation Do this first:...
  • Page 2 You are here. Install your lock. Use this Hardware Installation Guide to get your lock installed. Get connected. Use the Connection Guide to get your lock online and registered. Take control. Now your lock is fully functional and can be managed from anywhere.
  • Page 3 Prefer to watch a video? An instructional video of the 5i Lever installation and the removal of a preexisting lock can be found at remotelock.com/RG-lever.
  • Page 4 Need some help? Visit us online. support.remotelock.com We’re here to help. 1 (877) 254 5625 support@remotelock.com...
  • Page 5 Here’s what you’ll need: 4 AA Batteries Phillips Screwdriver OPTIONAL: Power Drill 2 1/8” Hole Saw 1” Drill Bit Measuring Tape Adhesive Tape...

  • Page 6: What's In The Box

    What’s in the box? Let’s make sure you have everything you need. If you’re missing anything, contact support@remotelock.com Interior Lock Exterior Lock...
  • Page 7 Mounting Plate Strike Plate Key Set Latch Hardware Pack...
  • Page 8 Let’s get started. First things first, let’s get your new lock installed.
  • Page 9 Drilling new holes? Most doors will have an existing hole drilled for a lever lock. If your door needs to be drilled, you’ll need to drill a 2 1/8“ (54mm) hole for the lockset on the face of the door, as well as a 1 inch bore hole for the latch on the edge of the door.
  • Page 10 Position the template. STEP 1 If your door already has a latch and face bore hole, please proceed to step 3. Use the template to the right to mark the center of each hole precisely. Once the template is aligned, tape the template in place.
  • Page 13 Exterior of Door Interior of Door...
  • Page 14 Mark carefully and drill. STEP 2 Use a thumbtack or sharp object to mark the center of each hole you will drill. Mark the exterior of the door, then apply the template to the interior of the door. Make sure the holes are aligned precisely from one side of the door to the other and double check all the measurements and markings.
  • Page 15 Exterior of Door Interior of Door Edge of Door...
  • Page 16 Align the drill bit over your mark and hold the door steady. Keep the drill level and straight. Drill the 2 1/8“ face bore halfway through on the first side. Then drill the remaining half from the other side of the door.
  • Page 17 Exterior of Door Interior of Door Edge of Door...
  • Page 18 Measure the backset and STEP 3 adjust the latch to fit. is the distance backset between the center of the face bore hole to the edge of the door. The lever latch has two positions, when retracted it will fit a 2 3/8” (60mm) backset or when extended, will fit a 2 ¾”...
  • Page 19 POSITION 1 POSITION 2...

  • Page 20: Install Latch

    Install latch. STEP 4 Insert the latch and make sure it is flush with the door frame. Ensure the symbols on the latch are pointed up. Hand tighten with two of the included wood screws. The guard latch should face the exterior of the door. Quick Tip Make sure the latch plate lays flush with the door.
  • Page 21 Exterior of Door GUARD LATCH Exterior of Door...
  • Page 22 Position keypad. STEP 5 Place the keypad portion of the lock on the exterior side of the door. Pass the power cable over the latch to the interior side of the door. Ensure the tailpiece is in the vertical position and inserted through the hub of the latch. Quick Tip Make sure the power cable is inserted above the latch and the latch tailpiece is in the vertical position..
  • Page 23 Exterior of Door Interior of Door POWER CABLE TAILPIECE...

  • Page 24: Attach Mounting Plate

    Attach mounting plate. STEP 6 Hold the mounting plate up to the interior of the door, making sure the prongs are facing up and outward. Pass the power cable through the upper center hole on the mounting plate. Secure the mounting plate to the exterior half of the lock with the two included long bolts.
  • Page 25 Interior of Door UPPER CENTER HOLE...
  • Page 26 Prepare the interior lock. STEP 7 Remove the battery cover from the interior of the lock by sliding the cover upward and pulling it off. The lever lock’s thumb turn should still be in the horizontal, unlocked position and the tailpiece slot should be in the vertical position.
  • Page 27 UNLOCKED THUMB TURN VERTICAL TAILPIECE SLOT...
  • Page 28 Attach interior lock. STEP 8 Connect the front lock’s power cable to the interior lock. Next, place the interior lock on the mounting plate making sure it is pressed flush to the door and the screw holes align with the mounting plate. Secure the interior lock to the mounting plate using the 3 included short bolts.
  • Page 29 OPTIONAL...

  • Page 30: Install Handles

    Install handles. STEP 9 With the levers still in the unlocked position, insert the provided pin wrench into the small hole on the neck of the lever and apply pressure to depress the catch. Once the catch has been depressed, pull out the lever from the stem.
  • Page 31 Interior of Door Exterior of Door...

  • Page 32: Insert Batteries

    Insert batteries. STEP 10 Insert 4 AA alkaline or lithium batteries into the battery compartment. Slide the battery cover back onto the lock. Rechargeable batteries should never be used in this device because they do not support the necessary voltage. Please only use name brand alkaline or lithium batteries.
  • Page 34 Test your lock. STEP 11 First, press the button to lock the lock. Then enter the factory default code 1234, followed by button to unlock the lock. The keypad will flash green and the lever will now open freely. To lock the lock, press the button.
  • Page 35 Congratulations! Your lock is now installed. Next: Use the Connection Guide to finish setup.
  • Page 36 Using your lock. Locking Lock the door by pressing the button, by interior thumb turn, or with the included keys. Unlocking Unlock the door by entering a user code followed by the button on the keypad, by interior thumb turn, or with the included keys.
  • Page 37 INTERIOR EXTERIOR LOCKSTATE BUTTON BATTERY LID The LockState Button is utilized Slide the lid to change the for entering codes and setting batteries. functions. It’s also a lock button. BATTERY HOLDER Four AA (1.5v) Alkaline or Lithium NUMBER BUTTONS Input buttons for codes and batteries only.
  • Page 38 Default Settings By default, and after a factory reset, your lock has the following settings: Programming Code: User Code: 1234 Auto-Lock Mode: Disabled Keypad Sound: Enabled Heartbeat Interval: 1 Hour...

  • Page 39: Programming Functions

    Programming Functions You can use the keypad to perform several functions. These functions can also be performed remotely from the RemoteLock app. None of the following functions are required for setup. All keypad programming functions follow the same general steps: 1.
  • Page 40 Specs and Functions Power: 6V, four AA (1.5V) Alkaline or Lithium batteries only. Low Power or Low Battery life Notifications are initially sent when the device reports battery at 30% or less. Once the battery has reached 30%, we will send additional low power notifications once per week until the device is dead.
  • Page 41 User Codes: User codes (or PIN codes) are used to unlock the door and are created using the web or mobile app. Code access can be limited by applying an access schedule (M-F, 9-5) if desired. User codes must be 4-10 digits. Auto-Lock: When disabled, the lock will remain unlocked after a code is entered.
  • Page 42 battery pack within 10 seconds of power-cycling the lock (removing and reinserting a single battery). Illuminated Indications 1 green flash: successful operation or a button press. 2 green flashes: successful programming. 3 red flashes: operational or programming error. 4 red flashes: 4.25V low battery warning. 8 red flashes: 3.75V low battery warning.
  • Page 43 Function Codes 100: Change Programming Code The programming code is a password for your lock. This code will allow you to program the lock directly, using the keypad. By default, the code is 123456. You can change this code to any anything 4–8 digits in length.
  • Page 44 110: Add a Local Code Local Codes are intended to be used as a backup to User Codes created from the app. If internet is unavailable, you can program a code directly from the lock. Note that schedules cannot be applied to a Local Code. Local Codes can be 4–8 digits in length.
  • Page 45 Function Codes (cont.) 120: Delete Local Code If you would like to remove your Local Code, enter the following on the lock’s keypad: Enter your followed by the button, followed by , and then enter the existing followed by 130: Erase ALL Local Codes If you would like to remove ALL of your existing Local Codes, enter the following on the lock’s keypad:...
  • Page 46 Additional Functions For all these additional functions, enter the following on the lock’s keypad: Enter your followed by the button, then the corresponding followed by Enter 320 followed by to beacon the 320: lock’s network to connect Wi-Fi, or connect to a new network.
  • Page 47 270: DISABLE Auto-Lock. Your lock will stay unlocked after being unlocked. 271: ENABLE Auto-Lock. Your lock will automatically lock after each use. 312: Reset Wi-Fi connection. (Forget All Known Connections and Networks). 320: Enter Access Point Mode to allow connection to another network.
  • Page 48 Visit us online. support.remotelock.com We’re here to help. 1 (877) 254 5625 support@remotelock.com...
