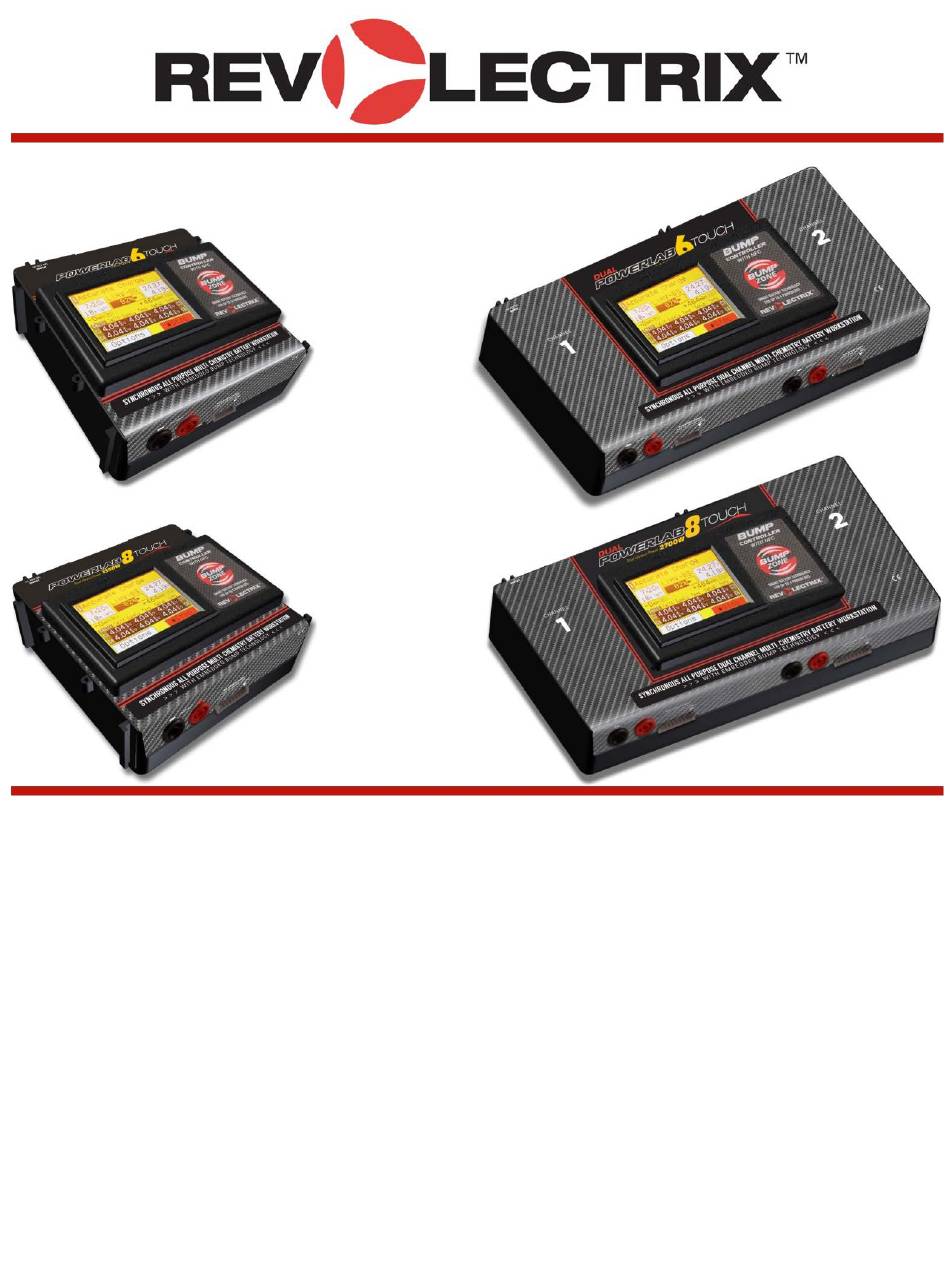

PowerLab Touch Series Battery Workstations
DUAL POWERLAB 6 TOUCH (PN: LC06S40ATDIC-MC)
DUAL POWERLAB 8 TOUCH (PN: LC08S40ATDIC-MC)
User's Guide
BUMP Firmware v4.06 and later
APPLIES TO THE FOLLOWING MODELS:
POWERLAB 6 TOUCH (PN: LC06S40AT-MC)
POWERLAB 8 TOUCH (PN: LC08S40AT-MC)
© 2015, 2016, 2017 FMA,Inc.
Updated: 12/18/2017
