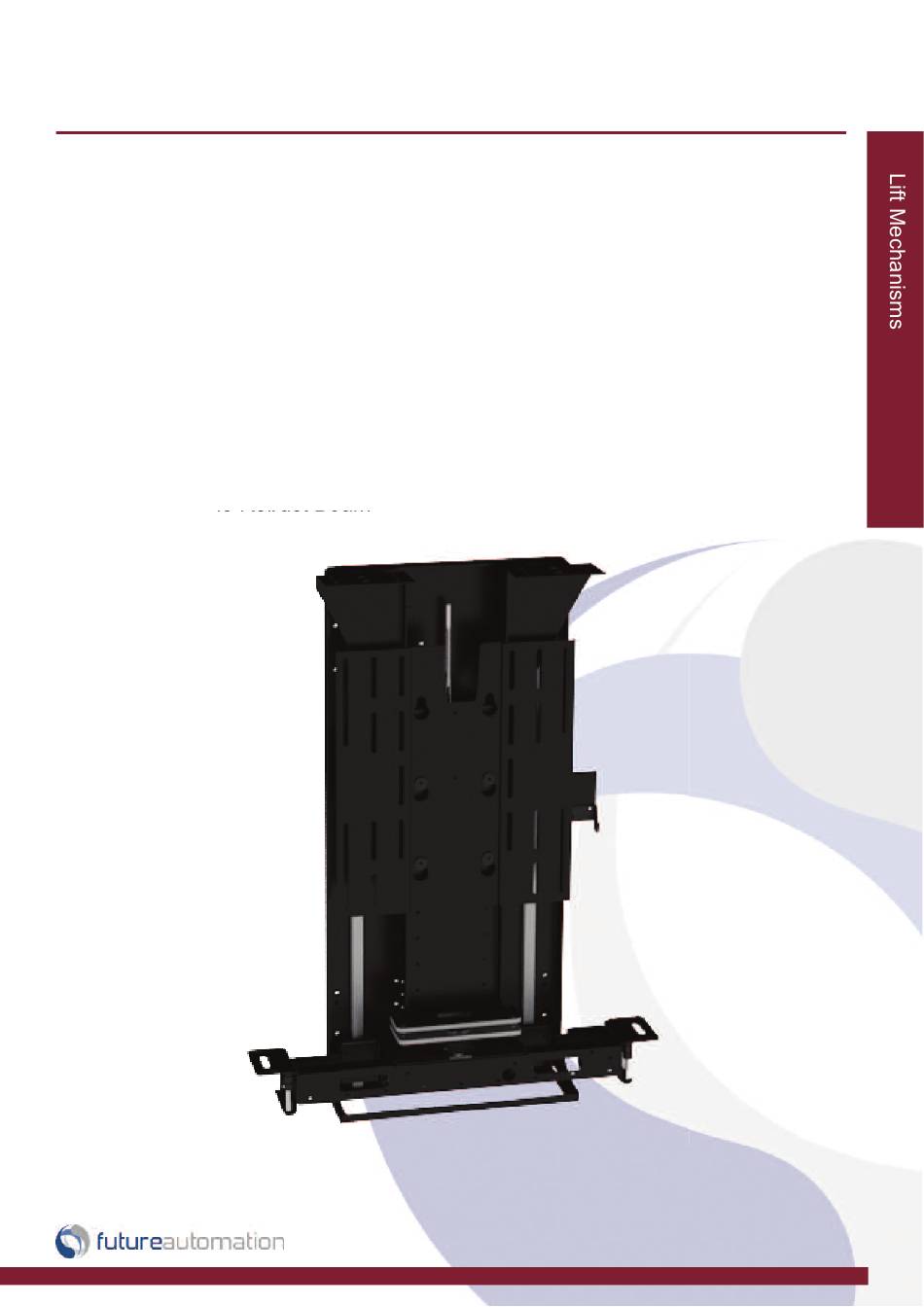

Installation Instructions

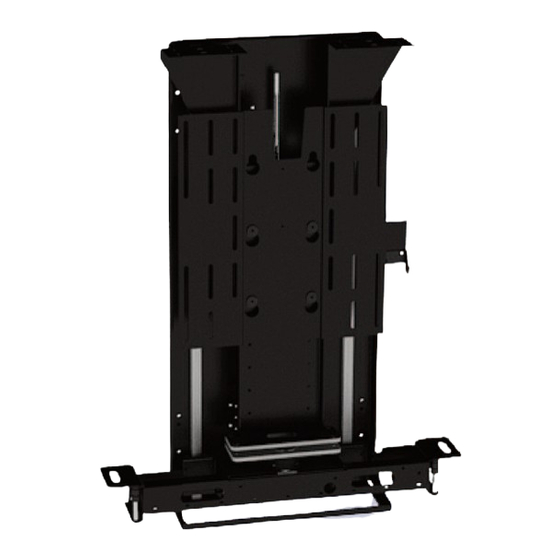

LSM S BE - Lift System Medium
Swivel Box Enclosure
Design Highlights
-Quiet Smooth Lifting Action at Approximately 40mm [1.6"] per Second
-180 Degrees of Quiet, Fast Screen Rotation in Both Directions With
Programmable Viewing Positions
-Full Cable Management
-Wide Range of Mounting Options
-24V DC Motor. Suitable for Direct DC Supply
-Marine Suitable Robust Beam
Thank you for choosing
futureautomation
email info@futureautomation.co.uk tel: +44 (0) 1438 833577 fax: +44 (0) 1438 833565
ISSUE 002
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Future Automation LSM S BE
Summary of Contents for Future Automation LSM S BE
- Page 1 Installation Instructions LSM S BE - Lift System Medium Swivel Box Enclosure Design Highlights -Quiet Smooth Lifting Action at Approximately 40mm [1.6”] per Second -180 Degrees of Quiet, Fast Screen Rotation in Both Directions With Programmable Viewing Positions -Full Cable Management -Wide Range of Mounting Options -24V DC Motor.
-
Page 2: Safety Information
Exceeding the weight capacity can result in serious personal injury or damage to equipment. Future Sound & Vision trading as Future Automation intend to make this and all documentation as accurate as possible. However, Future Automation makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. -
Page 3: Table Of Contents
LSM S BE - Lift System Medium Swivel Box Enclosure Contents Page Introduction Safety Information Contents Contents Tool Indicator Icons Installation Parts List Package Contents Stage 1 Before You Start Remove KH Screen Mount Stage 2 Fixing the Lift in the Cabinet... -
Page 4: Contents
Any damage to products during transit that is not checked and notified as “unchecked” or “damaged” upon receipt of delivery. Any part of your system that needs to be replaced during a warranty repair becomes the property of Future Automation. -
Page 5: Package Contents
LSM S BE - Lift System Medium Swivel Box Enclosure Package Contents Nuts & Bolts Multipack: A range of nuts, bolts, washers 1 - Mechanism and spacers to help add in the 1.1 - Back Plate mounting for your screen 1.2 - Lifting Beam... -
Page 6: Before You Start
LSM S BE - Lift System Medium Swivel Box Enclosure Before You Start Check the Operation of the Mechanism. Firstly, remove all the red cable ties which keep the mechanism safe and secure during transit. Once they have all been removed, the mechanism can be powered up and tested. -
Page 7: Fixing The Lift In The Cabinet
LSM S BE - Lift System Medium Swivel Box Enclosure Fixing the Lift in the Cabinet Place the mechanism centrally within the cabinet. Raise and lower the lifting beam as required to fix the lift where shown in all corners. -
Page 8: Kh Upright Assembly
LSM S BE - Lift System Medium Swivel Box Enclosure KH Upright Assembly Below shows the KH UPRIGHT assembly. To release the SCREEN MOUNT PLATE rotate the top LOCKING LEVER and lift off the TOGGLES. The TOGGLES can adjust the height by moving up or down the KH UPRIGHT, these TOGGLE fixings also secure the LID MOUNT BRACKET which can slide up and down to fit box enclosure cabinetry. -
Page 9: Mounting The Base Panel
LSM S BE - Lift System Medium Swivel Box Enclosure Mounting the Base Panel After the mechanism is in the correct position the next step is to lower the BASE PANEL into place and fix from the underside through the BASE PANEL BRACKETS. A good tip is to place the BASE PANEL in place and draw marks from the underside through the... -
Page 10: Kh Upright Mounting
LSM S BE - Lift System Medium Swivel Box Enclosure KH Upright Mounting Fix the BOX ENCLOSURE MOUNT PLATE to the mechanism as shown to the right. Use as many cap head bolts as possible, some of the tapped holes might not be accessible. -
Page 11: Attaching The Box Enclosure
LSM S BE - Lift System Medium Swivel Box Enclosure KH Upright Mounting & Cable Routing With the screen plate removed, attach the KH MOUNT UPRIGHT back on to the mechanism the same way it was removed. Thread the screen and power cables... -
Page 12: Screen Plate & Box Enclosure Mounting
LSM S BE - Lift System Medium Swivel Box Enclosure Screen Plate & Box Enclosure Mounting LID MOUNT Secure the BOX ENCLOSURE to the BRACKET UPRIGHT by sliding the LID MOUNT BRACKET up and fixing to the enclosure top as shown. -
Page 13: Screen & Box Enclosure Mounting
LSM S BE - Lift System Medium Swivel Box Enclosure Screen & Box Enclosure Mounting Slide the screen into the enclosure and fix to the SCREEN MOUNT PLATE. A good tip is to use a packer under the screen and remove once fixed. -
Page 14: Switch Adjustment
LSM S BE - Lift System Medium Swivel Box Enclosure Switch Adjustments You can adjust the IN and OUT position of the lifting beam. Detail 1 shows how to adjust the OUT position and detail 2 shows how to adjust the IN position. -
Page 15: Controlling The Mechanism
LSM S BE - Lift System Medium Swivel Box Enclosure Controlling the Mechanism IN - Takes the screen inside the cabinet HOME - Takes screen to forward facing position when screen is already in an OUT - Takes the screen out of the cabinet... -
Page 16: Controlling The Mechanism
LSM S BE - Lift System Medium Swivel Box Enclosure Controlling the Mechanism Programming new memorised positions. The example, shows the programming of a position that is left of centre. In order to program a position that it right of centre, simply press > to turn the screen to the right. -
Page 17: Contact Closure
LSM S BE - Lift System Medium Swivel Box Enclosure Contact Closure - Use an RJ45 connector in the CCI socket on the control box to operate via contact closure WIRE / CABLE CONTACT CLOSURE DESCRIPTION ACTION 568A 568B LED INDICATOR... -
Page 18: Rs232 Control
LSM S BE - Lift System Medium Swivel Box Enclosure RS232 - Use an RJ25 connector in the socket marked RS232 on the control box to operate using RS232 Pin 1: RX Pin 6 : TX Pin 2: TX Pin 3 & 4: GROUND... -
Page 19: Ir Controls
LSM S BE - Lift System Medium Swivel Box Enclosure Operation buttons for the IR remote Home - Takes screen to forward In - Brings the mechanism facing position when screen is into the cabinet already in an angled position... - Page 20 LSM S BE - Lift System Medium Swivel Box Enclosure Lift System Medium Swivel Box Enclosure - Trouble shooting guide Lift System Medium Swivel Box Enclosure - Trouble shooting For information on our products please refer to our web site - www.futureautomation.co.uk...
- Page 21 Future Automation Unit 2 Kimpton Enterprise Park Claggy Road Kimpton Hertfordshire SG4 8HP United Kingdom Tel: +44 (0) 1438 833 577 Fax: +44 (0) 1438 833 565 Email: info@futureautomation.co.uk www.futureautomation.co.uk...
