Quick Install Guide

1. Hardware Installation and configuration

Package Contents
After carefully unpacking the shipping carton, check the contents listed below.
1 x ADSL Router
1 x Power Adapter
1 x CD
1 x Telephone Cable
1 x Ethernet Cable
1 x This Manual

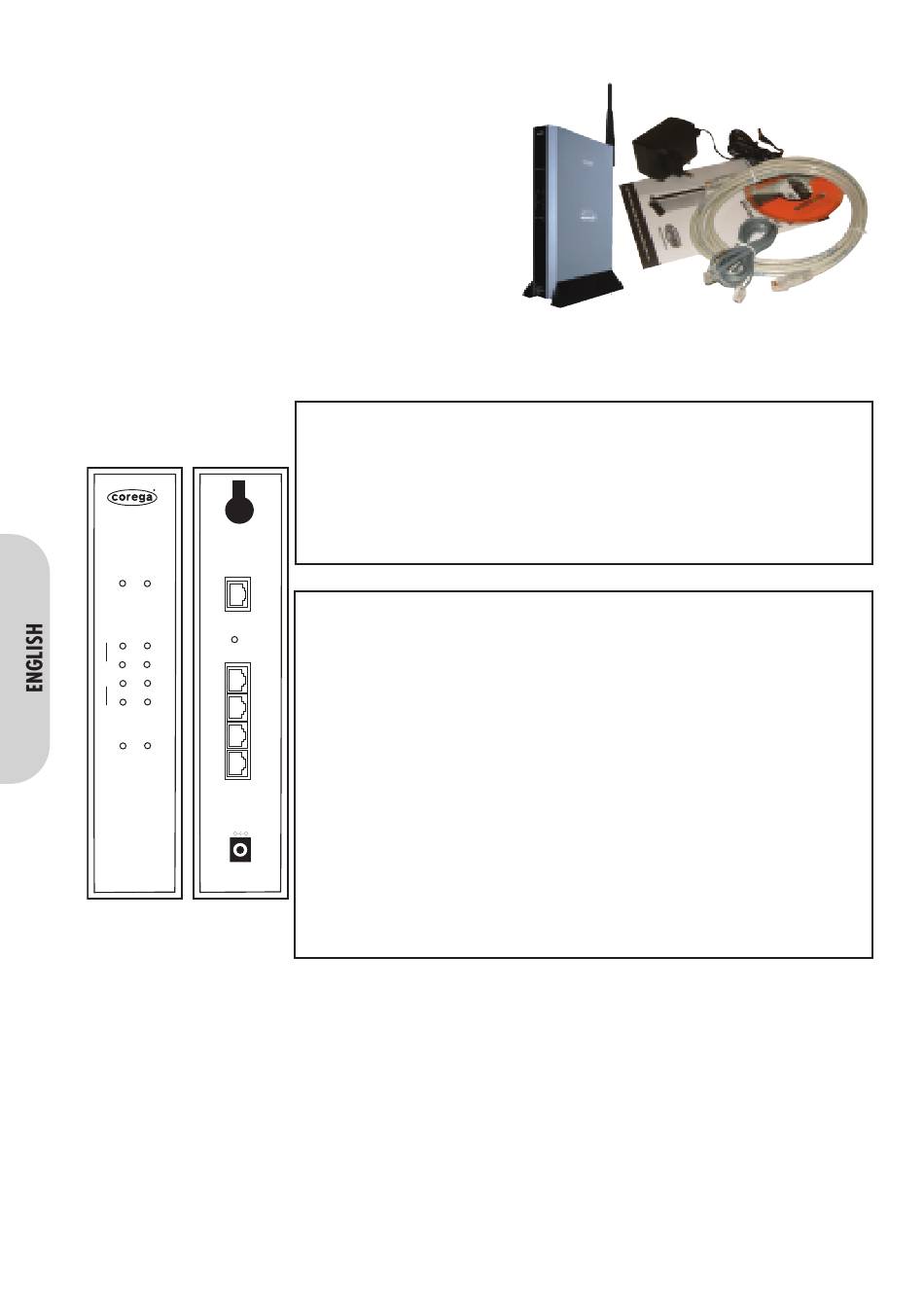

Front & Rear Panel Connectors
Power Status
100 10
1
2
LAN LAN1
3
4
LAN2
ADSL Wireless
LAN3
LAN4
WLBAR-AA
Wireless, ADSL
Broadband
Access
Router
Figure 2. Router Rear Panel Connections
1
• Antenna
• RESET
• ADSL
• LAN 1-4
• POWER
ADSL
• Power
RESET
• Status
• 10/Activity
(One per port)
• 100/Activity
(One per port)
• Wireless
POWER
• ADSL
Provides data transmission and reception for wireless devices. Please ensure that the
Antenna is facing upwards
Using a pencil tip press this button to reset the router back to factory defaults.
This is the Wan connection port to the ADSL Splitter
Four LAN ports for local computers/printers
Inlet socket for external adapter
Off-No power applied
Green-Power to the router
Off - Normal Operation
Yellow - Flashig during power up and firmware uploads.
Off-Port not active
Green-Port has valid connection at 10Mbps
Flashing-Data activity on the port at 10Mbps
Off-Port not active
Green-Port has valid connection at 100Mbps
Flashing-Data activity on the port at 100Mbps
Off: Wireless connection not active
Green: Wireless connection is established and ready to use.
Flashing: Data activity on the port
Off: WAN connection not active
Green: WAN connection is established and ready to use.
Flashing: Data activity on the port
Figure 1. Package Contents
