- Page 1 BVL Power Pack Service & Specification Manual Manufactured by BVL Controls Ltd...
-
Page 2: Air Cooled

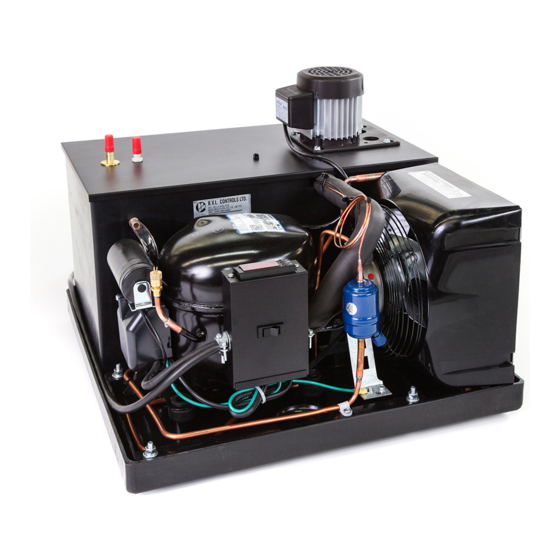

BVL POWER PACK Manufactured by BVL Controls Ltd AIR COOLED ECO-033 ⅓ HP R134a 115 Volts ½ HP R134a 115 Volts ECO-050 MM-033 ⅓ HP R134a 115 Volts CWA-3 ⅓ HP FR22 115 Volts CWA-2 ½ HP FR22 115 Volts CWA-34 ¾... - Page 3 DESCRIPTION Cooling Distance: ECO-033 UP TO 50’ of cooling line ECO-050 UP TO 75’ of cooling line MM-033 UP TO 75’ of cooling line CWA-3 / CWW-3 UP TO 125’ of cooling line CWA-2 / CWW-2 UP TO 250’ of cooling line CWA-34 / CWW-34 UP TO 350’...
-
Page 4: Product Warranty
PRODUCT WARRANTY BVL Controls warrants this product for one (1) full year including parts and labor when unit is returned to our factory (freight is not part of the warranty) or parts only when repair has to be done at another location. Parts (under warranty) will be charged to your account and will be credited upon receipt of the defective part. -
Page 5: Unit Information
POWER PACK INFORMATION (Please fill this form before contacting technical support) Unit Information Model Number Serial Number Production Date Compressor Number Installation Date Installed by (Company) Thermostat Information SetPoint (SP-[30]) Anti-Short Delay (ASd-[2]) Differential (dIF-[3]) Sensor Failure (SF-[0]) -
Page 6: Operation
OPERATION ALL MODELS 1. Connection: a. Connect one line from isolated trunk line to pump outlet; b. Connect second circulation line to the inlet of the tub. 2. Filling unit with glycol a. Remove top deck / cover from the unit; b. -
Page 7: Maintenance
MAINTENANCE Keep liquid level constant in glycol reservoir. Glycol should be changed every two (2) years except in very hot areas where it should be changed every year. 1. Check liquid monthly a. If level is low, fill with water; b. -
Page 8: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE SOLUTION(S) A- Warm walk-in cooler A- Adjust cooler temperature to 1-Excessive foam 34° to 36°F B- Check applied pressure B- Adjust setting on regulator for to barrel proper pressure C- Check equipment C- Check the physical equipment from keg to faucet D- Warm product lines D- Refer to 5... - Page 9 TROUBLESHOOTING 5- Warm beer A- Defective pump. A- Check returns line in reservoir (Check motor also) for liquid flow. Replace pump. B- Defective motor. B- Replace motor. (Check pump also) C- Refrigeration unit is not C- Refer to 2 running. D- Conduit lines located in D- Remove from any hot water overheated area.
-
Page 10: Electronic Temperature Control With Display
Electronic Temperature Control with Display Changing temperature units Press the Up and Down buttons simultaneously to toggle between °F and °C. Note: The keypad Lock jumper must be in the unlocked position (installed) before adjusting the control. If the keypad is locked, pressing buttons has no effect on the control. - Page 11 Note: Operation at Extremes: If the combination of setpoint plus or minus the differential falls outside the temperature range (-30°F to 212°F [-34°C to 100°C]), the A419 operates as fallows: Cooling/Cut-in: If setpoint minus differential is less than -30°F (-34°C), the control switches on at setpoint and off when the temperature drops below -30°F (-34°C).
- Page 12 Checkout Before applying power, make sure installation and wiring connections are according to job specifications. After necessary adjustments and electrical connections have been made, put the system in operation and observe the control for at least three (3) complete cycles before leaving the installation. Troubleshooting If the control system does not function properly, verify that the unit is wired, configured and set properly.
