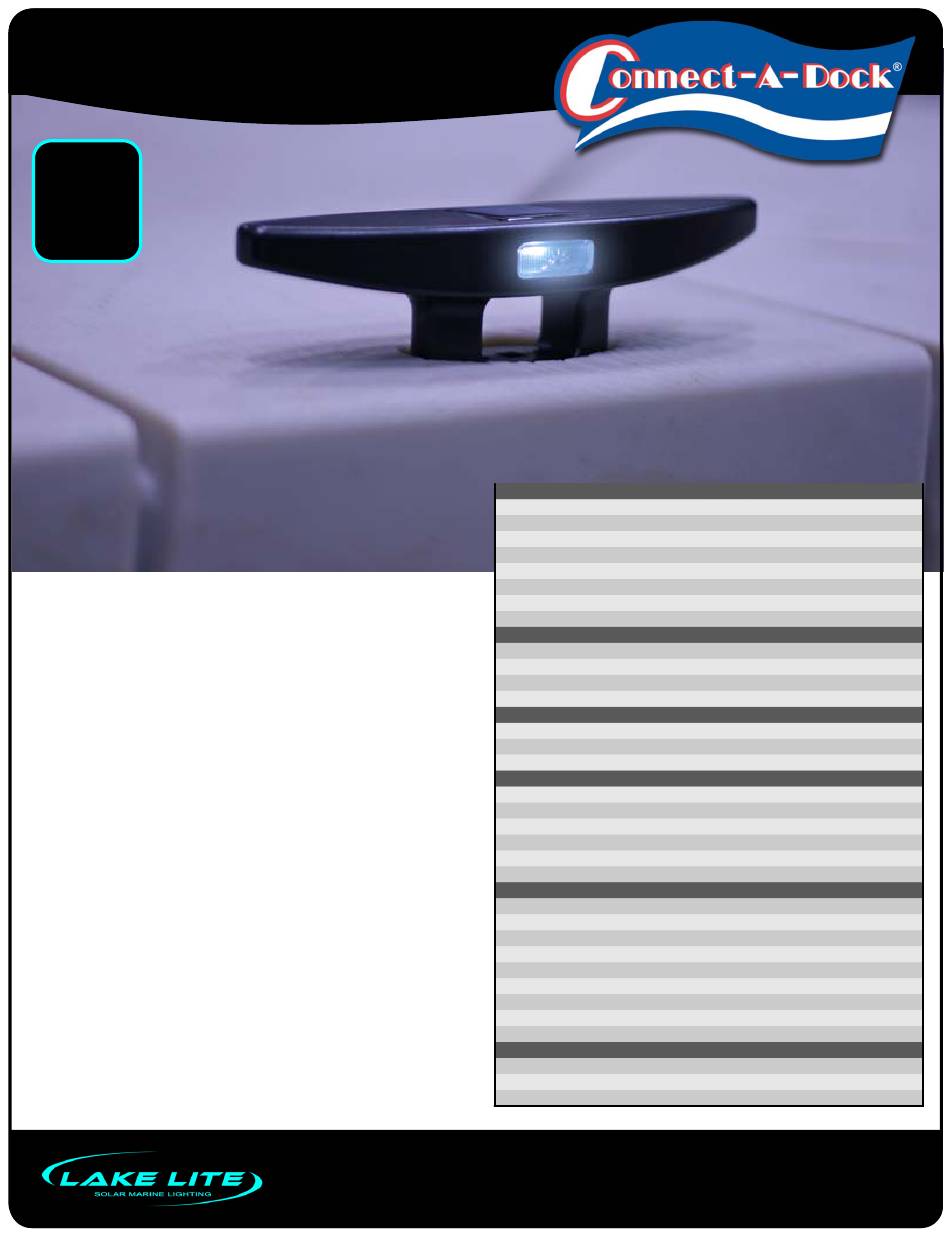

8" Solar Cleat Lite
MODEL: LL-SCL-8-CAD
6
Lumens
Solar Cleat Lite: LL-SCL-8-CAD-X
The 8" Solar Cleat Lite is perfect for your Connect‐A‐Dock
brand floating dock. A great substitute for existing cleats
Solar Underglow: Model: LL-SDL-UG-X
where lighting is desired or required.
Description
No more stubbed toes after an evening boat ride. Simple
to install and the unique illuminating effect is sure to
impress. Use multiple units for a safe and aesthetically
appealing dock.
The diamond shaped bottom fits exactly into the CAD
pocket and attaches in the same manor as existing CAD
cleats. The bolt patterns are the same as the bolt inserts
for the existing cleats and the same hardware and bolts
can be used.
Lake Lite Inc.
105 W. Simon St.
Laotto, IN 46763
LIGHT CHARACTERISTICS
Light Source
Lumens output
Available LED Colors
Light Mode Options
Visible Range
Horizontal Output (degrees)
Vertical Divergence (degrees)
LED Life Expectancy (hours)
ELECTRICAL CHARACTERISTICS
Circuit Protection
Nominal Voltage (v)
Autonomy (hours)
Temperature Range
SOLAR CHARACTERISTICS
Solar Module Type
Power (watts)
Solar Module Efficiency (%)
POWER SUPPLY
Battery Type
Battery Size
Battery Capacity (mAh)
Nominal Voltage (v)
Battery Service Life
Battery Service Access
PHYSICAL CHARACTERISTICS
Body Material
Lens Material
External Lens Design
Internal Lens design
Water Proof Rating
Mounting
Height
Width
Weight
OPTIONS
Custom Options, Sizes, & Colors
Custom Hardware & Mounting
* Information subject to change without notice
Phone: 260‐918‐2758
Fax: 260‐918‐3540
E‐mail sales@lakelite.com
2-Ultra-High intensity LEDs.
6 Lumens *Varies with Color & Conditions
White
Constant
300m-500m+ Varies at viewing Angles
180 Deg Left & Right
+ 90 Degrees
> 100,000 hrs
Integrated
1.2v
14-18hrs *On full Charge
-20 to 70 C
Multicrystalline or Monocrystalline
0.25 watts
16-17%
High Grade NiCdor NiMh– ECO Friendly
1 x 2/3 AAA
300 mAhr Depending On Model
1.2v / Battery
1-3 years (Varies with local Environment)
Yes: User Changeable / Replaceable
Fiber Reinforced Nylon
PC
Reflector
NA
IP 68
Any Flat Surface or EZ-Dock Floating Dock
45mm
203mm
N/A
Please Contact
Please Contact
www.lakelite.com
www.solarmarinelites.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Lake Lite Connect-A-Dock LL-SCL-8-CAD
Summary of Contents for Lake Lite Connect-A-Dock LL-SCL-8-CAD
- Page 1 8” Solar Cleat Lite MODEL: LL-SCL-8-CAD Lumens LIGHT CHARACTERISTICS Light Source 2-Ultra-High intensity LEDs. Lumens output 6 Lumens *Varies with Color & Conditions Available LED Colors White Light Mode Options Constant Visible Range 300m-500m+ Varies at viewing Angles Horizontal Output (degrees) 180 Deg Left &...
- Page 2 Dimensions (mm) 45mm 8.00” 45mm Lake Lite Inc. 1-Year Limited Warranty Owner Registration Card The retailer warrants the Solar Lites to be free from defects in workmanship and material present Please fill out and affix proper postage and return this owner...
- Page 3 8” Solar Cleat Lite MODEL: LL-SCL-8-CAD Assembly 1. Insert battery or remove battery isolation tab to activate light. 2. Place silicone pad between solar light unit and battery cover 3. Install battery cover and tighten screws to ensure a waterproof seal for the battery. 4. Insert large carriage bolt through cleat body (sold separate) 5. Insert solar light unit & both side lens into cleat body. 6. Tighten pod mounting screws to secure pod to cleat body. 7. Insert into Connect‐A‐Dock Diamond Slot on floating dock. 8. Secure cleat with washer and nut from underside of dock. NOTE! you must insert the mounting carriage bolt before you insert the light pod. Then Mounting to Wood Dock 1. Select the hardware & mounting style your application requires: Please see mounting Tools Required hardware suggestions page: 1. Use appropriate tools required for the mounting hardware you selected. 2. Make sure the cleat is secure to the dock surface before using. Storage Tips ( Winter) Winter weather can reduce the life expectancy of your Solar Cleat Lite Extreme Cold weather can dramatically reduce the life expectancy of your rechargeable Ni-Cd or Ni-Mh battery.
- Page 4 8” Solar Cleat Lite MODEL: LL-SCL-8-CAD Assembled Solar Light Pod Lens Carriage Bolt Lens Cleat Body Light Pod Connect‐A‐Dock Mounting Screws Mounting Hardware Stainless Steel Application Hardware Recommended Existing C‐A‐D Hardware: Connect‐A‐Dock • 5/16” x 1‐1/2” Carriage Bolt Mounting • 3/8” (10 mm) Washer • 5/16” Stainless steel nylon lock nut Lake Lite Inc. Phone: 260‐918‐2758 105 W. Simon St. Fax: 260‐918‐3540 www.lakelite.com Laotto, IN 46763 E‐mail sales@lakelite.com www.solarmarinelites.com...
