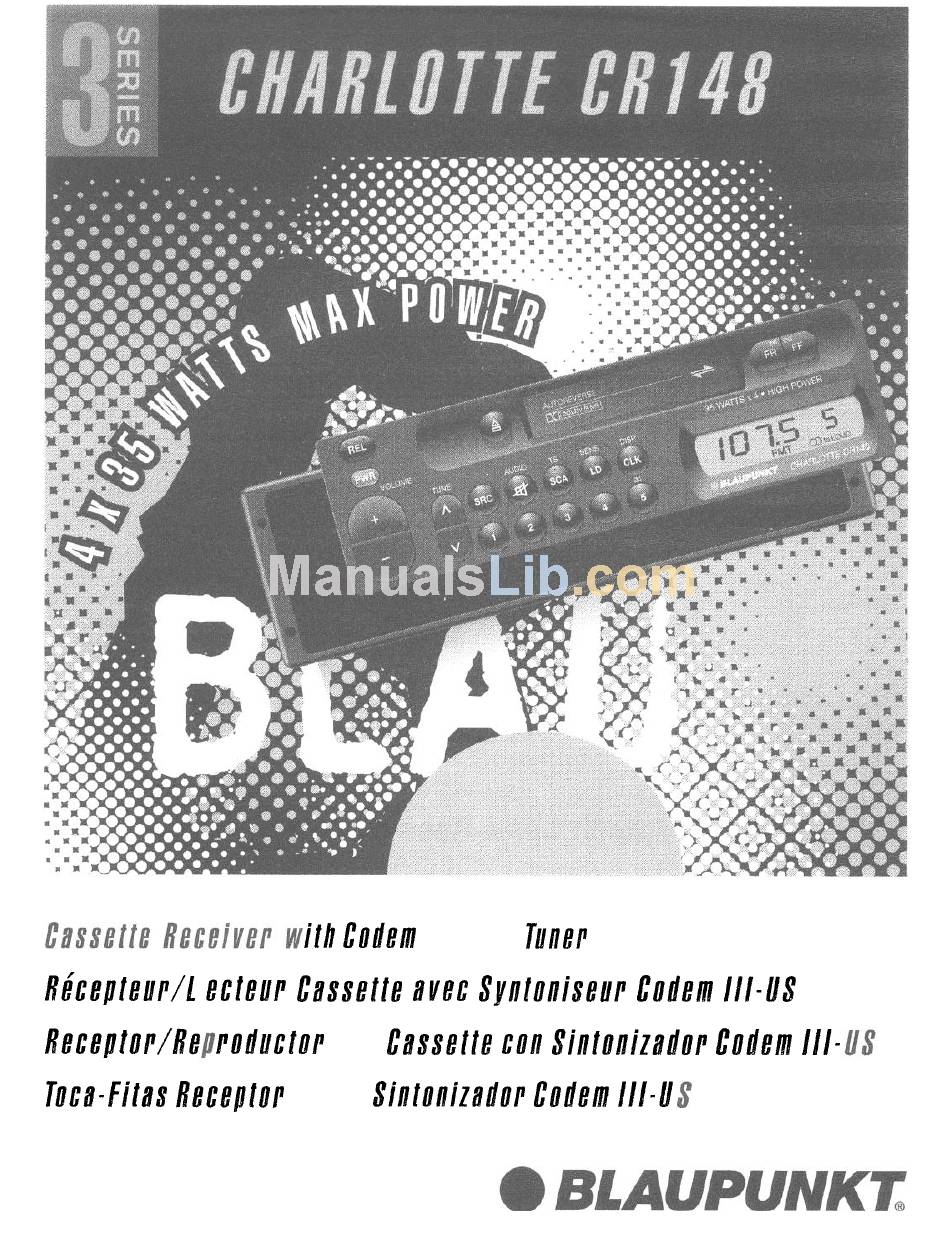

- Page 1 ilh Eade~ III-US Taaer Rtfeeptear/l ecterrr Cassette arec S~a~aaisear Cadelra III-US ~ece~~a~/~e ~adac~a~ de Casse~ie son Sia~aaizada~ Cadet 11/- Tact-fifas ~ece~~ar cam Sia~aaizada~ Cadet ~~I-~ Bosch Group...
-
Page 2: Owner's Record
The model and warranty numbers are located on the top of the unit. Record the warranty (serial) number in the space provided below. Refer to these numbers whenever you call upon your Blaupunkt dealer regarding this product. Warranty Number Attach Sales Receipt Here... -
Page 3: Table Of Contents
English FCC Warning ..2 Owner’s Record..2 Features ... 4 Precautions ..4 Detachable Face ..5 Electrical Connections and Installation ... 6 Installation ..8 Maintenance ... 10 Specifications ... Location of Controls ... 12 Instructions-General Operation ... 12 Audio Operation ... -
Page 4: Features
1 ENGLISH Features Congratulations on your purchase of this Blaupunkt Cassette Receiver. Its Codem III-US FM/AM Tuner and Autoreverse Cassette Tape Player mechanism provide the ultimate in sound reproduction. Its high-power amplifier and 4Channel preamp output provide you with tremendous system configuration flexibility. -
Page 5: Detachable Face
Detachable Face Detaching & Attaching the Face: The face of this unit can be detached and taken with you to prevent it from being stolen. Detaching the Face: Press the REL (Release) Button and detach the face by gently pulling it off as illustrated. Note: Do not pull it straight out from the chassis. -
Page 6: Electrical Connections And Installation
“speaker”) to each of the units’ four pairs of speaker leads. You can connect the 2 RCA preamp outputs to multiple external amplifiers and power multiple speakers or speaker systems through the amplifiers. (Blaupunkt amplifiers and speakers available separately). To add front preamp output, purchase Blaupunkt part 8634494218. - Page 7 DON’T connect the left and right speaker leads to each other or to the same speakers. DON’T connect the front and rear speaker leads to each other or to the same speakers. DON’T connect the negative speaker leads to each other. DON’T connect the positive speaker leads to each other.
- Page 8 The illustration below shows a typical installation, however, you may need to adjust the installation, depending on the unit. If you have questions or need additional installation hardware, consult your Blaupunkt dealer. Make sure the unit is firmly anchored (preferably at both front and back) and does not vibrate.
- Page 9 You may have difficulty mounting this unit in some Japanese cars that have IS0 mounting features. In this case, consult your Blaupunkt dealer. Run a blade along the slits on the back of the front trim ring, unscrew the two side screws, and separate it from the unit.
-
Page 10: Maintenance
Maintenance Removing the Unit Use the Release Keys as shown below. Keep them in a safe place in case you need them in the future. Fuse Replacement When replacing the fuse, be sure to use one with the correct amperage, which will be stated on the fuse case. -
Page 11: Specifications
Specifications Audio Power Specifications Power Output and Total Harmonic Distortion: 13.5 watts per channel minimum continuous average output into 4 ohms, 4 channels driven, from 30-15,000 Hz with no more than 1% total harmonic distortion. Other SDecifications Tuner Tuning Range: Intermediate Frequency: FM Mono Sensitivity: Seek lo sensitivity:... -
Page 12: Location Of Controls
Location of Controls I;1 15 16 1. REL (Release) Button 2. PWR (Power) Button Source (and Radio Band) Select 4. Cassette Eject Mute/ Audio Button/ Clock Adjust:00 6. SCA (Scan) TS (Travelstore) LD (Loudness)/ SENS (Tuning Sensitivity) 8. Cassette Insertion Slot 9. -
Page 13: Audio Operation
Ignition-Off Clock Recall /Turning Unit On Vehicle ignition must be on. To turn unit on, press PWR Button (2) or insert a tape. Ignition-On /Turning Unit Off Press the PWR Button to turn the unit off. Release for Detachable Faceplate Push REL to detach face. -
Page 14: Radio Operation
Bass, Treble, Balance and Fade Press Mute/AUDIO for more than l/2 second to access Bass. Subsequent presses access Treble, Balance and Fade modes. Bass -Adjust from +7 to -7 at 2 dB/step using + to increase bass, Treble Adjust from +7 to -7 at 2 dB/step using + to increase treble,- to decrease. Balance Adjust balance from 9 (all the way left) using + to -9 (all the way right) using -. -
Page 15: Cassette Tape Player Operation
Manual Tuning Press A or V for more than l/2 second and frequency will go one channel/step in direction pressed. Press and hold causes continuous manual tuning. Unit returns to seek tuning mode after 4 seconds or after storing a station on a preset. Preset Station Storage After tuning desired frequency on desired band, press and hold a Preset Button for more than 2 seconds to store current frequency. -
Page 16: Auxiliary Input Jack
With a two-speaker system set the fader control to the center position. Cause/Solution* The broadcast is too weak. The broadcast is too weak. --> Use manual tuning. Not enough broadcast frequencies are receivable. your nearest Blaupunkt dealer or in the United States call l-800-266-2528. - Page 17 German Headquarters: Blaupunkt-Werke GmbH Postfach 77 77 77 D-31 132 Hildesheim Germany Robert Bosch Corporation Sales Group - Blaupunkt Division 2800 South 25th Avenue, Broadview, Illinois 60153 I-800-950-BLAU Made in Malaysia Fabrique en Malasie Hecho en Malasia Fabricado en Malaysia...
