Summary of Contents for DIGI-STAR EZ3400VL

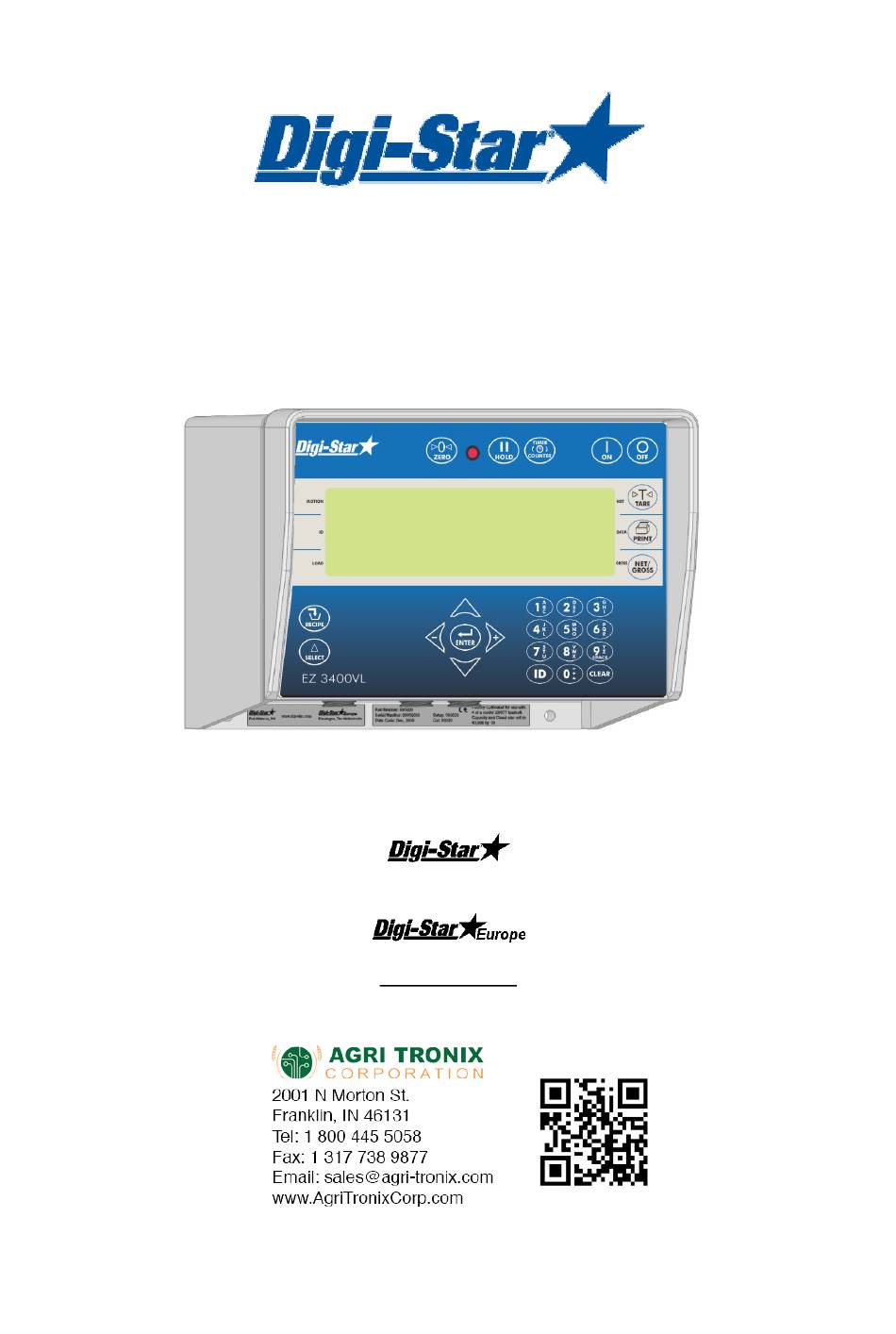

- Page 1 EZ3400VL User' s manual HELLO Ft. Atkinson, Wisconsin USA Panningen, the Netherlands www.digi-star.com D3936-GB REV C June 24, 2013...
-
Page 3: Table Of Contents
Tolerance ..........................24 Delay time ..........................25 Rotate counter ........................... 25 Restart rotation counter ..............Error! Bookmark not defined. Drive ratio ..........................26 LIST WITH DIRECT ACCESS NUMBERS ........Error! Bookmark not defined. D3936-GB Rev C EZ3400VL User' s manual... - Page 4 Changing setup and calibration numbers................... 27 All rights reserved. Reproduction of any part of this manual in any form whatsoever without Digi-Star’s express written permission is forbidden. The contents of this manual are subject to change without notice. All efforts have been made to assure the accuracy of the contents of this manual. However, should any errors be detected, Digi-Star would greatly appreciate being informed of them.
-
Page 5: Technical Specifications
-20°F to 140°F GROSS RANGE 999,999 max.display REMOTE INPUTS Tare / Advance Recipe / Re-enter Preset LOW BATTERY WARNING Enabled at 10.5V nominal POUND/KILOGRAM Selectable DISLAY EZ VIEW 6 Digit LCD 43 mm (1.7”) high D3936-GB Rev C EZ3400VL User' s manual... -
Page 6: Safety During Use
CAUTION Check system before use Before you are going to use the Digi-Star weighing system you need to check the proper working of the system by charging all weighing points with a known weight. Digi-Star cannot be held responsible for deviations and problems arising from incorrect use of the weighing indicator, incorrect calibration or settings. -

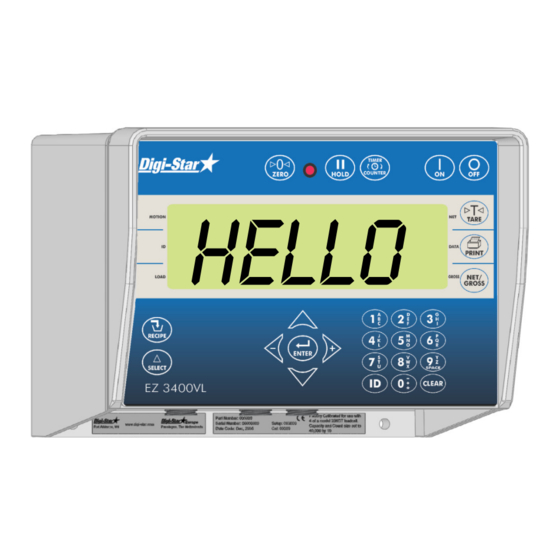

Page 7: Overview Weighing Indicator
– selects recipes in memory, program recipes. – displays additional tasks. – accepts change or proceed to next item. – select ingredients, hold key to erase ingredient/pen from recipe. – select pens, hold key to insert ingredient/pen to recipe. D3936-GB Rev C EZ3400VL User' s manual... - Page 8 22. Load cell port – to connect the J-Box cable. 23. Power supply port – to connect the power supply cable. 24. Serial Number Plate – Serial Number of indicator. >>See pages 30, 31 and 32 for installation instructions. D3936-GB Rev C EZ3400VL User' s manual...
-
Page 9: Operation
Switching on the weighing indicator 1. Press HELLO Switching off the weighing indicator 2. Press Zero balancing the weighing indicator 1. Press and hold for 3 seconds to zero balance the weighing indicator. D3936-GB Rev C EZ3400VL User' s manual... -
Page 10: Programming Recipes
4. Press to edit the name. The display briefly shows EDIT and a flashing cursor will display. 5. Press repeatedly to delete the ingredient/pen. D3936-GB Rev C EZ3400VL User' s manual... -
Page 11: Programming A New Recipe
(Repeat steps 5 - 8 if you need to add more 22.00 ingredients in the recipe). Note: If you don’t want to add pens to the recipe please continue with step 13. D3936-GB Rev C EZ3400VL User' s manual... -
Page 12: Edit Recipe
3 seconds. 2. PRogrm will briefly display followed by the first recipe in the memory. prgRec 3. Press t go to the recipe you want to edit. 4. Press to select the recipe. D3936-GB Rev C EZ3400VL User' s manual... -
Page 13: Change Amount Or Number Of Animals A Recipe
4. Press to scroll through the available ingredients/pens. 5. Press to select the required ingredient/pen. 6. Enter the required amount/number of animals. 7. Press to store amount. D3936-GB Rev C EZ3400VL User' s manual... -
Page 14: Delete Ingredient Or Pen From A Recipe
3. Press and hold . The display shows: press zero to erase recipe or net/gross to exit 4. Press again to erase the recipe. 5. Press to exit. D3936-GB Rev C EZ3400VL User' s manual... -
Page 15: Calling Up A Recipe
, until RENAME is displayed. 2. Press and hold corn 3. Press once to print total accumulations for this ingredient. 4. Press twice to print accumulations for all ingredients that are currently used in all recipes. D3936-GB Rev C EZ3400VL User' s manual... -
Page 16: Running A Recipe According To Amount Per Animal
9. The indicator displays the first pen and PEN 1 amount to feed. While feeding the pen the weight on the indicator counts down to zero. 10. After the pen has been fed press advance to the next pen. D3936-GB Rev C EZ3400VL User' s manual... - Page 17 Operation 11. After the last pen has been fed the indicator displays done – TOTAL =……….. comple D3936-GB Rev C EZ3400VL User' s manual...
-
Page 18: Advanced Functions
As soon as a preset value has been entered the amount to be loaded or dosed out will be displayed in one of the following three weighing settings: Gross weighing mode • Load/Dosing out weighing mode • Net weighing mode • D3936-GB Rev C EZ3400VL User' s manual... -
Page 19: Display In Gross Weighing Mode
Display in load/unload weighing mode 1. Press The amount still to be loaded/unloaded is 3000 displayed. During loading or unloading the weighing indicator will count down to zero. D3936-GB Rev C EZ3400VL User' s manual... -
Page 20: Display In Net Weighing Mode
2. Press and hold for 3 seconds to set 2300 the weighing indicator to zero. 3. Fill the container. 4. Enter the empty weight of the container. 5. Press 6. Press D3936-GB Rev C EZ3400VL User' s manual... -
Page 21: Options
The weighing indicator will give a loud alarm signal when 0 is reached. A negative value indicates that 250600 the set mixing time has been exceeded. Press to deactivate the alarm and mixing clock. D3936-GB Rev C EZ3400VL User' s manual... -
Page 22: Function And Select Key
Press 250600 to display ingredients. 5. Press to exit. Deleting accumulative ingredient amounts 1. Repeatedly press , until ACCUM is displayed. 2. Press . Ingredient is displayed. ACCUM Example: corn silage. 250600 D3936-GB Rev C EZ3400VL User' s manual... -
Page 23: Print Accumulation Values
Press to display ingredients. 3. Press to print the ingredient/pen 250600 currently on the display. 4. Press again to print all ingredient /pen accumulations in memory. 5. Press to exit. D3936-GB Rev C EZ3400VL User' s manual... -
Page 24: Commonly Used Direct Access Numbers
Tolerance is a specific percentage or weight of the desired amount. When reaching the desired amount minus the “Tolerance”, the weighing indicator will accept the loaded amount and automatically advance to the next ingredient, depending on the set delay time. D3936-GB Rev C EZ3400VL User' s manual... -
Page 25: Delay Time
5. Enter number of rotations. 6. Press . The rotation counter counts down. When counter reaches zero the alarm light and buzzer will be activated. 7. Press again to deactivate buzzer and light. D3936-GB Rev C EZ3400VL User' s manual... -
Page 26: Drive Ratio
Drive ratio is the number of revolutions of the power take-off of the feed mixer divided by the number of revolutions of the mixer auger. 1. Enter 422 and press to enter drive ratio value. 2. Press to save. D3936-GB Rev C EZ3400VL User' s manual... -
Page 27: Changing Setup And Calibration Numbers
2. Press 3. Weighing indicator briefly shows SETUP SETUP followed by a six digit number. Enter the new number. 4. Press Use 872 and follow the same procedure to change the calibration CAL number. D3936-GB Rev C EZ3400VL User' s manual... -
Page 28: Trouble Shooting
You will see if there is a loose indicator. Contact your dealer for connection or bad solder joint. additional information. Repair or replace Does the J-Box have a bad connection the J-Box. or loose wires? See next page D3936-GB Rev C EZ3400VL User' s manual... - Page 29 Any difference could be an indication of a bad load cell or a structural problem. D3936-GB Rev C EZ3400VL User' s manual...
-
Page 30: Installation
EZ3 WEDGE MOUNT RAM MOUNT KEY PART NUMBER DESCRIPTION 404799 RAM MOUNT FOR EZ III INDICATOR WITH HARDWARE 404230 RAM SUCTION CUP W/TWIST LOCK Load cell direction Observe direction of arrow when installing load cell. D3936-GB Rev C EZ3400VL User' s manual... -
Page 31: Connecting The Cables
* These colour codes apply to the standard Digi-Star power supply cable. See figure 4: J-Box connections Indicator connection diagram J-Box connection Digital Remote display Power supply input/output connection cable connection connection (optional) (optional) D3936-GB Rev C EZ3400VL User' s manual... -
Page 32: Connecting Load Cells To J-Box
Tighten nuts J-Box cable Wire colours Pin Colour Description Power supply + Green Signal - White Signal + Black Power supply - Load cell cable Transparent Shield Connect to bottom panel of weighing indicator. D3936-GB Rev C EZ3400VL User' s manual... - Page 33 European Representative’s Address J.F. Kennedylaan 235, 5981 WX Panningen (NL) Model name: EZ2400, EZ2400V, EZ3400, EZ3400V, EZ3400VL, EZ3600, EZ3600V, EZ4600, SW2600EID, SW4600EID, RD2400V, CAB CONTROL 2400\2400V\3400\3400V\3600\3600V Conformance to: EN 61326 - electrical equipment for measurement, control and laboratory use (see Report Number 307245.)
