Summary of Contents for CRU QX310 v2

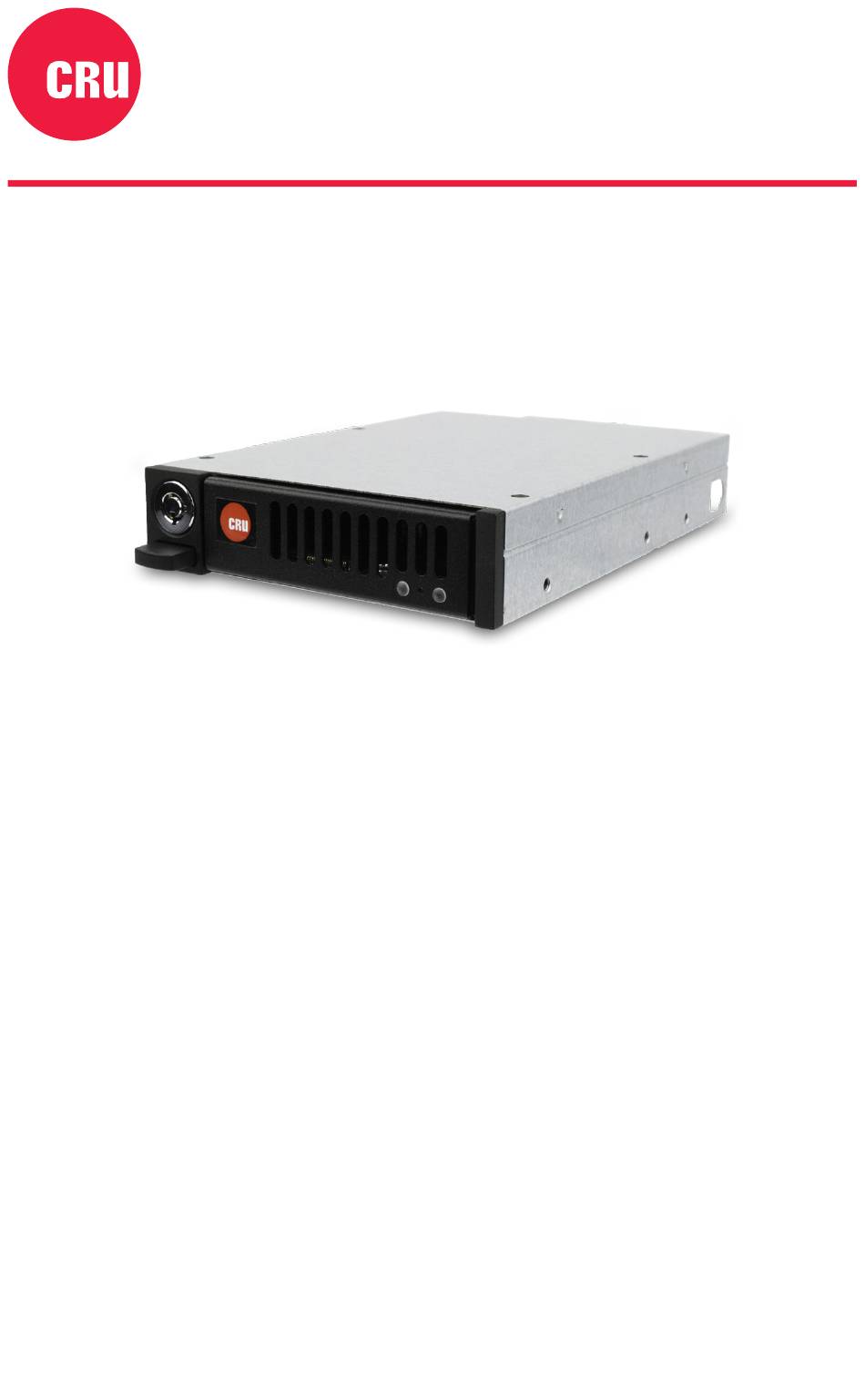

- Page 1 QX310 v2 ® User Manual...
-
Page 2: Table Of Contents
2.3 Windows Configuration ......6 3 Operating Your QX310 v2 3.1 Basic Operation....... . . 7 3.2 Safe Carrier Removal . -
Page 3: General Information

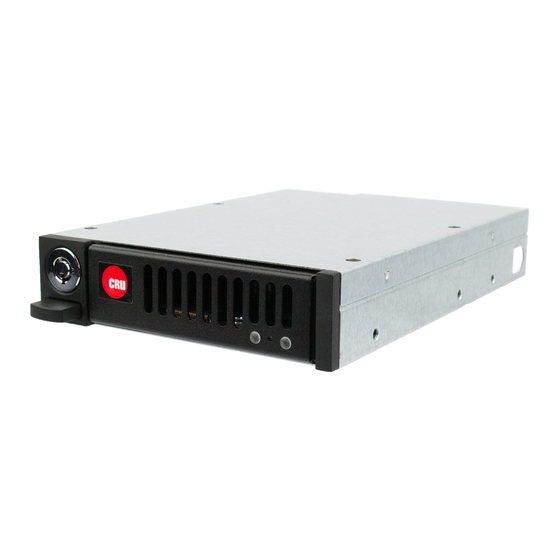

1 General Information 1.1 Introduction Thank you for purchasing the CRU QX310 v2! The QX310 v2 allows you to easily remove M.2 and U.2 NVMe SSDs from a 3.5-inch drive bay. This increases the flexibility of your data storage by letting you eject, swap, transport, or secure data stored on PCIe/NVMe SSDs. -
Page 4: Led Behavior
M.2 adapter are available for purchase on the QX310 product page at cru-inc.com. • An M.2 slot (with CRU OCuLink to M.2 Slot Adapter) or a PCIe 3.0 slot on your computer is required for full performance. However, older PCIe slots will also work with reduced perfor-... -
Page 5: Installation And Setup
Install an OcuLink (SFF-8612) or SFF-8643 adapter card into your computer. If the QX310 v2 carrier is locked into the frame, insert the included key into the lock and turn it 90 degrees counterclockwise. Push in the ejection button to pop the carrier out and remove it from the frame. -
Page 6: Ssd Installation
QX310 v2 User Manual 2.2.2 U.2 SSD Installation a. Use a Phillips screwdriver to remove two screws from the rear of the carrier. Then remove the cover from the carrier. b. Remove the protective covering from the thermal sensor located in the middle of the carrier board. -
Page 7: Operating Your Qx310 V2
Power on the computer if you have not already done so. Your CRU QX310 v2 is now ready to use! If the media inside is already formatted, it can be used right away. If the media is brand new or its format is not compatible with your computer, the media will need to be formatted before being used. -
Page 8: Dual-Speed Fan
QX310 v2 User Manual 4 Dual-Speed Fan The QX310 v2 comes equipped with a dual-speed cooling fan located on the rear of the device. The fan spins at a constant rotation until the drive temperature reaches 60° C (140° F). Then the drive... -
Page 9: Product Support
QX310 v2 User Manual 5 Product Support Your investment in CRU products is backed up by our free technical support for the lifetime of the product. Contact us through our website, cru-inc.com/support or call us at 1-800-260-9800 or +1-360-816-1800. -
Page 10: Appendix A: Technical Specifications
QX310 v2 User Manual Appendix A: Technical Specifications Product Models QX310 v2 Frame Interface SFF-8643: up to ~31.5 Gbps (32 GT/s) Types & Speeds Supported Device Types 2230, 2242, 2260, 2280, and 22110 M.2 NVMe devices U.2 NVMe devices Data Connectors and Cables One (1) SFF-8643 connector (cable requires 85Ω... - Page 11 QX310 v2 User Manual...
- Page 12 ©2019, 2020 CRU Data Security Group, LLC. ALL RIGHTS RESERVED. CRU is a trademark of CRU Data Security Group (“CDSG”) and is ® protected by trademark law. Product Warranty CDSG warrants this product to be free of significant defects in material and workmanship for a period of three years from the original date of purchase.
