RECOMMENDED UNIT PLACEMENT

FOR OUTDOOR MODELS
Some general rules for the evaporator section placement
which must be followed are:
Ensure that the structural integrity of the box can withstand
1.
the weight of the top mounted equipment.
The air pattern must cover the entire room.
2.
NEVER locate the evaporator section over doors.
3.
Location of aisles, racks, etc. must be known.
4.
Never remove or unlock any panel cam-locks to install
5.
top mounted equipment.
The size and shape of the storage will generally determine
the type and number of units to be used and their location.
4
P R O

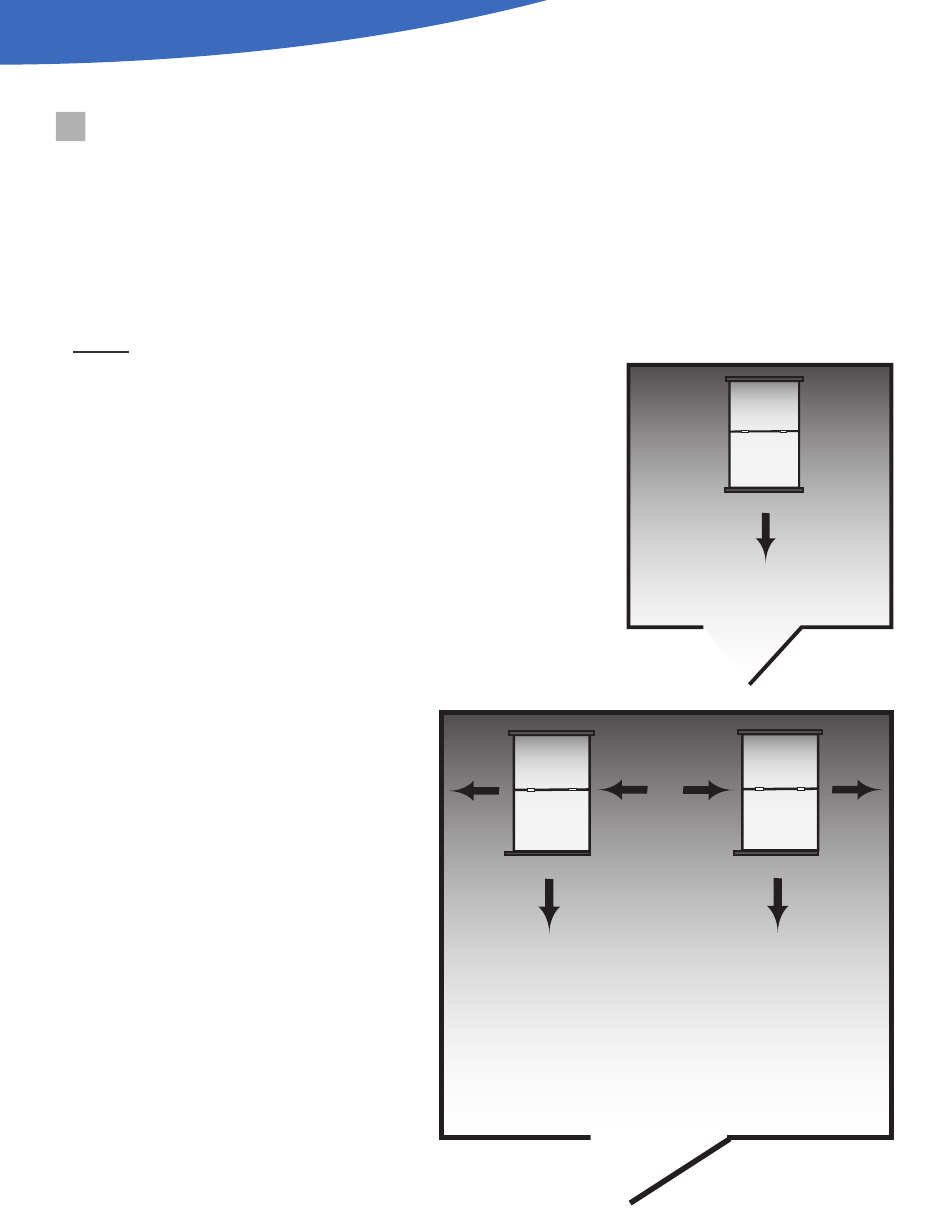

Top View
Two PRO Systems
3
Multiple units must be spaced
properly to provide adequate
air circulation.
T O P M O U N T P A C K A G E D R E F R I G E R A T I O N S Y S T E M
3
Top View
One PRO System
3
Evaporator
Section
W
Compressor
Section
Min.
Evaporator
Airflow
W = Unit Width
NOTE:
Always avoid placement of
units directly above doors and door
openings.
Evaporator
Section
Compressor
Section
Evaporator
Airflow
Evaporator
Section
2 x Width
Compressor
Section
Min.
Evaporator
Airflow
W
Min.
