Parts and features

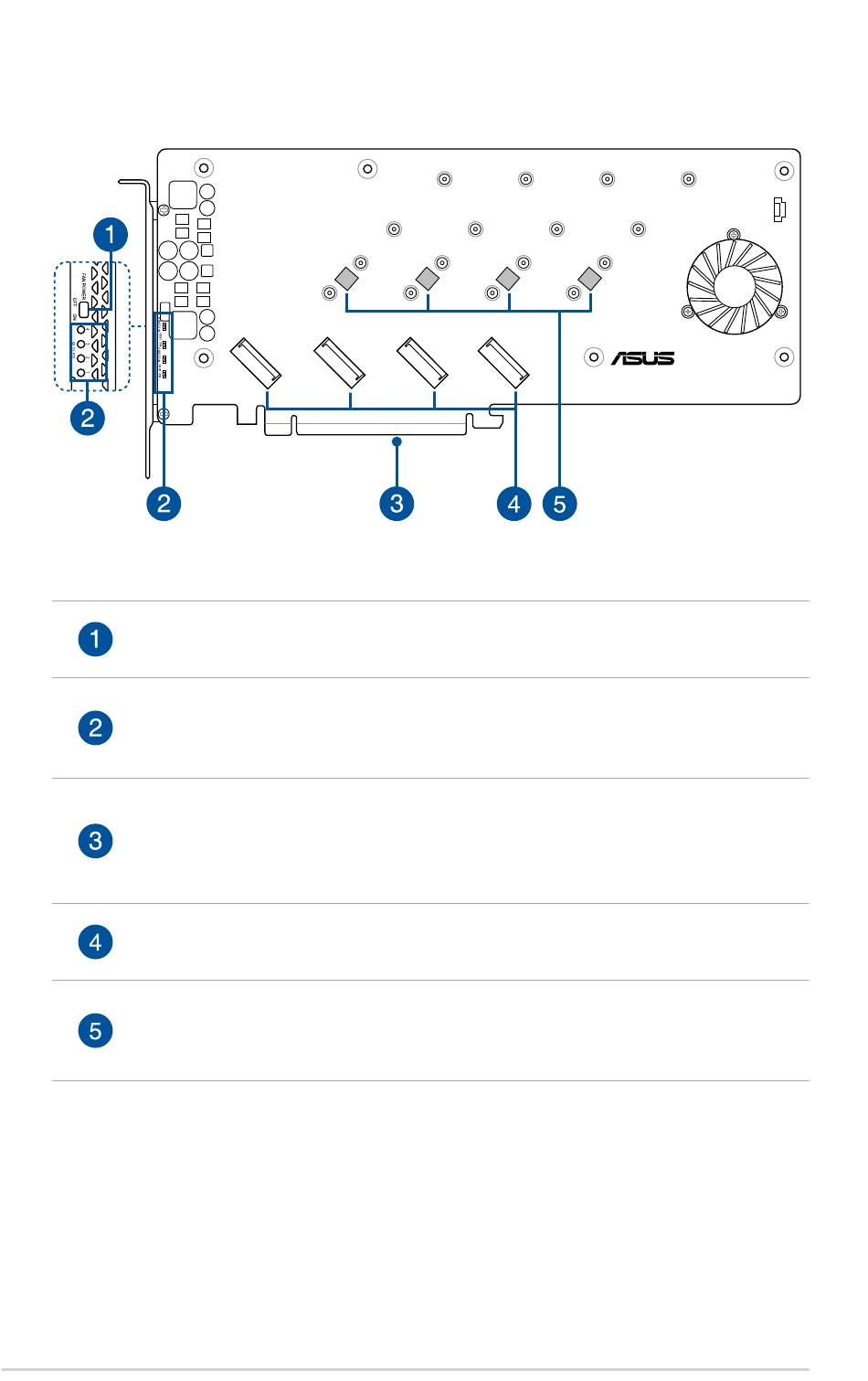

HYPER M.2 X16 GEN4 CARD
M.2 _ 1
M.2 _ 2
M.2 _ 3
M.2 _ 4
FAN Power Switch
This switch allows you to turn the fan on or off.
M.2 Access LEDs
These LEDs will blink to indicate that data are being read/written from/into the
M.2 storage devices.
PCI Express interface
This is the interface for the ASUS HYPER M.2 X16 GEN 4 CARD to be installed
in your motherboard's PCI Express slot. Ensure to install the ASUS HYPER M.2
X16 GEN 4 CARD into a PCI Express 4.0/3.0 slot for optimum results.
PCIe M.2 storage device connectors
These connectors allow you to install PCIe M.2 storage devices.
Pre-installed M.2 rubber pads
These 1 mm rubber pads are installed on the ASUS HYPER M.2 X16 GEN 4
CARD by default and are compatible with double sided M.2 storage devices.
