Discover the Power of
5
Reference Manual
®

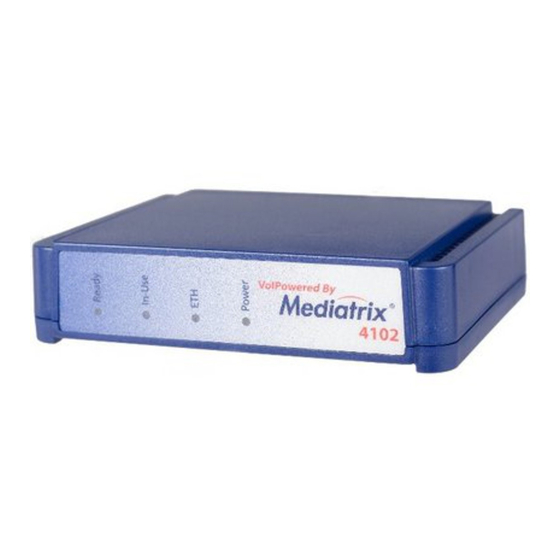

Mediatrix
4102
®
Mediatrix
4102S
SIP Version
Product Version 5.0
Document Revision 11
September 26, 2011
Pb
RoHS
COMPLIANT
2002/95/EC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mediatrix 4102 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Media5 Mediatrix 4102

Summary of Contents for Media5 Mediatrix 4102

  • Page 1 Discover the Power of Reference Manual ® Mediatrix 4102 ® Mediatrix 4102S SIP Version Product Version 5.0 Document Revision 11 September 26, 2011 RoHS COMPLIANT 2002/95/EC...
  • Page 2 – without the express written permission of the publisher. Media5 Corporation reserves the right to revise this publication and make changes at any time and without the obligation to notify any person and/or entity of such revisions and/or changes.

  • Page 3: Table Of Contents

    Free Standing Unit ..............................9 Condensation ................................9 Cleaning ..................................9 Hardware Connection ..........................10 Reserving an IP Address............................10 Before Proceeding..............................10 Single Computer Installation ............................. 11 Multiple Computer Installation ........................... 13 Starting the Mediatrix 4102 for the First Time.....................15 Mediatrix 4102...
  • Page 4 Web Interface Access Limitation ..........................28 Accessing the Web Interface............................. 28 System Status of the Mediatrix 4102 (End User Web Page) ..................30 Network Parameters Status of the Mediatrix 4102 (End User Web Page)..............30 System Status of the Mediatrix 4102 (Administration Web Page)................30 Menu Frame (End User Web Page) ..........................
  • Page 5 SIP Transport Type ..............................85 Interop Parameters..............................86 SIP Authentication ............................87 Chapter 6 Web Interface – Telephony....................91 Digit Maps..............................91 Syntax ..................................91 Special Characters ..............................92 How to Use a Digit Map............................. 92 General Parameters ..............................94 Allowed Digit Maps..............................95 Mediatrix 4102...
  • Page 6 DiffServ Configuration ............................. 137 Emergency Page ............................138 Emergency Call Configuration..........................138 STUN Configuration..........................139 SIP Outbound Proxy..............................139 Restrictions on the Media5 STUN Implementation ....................140 STUN Client Configuration ............................140 SIP Custom NAT Traversal ............................. 141 SNMP Configuration Chapter 8 MIB Structure and SNMP ....................
  • Page 7 Generic Variables ..............................156 Variables for Administrative Commands ......................... 157 SNMP Access Limitation ..........................158 Current MIB Version ..........................158 Sending Configuration Data to the Mediatrix 4102 ...................158 Configuration File ..............................158 Management Information Base – MIB ........................158 Chapter 9 IP Address and Network Configuration ................ 161 IP Addresses ............................161...
  • Page 8 DNS SRV Configuration....................195 What is a DNS SRV?..........................195 Priority vs Weight ..............................195 DNS SRV Call Flow..............................196 Enabling DNS SRV on the Mediatrix 4102 ....................196 DNS SRV Record Lock..........................197 DNS SRV-Oriented Settings........................197 Chapter 12 Country-Specific Configuration ..................199 Caller ID Information..........................199...
  • Page 9 Error Handling ................................. 224 Routing Mechanism ..........................224 Blocked Ports ................................224 Using the Mediatrix 4102 with a Low Bandwidth Connection ..............225 What is Considered a Low Bandwidth Connection? ....................225 Configuration for a Low Bandwidth Connection ...................... 226 Chapter 14 Configuration File Download ..................
  • Page 10 Adaptative Jitter Buffer ..........................282 About Changing Jitter Buffer Values ........................283 Voice Activity Detection ..........................283 G.711 and G.726 VAD ............................283 G.729 VAD ................................284 Echo Cancellation.............................284 Signal Limiter................................284 Comfort Noise............................285 User Gain..............................286 Chapter 18 Fax Transmission......................287 Introduction ...............................287 Mediatrix 4102...
  • Page 11 Line-Specific Authentication ............................ 298 Unit Authentication ..............................299 Authentication Request Protection .......................... 299 SIP Trusted Sources..........................300 NAT Traversal............................300 Mediatrix 4102 Configuration ..........................301 NAT System Configuration............................301 SIP Transport Type...........................301 Transport Parameter ............................... 302 UDP Source Port Behaviour............................ 302 SIP Penalty Box............................303 Penalty Box vs Transport Types ..........................
  • Page 12 Codec Order in Answer ............................322 Chapter 20 STUN Configuration ......................323 What is STUN? ............................323 SIP Outbound Proxy..............................323 Restrictions on the Media5 STUN Implementation ....................323 STUN Client Configuration ........................324 Chapter 21 SNTP Settings........................325 Enabling the SNTP Client .........................325 Configuration Source ..........................326...
  • Page 13 Enabling IP Address Calls............................361 Dialing an IP Address.............................. 361 PIN Dialing..............................362 Remote Line Extension..........................363 Delayed Hot Line ............................364 Call Rejection............................365 Chapter 26 Message Waiting Indicator ..................... 367 What is Message Waiting Indicator (MWI)?....................367 Standard MWI Methods ..........................367 Mediatrix 4102 xiii...
  • Page 14 MWI Method #2 ............................... 369 MWI Notify Service ...........................369 How does the Service Work? ..........................369 Configuring the IP Communication Server ......................370 Configuring the Mediatrix 4102 ..........................370 Chapter 27 Management Server Configuration................371 Using the Management Server .........................371 Configuration Source...............................
  • Page 15 Power ..................................410 Casing / Installation ..............................410 Product Architecture Details ........................410 Real Time Fax Router Technical Specifications ..................411 Analog Line Interface (FXS) ........................411 Audio Specifications ..........................412 DTMF Tone Detection ..........................412 DTMF Tone Generation..........................412 MTBF Value..............................412 Power Consumption ..........................413 Mediatrix 4102...
  • Page 16 Germany 2................................434 Germany 3................................434 Hong Kong..............................435 Indonesia ..............................436 Israel .................................437 Italy ................................438 Japan ................................439 Malaysia..............................440 Mexico ..............................441 Netherlands ..............................442 New Zealand.............................443 North America............................444 North America 1 ..............................444 North America 2 ..............................445 Russia...............................446 Spain.................................447 Sweden..............................448 Mediatrix 4102...
  • Page 17 Reference Manual (SIP Version) Switzerland ...............................449 Thailand ..............................450 United Arab Emirates..........................451 UK................................452 Appendix E Glossary ........................... 453 Appendix F List of Acronyms ......................461 Appendix G List of MIB Parameters ....................463 Mediatrix 4102 xvii...
  • Page 18 Contents xviii Mediatrix 4102...

  • Page 19: Preface

    From the perspective of the LAN administrator, a Mediatrix 4102 presents itself like another device to add to the LAN. It requires the same kind of TCP/IP addressing. The Mediatrix 4102 can also use a DHCP server on the LAN to automatically receive its IP configuration assignment.

  • Page 20: Document Structure

    Preface - About this Manual Document Structure  Third Party Software Copyright Information This document lists the third-party software modules used in the Mediatrix 4102 along with any copyright and license information. This document is available at: http://www.media5corp.com/ downloads Be sure to read any readme files, technical bulletins, or additional release notes for important information.
  • Page 21 “Chapter 25 - Telephony Attributes” on page 359 Describes the telephony attributes available on the Mediatrix 4102. “Chapter 26 - Message Waiting Indicator” on Explains how to set the Mediatrix 4102 to use the page 367 Message Waiting Indicator service. “Chapter 27 - Management Server Describes how to configure the Mediatrix 4102 to Configuration”...

  • Page 22: Document Conventions

    Lists the various parameters specific to a country such page 419 as loss plan, tones and rings, etc. Document Conventions The following information provides an explanation of the symbols that appear on the Mediatrix 4102 and in the documentation for the product. Warning Definition Warning: Means danger.

  • Page 23: Scn Vs Pstn

    These sections explain how to obtain documentation from Media5. Media5 Web Site Media5 offers the latest version of its products’ documentation on its web site. You will thus be able to access and download the most current Media5 documentation. Follow this link: http://www.media5corp.com/en/...

  • Page 24: Unit Manager Network - Element Management System

    Supports SNMP requests: GET, GET NEXT, GET TABLE, GET WALK, SET, TRAP.  SNMP abstraction layer: configuration can be changed without SNMP MIB knowledge. The demo version of the Unit Manager Network is available on the Media5 Download Portal at: https:// support.mediatrix.com/DownloadPlus/Download.asp.

  • Page 25: Installation And Web

    Installation and Web Page Configuration...
  • Page 26 Page Left Intentionally Blank...

  • Page 27: Chapter 1 Installation

    Package Contents The Mediatrix 4102 package contains the following items:  the Mediatrix 4102 unit  a power cord for the country in which you are using the Mediatrix 4102  a universal power supply  a printed Flyer You also need two 10/100 BaseT Ethernet RJ-45 cables.

  • Page 28: Overview

    Group 3 fax machines and either a WAN, a LAN or a personal computer. The Mediatrix 4102 can be used to connect up to two analog phones or fax machines to a broadband access equipment for a Service Provider's IP Telephony offering to residential users.

  • Page 29: Management Choices

    Overview Reference Manual (SIP Version) Management Choices The Mediatrix 4102 offers various management options to configure the unit. Table 4: Management Options Management Choice Description Web Interface The Mediatrix 4102 web interface offers the following options: • Password-protected access via basic HTTP authentication, as described in RFC 2617 •...

  • Page 30: Panels

    Indicator Description Ready When lit, the Mediatrix 4102 is ready to initiate or receive a call. The unit does not have to be registered to a server. In Use When lit, at least one of the FXS lines is in use.

  • Page 31: Rear Connectors

    Panels Reference Manual (SIP Version) Rear Connectors The Mediatrix 4102 has several connections that must be properly set. Figure 2 shows the back panel of the Mediatrix 4102. Figure 2: Back Panel Connectors RJ-11 connectors Analog Reset / Default line device...

  • Page 32: Choosing A Suitable Installation Site

    Warning: To prevent fire or shock hazard do not expose the unit to rain or moisture. The Mediatrix 4102 is suited for use in an office or residential environment where it can be wall-mounted or free standing. Location Install the Mediatrix 4102 in a well-ventilated location where it will not be exposed to high temperature or humidity.

  • Page 33: Wall-Mounting

    Free Standing Unit When installing the Mediatrix 4102 on a desk or table, it should be located at least 20 cm from your monitor, computer casing or other peripherals, including speakers. Never put books or paper on the Mediatrix 4102.

  • Page 34: Hardware Connection

    For example, a straight cable is required to connect the Mediatrix 4102 to a hub or a switch, while a crossover cable is required to connect the Mediatrix 4102 to a PC.

  • Page 35: Single Computer Installation

    Mediatrix 4102 as described in “System Page” on page Note: Do not set the PC to use PPPoE because the Mediatrix 4102 will take care of the authentication. The following figure illustrates the hardware connections. Figure 5: Single Computer Installation...
  • Page 36 Internet connection. Refer to your modem’s documentation for more details. Once the modem is ready, connect the power cord to the Mediatrix 4102 and then connect the other end to an electrical outlet. Warning: The electrical outlet must be installed near the Mediatrix 4102 so that it is easily accessible.

  • Page 37: Multiple Computer Installation

    Multiple Computer Installation You can use a router with the Mediatrix 4102 to provide Internet connectivity to more than one PC or other device. The following steps describe how to install the Mediatrix 4102 with a router. The installation may either be performed with a cable or DSL modem.
  • Page 38 Internet connection. Refer to your modem’s documentation for more details. Once the modem is ready, connect the power cord to the Mediatrix 4102 and then connect the other end to an electrical outlet. Warning: The electrical outlet must be installed near the Mediatrix 4102 so that it is easily accessible.

  • Page 39: Starting The Mediatrix 4102 For The First Time

    DHCP server for the unit you are about to connect (“Reserving an IP Address” on page 10). If you have not reserved an IP address, you can discover which IP address has been assigned to the Mediatrix 4102 by either: ...

  • Page 40: Initial Provisioning Sequence

    IP address is the same on every unit. Initial Provisioning Sequence When starting the Mediatrix 4102 for the first time, it needs to be configured before it can support calls. This process is known as provisioning. This sequence assumes that you have installed the Mediatrix 4102 hardware as per “Hardware Connection”...
  • Page 41 Configuration. Caution: These variables are vital to the proper operation of the Mediatrix 4102. If a variable of this group is not set properly, the unit may not be able to start or be contacted after it has started. Note: Media5 recommends not to set the localHostStaticSubnetMask variable to 255.255.255.254 because...

  • Page 42: Special Vocal Features

    LED Behaviour in Starting Mode When the Mediatrix 4102 starts and it is not configured to use a DHCP server, it uses static IP addresses. If the static information is not valid, the LAN LED blinks at 1 Hz with 75% duty cycle. This lets you know that you must perform a Factory reset or Recovery mode operation.

  • Page 43: Eth Led

    Power LED The Power LED indicates whether or not the Mediatrix 4102 is operational at its most basic level. It does not imply that the unit can be used, only that it is capable of being used. Healthy operation would be steady ON.

  • Page 44: Booting Led Pattern Description

    See the corresponding LED pattern in “NormalMode LED Pattern Description” on page Booting LED Pattern Description While in the Booting state, the LEDs of the Mediatrix 4102 behave independently; the following table indicates the behaviour for each LED. Table 10: LED Patterns in Booting Mode...

  • Page 45: Normalmode Led Pattern Description

    LED Indicators Reference Manual (SIP Version) NormalMode LED Pattern Description While in the NormalMode state, the LEDs of the Mediatrix 4102 behave independently; the following table indicates the behaviour for each LED. Table 11: LED Patterns in Operation Mode Pattern...

  • Page 46: Reset / Default Switch

     Reconfigure a unit. At Run-Time The Reset / Default switch can be used at run-time – you can press the switch while the Mediatrix 4102 is running without powering the unit off. Table 13 describes the actions you can perform in this case.

  • Page 47: Recovery Mode

    Recovery Mode The recovery mode restarts the Mediatrix 4102 in a known, static, and minimal state. It is used to recover from a basic configuration error that prevents you to reach the unit through the network. It may serve as a last resort before the Factory reset command.

  • Page 48: Factory Reset

    The Factory reset creates a new configuration file with the default factory values. It should be performed with the Mediatrix 4102 connected to a network with access to a DHCP server. If the unit cannot find a DHCP server, it sends requests indefinitely.

  • Page 49: Software Restart

    You can disable the factory reset procedure, even if users depress the Reset / Default switch. Disabling the factory reset means that users will not be able to revert the Mediatrix 4102 back to its factory settings if there are configuration problems.

  • Page 50: Verifying The Installation

    Chapter 1 - Installation Verifying the Installation Verifying the Installation There are two ways to verify that the Mediatrix 4102 is properly connected to the IP network and is working:  By contacting it with a SNMP Browser  By pinging it These two procedures assume that you know the IP address of the Mediatrix 4102 you want to verify.

  • Page 51: Web Interface - Introduction

    The Mediatrix 4102 contains an embedded web server to set parameters by using the HTTP protocol. This web server may either be accessed via the LAN or WAN interface of the Mediatrix 4102, depending on the current access limitation. This access limitation may be modified in “Web Interface Access Limitation”...

  • Page 52: Using The Web Interface

    Web Interface Access Limitation Access to the web interface can be limited to only one of the Mediatrix 4102’s interface or all its interfaces. Furthermore, you can grant access to one or both of the Administration and End User web pages available.
  • Page 53 Click OK. The Overview web page displays. It has two sub-pages: System status and Network parameters. It stays accessible for as long as the Internet browser used to access the Mediatrix 4102 web interface is opened. Figure 11: Device Info Web Page...

  • Page 54: System Status Of The Mediatrix 4102 (End User Web Page)

    Chapter 2 - Web Interface – Introduction Using the Web Interface System Status of the Mediatrix 4102 (End User Web Page) The Overview – System status page displays the current system status of the Mediatrix 4102. Table 16: System Status Page IP Information...

  • Page 55: Menu Frame (End User Web Page)

    Links to the System log page, which displays, in read-only format, the syslog messages the Mediatrix 4102 sends. See “System Log Page” on page 44 more details. Reboot Links to the Reboot page, which allows you to restart the Mediatrix 4102. Mediatrix 4102...

  • Page 56: Menu Frame (Administration Web Page)

    Mediatrix Device Info 4102. Monitoring: Links to the Monitoring sub-page of the Device Info web page, which allows you to configure the syslog parameters of the Mediatrix 4102. See “Syslog Monitoring” on page 34 for more details.

  • Page 57: Content Frame

    Most changes are not dynamic and require to restart the Mediatrix 4102. The Reboot page then opens. You must click Reboot. This restarts the Mediatrix 4102. If the unit is in use when you click Reboot, all calls are terminated. Mediatrix 4102...

  • Page 58: Syslog Monitoring

    Syslog daemon address is provided by a DHCP server or specified by the administrator, no messages are sent. For instance, if you want to download a new software into the Mediatrix 4102, you can monitor each step of the software download phase. Furthermore, if the unit encounters an abnormal behaviour, you may see accurate messages that will help you troubleshoot the problem.

  • Page 59: Configuring The Syslog Daemon Application

    7KH VRIWZDUH XSGDWH IDLOHG error and has not been completed Configuring the Syslog Daemon Application You shall configure the Syslog daemon to capture those messages. Refer to your Syslog daemon’s documentation to learn how to properly configure it to capture messages. Mediatrix 4102...
  • Page 60 Chapter 2 - Web Interface – Introduction Syslog Monitoring Mediatrix 4102...

  • Page 61: Chapter 3 Web Interface

    LAN interface information  STUN parameters WAN Page The WAN page allows you to set the uplink information used by the Mediatrix 4102.  To set WAN parameters: In the web interface, click the System link. This links to the System – WAN web page.
  • Page 62 Public IP address of the Mediatrix 4102. This address is used for incoming signalling, media and management traffic. WAN Network Mask Subnet mask IP address used by the Mediatrix 4102. The subnet mask enables the network administrator to further divide the host part of the address into two or more subnets.

  • Page 63: Lan Page

    Spoofing the MAC address is useful in the case of ISPs that use the MAC address of the device connected to the Computer interface of the Mediatrix 4102 (e.g., a PC) to identify the connection. Enter the proper MAC address in the Spoof MAC address field. The current MAC address of the online device in the Computer connector is displayed below the field.

  • Page 64: Stun Page

    Figure 15: STUN Web Page Enable the STUN client by selecting the Enable option. Set the amount of time, in seconds, the Mediatrix 4102 should keep a STUN query result in its internal cache in the STUN cache duration field.

  • Page 65: Configuration File Upload Page

    Click the Submit button. If a valid configuration file is successfully uploaded, then the Mediatrix 4102 automatically restarts to apply all the new settings. If the Mediatrix 4102 does not restart, this could mean the upload failed. Mediatrix 4102...

  • Page 66: Http Server Password Page

    RFC 2617 – HTTP Authentication: Basic and Digest Access Authentication The HTTP server password page allows you to modify the default password to access the web interface. The Mediatrix 4102 supports basic HTTP authentication, as described in RFC 2617.  To change the password: In the web interface, click the HTTP server password link.

  • Page 67: Issue: Factory Reset Does Not Reset The Default Password Value

    Wanted Behaviour The password to use is the default password in the profile. Current Behaviour Same as the wanted behaviour. Workaround Once using the new software version, use the httpServerResetToDefaultPwd variable as described in “Default User Name and Password” on page Mediatrix 4102...

  • Page 68: System Log Page

    Chapter 3 - Web Interface System Log Page System Log Page The System log page allows you to peruse the last n system log (syslog) messages sent by the Mediatrix 4102 since it last restarted.  To access the System log page: In the web interface, click the System log link.

  • Page 69: Web Interface - Management

    RFC 2617 – HTTP Authentication: Basic and Digest Access Authentication The Change HTTP Server ADMINISTRATOR Username/Password section allows you to modify the default password to access the web interface. The Mediatrix 4102 supports basic HTTP authentication, as described in RFC 2617. ...
  • Page 70 The web password is reset to the default value specified by the httpServerDefaultAdminPassword variable. Restart the Mediatrix 4102 so that the change may take effect. Issue: Factory Reset does not Reset the Default Password Value The following describes three cases in which the factory reset may not properly reset the HTTP server password.

  • Page 71: Http Server Password - End User Web Page

    RFC 2617 – HTTP Authentication: Basic and Digest Access Authentication The Change HTTP Server USER Username/Password section allows you to modify the default password to access the End User web interface. The Mediatrix 4102 supports basic HTTP authentication, as described in RFC 2617. ...
  • Page 72 Table 32: Case 2 Issue Item Description Wanted Behaviour The password to use is the password modified via the web interface in the older software version. Current Behaviour Same as the wanted behaviour. Workaround None required. Mediatrix 4102...

  • Page 73: System Management

    “Default User Name and Password” on page System Management The following are the system management parameters you can set. These parameters apply to the whole Mediatrix 4102. You can also set these parameters via SNMP, as described in “Chapter 8 - MIB Structure and SNMP” on page 145.

  • Page 74: Group Port Management

    Click Submit if you do not need to set other parameters. Interface Management You can set the administrative state of a line that will be kept until the Mediatrix 4102 restarts.  To set the interface management parameters: In the Interface Management section of the Admin page, select the proper command to execute in the Command column.

  • Page 75: Network Settings

    A half-duplex connection refers to a transmission using two separate channels for transmission and reception, while a full-duplex connection refers to a transmission using the same channel for both transmission and reception. If unknown, select Auto detect so that the Mediatrix 4102 can automatically detect the network speed. Caution: Whenever you force a connection speed / duplex mode, be sure that the other device and all other intermediary nodes used in the communication between the two devices have the same configuration.

  • Page 76: Network Settings

    The Network Settings section allows you to set the IP information the Mediatrix 4102 needs to work properly. This section is vital to the proper operation of the Mediatrix 4102. If a field of this group is not properly set, the Mediatrix 4102 may not be able to restart and be contacted after it has restarted.

  • Page 77: Sntp Settings

    Table 39: Network Settings Configuration Sources Source Description Static You manually enter the value and it remains the same every time the Mediatrix 4102 restarts. Use the static configuration if you are not using a DHCP server or if you want to bypass it. DHCP The value is obtained at start-time by querying a DHCP server and using standard DHCP fields or options.
  • Page 78 0 to 365. It must contain the leap year day if the current year is a leap year. With this format, you are responsible to determine all the leap year details. Mediatrix 4102...
  • Page 79 Eastern Time Canada & US) EST5EDT4,M3.2.0/02:00:00,M11.1.0/02:00:00 Atlantic Time (Canada) AST4ADT3,M3.2.0/02:00:00,M11.1.0/02:00:00 GMT Standard Time GMT0DMT-1,M3.5.0/01:00:00,M10.5.0/02:00:00 W. Europe Standard Time WEST-1DWEST-2,M3.5.0/02:00:00,M10.5.0/03:00:00 China Standard Time CST-8 Tokyo Standard Time TST-9 Central Australia Standard Time CAUST-9:30DCAUST-10:30,M10.5.0/02:00:00,M3.5.0/02:00:00 Australia Eastern Standard Time AUSEST-10AUSDST-11,M10.5.0/02:00:00,M3.5.0/02:00:00 UTC (Coordinated Universal Time) UTC0 Mediatrix 4102...

  • Page 80: Configuration File Download

    227. Configuration File Download Server The service allows to download a unique file for each Mediatrix 4102, and/or a file shared among many units. These configuration files may be encrypted or not. You have the choice to perform the configuration file download by using the TFTP protocol or the HTTP protocol.

  • Page 81: Configuration File Server Settings

    Reference Manual (SIP Version) Configuration File Server Settings The Mediatrix 4102 must know the IP address and port number of its configuration file server. This server contains the configuration file the Mediatrix 4102 will download. You can assign these information to the Mediatrix 4102 through a DHCP server or manually enter them yourself.

  • Page 82: Setting Up The Configuration File Download

    If your HTTP server requires authentication to download the configuration file, set the following: • The user name in the Configuration File User Name field. • The password in the Configuration File Password field. The Mediatrix 4102 supports basic and digest HTTP authentication, as described in RFC 2617. Mediatrix 4102...
  • Page 83 • Cut and paste the path and/or name of the directory that contains the extracted files into the configuration file path of the Mediatrix 4102 (you may have to convert “\” into “/ ”) to eliminate typographical errors. Note that you can define the C:/Root/Download part as you want. The file names may also differ from the example shown above.
  • Page 84 If valid configuration files are successfully downloaded, then the Mediatrix 4102 automatically restarts to apply all the new settings. If the Mediatrix 4102 does not restart, this could mean the download failed or that the configuration in the file is the same as the configuration in the unit.

  • Page 85: Configuration Files Encryption

    Reference Manual (SIP Version) Configuration Files Encryption You can secure the exchange of configuration files between the server and the Mediatrix 4102. A privacy key allows the unit to decrypt a previously encrypted configuration file. To encrypt a configuration file (generic or specific), you must use the MxCryptFile application. MxCryptFile is a command line tool that encrypts files before sending them to the Mediatrix 4102 unit.

  • Page 86: Configuration Download Procedure

    49 for more details on the system commands. Click Submit. Automatic Configuration Update You can configure the Mediatrix 4102 to automatically update its configuration. This update can be done:  Every time the Mediatrix 4102 restarts.  At a specific time interval you can define.
  • Page 87 Click Submit if you do not need to set other parameters. Automatic Update at a Specific Time Interval You can configure the Mediatrix 4102 to download new configuration files at a specific day and/or time.  To set the automatic update at a specific time interval: Set the configuration file server host and port as defined in “Configuration File Server Settings”...
  • Page 88 “SNTP Settings” on page 53 for more details on how to configure the Mediatrix 4102 for a SNTP server. If a time range is specified, the unit will download the configuration files at a random time within the interval specified.

  • Page 89: Error Handling

    7KH IHWFKHG FRQILJXUDWLRQ ILOH ¥;;;µ IURP VHUYHU ¥;;;µ KDV D VL]H ¥;;; E\WHVµ WKDW H[FHHGV WKH PD[LPXP DOORZHG VL]H ¥;;; E\WHVµ Set sysAdminDownloadConfigFileStatus to fail. Mediatrix 4102...
  • Page 90 Received a 404 Not Found from Send a syslog warning message including the the HTTP server. file location/name with the HTTP server address: 7KH FRQILJXUDWLRQ ILOH ¥;;;µ ZDV QRW IRXQG RQ WKH +773 VHUYHU ¥;;;µ Set sysAdminDownloadConfigFileStatus to fail. Mediatrix 4102...

  • Page 91: Firmware Download

    TFTP server with proper root path  MIB browser (with the current Mediatrix 4102 MIB tree) You can use the MIB browser built in the Media5’s Unit Manager Network. See “Unit Manager Network – Element Management System” on page xxiv for more details.

  • Page 92: Firmware Servers Configuration

    If you are to perform a firmware download by using the HTTP protocol, you must install a HTTP server running on the PC designated as the server host. This PC must not have a firewall running. Media5 also recommends to place the PC and the Mediatrix 4102 in the same subnet.

  • Page 93: Setting Up The Firmware Download

    Extract the contents of the zip file on the PC designated as the firmware download server. Be sure to use the defined folder name. This creates a directory that contains the files required for the Mediatrix 4102 to properly update its firmware.
  • Page 94 The Mediatrix 4102 first downloads a file called “setup.inf”. This file contains the list of all the other files to download, depending on the product. The “setup.inf” file and all the other files must be in the same directory.
  • Page 95  Cut and paste the path and/or name of the directory that contains the extracted files into the image path of the Mediatrix 4102 (you may have to convert “\” into “/”) to eliminate typographical errors. Note that you can define the C:/Root/Download part as you want. The file names may also differ from the example shown above.
  • Page 96 You can validate the status of the firmware download in various ways. Syslog Messages If you are using a Syslog daemon, you will receive messages that inform you of the firmware update status. The following are the syslog messages the Mediatrix 4102 sends: Table 53: Firmware Update Syslog Messages Level...
  • Page 97 End User web interface. LED States When the Mediatrix 4102 initiates a firmware download, the LEDs located on the front panel indicate the status of the process. Table 54: LED States in Firmware Download...

  • Page 98: Firmware Download Procedure

    If Transparent Address Sharing is enabled during the firmware download, the PC connected to the Mediatrix 4102 may experience momentary loss of Internet connectivity. Automatic Firmware Update You can configure the Mediatrix 4102 to automatically update its firmware. This update can be done:  Every time the Mediatrix 4102 restarts.
  • Page 99 Click Submit if you do not need to set other parameters. Automatic Update at a Specific Time Interval You can configure the Mediatrix 4102 to download a new firmware at a specific day and/or time.  To set the automatic update at a specific time interval: If not already done, setup the Image server used to download the firmware (see “Before...
  • Page 100 “SNTP Settings” on page 53 for more details on how to configure the Mediatrix 4102 for a SNTP server. If a time range is specified, the unit will initiate the image software download at a random time within the interval specified.

  • Page 101: Spanning Tree Protocol (Stp)

    The secondary image server is up and running well. In this case, the Mediatrix 4102 tries to contact the primary image server. As it is not available, the Mediatrix 4102 retries for two minutes. It contacts the secondary server after that period and starts the firmware download.

  • Page 102: Emergency Firmware Procedure

    However, if these addresses cannot be reached from the unit’s subnet, the default gateway must provide appropriate routing to them. If the firmware download also fails with the two default servers, the Mediatrix 4102 idles for one minute.

  • Page 103: Web Interface - Sip Parameters

    H A P T E R Web Interface – SIP Parameters The SIP page allows you to configure the various SIP-related parameters of the Mediatrix 4102:  General SIP configuration parameters  SIP Interop parameters  Authentication parameters SIP Servers Configuration Standards Supported •...

  • Page 104: Sip Configuration

    SIP Configuration The Mediatrix 4102 must know the IP address and port number of the SIP servers. You can assign these information to the Mediatrix 4102 through a DHCP server or manually enter them yourself.
  • Page 105 IP calling. Click Submit if you do not need to set other parameters. The current SIP server information is displayed in the SIP Info section. Mediatrix 4102...

  • Page 106: Sip User Agent

    A user agent is a logical entity that can act as both client and server for the duration of a dialog. Each line (also known as endpoint) of the Mediatrix 4102 is a user agent. You can set information for each user agent such as its telephone number and friendly name. This information is used to dynamically create the To, From and Contact headers used in the request the user agent sends.

  • Page 107: Sip Registration

    In the SIP Publication section of the SIP page, set the publication command in the SIP Publication Command menu. Figure 39: SIP – SIP Publication section The following values are available: • noOp: No operation. • refresh: Refresh publications. Mediatrix 4102...

  • Page 108: Sip Interop

    The Mediatrix 4102 skips over UDP and tries the next target, which is TCP. Again, TCP is still in the penalty box, but this time, it is the last target the Mediatrix 4102 can try, so penalty box or not, TCP is used all the same to try to contact endpoint “B”.

  • Page 109: Sip Transport Type

    RFC 3261 – SIP: Session Initiation Protocol You can globally set the transport type for all the lines of the Mediatrix 4102 to either UDP (User Datagram Protocol) or TCP (Transmission Control Protocol). The Mediatrix 4102 will include its supported transports in its registrations.

  • Page 110: Interop Parameters

    0.000 and 1.000). If you specify an empty string, no qvalue is set in the contacts. Click Submit if you do not need to set other parameters. Interop Parameters The interop parameters allow the Mediatrix 4102 to properly work, communicate, or connect with specific IP devices. ...

  • Page 111: Sip Authentication

    You can add two types of authentication information:  user agent specific authentication You can define up to five user names and five passwords for each user agent of the Mediatrix 4102. A user agent can thus register with five different realms. ...
  • Page 112 The user agent credentials are used only for a specific realm set in the corresponding Realm field. Enter up to five realms for each user agent in the Realm column. When authentication information is required from users, the realm identifies who requested it. Mediatrix 4102...
  • Page 113 Reference Manual (SIP Version) Enter a string that uniquely identifies this user agent in the realm in the Username column. Enter a user password in the Password column. Click Submit if you do not need to set other parameters. Mediatrix 4102...
  • Page 114 Chapter 5 - Web Interface – SIP Parameters SIP Authentication Mediatrix 4102...

  • Page 115: Web Interface - Telephony

    Shortcut to local number at other corporate sites 91xxxxxxxxxx Long distance numbers 9011 + up to 15 digits International number The solution to this problem is to load the Mediatrix 4102 with a digit map that corresponds to the dial plan. Mediatrix 4102...

  • Page 116: Special Characters

    Chapter 6 - Web Interface – Telephony Digit Maps A Mediatrix 4102 that detects digits or timers applies the current dial string to the digit map, attempting a match to each regular expression in the digit map in lexical order.
  • Page 117 It indicates that if users have not dialed a digit for the time defined, it is likely that they have finished dialing and the Mediatrix 4102 can make the call. A digit map for this could be: >...

  • Page 118: General Parameters

    The timer starts when the dial tone is played. When the timer expires, the receiver off-hook tone is played. This value is expressed in milliseconds (ms). Values range from 1000 ms to 180000 ms. Click Submit if you do not need to set other parameters. Mediatrix 4102...

  • Page 119: Allowed Digit Maps

    Reference Manual (SIP Version) Allowed Digit Maps You can create/edit ten digit maps for the Mediatrix 4102. Digit map rules are checked sequentially. If a telephone number potentially matches two of the rules, the first rule encountered is applied. ...

  • Page 120: Blocked Digit Maps

    Blocked Digit Maps A blocked digit map forbids to call specific numbers; for instance, you want to accept all 1-8xx numbers except 1-801. You can create/edit ten blocked digit maps for the Mediatrix 4102.  To set up blocked digit maps: In the Blocked Digit Map section –...

  • Page 121: Voice & Fax Codecs

    Click Submit if you do not need to set other parameters. Voice & Fax Codecs The two lines of the Mediatrix 4102 can simultaneously use the same codec (for instance, G.711 PCMA), or a mix of any of the supported codecs. Set and enable these codecs for each line.

  • Page 122: 726

    G.729 Annex A. A G.729 or G.729 Annex A frame contains 10 octets, while the G.729 Annex B comfort noise frame occupies 2 octets. The Mediatrix 4102 supports G.729A and G.729AB for encoding and G.729, G.729A and G.729AB for decoding.

  • Page 123: General Parameters

    In the General section, choose the preferred codec you want to use in the Preferred Codec field. This is the codec you want to favour during negotiation. You have the following choices: • g711-PCMU • g711-PCMA • g729 • g726-16kbps • g726-24kbps • g726-32kbps • g726-40kbps The default value is pcmu. Mediatrix 4102...
  • Page 124 The jitter buffer allows better protection against packet loss, but increases the voice delay. If the network to which the Mediatrix 4102 is connected suffers from a high level of congestion, the jitter buffer protection level should be higher. If the network to which the Mediatrix 4102 is connected suffers from a low level of congestion, the jitter buffer protection level should be lower.
  • Page 125 Set the RTP Base Port field with the port number you want to use as RTP/RTCP base port. The RTP/RTCP ports are allocated starting from the base port. The Mediatrix 4102 may use two or four RTP/RTCP ports for each FXS interface: •...

  • Page 126: G.711 Codec Parameters

    Enable the G.711 Voice Activity Detection (VAD) by selecting Enable in the G.711 VAD choice. VAD defines how the Mediatrix 4102 sends information pertaining to silence. This allows the unit to detect when the user talks, thus avoiding to send silent RTP packets. This saves on network resources.

  • Page 127: Codec Parameters

    Enable the G.729 Voice Activity Detection (VAD) by selecting Enable in the G.729 VAD choice. VAD defines how the Mediatrix 4102 sends information pertaining to silence. This allows the unit to detect when the user talks, thus avoiding to send silent RTP packets. This saves on network resources.

  • Page 128: Fax Parameters

    Upon fax termination, if the call is not BYE, the previous voice codec is recovered with another re- INVITE. All lines of the Mediatrix 4102 can simultaneously use the same codec (for instance, T.38), or a mix of any of the supported codecs. Set and enable these codecs for each line.
  • Page 129 The Mediatrix 4102 can send faxes in T.38 mode over UDP or TCP. T.38 is used for fax if both units are T.38 capable; otherwise, transmission in clear channel over G.711 as defined is used (if G.711 µ-law and/or G.711 A-law are enabled).
  • Page 130 For additional reliability, define the number of times T.38 packets are retransmitted in the T.38 Final Frames Redundancy field. This only applies to the T.38 packets where the PrimaryUDPTL contains the following T.38 data type: • HDLC_SIG_END, • HDLC_FCS_OK_SIG_END, • HDLC_FCS_BAD_SIG_END and Mediatrix 4102...
  • Page 131 See “Data Codec Selection Procedure” on page 291 for more details. Click Submit if you do not need to set other parameters. Mediatrix 4102...

  • Page 132: Call Forward

    91). Dialing this digit map does not have any effect unless the service’s status is “enabled”. The activating sequence is set for all the lines of the Mediatrix 4102. You cannot have a different sequence for each line. Define the digits that users must dial to stop the service in the Digits to disable field.
  • Page 133 Call Forward Reference Manual (SIP Version) The deactivating sequence is set for all the lines of the Mediatrix 4102. You cannot have a different sequence for each line. Set the activation status of the service in the Service Status field to Inactive or Active.

  • Page 134: On No Answer

    91). Dialing this digit map does not have any effect unless the service’s status is “enabled”. The activating sequence is set for all the lines of the Mediatrix 4102. You cannot have a different sequence for each line. Define the digits that users must dial to stop the service in the Digits to disable field.

  • Page 135: Unconditional

    For instance, you could decide to put “*74” as the sequence to activate the service. This sequence must be unique and follow the syntax for digit maps (see “Digit Maps” on page 91). Dialing this digit map does not have any effect unless the service’s status is “enabled”. Mediatrix 4102...
  • Page 136 Chapter 6 - Web Interface – Telephony Call Forward The activating sequence is set for all the lines of the Mediatrix 4102. You cannot have a different sequence for each line. Define the digits that users must dial to stop the service in the Digits to disable field.

  • Page 137: Services

    The blind call transfer service is sometimes called Transfer without Consultation or Unattended Transfer. It allows a user to transfer a call on hold to a still ringing (unanswered) call. The individual at the other extension or telephone number does not need to answer to complete the transfer. Mediatrix 4102...
  • Page 138 Note: If the number to which you want to transfer the call is busy or does not answer, quickly perform a Flash-Hook. The busy tone or ring tone is cancelled and you are back with the first call. Mediatrix 4102...

  • Page 139: Call Waiting

    91). Dialing this digit map does not have any effect unless the service’s status is “enabled”. The deactivating sequence is set for all the lines of the Mediatrix 4102. You cannot have a different sequence for each line. Define the digits that users must dial to enable the call waiting service permanently in the Permanent Activation Digit Map field.
  • Page 140 “Chapter 22 - Digit Maps” on page 329). The sequence is set for all the lines of the Mediatrix 4102. You cannot have a different sequence for each line. When dialing this digit map, this sets the Activation drop-down menu for the line the user is currently using to disable.

  • Page 141: Conference

    Furthermore, you must also enable the Attended Transfer service for the two other participants to stay connected once the participant who initiated the conference has hung up. See “Call Transfer” on page 113. The following is a conference call flow example: Mediatrix 4102...
  • Page 142 If this is not the case, then part of the conversation may be lost, resulting in a choppy voice. For better results, Media5 recommends to set the packetization period of all participants of a 3-way conference to 30 milliseconds. See “Voice &...
  • Page 143 This is available only in the Local conference type. “B” (or “C”) hangs up during the conference. The conference is terminated, but the call between “A” and “C” (or “B”) is not affected and they are still connected. Mediatrix 4102...

  • Page 144: Call Hold

    To enable the Second Call service: Select to which port you want to apply the changes in the drop down menu at the top of the window. In the Second Call section, enable the service by selecting Enable in the Activation choice. Mediatrix 4102...

  • Page 145: Automatic Call

    • SIP URLs such as ”scheme:user@host”. For instance, “sip:user@foo.com”. This string is used literally, so cosmetic symbols (such as the dash in “555-xxxx”) should not be present. Click Submit if you do not need to set other parameters. Mediatrix 4102...

  • Page 146: Miscellaneous

    Custom Tone Configuration  Message Waiting Indicator Country Selection It is very important to set the country in which the Mediatrix 4102 is used because a number of parameter values are set according to this choice. These parameters are:  Tones ...

  • Page 147: Custom Tone Configuration

    IUHTXHQF\ GHVFULSWLRQ @ @ @ ORRS FRXQWHU VHFWLRQ ORRS FRXQWHU VWDWHV VHFWLRQ VWDWH GHVFULSWLRQ > VWDWH GHVFULSWLRQ > VWDWH GHVFULSWLRQ > VWDWH GHVFULSWLRQ > VWDWH GHVFULSWLRQ > VWDWH GHVFULSWLRQ > VWDWH GHVFULSWLRQ > VWDWH GHVFULSWLRQ @ @ @ @ @ @ @ Mediatrix 4102...
  • Page 148 QH[W VWDWH. The next tone state to use when the time has elapsed. This value is not QH[W VWDWH present if the time is not present. Mediatrix 4102...
  • Page 149 RQ I continuous tone) Australia ring back tone (tone on 400 ms, off 200 ms, on 400 ms, RQ I RQ I and off 2000 ms and replay) Click Submit if you do not need to set other parameters. Mediatrix 4102...
  • Page 150 In the North America stutter dial tone, the pattern is repeated three times, thus: ORRS FRXQWHU The ORRS FRXQWHU VHFWLRQ category now looks as follows: ORRS FRXQWHU VHFWLRQ The general format of the pattern string now looks as follows: 3DWWHUQ > I > VWDWHV VHFWLRQ @ Mediatrix 4102...
  • Page 151 QH[W VWDWH @ The ORRS LQGLFDWRU parameter is not used in this state. The RQ VWDWH GHVFULSWLRQ parameter is now: RQ VWDWH GHVFULSWLRQ > @ > @ > @ > QH[W VWDWH @ The QH[W VWDWH parameter is defined as: Mediatrix 4102...
  • Page 152 It is the next tone state to use when the time has elapsed. In this case, the QH[W VWDWH parameter is the on state, which is designated as V . The RII VWDWH GHVFULSWLRQ parameter is now: RII VWDWH GHVFULSWLRQ > @ > @> Mediatrix 4102...
  • Page 153 RQ VWDWH GHVFULSWLRQ > @ > You can now complete the third VWDWH GHVFULSWLRQ parameter and the VWDWHV VHFWLRQ parameter: VWDWHV VHFWLRQ > @ > @ > @ > > > @ > @> > VWDWH GHVFULSWLRQ @ @ Mediatrix 4102...

  • Page 154: Message Waiting Indicator

    The caller can then leave a message. After the message is recorded, the server sends a message to the Mediatrix 4102 listing how many new and old messages are available. The Mediatrix 4102 alerts the user of the new message in two different ways: ...
  • Page 155 Refresh message waiting subscriptions. All enabled endpoints unsubscribe themselves from the service and re-subscribe by using the current provisioning. This parameter is set for all the lines of the Mediatrix 4102. You cannot have a different behaviour for each line.
  • Page 156 Miscellaneous MWI Notify Service The Mediatrix 4102 offers the possibility to extend some key features to remote extensions located in Branch or Home Offices across the SCN. This service is available only when using the IP Communication Server v3.1 product as a SIP Redirect server.
  • Page 157 For more information on how to configure the Route Manager, please refer to the IP Communication Server Administration Manual or the IP Communication Server contextual help. Configuring the Mediatrix 4102 There is no special unit configuration required. The Mediatrix unit behaves as if in a standard call until it receives one of the following parameters in the Contact field: ...
  • Page 158 Chapter 6 - Web Interface – Telephony Miscellaneous Mediatrix 4102...

  • Page 159: Web Interface - Advanced

    H A P T E R Web Interface – Advanced The Advanced page allows you to configure various system and network parameters of the Mediatrix 4102. Quality of Service (QoS) QoS (Quality of Service) features enable network managers to decide on packet priority queuing. The Mediatrix 4102 supports the Differentiated Services (DS) field and 802.1q taggings.
  • Page 160 Enable this option only on compatible LAN with equipment supporting the VLAN tagging. Otherwise, the Mediatrix 4102 may be unreachable. In this case, use the Reset / Default button to access and disable VLAN tagging – in the recovery mode, tagging is not permitted.

  • Page 161: Diffserv Configuration

    When the filter for signalling protocol is disabled and the VLAN option is enabled, the Mediatrix 4102 uses the default user priority defined in the VLAN Default Priority field. Otherwise, the user priority set for signalling has precedence over the VLAN default user priority.

  • Page 162: Emergency Page

    RFC 3168 now defines the state in which to set the two least significant bits in the TOS byte. On the other hand, this RFC only applies to TCP transmissions and the bits are thus set to “0” in the Mediatrix 4102.

  • Page 163: Stun Configuration

    For a unit to work properly behind a firewall, it must keep a pinhole opened by sending keepalive packets through the firewall. The Mediatrix 4102 only sends keepalive packets to the last destination for a specific socket. When a unit is not configured with an outbound proxy, it can send, through its SIP socket, messages to various destinations, such as a SIP redirect server, another SIP unit, or a MWI server.

  • Page 164: Restrictions On The Media5 Stun Implementation

    NAT/firewall to be able to communicate with each other. STUN Client Configuration The STUN sub-page of the Advanced page allows you to configure the STUN client of the Mediatrix 4102. You can also set these parameters via SNMP, as described in “Chapter 20 - STUN Configuration”...

  • Page 165: Sip Custom Nat Traversal

    SIP Custom NAT Traversal The Mediatrix 4102 may be used in a private domain that is not directly connected to the IP network. For instance, this may be the case for ITSP (Internet Telephony Service Provider) clients that have a small private network.
  • Page 166 Chapter 7 - Web Interface – Advanced STUN Configuration Mediatrix 4102...

  • Page 167: Snmp Configuration

    SNMP Configuration...
  • Page 168 Page Left Intentionally Blank...

  • Page 169: Mib Structure And Snmp

    H A P T E R MIB Structure and SNMP This chapter describes how the Mediatrix 4102 uses the SNMP protocol for its configuration. SNMP Overview The Mediatrix 4102 uses the Simple Network Management Protocol (SNMP) for initial software configuration provisioning and subsequent software configuration.

  • Page 170: Snmp Versions

    Chapter 8 - MIB Structure and SNMP SNMP Overview SNMP Versions The Mediatrix 4102 supports three versions of SNMP: SNMPv1, SNMPv2c and SNMPv3. SNMP defines a few types of messages that are exchanged between the manager and agent. SNMPv1 Messages The following messages are specific to SNMPv1.

  • Page 171: Snmp Behaviour

    Manager SNMP Behaviour When using SNMP, the following rules apply:  Media5 recommends to copy the SNMPv3 user attributes only twice.  The administrator may edit the SNMPv3 user attributes: • Authentication algorithm (none, MD5, or SHA) •...

  • Page 172: Snmpv3 Special Behaviour

    SNMPv3 works properly. The Mediatrix 4102 thus refuses any SNMPv1 or SNMPv2 request it receives. You can disable / enable SNMPv1 / SNMPv2 by using the MIB Browser included in the Media5 Unit Manager Network (or any other MIB Browser) to modify the permissions related to SNMPv1 / SNMPv2 (security model).

  • Page 173: Snmp Configuration Via A Configuration File

    The vacmContextTable is not saved under any condition. SNMP Configuration via a Configuration File You can modify the SNMP configuration of the Mediatrix 4102 by inserting an SNMP Agent section in a configuration file and then transferring this configuration file into the unit. This configuration replaces any configuration set in a profile.
  • Page 174 9DOXH YDFP6HFXULW\0RGHO 9DOXH7\SH 8,17 9DOXH YDFP6HFXULW\1DPH 9DOXH7\SH 2&7(7B675,1* 9DOXH 1R$XWK1R3ULY8VHU YDFP*URXS1DPH 9DOXH7\SH 2&7(7B675,1* 9DOXH 1R$XWK1R3ULY*US YDFP6HFXULW\7R*URXS6WRUDJH7\SH 9DOXH7\SH 8,17 9DOXH YDFP6HFXULW\7R*URXS6WDWXV 9DOXH7\SH 8,17 9DOXH YDFP6HFXULW\7R*URXS7DEOH! YDFP$FFHVV7DEOH! YDFP$FFHVV&RQWH[W3UHIL[ 9DOXH7\SH 2&7(7B675,1* 9DOXH $XWK3ULY*US YDFP$FFHVV6HFXULW\0RGHO 9DOXH7\SH 8,17 9DOXH YDFP$FFHVV6HFXULW\/HYHO 9DOXH7\SH 8,17 9DOXH Mediatrix 4102...
  • Page 175 YDFP$FFHVV&RQWH[W0DWFK 9DOXH7\SH 8,17 9DOXH YDFP$FFHVV5HDG9LHZ1DPH 9DOXH7\SH 2&7(7B675,1* 9DOXH 3XEOLF9LHZ Enable/Disable SNMPv2 YDFP$FFHVV:ULWH9LHZ1DPH 9DOXH7\SH 2&7(7B675,1* 9DOXH 3XEOLF9LHZ Enable/Disable SNMPv2 YDFP$FFHVV1RWLI\9LHZ1DPH 9DOXH7\SH 2&7(7B675,1* 9DOXH 3ULYDWH9LHZ YDFP$FFHVV6WRUDJH7\SH 9DOXH7\SH 8,17 9DOXH YDFP$FFHVV6WDWXV 9DOXH7\SH 8,17 9DOXH YDFP$FFHVV7DEOH! YDFP0,%2EMHFWV! VQPS9DFP0,%! VQPS0RGXOHV! VQPS9 ! 6QPS$JHQW&RQILJ! Mediatrix 4102...
  • Page 176 Figure 74 on page 149 with the following icon: Enable/Disable SNMPv3 Changing SNMPv3 Credentials The SNMP Agent section provides default Media5 credentials for SNMPv3. You can change these credentials.  To change SNMPv3 credentials: Change the password in the following fields: •...

  • Page 177: Mib Structure

    Please note that Media5’ configuration tool – the Unit Manager Network – does not support MIBs that are located under the mediatrixExperimental branch of the MIB structure.

  • Page 178: Textual Conventions

    Event An event is sent to tell what type of data will be received, but not the data itself. This is used to “warn” in advance what is coming. Mediatrix 4102...

  • Page 179: Ip Addresses

     By using a SNMP browser to contact the MIBs of the Mediatrix 4102. It is assumed that you have basic knowledge of TCP/IP network administration. You can use the MIB browser built in the Media5’ Unit Manager Network. See “Unit Manager...

  • Page 180: Tables

    Voice FXS Voice FXS Voice FXS Voice FXS (24) Figure 75 shows a table built in the Unit Manager Network from the voiceifTable parameters. Figure 75: voiceIftable Example You can perform GET and SET operations on these parameters. Mediatrix 4102...

  • Page 181: Variables For Administrative Commands

    The usage state of the current interface. It indicates the running state of a voice component. Available states are idle, active, busy, and idle-unusable. ifAdminParentType The parents type of this interface. ifAdminParent The index of the parent of this interface. Mediatrix 4102...

  • Page 182: Snmp Access Limitation

    Chapter 8 - MIB Structure and SNMP SNMP Access Limitation SNMP Access Limitation The SNMP access to the Mediatrix 4102 can be limited to only one of its interface or all interfaces.  To limit the access to the SNMP interface: In the snmpAgentMIB, select the interface where the Mediatrix 4102 can be accessed via SNMP in the snmpAgentAccess variable.
  • Page 183 Sending Configuration Data to the Mediatrix 4102 Reference Manual (SIP Version) The Mediatrix 4102 has several configurable MIBs. All variables in these MIBs have been configured by default upon start up. However, if you need to modify some of these variables, use a MIB browser.
  • Page 184 Chapter 8 - MIB Structure and SNMP Sending Configuration Data to the Mediatrix 4102 Mediatrix 4102...

  • Page 185: Ip Address And Network Configuration

    The Mediatrix 4102 must be provisioned with various IP addresses and network parameters to be fully functional. This occurs each time the Mediatrix 4102 is started or when an IP address value is changed in the MIB. The Mediatrix 4102 can use static network parameters as well as parameters provided by a DHCP server, an access concentrator, or even a DNS.

  • Page 186: Provisioning Source

    Description Static You manually enter the value and it remains the same every time the Mediatrix 4102 restarts. If you do not specify a value, a default static value applies. DHCP The value is obtained at start-time by querying a DHCP server and using standard DHCP fields or options.

  • Page 187: Services

    Static Configuration Using static IP addresses allows you to bypass the DHCP server or still be able to use the Mediatrix 4102 if you are not running a DHCP server. In this case, having one or more configuration source variable set to DHCP slows down the restart process. If...

  • Page 188: Local Host

    The ipAddressConfigLocalHost group allows you to set the IP information the Mediatrix 4102 needs to work properly. This group is vital to the proper operation of the Mediatrix 4102. If a variable of this group is not properly set, the Mediatrix 4102 may not be able to restart and be contacted after it has restarted.
  • Page 189 Services Reference Manual (SIP Version) WAN Address Configuration Source The Wide Area Network (WAN) address is the public IP address attributed to the Mediatrix 4102. This address is used for incoming signalling, media and management traffic.  To set the WAN IP address configuration source: In the ipAddressConfig folder, locate the localHostWanAddressSelectConfigSource variable (under the ipAddressConfigLocalHost group).
  • Page 190 In the Unit Manager Network Administration Manual, refer to chapter Working with SNMP, section Setting Unit SNMP Preferences. The Mediatrix 4102 uses the SNMP protocol for software configuration. Set the following SNMP-related variable to properly use the protocol. Table 94: SNMP Configuration Variables...

  • Page 191: Static Dns

    Reference Manual (SIP Version) Static DNS By default, the Mediatrix 4102 and the networked PC (linked in a LAN with the unit) receive DNS IP addresses according to the configuration source you have defined in the localHostSelectConfigSource variable. In general, these addresses are provided by an ISP (Internet Service Provider) via PPPoE or DHCP.

  • Page 192: Image

    The ipAddressConfigImage group provides the configuration necessary to download applications into the Mediatrix 4102. This includes emergency downloads in case of repetitive failure to start the main application. In the Unit Manager Network Administration Manual, refer to chapter Administration Parameters, section Software and Emergency Download.

  • Page 193: Management Server

    Reference Manual (SIP Version) Management Server The ipAddressConfigMs group provides the configuration necessary for contacting a SNMP management server such as the Media5 Unit Manager Network. In the Unit Manager Network Administration Manual, refer to chapter Administration Parameters, section Unit Manager Server.

  • Page 194: Configuration File Fetching

    StaticHost configFileFetching Static Port Restart the Mediatrix 4102 so that the changes may take effect. Syslog The ipAddressConfigSyslog group provides the configuration necessary for contacting a Syslog server. In the Unit Manager Network Administration Manual, refer to chapter Administration Parameters, section Syslog Daemon.

  • Page 195: Sip Servers

    If not specified (0), use option 43, sub-option 203, bytes 0-3. sipRegistrarPort Use option specified in variable sipRegistrarDhcpSiteSpecificCode, bytes 4-5. If not specified (0), use option 43, sub-option 203, bytes 4-5. If bytes 4-5 are not present, use the default static value. Mediatrix 4102...

  • Page 196: Sntp

    DHCP server already has options that can be set to provide time server addresses, and the order in which clients use them to attempt to discover servers. The Mediatrix 4102 uses Option 42 to specify the IP address corresponding to the server that provides NTP/ SNTP (RFC 1769).

  • Page 197: Lan Connector Static Ip Address

    Reference Manual (SIP Version) LAN Connector Static IP Address You can use the LAN connector of the Mediatrix 4102 with the network card of a computer. You could then use this computer to directly access the unit via its LAN interface.

  • Page 198: Dhcp Configuration

    Many network switches use the Spanning Tree Protocol (STP) to manage Ethernet ports activity. If the Mediatrix 4102 is connected to such a switch, the switch may shut down the matching Ethernet port for at least one minute. This shutdown on the switch side can prevent proper communication. It may thus take up to three minutes before the unit receives an answer to its request for DHCP options.

  • Page 199: Changing The Size Of Dhcp Requests

    “Special Vocal Features” on page 18 for more details. Media5 recommends to reserve an IP address with an infinite lease for each Mediatrix 4102 on the network. Connection to the DHCP Behaviour When the Mediatrix 4102 restarts, it requests a DHCP offer to get its IP addresses and network information.

  • Page 200: Network Configuration

    Chapter 9 - IP Address and Network Configuration Vendor and Site Specific DHCP Options The Mediatrix 4102 stops broadcasting as soon as it receives at least one reply. If the offer is valid, the Mediatrix 4102 takes it and continues its initialization procedure.

  • Page 201: Site Specific Options

    Vendor Class ID When using the vendor specific option, first define a Vendor Class ID for the Mediatrix 4102 (not supported in Windows NT servers). A Vendor Class ID can be used by DHCP clients to identify their vendor type and configuration.

  • Page 202: Option Codes

    Any valid IP address 192.168.0.2 (hex. 0xC0.0xA8.0x0.0x2) Port 1 - 32,768 Not present in the format with dimension (hex. 0xA2) When entering IP addresses in the DHCP server, there is a difference between the vendor specific option and the site specific option. Mediatrix 4102...

  • Page 203: Entering Fqdns

    Entering FQDNs The FQDN address layout is a Media5 proprietary extension to the IP address layout. This format allows the configuration of an IP address in binary format (with or without port) or a FQDN in string format (with or without port) in the same option.
  • Page 204 RSWLRQ P[ VLS SUHVHQFH SUR[\ VWU Site specific code definition RSWLRQ P[ V\VORJ LS FRGH LS DGGUHVV RSWLRQ P[ V\VORJ VWU FRGH VWULQJ RSWLRQ P[ SULPDU\ LPDJH LS FRGH LS DGGUHVV Mediatrix 4102...

  • Page 205: Settings Example

    200 (management server) size of 4 bytes 0xA0x30x20xC9 IP address 10.3.2.201  Option 250 (site specific option) contains the hexadecimal sequence 0xA0x30x20xC80x400. Table 110: Hexadecimal Sequence - Option 250 Hexadecimal Part Corresponding Information 0xA0x30x20xC8 IP address 10.3.2.200 0x400 port 1024 Mediatrix 4102...

  • Page 206: Error Handling

    This assumes that the Mediatrix 4102 is set to get its IP information via a DHCP server. If the Mediatrix 4102 is configured to request some DHCP options but does not require an IP address from the server, the amount of time it will wait for an answer before proceeding further is configurable as defined in “Appendix - DHCP Options Waiting Time”...

  • Page 207: Ethernet Connection Speed

    This protocol can only detect the connection speed; the duplex mode cannot be detected. In this case, the connection may not be established. The Mediatrix 4102 has the possibility to force the desired Ethernet link speed and duplex mode by disabling the auto-negotiation and selecting the proper setting (sysConfigNetworkEthernetSpeed or sysConfigComputerEthernetSpeed variable).
  • Page 208 Chapter 9 - IP Address and Network Configuration Ethernet Connection Speed Mediatrix 4102...

  • Page 209: Sip Servers

    SIP Configuration Window. Configuration Source The Mediatrix 4102 must know the IP address and port number of the Registrar server. You can assign these information to the Mediatrix 4102 through a DHCP server or manually enter them yourself with the static variables.
  • Page 210 To use static information: In the ipAddressConfig folder, locate the sipServerSelectConfigSource variable (under the ipAddressConfigSipServer group). This variable defines whether or not the Mediatrix 4102 must get its registrar server configuration through a DHCP server. Set the sipServerSelectConfigSource variable to static.

  • Page 211: Proxy Server

    SIP Configuration Window. Configuration Source The Mediatrix 4102 must know the IP address and port number of the proxy server. You can assign these information to the Mediatrix 4102 through a DHCP server or manually enter them yourself with the static variables.
  • Page 212 To use static information: In the ipAddressConfig folder, locate the sipServerSelectConfigSource variable (under the ipAddressConfigSipServer group). This variable defines whether or not the Mediatrix 4102 must get its proxy server configuration through a DHCP server. Set the sipServerSelectConfigSource variable to static.

  • Page 213: Outbound Proxy Server

    0.0.0.0. Configuration Source The Mediatrix 4102 must know the IP address and port number of the outbound proxy. You can assign these information to the Mediatrix 4102 through a DHCP server or manually enter them yourself with the static variables.
  • Page 214 To use static information: In the ipAddressConfig folder, locate the sipServerSelectConfigSource variable (under the ipAddressConfigSipServer group). This variable defines whether or not the Mediatrix 4102 must ask for its outbound proxy settings through a DHCP server. Set the sipServerSelectConfigSource variable to static.

  • Page 215: Loose Router Configuration

    (section 6) for processing of the Route header field. These procedures separate the destination of the request (present in the Request-URI) from the set of proxies that need to be visited along the way (present in the Route header field). A proxy compliant to these mechanisms is also known as a loose router. Mediatrix 4102...

  • Page 216: Presence Compositor Server

    MIB is 0.0.0.0. Configuration Source The Mediatrix 4102 must know the IP address and port number of the Presence Compositor server. You can assign these information to the Mediatrix 4102 through a DHCP server or manually enter them yourself with the static variables.
  • Page 217 To use static information: In the ipAddressConfig folder, locate the sipServerSelectConfigSource variable (under the ipAddressConfigSipServer group). This variable defines whether or not the Mediatrix 4102 must get its Presence Compositor server configuration through a DHCP server. Set the sipServerSelectConfigSource variable to static.
  • Page 218 Chapter 10 - SIP Servers Presence Compositor Server Mediatrix 4102...

  • Page 219: Chapter 11 Dns Srv Configuration

    H A P T E R DNS SRV Configuration This chapter describes the configuration required for the Mediatrix 4102 to work with a DNS SRV. What is a DNS SRV? Standards Supported • RFC 2782 – A DNS RR for specifying the location of services (DNS SRV) •...

  • Page 220: Dns Srv Call Flow

    To enable DNS SRV: In the ipAddressConfig folder, locate the sipServerSelectConfigSource variable (under the ipAddressConfigSipServer group). This variable defines whether the Mediatrix 4102 must get its proxy server configuration through a DHCP server or not. Set the sipServerSelectConfigSource variable to static.

  • Page 221: Dns Srv Record Lock

    DNS SRV Record Lock You can configure the Mediatrix 4102 to always use the same DNS SRV record for a SIP call ID. As a result, a call or registration always uses the same destination until the destination is unreachable or the unit receives a different DNS SRV result.
  • Page 222 Chapter 11 - DNS SRV Configuration DNS SRV-Oriented Settings Mediatrix 4102...

  • Page 223: Country-Specific Configuration

    The displayed caller ID for all countries may be up to 20 digits for numbers and 50 digits for names. DTMF Signalling The data transmission using DTMF signalling is performed during or before ringing depending on the country settings or line configuration. The Mediatrix 4102 provides the calling line identity according to the following standards: ...

  • Page 224: Adsi

    Currently, very few ADSI-capable devices support these additional information. Setting the Location (Country) It is very important to set variables according to the country in which the Mediatrix 4102 is used because a number of parameter values are set according to this choice. These parameters are: ...

  • Page 225: Caller Id Selection

    To set a country location: In the telephonyMIB, locate the telephonyCountrySelection variable. This variable indicates the current country used by the Mediatrix 4102. It can also be used to select a caller ID standard in countries that support more than one caller ID standard.

  • Page 226: Custom Tone Configuration

    RQ VWDWH GHVFULSWLRQ IUHTXHQF\ VHOHFWLRQ > WLPH@ > ORRS LQGLFDWRU @ > QH[W VWDWH RII VWDWH GHVFULSWLRQ > WLPH @> ORRS LQGLFDWRU @> QH[W VWDWH@ IUHTXHQF\ VHOHFWLRQ > @ > @ > @ > WLPH ',*,7 ORRS LQGLFDWRU QH[W VWDWH Mediatrix 4102...

  • Page 227: Customizing The Tones

    Enter the override pattern in the corresponding countryCustomizationToneTone variable. You must follow the syntax as described in “Pattern Definition” on page 202. “Custom Tone Example” on page 204 for a detailed example on how to create a proper pattern. Mediatrix 4102...

  • Page 228: Custom Tone Example

    IUHTXHQFLHV VHFWLRQ The general format of the pattern string now looks as follows: 3DWWHUQ > I > ORRS FRXQWHU VHFWLRQ @ VWDWHV VHFWLRQ @ Set the ORRS FRXQWHU VHFWLRQ category, which is defined as: ORRS FRXQWHU VHFWLRQ ORRS FRXQWHU Mediatrix 4102...
  • Page 229 You can use from one to four frequencies. The North America stutter dial tone has two frequencies, thus: IUHTXHQF\ VHOHFWLRQ > @ > The RQ VWDWH GHVFULSWLRQ parameter is now: RQ VWDWH GHVFULSWLRQ > @ > @ @ > WLPH@ > ORRS LQGLFDWRU @ > QH[W VWDWH @ Mediatrix 4102...
  • Page 230 The ORRS LQGLFDWRU parameter is defined as: ORRS LQGLFDWRU It is used to stop looping between states. It indicates that the loop stops after three times. Once the loop is completed, the pattern goes to the next state (which is state 3). Mediatrix 4102...
  • Page 231 VWDWH @ The ORRS LQGLFDWRU parameter is used to stop looping between states. Since the third state is a continuous tone and does not use loops, this parameter is not required. The RQ VWDWH GHVFULSWLRQ parameter is now: Mediatrix 4102...
  • Page 232 If you remove all the brackets and quotation marks, which are not to be included, the pattern is: 3DWWHUQ RQ I RQ I Ther pattern could also be defined as follows: 3DWWHUQ RQ I RQ I RQ I RQ I Mediatrix 4102...

  • Page 233: Transparent Address Sharing

    The device on the LAN (e.g., the PC) gets assigned the same public IPv4 address as the Mediatrix 4102. The subnet mask given is the same as the one assigned by the ISP, or if it is not available (such as for a PPPoE connection), it uses the predefined subnet classes.

  • Page 234: Router Mode

    WAN, except for packets sent explicitly to the private address assigned to the Mediatrix 4102. The Mediatrix 4102 itself can initiate a communication with the device on the LAN, by using its private IPv4 address as the source address.

  • Page 235: Cable Vs Dsl Modem

    What is Transparent Address Sharing? Reference Manual (SIP Version) Cable vs DSL Modem Most of the Mediatrix 4102 settings are the same no matter what the modem you are using. However, there are a few differences. Table 127: Cable vs DSL Modem...

  • Page 236: Pppoe Service

    RFC 1877 – PPP IPCP Extentions for Name Server Address – with the exception of sections 1.2 and 1.4 The Mediatrix 4102 uses the PPPoE protocol to interact with a DSL broadband modem. It can discover a PPP access concentrator (AC) and establish a PPP session with it.

  • Page 237: Setting A User Name And Password

    Setting a User Name and Password When connecting to an access concentrator, it usually requests that the Mediatrix 4102 identifies itself with a specific user name and password, also called ID and secret pair. This information is set in the standard PPP- SEC-MIB as described in RFC 1472.

  • Page 238: Wan Information Configuration Source

    WAN Information Configuration Source WAN Information Configuration Source The WAN address is the public IP address attributed to the Mediatrix 4102. This address is used for incoming signalling, media and management traffic. You can assign this information to the Mediatrix 4102 through an access concentrator (DSL modem) or DHCP server (cable modem).

  • Page 239: Configuring Tas

    When the TAS service is enabled, it adds a network interface to the Mediatrix 4102. This means that two IP addresses may be attributed to the unit – the LAN and WAN connectors of the Mediatrix 4102 each have an IP address.

  • Page 240: Qos Differentiated Services Fields

    QoS Differentiated Services Fields If you want to differentiate the packets sent by the PC from the packets sent by the Mediatrix 4102, you must substitute a configured value for the QoS Differentiated Services fields of the packets sent from the PC (routed from the LAN to the WAN interface).

  • Page 241: Mac Address Spoofing

    If the MAC address does not match its database, it refuses the connection. Consider the typical scenario in which a user of a Mediatrix 4102 is already subscribed to an ISP for a WAN access (i.e., the Internet). If the ISP monitors the MAC address, the user will not be able to connect to the WAN when using the Mediatrix 4102 in front of the usual device.

  • Page 242: Wan Upstream Bandwidth Control

    “Special Vocal Features” on page 18 for more details. If you are using a router that is connected to the LAN connector of the Mediatrix 4102, you must disable the router’s MAC address spoofing feature so that the Mediatrix 4102 properly spoofs the MAC address of the PC connected to the router.

  • Page 243: Enabling Tas

    Enable the WAN upstream bandwidth control by setting the ipRoutingBandwidthControlEnable variable to enable. The Mediatrix 4102 will limit the outgoing throughput on the WAN interface. The unit must be in router mode to properly use the bandwidth control. See “Router Mode” on page 210 for more details.

  • Page 244: Ports Settings

    Chapter 13 - Transparent Address Sharing Ports Settings Ports Settings The Mediatrix 4102 allows you to define how to dynamically allocate the ports it uses. This allows for better NAT and firewall traversal capabilities. UDP and TCP Ports When needed, the TCP/IP implementation of the Mediatrix 4102 randomly selects a dynamic port amongst the free ports of the range.

  • Page 245: Rtp/Rtcp Base Port Range

    Restarting the Mediatrix 4102 Reference Manual (SIP Version) RTP/RTCP Base Port Range The RTP/RTCP ports are allocated starting from the base port. The Mediatrix 4102 may use two or four RTP/ RTCP ports for each FXS interface:  It uses two ports in case of a standard call.

  • Page 246: Dhcp Server

    “Supported DHCP Options” on page 222, all other parameter requests (as part of option 55) are ignored. Supported DHCP Options The DHCP server embedded in the Mediatrix 4102 supports the following options. Table 129: Supported DHCP Option Code Description Network Mask When the router state is public, returns a subnet mask that depends on the class of the WAN address.

  • Page 247: Dsl Modem Specific Information

    224. Network-Layer Protocol Phase The Mediatrix 4102 negotiates an IP address. The requested IP address is the one from the last successful PPPoE connection. If the Mediatrix 4102 never connected by using PPPoE (or after a factory reset), it does not request any specific IP address.

  • Page 248: Error Handling

    A network connection may abruptly shutdown for many reasons. One of the most common reasons is the maintenance of the network and its environment. When the Mediatrix 4102 detects it has lost the PPP connection, it tries to re-establish the connection as in “Establishing a Connection” on page 223.

  • Page 249: Using The Mediatrix 4102 With A Low Bandwidth Connection

    Using the Mediatrix 4102 with a Low Bandwidth Connection You can use the Mediatrix 4102 with a low bandwidth connection without any visible performance issues. This is true for both DHCP and PPPoE connections, with either a DSL or cable modem. However, you must configure the Mediatrix 4102 accordingly.

  • Page 250: Configuration For A Low Bandwidth Connection

    LAN port and routed to the WAN port. You cannot change this priority level. The 8 other queues are used for the traffic the Mediatrix 4102 sends. By default, the lowest priority queue (of these 8 queues) is used for all traffic, and the other 7 are unused.

  • Page 251: Configuration File Download

    Mediatrix 4102. The advantage of having the Mediatrix 4102 as the session initiator is to allow NAT traversal. You can also manually upload a configuration file to the Mediatrix 4102 by using the End User web interface. “Configuration File Upload Page” on page 41 for more details.

  • Page 252: Configuring The Https Server

    Certificates The Mediatrix 4102 contains embedded security certificates formatted as per ITU x.509 and RFC 3280. The certificates are factory-installed. The name of X.509 certificates currently installed in the Mediatrix 4102 are listed in the securityCertificatesMIB under the certificateName variable (under the certificateTable group). You must have at least one matching certificate on your HTTPS server.

  • Page 253: Configuration File Server Settings

     checking the server certificates validity (dates) The Mediatrix 4102 then checks the server’s identity by validating the host name used to contact it against the information found in the server’s certificate, as described in RFC 2818, section 3.1. If any of the above does not succeed, the Mediatrix 4102 refuses the secure connection. To help detect such errors, you can increase the syslog messages level.

  • Page 254: Setting Up The Configuration File Download

     To use static information: In the ipAddressConfig folder, locate the configFileFetchingSelectConfigSource variable. This variable defines whether the Mediatrix 4102 must ask for its configuration file server settings through a DHCP server or not. Set the configFileFetchingSelectConfigSource variable to static.
  • Page 255 • Cut and paste the path and/or name of the directory that contains the extracted files into the configuration file path of the Mediatrix 4102 (you may have to convert “\” into “/ ”) to eliminate typographical errors. Note that you can define the C:/Root/Download part as you want. The file names may also differ from the example shown above.

  • Page 256: Configuration Update Status

    If valid configuration files are successfully downloaded, then the Mediatrix 4102 automatically restarts to apply all the new settings. If the Mediatrix 4102 does not restart, this could mean the download failed or that the configuration in the file is the same as the configuration in the unit.

  • Page 257: Configuration Files Encryption

    Configuration Files Encryption You can secure the exchange of configuration files between the server and the Mediatrix 4102. A privacy key allows the unit to decrypt a previously encrypted configuration file. This applies to files downloaded via TFTP, HTTPS, or HTTP, but NOT on updates performed from the web interface.

  • Page 258: Configuration Download Via Tftp

    Set the configFilePrivacyEnable variable to enable. The Mediatrix 4102 will be able to decrypt the next encrypted generic or specific configuration file. If this variable is set to disable, the configuration file is not decrypted by the unit and the configuration update fails.

  • Page 259: Configuration Download Via Http/Https

    The password in the configFileTransferPassword variable. In the groupAdminMIB, set the groupSetAdmin variable to ForceLock. All activities in progress on the Mediatrix 4102 are terminated immediately and the unit enters the maintenance mode (the value of the groupAdminState variable is “locked”). The configuration file download may take place.

  • Page 260: Automatic Configuration Update

    %%: A '%' sign. Restart the Mediatrix 4102 so that the changes may take effect. Automatic Configuration Update You can configure the Mediatrix 4102 to automatically update its configuration. This update can be done:  Every time the Mediatrix 4102 restarts.
  • Page 261 Configuration File Download Server Reference Manual (SIP Version) Automatic Update at a Specific Time Interval You can configure the Mediatrix 4102 to download new configuration files at a specific day and/or time.  To set the automatic update at a specific time interval: Set the configuration file server host and port as defined in “Configuration File Server Settings”...

  • Page 262: Error Handling

    The unit configuration is only updated if at least one parameter value defined in the downloaded configuration files is different from the actual unit configuration. If one of the telephones/faxes is off-hook, the Mediatrix 4102 will perform the update 5 minutes after both ports are detected on-hook.
  • Page 263 Send a syslog warning message including the violation) from the TFTP server. file name and location with the TFTP server address: 7KH FRQILJXUDWLRQ ILOH ¥;;;µ ZDV QRW IHWFKHG 7KHUH ZDV D 7)73 DFFHVV YLRODWLRQ ZLWK VHUYHU ¥;;;µ Set sysAdminDownloadConfigFileStatus to fail. Mediatrix 4102...
  • Page 264 The HTTP server closed the Send a syslog warning message including the peer session. file location/name with the HTTP server address: 7KH FRQILJXUDWLRQ ILOH ¥;;;µ +773 WUDQVIHU VHVVLRQ ZDV FORVHG E\ SHHU KRVW ¥;;;µ Set sysAdminDownloadConfigFileStatus to fail. Mediatrix 4102...

  • Page 265: Management Server

    Set sysAdminDownloadConfigFileStatus to fail. Management Server You can set the Mediatrix 4102 so that it asks the management server to send it a configuration file. Note: Downloading a configuration file from the management server can only be performed through the TFTP protocol.

  • Page 266: Error Handling

    ASCII codes 10 invalid character (ASCII code): (LF), 13(CR), and 32 to 126. 7KH FRQILJXUDWLRQ ILOH ¥;;;µ SXVKHG WR WKH XQLW E\ WKH 7)73 FOLHQW ¥;;;µ KDV DQ LQYDOLG FKDUDFWHU ¥$6&,, FRGH ;;;µ No recorded settings applied. Mediatrix 4102...

  • Page 267: Syslog Messages

    A SNMP trap could not be sent to the 7KH QRWLILFDWLRQ ¥;;;µ FRXOG QRW EH VHQW WR PV+RVW ¥;;;µ DQG management server. The syslog warning PV7UDS3RUW ;;; message includes the SNMP trap number, the management server address and port. Mediatrix 4102...

  • Page 268: Configuration File Example

    2EMHFW 3UHIL[ 6XIIL[ 9DOXH 2EMHFW 3UHIL[ 6XIIL[ 9DOXH 2EMHFW 3UHIL[ 6XIIL[ 9DOXH 2EMHFW 3UHIL[ 6XIIL[ 9DOXH 2EMHFW 3UHIL[ 6XIIL[ 9DOXH 2EMHFW 3UHIL[ 6XIIL[ 9DOXH &RQILJ)LOH [PO 2EMHFW 3UHIL[ 6XIIL[ 9DOXH 2EMHFW 3UHIL[ 6XIIL[ 9DOXH 2EMHFW 3UHIL[ 6XIIL[ 9DOXH 0;B&RQILJB)LOH! Mediatrix 4102...

  • Page 269: Supported Characters

    IXOO VWRS REOLTXH VWURNH ]HUR < FRORQ VHPLFRORQ > RSHQ VTXDUH EUDFNHW RSHQ FXUO\ EUDFNHW OHVV WKDQ EDFNVODVK YHUWLFDO EDU HTXDOV FORVH VTXDUH EUDFNHW FORVH FXUO\ EUDFNHW WLOGH All other ASCII codes will result in an invalid configuration file. Mediatrix 4102...
  • Page 270 Chapter 14 - Configuration File Download Configuration File Example Mediatrix 4102...

  • Page 271: Software Download

    If you are to perform a software download by using the HTTP protocol, you must install a HTTP server running on the PC designated as the server host. This PC must not have a firewall running. Media5 also recommends to place the PC and the Mediatrix 4102 in the same subnet.

  • Page 272: Configuring The Https Server

    Certificates The Mediatrix 4102 contains embedded security certificates formatted as per ITU x.509 and RFC 3280. The certificates are factory-installed. The name of X.509 certificates currently installed in the Mediatrix 4102 are listed in the securityCertificatesMIB under the certificateName variable (under the certificateTable group). You must have at least one matching certificate on your HTTPS server.

  • Page 273: Software Servers Configuration

     checking the server certificates validity (dates) The Mediatrix 4102 then checks the server’s identity by validating the host name used to contact it against the information found in the server’s certificate, as described in RFC 2818, section 3.1. If any of the above does not succeed, the Mediatrix 4102 refuses the secure connection. To help detect such errors, you can increase the syslog messages level.

  • Page 274: Static Configuration

     To use static information: In the ipAddressConfig folder, locate the imageSelectConfigSource variable. This variable defines whether the Mediatrix 4102 must ask for its Image server settings through a DHCP server or not. Set the imageSelectConfigSource variable to static. Set the following variables:...

  • Page 275: Download Procedure

    The Mediatrix 4102 first downloads a file called “setup.inf”. This file contains the list of all the other files to download, depending on the product. The “setup.inf” file and all the other files must be in the same directory.
  • Page 276 This is the location of the “setup.inf” file that contains the list of the files to download into the Mediatrix 4102. The “setup.inf” file and all the other files must be in the same directory. In other words, this is the path from the root TFTP/HTTP/HTTPS folder down to the files extracted from the zip file.

  • Page 277: Software Download Status

     Cut and paste the path and/or name of the directory that contains the extracted files into the image path of the Mediatrix 4102 (you may have to convert “\” into “/”) to eliminate typographical errors. Note that you can define the C:/Root/Download part as you want. The file names may also differ from the example shown above.
  • Page 278 ,PDJH WUDQVIHU $FFHVV WR ILOH [[[ RQ KRVW [[[ LV XQDXWKRUL]HG response #401. If the local syslog messages are enabled (see “Local Syslog” on page 382 for more details), you can view these messages on the web interface. Mediatrix 4102...

  • Page 279: Download Via Tftp

    Download Procedure Reference Manual (SIP Version) LED States When the Mediatrix 4102 initiates a software download, the LEDs located on the front panel indicate the status of the process. Table 152: LED States in Software Download Event LED State Image downloading and writing Power, LAN, In Use and Ready LEDs blink alternately at 1 Hz with 1/4 ON duty cycle.

  • Page 280: Download Via Http/Https

    The password in the imageTransferPassword variable. Set the groupSetAdmin variable (in the groupAdminMIB) to ForceLock. All activities in progress on the Mediatrix 4102 are terminated immediately and the unit enters the maintenance mode (the value of the groupAdminState variable is “locked”). The software upgrade may take place.

  • Page 281: Automatic Software Update

    %%: A '%' sign. Restart the Mediatrix 4102 so that the changes may take effect. Automatic Software Update You can configure the Mediatrix 4102 to automatically update its software version. This update can be done:  Every time the Mediatrix 4102 restarts.
  • Page 282 The automatic software update will be performed each time the Mediatrix 4102 restarts. Automatic Update at a Specific Time Interval You can configure the Mediatrix 4102 to download a software version at a specific day and/or time.  To set the automatic update at a specific time interval: If not already done, setup the Image server used to download the software (see “Before...
  • Page 283 '00:00:00 - 23:59:59' will always take place the next day. Set the imageAutoUpdateEnable variable to enable. If one of the telephones/faxes is off-hook, the Mediatrix 4102 will perform the download five minutes after both ports are detected on-hook. Mediatrix 4102...

  • Page 284: Spanning Tree Protocol (Stp)

    The secondary image server is up and running well. In this case, the Mediatrix 4102 tries to contact the primary image server. As it is not available, the Mediatrix 4102 retries for two minutes. It contacts the secondary server after that period and starts the software download.

  • Page 285: Using The Emergency Software

    However, if these addresses cannot be reached from the unit’s subnet, the default gateway must provide appropriate routing to them. If the software download also fails with the two default servers, the Mediatrix 4102 idles for one minute.
  • Page 286 Chapter 15 - Software Download Emergency Software Procedure Mediatrix 4102...

  • Page 287: Line Configuration

    Temporary Administrative State You can set the administrative state of a line that will be kept until the Mediatrix 4102 restarts. Once the unit restarts, it uses the permanent state defined for each line. See “Permanent Administrative State”...

  • Page 288: Permanent Administrative State

    Using the “flash” button that is present on many standard telephone handsets can also trigger a flash hook. The Mediatrix 4102 allows you to set the minimum and maximum time within which pressing and releasing the plunger is actually considered a flash hook.

  • Page 289: Source Line Selection

    You can map an FXS line to a specific FXO line of a gateway such as the Mediatrix 1204. In this case, a call made from this FXS line will always use the same FXO line. To achieve that, the Mediatrix 4102 and Mediatrix...

  • Page 290: Loop Current

    WHOHSKRQ\$WWULEXWHV$XWRPDWLF&DOO7DUJHW$GGUHVV With such a configuration, a call made from line #2 of a Mediatrix 4102 is processed on line #2 of the Mediatrix 1204. On the other hand, if a caller from the SCN calls line #3 of the Mediatrix 1204, the call is automatically redirected to line #3 of the Mediatrix 4102.

  • Page 291: Callee Hang-Up Supervision

    Enable the callee hang-up supervision feature by setting the fxsCalleeHangupSupervision variable to enable. When the user is the first to hang up on a received call, the Mediatrix 4102 waits for the amount of time set in the fxsCalleeHangupDelay variable before signalling the end of the call.

  • Page 292: Line Reversal

    They are used because of an inability by some customer's CPE to react to busy tone. When one of the options is activated, it replaces the default behaviour of the Mediatrix 4102, which is to briefly remove power from the line to signal that the remote party has hung up.

  • Page 293: Calling Number Transformation

    ® Technology---Portable Operating System Interface (POSIX A regular expression is a string used to find and replace strings in other large strings. The Mediatrix 4102 uses regular expressions to enter a value in the fxsCallingNumberCriteria variable, often by using wildcard characters.
  • Page 294 (defined by “\1” to “\9”) and matching is not case sensitive. “\0” represents the whole string. Lets say for instance you have the following string: The following describes how the groups are replaced: Table 160: Groups Replacement Example Replacement Result 9123456 123456 Mediatrix 4102...

  • Page 295: Voice Transmissions

    Codec Descriptions The two lines of the Mediatrix 4102 can simultaneously use the same codec (for instance, G.711 PCMA), or a mix of any of the supported codecs. Set and enable these codecs for each line. Table 161: Codecs Comparison...

  • Page 296: 726

    G.729 Annex A. A G.729 or G.729 Annex A frame contains 10 octets, while the G.729 Annex B comfort noise frame occupies 2 octets. The Mediatrix 4102 supports G.729A and G.729AB for encoding and G.729, G.729A and G.729AB for decoding.

  • Page 297: Preferred Codec

    • voiceIfCodecG72616kbpsPayloadType: The default value is 97. • voiceIfCodecG72624kbpsPayloadType: The default value is 98. • voiceIfCodecG72632kbpsPayloadType: The default value is 99. • voiceIfCodecG72640kbpsPayloadType: The default value is 100. Mediatrix 4102...

  • Page 298: Packetization Time

    276), you cannot configure a dynamic payload type to 111 because it is already used by the DTMF out-of-band using signalling protocol. Restart the Mediatrix 4102 so that the changes may take effect. Packetization Time The packetization time (also called packetization period or ptime) is the duration, in ms, of the voice packet.
  • Page 299 Longest packetization period allowed for the 10-100, with increments PTime G.726-40kbps codec. Authorized values go up of 10 to 100 ms, in discrete steps of 10 ms, and start at the one specified by the voiceIfCodecG72640kbpsMinPTime variable. Default Value: 100 Mediatrix 4102...

  • Page 300: Dtmf Transport Type

    DTMF sequence back by re-generating the true tones. Such a mechanism is known as out-of-band DTMF.The Mediatrix 4102 receives and sends out-of-band DTMFs as per ITU Q.24. DTMFs supported are 0-9, A-D, *, #.

  • Page 301: Dtmf Transport Using Sip Info

    When the feature is enabled:  The Mediatrix 4102 sends a separate SIP INFO method every time a digit is entered during the call.  The Mediatrix 4102 plays each DTMF sent in a separate message upon receiving a valid SIP INFO message.

  • Page 302: Dtmf Payload Type

    276), or the variable telephonyAttributesHookFlashProcessing to outOfBandUsingRtp (“Hook Flash Processing” on page 360), the Mediatrix 4102 will advertise the support for events 0-15; it will assume support for events 0-15 when support for RFC 2833 is received in an announcement. disable This creates a deliberate deviance to RFC 2833 as support of basic events is not automatic.

  • Page 303: Dtmf Transport Over The Sip Protocol

    Set an inter-digit dial delay in the analogScnGwInterDigitDial Delay variable. This is the delay, in milliseconds (ms), between two DTMFs when dialing the destination phone number. This is useful when the Mediatrix 4102 receives DTMFs out-of-band faster than it can signal them.

  • Page 304: Dtmf Detection

    Chapter 17 - Voice Transmissions DTMF Detection DTMF Detection The default DTMF detection parameters of the Mediatrix 4102 may sometimes not be enough to properly detect the DTMFs. This section describes how to set additional DTMF detection parameters. DTMF Frequencies The DTMF keypad is laid out in a 4x4 matrix, with each row representing a low frequency, and each column representing a high frequency.
  • Page 305 Reference Manual (SIP Version) To detect this DTMF, the DSP relies on several parameters. The following table lists the default values that the Mediatrix 4102 uses. You can override any one of these values. Table 172: DTMF Detection Default Parameters...

  • Page 306: Adaptative Jitter Buffer

    Mediatrix 4102 is connected suffers from a high level of congestion, the jitter buffer protection level should be higher. If the network to which the Mediatrix 4102 is connected suffers from a low level of congestion, the jitter buffer protection level should be lower.

  • Page 307: About Changing Jitter Buffer Values

    100 ms to 30 ms. Voice Activity Detection The Voice Activity Detection (VAD) defines how the Mediatrix 4102 sends information pertaining to silence. This allows the unit to detect when the user talks, thus avoiding to send silent RTP packets. This saves on network resources.

  • Page 308: G.729 Vad

    You can disable the echo cancellation feature of the Mediatrix 4102, which may be useful to ensure the success of some modem transmissions.

  • Page 309: Comfort Noise

    RFC 3389: Real-time Transport Protocol (RTP) Payload for Comfort Noise (CN) Comfort Noise (CN) defines how the Mediatrix 4102 processes silence periods information it receives. Note: Comfort noise only applies to the G.711 and G.726 codecs. G.729 CNG is not configurable because it is part of the codec.

  • Page 310: User Gain

    You can compensate with the user gain if there is no available configuration for the country in which the Mediatrix 4102 is located. Because the user gain is in dB, you can easily adjust the loss plan (e.g., if you need an additional 1 dB for analog to digital, simply put 1 for user gain input).

  • Page 311: Fax Transmission

    Upon fax termination, if the call is not BYE, the previous voice codec is recovered with another re- INVITE. All lines of the Mediatrix 4102 can simultaneously use the same codec (for instance, T.38), or a mix of any of the supported codecs. Set and enable these codecs for each line.

  • Page 312: Ced Fax Tone Detection

    This configuration has no effect if the dataIfCngToneDetectionEnable variable is set to enable. Analog CED Detection Behaviour You can define the behaviour of the Mediatrix 4102 upon reception of a CED fax tone from the analog port.  To define the analog CED detection behaviour: In the dataIfMIB, set the dataIfAnalogCedDetectionBehavior variable with the proper value.

  • Page 313: Clear Channel Fax

    Clear Channel Fax Reference Manual (SIP Version) Clear Channel Fax The Mediatrix 4102 can send faxes in clear channel. The following is a clear channel fax call flow: Figure 95: Clear Channel Fax Call Flow INVITE […] […] m=audio 5006 RTP/AVP 18 0 13...
  • Page 314 “Data Codec Selection Procedure” on page 291 for more details. Media5 suggests to use pcma if you are located in Europe and pcmu anywhere else. However, you should check first which codec is supported in your telephone network. Mediatrix 4102...

  • Page 315: Data Codec Selection Procedure

    Data Codec Selection Procedure The Mediatrix 4102 follows a procedure when selecting data codec. This procedure is the default behaviour of the Mediatrix 4102. Some interop variables may modify this procedure. Tones are detected on the analog ports only. Figure 96: Data Codec Selection Procedure...

  • Page 316: T.38 Fax

    The Mediatrix 4102 can send faxes in T.38 mode over UDP or TCP. T.38 is used for fax if both units are T.38 capable; otherwise, transmission in clear channel over G.711 as defined is used (if G.711 µ-law and/or G.711 A-law are enabled).

  • Page 317: T.38 No-Signal

    Restart the Mediatrix 4102 so that the changes may take effect. T.38 No-Signal You can set the Mediatrix 4102 to send no-signal packets during a T.38 fax transmission. The Mediatrix 4102 sends no-signal packets if no meaningful data have been sent for a user-specified period of time.

  • Page 318: Invite Rejected With 606

    Chapter 18 - Fax Transmission T.38 Fax T.38 INVITE Rejected with 606 You can define the behavior of the Mediatrix 4102 when receiving a 606 SIP error response to an INVITE for T.38 fax.  To define the behavior In the sipInteropMIB, set the sipInteropBehaviorOnT38InviteRejectedWith606 variable to the proper value.

  • Page 319: Sip Protocol Features

    A user agent is a logical entity that can act as both client and server for the duration of a dialog. Each line (also known as endpoint) of the Mediatrix 4102 is a user agent. You can set information for each user agent such as its telephone number and friendly name. This information is used to dynamically create the To, From and Contact headers used in the request the user agent sends.

  • Page 320: Home Domain Override

    User-Agent header could be something like the following: 8VHU $JHQW 6RIWSKRQH %HWD You can specify whether or not the Mediatrix 4102 sends this information when establishing a communication and customize the header value.  To enable sending the SIP User Agent header: In the sipInteropMIB, set the sipInteropSendUAHeaderEnable variable to enable.

  • Page 321: Session Timers

    • draft-ietf-sip-session-timer-04.txt (expired) You can select the version of the session timer draft that the Mediatrix 4102 uses. Session timer versions other than those provisioned may not work because of backward compatibility issues between the versions. This feature is currently located under the mediatrixExperimental branch of the MIB structure. See “MIB...

  • Page 322: Background Information

    You can also set these parameters via the web interface, as described in “SIP Authentication” on page Line-Specific Authentication You can define up to five user names and five passwords for each line of the Mediatrix 4102. A line can thus register with five different realms. Keep in mind that: ...

  • Page 323: Unit Authentication

    Unit Authentication You can define up to five user names and five passwords for the Mediatrix 4102. These user names and passwords apply to all lines of the unit. In the Unit Manager Network Administration Manual, refer to chapter Signalling Protocols Parameters, section SIP Authentication.

  • Page 324: Sip Trusted Sources

    SIP Trusted Sources You can configure the Mediatrix 4102 so that it only accepts SIP messages coming from one of six trusted IP addresses. All other SIP messages are ignored. This source address validation takes place at the IP level and does not depend on the SIP header or body.

  • Page 325: Mediatrix 4102 Configuration

    RFC 3261 – SIP: Session Initiation Protocol You can globally set the transport type for all the lines of the Mediatrix 4102 to either UDP (User Datagram Protocol) or TCP (Transmission Control Protocol). The Mediatrix 4102 will include its supported transports in its registrations.

  • Page 326: Transport Parameter

    UDP Source Port Behaviour You can configure if the Mediatrix 4102 always uses the same local port (the port on which it is listening for incoming packets) when sending SIP traffic over UDP. This is called symmetric UDP source port. Symmetric UDP ports are sometimes needed to traverse NAT/Firewall devices.

  • Page 327: Sip Penalty Box

    The Mediatrix 4102 skips over UDP and tries the next target, which is TCP. Again, TCP is still in the penalty box, but this time, it is the last target the Mediatrix 4102 can try, so penalty box or not, TCP is used all the same to try to contact endpoint “B”.

  • Page 328: Registration Parameters

    (43 seconds before the unit becomes unregistered). Note: Normally, the Mediatrix 4102 cannot make or receive calls until the REGISTER has completed successfully. Because the timeout for a SIP transaction in UDP is 32 seconds, it is possible to have an ongoing re-REGISTER transaction at the same moment that the registration itself expires.

  • Page 329: Registration Expiration

    See “Refreshing Registration” on page 304 for more details. The recommended value in RFC 3261 (section 10.2) is 3600 seconds. Restart the Mediatrix 4102 so that the change may take effect. Mediatrix 4102...

  • Page 330: Publication Parameters

    “expires” is a suggestion the entity makes. The “expires” parameter indicates how long, in seconds, the user agent would like the binding to be valid. You can configure the “expires” parameter the Mediatrix 4102 sends.  To configure the publications expiration: In the sipMIB, set the sipPublicationProposedExpirationValue variable with the suggested expiration delay, in seconds, of a publication in the PUBLISH request.

  • Page 331: Default Publication Expiration

    RFC 3515 - The Session Initiation Protocol (SIP) (Refer Method) You can select the version of the transfer draft that the Mediatrix 4102 uses. The provisioned version is used for initiating transfers and receiving them. Transfer versions other than those provisioned do not work.
  • Page 332 This allows you to control how the Mediatrix 4102 interoperates with other vendor’s products and older Mediatrix units.

  • Page 333: Transmission Timeout

    RFC 3261 – SIP: Session Initiation Protocol If a DNS SRV answer contains more than one entry, the Mediatrix 4102 will try these entries if the entry initially selected does not work. You can configure the maximum time, in seconds, to spend waiting for answers to messages, from a single source.

  • Page 334: Max-Forwards Header

    RFC 3261 – SIP: Session Initiation Protocol You can configure whether the Mediatrix 4102 inserts the Max-Forwards header into sent requests, as per RFC 3261. Max-Forwards serves to limit the number of hops a request can make on the way to its destination.
  • Page 335 RFC 3264 – An Offer/Answer Model with Session Description Protocol (SDP) The Mediatrix 4102 can provide the direction attribute and the meaning of the connection address “0.0.0.0” sent in the SDP when putting an endpoint on hold. This configuration has no effect if the sipInteropSdpDirectionAttributeEnable variable is set to Disable (see “Direction Attribute”...

  • Page 336: Allowing Multiple Active Media In Answer

    “Direction Attribute” on page 310 for more details). Allowing Multiple Active Media in Answer You can define the behaviour of the Mediatrix 4102 when answering a request offering more than one active media.  To allow multiple active media in answer: In the sipInteropMIB, set the sipInteropAllowMultipleActiveMediaInAnswer variable to the proper value.

  • Page 337: Local Ring Behaviour On Provisional Response

    Reference Manual (SIP Version) Local Ring Behaviour on Provisional Response You can set the Mediatrix 4102 so that it starts or not the local ring upon receiving a “18x Provisional” response without SDP. This setting does not affect the behaviour when the “18x Provisional” response contains SDP, which allows to establish an early media session before the call is answered.

  • Page 338: Branch Parameter Settings

    The branch ID is used to facilitate its use as a transaction ID. It must always begin with the characters “z9hG4bK”. If this is not the case, the Mediatrix 4102 uses the branching method as described in RFC 3261, section 17.2.3.

  • Page 339: Ringing Response Code

    URI-Parameters You can specify whether or not the Mediatrix 4102 copies the uri-parameters from the Request-URI header to the level of proxy authentication. Not copying the uri-parameters allows to reduce the SIP packet size but it does not follow the recommendations of RFC 3261.

  • Page 340: Outbound Proxy Usage

    SIP packet. International Code Mapping Some international calling parties have their caller ID prepended with the “+” character. You can instruct the Mediatrix 4102 to substitute this “+” character with a user-defined value.  To define an international code mapping: In the sipInteropMIB, set the sipInteropInternationalCodeMappingString variable with the character string that is substituted to the “+”...

  • Page 341: Addressing Failed Registration Attempts

    (“WAN Address Configuration Source” on page 165). localHostFqdn The domain of from:URI is built from the unit's FQDN taken from the localHostFqdn variable. If localHostFqdn is empty, the value of the localHostWanAddress variable is used instead. Mediatrix 4102...

  • Page 342: Network Asserted Caller Id

    The default behaviour when sending an initial offer that contains an RFC 2833 payload type is to keep using that payload type even if the response comes back with a different one. You can set the Mediatrix 4102 to rather use the payload type found in the answer.

  • Page 343: Controlling The Call Waiting Tone Via Sip Info

    The default behaviour when receiving an answer to an offer that contained an RFC 2833 payload type is to use that payload type symmetrically (to send and receive DTMF). You can set the Mediatrix 4102 to rather use the payload type that was placed in the initial offer to receive DTMF but still use the one in the response to send them.

  • Page 344: Ignore Username Parameter

    The default behaviour in the interpretation of the username parameter of an incoming request for the routing purpose is to compare the entire username. You can configure the Mediatrix 4102 so that it ignores the username parameter in the comparison.

  • Page 345: Offer/Answer Model

    RFC 3264 – An Offer/Answer Model with the Session Description Protocol (SDP) You can define whether or not the Mediatrix 4102 requires strict adherence to RFC 3264 from the peer when negotiating capabilities for the establishment of a media session.

  • Page 346: Allow Audio And Image Negotiation

    Offer/Answer model. Allow Audio and Image Negotiation You can define the behaviour of the Mediatrix 4102 when offering media or answering to a media offer with audio and image negotiation.

  • Page 347: Stun Configuration

    For a unit to work properly behind a firewall, it must keep a pinhole opened by sending keepalive packets through the firewall. The Mediatrix 4102 only sends keepalive packets to the last destination for a specific socket. When a unit is not configured with an outbound proxy, it can send, through its SIP socket, messages to various destinations, such as a SIP redirect server, another SIP unit, or a MWI server.

  • Page 348: Stun Client Configuration

    Chapter 20 - STUN Configuration STUN Client Configuration STUN Client Configuration The following describes how to configure the Mediatrix 4102 STUN client via SNMP. You can also use the web interface to configure the STUN parameters. See “STUN Page” on page 40 for more details.

  • Page 349: Chapter 21 Sntp Settings

    Enabling the SNTP Client Standards Supported RFC 1769 – Simple Network Time Protocol (SNTP) You must enable the SNTP client of the Mediatrix 4102 to properly connect to a a SNTP or NTP server.  To enable the SNTP feature: In the sntpMIB, set the sntpEnable variable to enable.

  • Page 350: Configuration Source

    Configuration Source Configuration Source The Mediatrix 4102 must know the IP address and port number of the SNTP server. You can assign these information to the Mediatrix 4102 through a DHCP server or manually enter them yourself with the static variables.

  • Page 351: Defining A Custom Time Zone

    Greenwich Mean Time (GMT) format (also known as Universal Time Coordinated - UTC), so it needs to convert this GMT time into the proper time zone. To do this, the Mediatrix 4102 offers time zone configuration with daylight saving settings.

  • Page 352: Example

    Eastern Time Canada & US) EST5EDT4,M3.2.0/02:00:00,M11.1.0/02:00:00 Atlantic Time (Canada) AST4ADT3,M3.2.0/02:00:00,M11.1.0/02:00:00 GMT Standard Time GMT0DMT-1,M3.5.0/01:00:00,M10.5.0/02:00:00 W. Europe Standard Time WEST-1DWEST-2,M3.5.0/02:00:00,M10.5.0/03:00:00 China Standard Time CST-8 Tokyo Standard Time TST-9 Central Australia Standard Time CAUST-9:30DCAUST-10:30,M10.5.0/02:00:00,M3.5.0/02:00:00 Australia Eastern Standard Time AUSEST-10AUSDST-11,M10.5.0/02:00:00,M3.5.0/02:00:00 UTC (Coordinated Universal Time) UTC0 Mediatrix 4102...

  • Page 353: Digit Maps

    Because the Mediatrix 4102 cannot predict how many digits it needs to accumulate before transmission, you could use the digit map, for instance, to determine exactly when there are enough digits entered from the user to place a call.

  • Page 354: Special Characters

    Special Characters The solution to this problem is to load the Mediatrix 4102 with a digit map that corresponds to the dial plan. A Mediatrix 4102 that detects digits or timers applies the current dial string to the digit map, attempting a match to each regular expression in the digit map in lexical order.

  • Page 355: Using The # And * Characters

    It indicates that if users have not dialed a digit for the time defined, it is likely that they have finished dialing and the Mediatrix 4102 can make the call. A digit map for this could be: >...

  • Page 356: Processing Digits When Pressed

    The variables related to the digit maps are located in tables. You can create/edit ten digit maps for each Mediatrix 4102. Before changing a parameter value, build its corresponding table with your MIB browser’s table functionality. Depending on the MIB browser you are using, the tables may not appear the same way.

  • Page 357: Refused Digit Maps

    Refused Digit Maps A refused digit map forbids your users to call specific numbers; for instance, you want to accept all 1-8xx numbers except 1-801. You can create/edit ten refused digit maps for each Mediatrix 4102.  To set up refused digit maps: In the digitMapMIB, define the digit map string that is considered invalid when dialed in the digitMapRefusedDigitMap variable.

  • Page 358: Digit Maps Timeouts

    This digit map rule checks for calls outside the country. Table 218: Digit Map Rules #1 Settings Variable Setting digitMapAllowedEnable Enable digitMapAllowedDigitMap (011x.#|001x.T) digitMapPrefixedDigitRemovalCount A valid telephone number must contain a country code, an area code, and a number – the “011” part is not required. Mediatrix 4102...
  • Page 359 ([235-9]xxxxxx|45[1-9]xxxx|4[0-469]xxxxx) digitMapPrependedString 1206 (country code and area code) A valid telephone number must contain a country code, an area code, and a number. The country code and area code are missing in this number and must be added. Mediatrix 4102...

  • Page 360: Digit Map Example 2 - Pbx Emulation

    (in North America). The two digits must be removed because they do not need to be expressed to the SIP Server. The SIP Server needs only to know the complete number of the called party (CC+AC+directory number). Mediatrix 4102...
  • Page 361 1819 (country code and area code) A valid telephone number must contain a country code, an area code, and a number. The country code and area code are missing in this number and must be added. Mediatrix 4102...
  • Page 362 Chapter 22 - Digit Maps Digit Map Examples Mediatrix 4102...

  • Page 363: Telephony Features

    H A P T E R Telephony Features This chapter explains how to set the telephony variables of the Mediatrix 4102 to define the way the unit handles calls. Making Calls Users with telephones or faxes connected to a Mediatrix 4102 dial as if they were on a standard telephony system.

  • Page 364: Emergency Call

    329). Dialing this digit map does not have any effect unless the service's status is “enabled”. The activating sequence is set for all the lines of the Mediatrix 4102. You cannot have different sequences for each line. Set the number to reach for an urgent call in the emergencyCallUrgentGatewayTargetAddress variable.

  • Page 365: Subscriber Services

    H A P T E R Subscriber Services The Mediatrix 4102 offers subscriber services users can directly access on their telephone. However, you must set these services before they can be used. Most of the variables related to the subscriber services are located in tables. These tables display the information for all lines.
  • Page 366 Call the first attendee. Flash hook to put the first attendee on hold. Call the second attendee. The context is now one call active and one call on hold. Flash hook then dial the digit 3 to start the conference call. Mediatrix 4102...

  • Page 367: Call Hold

    The following is the procedure to use this service on the user’s telephone.  To put the current call on hold: Perform a Flash-Hook by pressing the “Flash” button on your analog telephone. This puts the call on hold. You can resume the call in the same way. Mediatrix 4102...

  • Page 368: Second Call

    If you want to let the user start or stop the service with his or her handset, you must enter a sequence of digits in steps 3 and 4. The subscriberServicesCallForwardUnconditionalActivation variable is automatically updated to reflect the activation status according to the user’s setting. Mediatrix 4102...
  • Page 369 329). Dialing this digit map does not have any effect unless the service’s status is “enabled”. The activating sequence is set for all the lines of the Mediatrix 4102. You cannot have a different sequence for each line. Define the digits that users must dial to stop the service in the subscriberServicesCallForwardUnconditionalDisableDigitMap variable (under the subscriberServicesActivationDigitmaps group).

  • Page 370: On Busy

    329). Dialing this digit map does not have any effect unless the service’s status is “enabled”. The activating sequence is set for all the lines of the Mediatrix 4102. You cannot have a different sequence for each line. Mediatrix 4102...
  • Page 371 329). Dialing this digit map does not have any effect unless the service’s status is “enabled”. The deactivating sequence is set for all the lines of the Mediatrix 4102. You cannot have a different sequence for each line. Define the address to which forward incoming calls in the subscriberServicesCallForwardOnBusyForwardingAddress variable.

  • Page 372: On No Answer

    329). Dialing this digit map does not have any effect unless the service’s status is “enabled”. The activating sequence is set for all the lines of the Mediatrix 4102. You cannot have a different sequence for each line. Define the digits that users must dial to stop the service in the subscriberServicesCallForwardOnNoAnswerDisableDigitMap variable (under the subscriberServicesActivationDigitmaps group).
  • Page 373 Dial the sequence the system administrator has implemented to deactivate the call forward on no answer service. This sequence could be something like *75. Wait for three “beeps” followed by a silent pause. The call forward is cancelled. Hang up your telephone. Mediatrix 4102...

  • Page 374: Call Waiting

    329). Dialing this digit map does not have any effect unless the service’s status is “enabled”. The deactivating sequence is set for all the lines of the Mediatrix 4102. You cannot have a different sequence for each line. Define the digits that users must dial to enable the call waiting service permanently in the subscriberServicesCallWaitingPermanentDigitMapEnable variable.

  • Page 375: Using Call Waiting

    “Chapter 22 - Digit Maps” on page 329). The sequence is set for all the lines of the Mediatrix 4102. You cannot have a different sequence for each line. When dialing this digit map, this sets the subscriberServicesCallWaitingEnable variable for the line the user is currently using to disable.

  • Page 376: Permanently Removing The Call Waiting Tone

    Dial the sequence the system administrator has implemented to deactivate the call waiting tone service. This sequence could be something like *85. Wait for the transfer tone (three “beeps”) followed by the dial tone. The call waiting is cancelled. Hang up your telephone. Mediatrix 4102...

  • Page 377: Call Transfer

    You are back with the first call and the third party is released.  To transfer a call on hold with the flash hook and digit method: Perform a Flash-Hook by pressing the “Flash” button on your analog telephone. Dial the digit 4. Mediatrix 4102...

  • Page 378: Attended Transfer

    Flash-Hook. The busy tone or ring tone is cancelled and you are back with the first call.  To transfer a call on hold with the flash hook and digit method: Perform a Flash-Hook by pressing the “Flash” button on your analog telephone. Dial the digit 4. Mediatrix 4102...

  • Page 379: Conference Call

    If this is not the case, then part of the conversation may be lost, resulting in a choppy voice. For better results, Media5 recommends to set the packetization period of all participants of a 3-way conference to 30 milliseconds. See “Packetization Time”...

  • Page 380: Enabling The Conference Call Feature

    RFC 4579. The participants are connected to the conference server by sending the REFERs sequentially. The REFER is not sent to the second participant and the call stays in the same state if the first participant fails to complete the REFER. This is the default value. Mediatrix 4102...

  • Page 381: Managing A Conference Call

    “A” wants to add a fourth member to the conference: This is available only in the converenceServer conference type. “A” performs a Flash-Hook. This puts “B” and “C” on hold and the second line is automatically connected. “A” hears a dial tone. Mediatrix 4102...
  • Page 382 Chapter 24 - Subscriber Services Conference Call “A” dials “D’s” number. “A” and “D” are now connected. “A” performs another Flash-Hook. The call on hold (“B” and “C”) is reactivated. “A” is now conferencing with “B”, “C”, and “D”. Mediatrix 4102...

  • Page 383: Telephony Attributes

    This string is used literally, so cosmetic symbols (such as the dash in “555-xxxx”) should not be present. Because this variable is located in a table, you can define a different number for each line of the Mediatrix 4102. Enable the automatic call feature by setting the telephonyAttributesAutomaticCallEnable variable to enable.

  • Page 384: Call Direction Restriction

    The Mediatrix 4102 allows to make calls but cannot receive calls. ipToScnOnly The Mediatrix 4102 allows to receive calls but does not allow to make calls. Because this variable is located in a table, you can define a different call direction for each line of the Mediatrix 4102.

  • Page 385: Ip Address Call Service

    Dial the telephone number of the specific line you want to reach. For example, let’s say you want to reach the telephone connected to Line 2 of the Mediatrix 4102 with the IP address 192.168.0.23. The phone number assigned to Line 2 of this Mediatrix 4102 is 1234.

  • Page 386: Pin Dialing

    This feature could be used in the case where a user makes an automatic call to an IVR system, and after a pre-defined delay, the Mediatrix 4102 sends the DTMF tones (PIN) to indicate where the call is coming from.

  • Page 387: Remote Line Extension

    Description disable The Mediatrix 4102 picks up the SCN line and opens the audio channel with the peer. This way, the user of a dedicated FXS/FXO combinaison will feel “closer” to the SCN: as soon as the user takes the receiver off-hook, he/she interacts with the SCN because the actions are not relayed via IP to the FXO unit.

  • Page 388: Delayed Hot Line

    Enable the delayed hot line feature by setting the telephonyAttributesDelayedHotLineEnable variable to enable. When the feature is disabled, a user picking up the phone but not pressing any telephone keys hears the Receiver Off-Hook tone after the amount of time specified in the digitMapTimeoutFirstDigit variable. Mediatrix 4102...

  • Page 389: Call Rejection

    504: Server time-out 415: Unsupported media type 504: Version Not Supported 416: Unsupported URI Scheme 513: Message Too Large 420: Bad extension 600: Busy everywhere 421: Extension Required 603: Decline 423: Interval Too Brief 604: Does not exist anywhere Mediatrix 4102...
  • Page 390 Chapter 25 - Telephony Attributes Call Rejection Mediatrix 4102...

  • Page 391: Message Waiting Indicator

    The caller can then leave a message. After the message is recorded, the server sends a message to the Mediatrix 4102 listing how many new and old messages are available. The Mediatrix 4102 alerts the user of the new message in two different ways: ...
  • Page 392 329). Dialing this digit map does not have any effect unless the service's status is “enabled”. The activating sequence is set for all the lines of the Mediatrix 4102. You cannot have different sequences for each line. Set the destination to call to retrieve messages in the mwiConfigFetchAddress variable.

  • Page 393: Mwi Method #2

    This method does not require any special settings or configuration. MWI Notify Service The Mediatrix 4102 offers the possibility to extend some key features to remote extensions located in Branch or Home Offices across the SCN. This service is available only when using the IP Communication Server v3.1 product as a SIP Redirect server.

  • Page 394: Configuring The Ip Communication Server

    For more information on how to configure the Route Manager, please refer to the IP Communication Server Administration Manual or the IP Communication Server contextual help. Configuring the Mediatrix 4102 There is no special unit configuration required. The Mediatrix unit behaves as if in a standard call until it receives one of the following parameters in the Contact field: ...

  • Page 395: Management Server Configuration

    Using the Management Server You have the choice of setting up Mediatrix 4102 units directly with a SNMP browser or with the Management Server. If you want to use the Management Server to setup the units, you shall tell these units how to reach the Management Server.
  • Page 396  To use static information: In the ipAddressConfig folder, locate the msSelectConfig Source variable. This variable defines whether the Mediatrix 4102 shall get its Management Server configuration through a DHCP server or not. Set the msSelectConfigSource variable to static. Set the following variables:...

  • Page 397: Chapter 28 Quality Of Service (Qos)

    If you are using the Mediatrix 4102 in router mode, you may want to differentiate the packets sent by the PC from the packets sent by the Mediatrix 4102. In this case, you must use a substitution value, as described in “Configuring TAS”...

  • Page 398: Ieee 802.1Q

    RFC 3168 now defines the state in which to set the two least significant bits in the TOS byte. On the other hand, this RFC only applies to TCP transmissions and the bits are thus set to “0” in the Mediatrix 4102.

  • Page 399: Voice Qos Vs Rtcp Packets

    Set the value of this variable according to your needs. Table 238: Voice QoS Behavior Status Description enable The voice QoS configuration (qosVoiceDiffServ and qosVoiceIeee8021qUserPriority variables) is also applied to the RTCP packets. disable The RTCP packets are not tagged by the qosVoiceDiffServ and qosVoiceIeee8021qUserPriority variables. Mediatrix 4102...

  • Page 400: Vlan

    Tagging has precedence over VLAN Substitution. If VLAN Substitution has the same ID as VLAN Tagging, VLAN Substitution is not enabled and the Mediatrix 4102 behaves as such. You should change the ID of one of the features to enable VLAN Substitution. See “VLAN Substitution”...

  • Page 401: Vlan Substitution

    VLAN Reference Manual (SIP Version) VLAN Substitution The Mediatrix 4102 can tag the packets relayed from the LAN port to the WAN port with a VLAN ID different from the standard value defined in “VLAN” on page 376. Note: This feature only works when TAS is disabled. See “Chapter 13 - Transparent Address Sharing”...

  • Page 402: Vlan Id Filtering

    LAN and WAN interfaces with VLAN substitution is used to forward network traffic between the WAN and the LAN interfaces of the Mediatrix 4102. It allows devices on the LAN side to communicate with the WAN side. The LAN connector of the Mediatrix 4102 has an IP address and WAN connector could also have one. You can configure the IP address of the LAN connector statically.

  • Page 403: Syslog Daemon

    Syslog daemon address is provided by a DHCP server or specified by the administrator, no messages are sent. For instance, if you want to download a new software into the Mediatrix 4102, you can monitor each step of the software download phase. Furthermore, if the unit encounters an abnormal behaviour, you may see accurate messages that will help you troubleshoot the problem.

  • Page 404: Configuration Source

    Syslog Daemon Configuration Configuration Source The Mediatrix 4102 must know the IP address and port number of the Syslog server. You can assign these information to the Mediatrix 4102 through a DHCP server or manually enter them yourself with the static variables.

  • Page 405: Customizing Syslog Messages

    Syslog server static IP port number. Default Value: 514 Customizing Syslog Messages You can display additional information in the prefix of syslog messages the Mediatrix 4102 sends. This allows you to later filter the messages. The following is the additional information you can enable: ...

  • Page 406: Local Syslog

    Local Syslog Local Syslog The local syslog is an internal syslog server to the Mediatrix 4102. It keeps the last n syslog messages. These syslog messages are displayed in the System log page of the web interface (see “Chapter 2 - Web Interface –...

  • Page 407: Statistics

    H A P T E R Statistics The Mediatrix 4102 collects meaningful statistics that can be read via the RTP MIB. RTP Statistics RTP statistics are related to the transmission of information and include, but are not limited to: ...

  • Page 408: Statistics By Syslog

    In the sysAdminMIB, set the sysAdminCommand variable to resetStats. This resets all cumulated call statistics. Statistics by Syslog You can configure the Mediatrix 4102 to send the RTP and T.38 statistics by syslog message. You will thus be able to see them by using your syslog daemon. ...

  • Page 409: Example

    130. 50 total octets transmitted in the sixth 5-minutes period. The previous statistics are transferred to the corresponding cumulated statistics variable. The statistics for the second 5-minutes period are dropped, for a cumulated total octets transmitted of 200. Mediatrix 4102...
  • Page 410 Chapter 30 - Statistics RTP Statistics Mediatrix 4102...

  • Page 411: Maximum Transmission Unit (Mtu)

    The Mediatrix 4102 MTU is 1500 bytes, which is the Ethernet typical value. Possible Hardware Problem The implementation of the IEEE Standard 802.1q in the Mediatrix 4102 may have a minor problem because of hardware limitations. 802.1q increases the Ethernet frame header by 4 bytes, adding a Virtual LAN ID and a user_priority. This is useful to limit broadcasts that cross bridges, and it may also prioritize frames in the queuing algorithm of switches.
  • Page 412 MTU. Values smaller than 68 will result in the transport using an MTU of 68. To validate that the changes are correct, try to ping the Mediatrix 4102 with large packets once restarted: SLQJ This will cause IP fragmentation, the first fragment being as large as the interface allows it.

  • Page 413: Troubleshooting

    DHCP server cannot be reached, even if most other settings are set to “static”. This delay is caused by the Mediatrix 4102 that cannot function as configured if part of its configuration (the DHCP information) is unavailable.
  • Page 414 AUSE Protocol) protocol. : There are no solutions. OLUTION : When I install a Mediatrix 4102 in an enterprise network and there is a PC connected to the ESCRIPTION port, the PC will not receive the WINS Server.  : The embedded DHCP server of the Mediatrix 4102 does not support the WINS...
  • Page 415 YHUWLFDO EDU HTXDOV FORVH VTXDUH EUDFNHW FORVH FXUO\ EUDFNHW WLOGH : Media5 Technical Support personnel asked me to enable the PCM traces. How do I do it? ESCRIPTION  : PCM traces are an efficient tool to identify problems with: OSSIBLE AUSE •...

  • Page 416: Calling Issues

    OSSIBLE AUSE : Check that: OLUTION • The LAN cable is securely connected to the Mediatrix 4102 and to the network connector. • You did not connect a crossover network cable.  : Configurable parameters of the Mediatrix 4102 are not set properly.

  • Page 417: Fax Issues

    Mediatrix 4102. : Unable to establish a call from the Mediatrix 4102 to a user agent such as an IP phone, a ESCRIPTION gateway or another access device.
  • Page 418 When the unit detects a fax, it automatically switches to a negotiated clear channel codec such as PCMU (if there is no T.38 or if T.38 negotiation failed). Once the fax is terminated, the Mediatrix 4102 is not notified by the DSP. The unit thus stays in the clear channel codec and does not switch back to G.729.

  • Page 419: Tested Fax Models

    Reference Manual (SIP Version) Tested Fax Models The following table lists the fax models tested with the Mediatrix 4102 for the T.38 protocol. Each of these fax ® models has been emulated and tested with each other by using the FaxLab fax/telephony testing tool.

  • Page 420: Configuration Issues

    : If none of the xxxConfigSource variables (in the ipAddressStatus folder) are set to OSSIBLE AUSE dhcp, then the Mediatrix 4102 does not send a DHCP REQUEST message. This is the case if: • you set all xxxSelectConfigSource variables to something other than dhcp and you restart the Mediatrix 4102, or •...
  • Page 421 This delay is caused by the Mediatrix 4102 that cannot function as configured if part of its configuration (the DHCP information) is unavailable. Furthermore, there is an issue with switches that use the Spanning Tree Protocol.

  • Page 422: Snmp Management Software Issues

    Chapter 32 - Troubleshooting SNMP Management Software Issues : Media5 recommends to set up all information to use a valid static value, or have a DHCP OLUTION server answer the requests. See “Static Configuration” on page 163 for more details.
  • Page 423 : It may take time to fill completely a table: from 1 to 5 seconds. This is normal, because OSSIBLE AUSE the unit is an embedded device with limited processing power. : Is it possible for a hacker to change the content of SNMPv3 variables once the Mediatrix 4102 ESCRIPTION is in secure mode management? ...
  • Page 424 Chapter 32 - Troubleshooting SNMP Management Software Issues Mediatrix 4102...

  • Page 425: Appendices

    Appendices...
  • Page 426 Page Left Intentionally Blank...

  • Page 427: Standards Compliance And Safety Information

    EN61000-4-4 (1995), Burst Transients • EN61000-4-5 (1995), Surge • EN61000-4-6 (1996), Conducted RF • EN61000-4-11 (1995), Voltage Dips and Interruptions Note: The standards compliance of the Mediatrix 4102 are printed on a sticker located on the bottom of the unit. Mediatrix 4102...

  • Page 428: Disclaimers

    DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT (RTTE DIRECTIVE) is given. Any unauthorized modification of the product voids this declaration. For a copy of the original signed Declaration Of Conformity please contact Media5 at the above address. Mediatrix 4102...

  • Page 429: Rohs China

    Disclaimers Reference Manual (SIP Version) RoHS China Mediatrix 4102...

  • Page 430: Translated Warning Definition

    Appendix A - Standards Compliance and Safety Information Translated Warning Definition Translated Warning Definition The following information provides an explanation of the symbols which appear on the Mediatrix 4102 and in the documentation for the product. Warning: Means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, you must be aware of the hazards involved with electrical circuitry and familiar with standard practices for preventing accidents.

  • Page 431: Safety Warnings

    Exposed plant means where any portion of the circuit is subject to accidental contact with electric lighting or power conductors operating at a voltage exceeding 300V between conductors or is subject to lightning strikes. Mediatrix 4102...

  • Page 432: Lan Anf Fxs Ports Connectors Warning

    Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. • Do not use the telephone to report a gas leak in the vicinity of the leak. Mediatrix 4102...

  • Page 433: Standard Hardware Information

    Media5 sales representative to obtain the latest version of the technical specifications. Industry Standard Protocols The Mediatrix 4102 has been designed to support all major industry standards used today, as well as those that will eventually be implemented at a later date. Because of this specific design characteristic, the Mediatrix 4102 can be integrated with existing telephone, fax and data equipment such as PCs and routers.

  • Page 434: Hardware Features

    Seamless switch over period if the client UPS detects a power loss and activates within ms. Casing / Installation  Casing: Desktop (Plastic ABS UL94 ).  Installation: The Mediatrix 4102 is designed for the desktop or can be wall-mountable. Product Architecture Details  Supports two concurrent communications using any vocoders. ...

  • Page 435: Real Time Fax Router Technical Specifications

    15 to 32 mA factory set. Default 20 mA regulated. Ring Trip Detection Time 2 ring cycles max On Hook Voltage -48 VDC Frequency Response 200 Hz to 3400 Hz ±3 dB (Tx/Rx) Return Loss 500-3200 Hz: 30 dB Mediatrix 4102...

  • Page 436: Audio Specifications

    Within 1.5% of nominal values MTBF Value The estimated Mean Time Before Failure (MTBF) value of the Mediatrix 4102 is 750,000 hours at 25 degrees Celsius ambient temperature (excluding the power adaptor). It has been defined using RelCalc v5.0, Bellcore method (LimitedStress - Method I, Case 3).

  • Page 437: Power Consumption

    3.1 cm x 12.7 cm x 9.9 cm - 1.2 in. x 5 in. x 3.9 in. (approx.) Weight 170 g (0.37 lb) Warranty All Media5 products carry Media5's standard three-year hardware and software warranty. An extended warranty is available. Mediatrix 4102...
  • Page 438 Appendix B - Standard Hardware Information Warranty Mediatrix 4102...

  • Page 439: Cabling Considerations

    P P E N D I X Cabling Considerations This Appendix describes the pin-to-pin connections for cables used with the Mediatrix 4102. Warning: To reduce the risk of fire, use only No. 26 AWG or larger telecommunication line cord. RJ-45 Cable The RJ-45 connector is commonly used for network cabling and for telephony applications.

  • Page 440: Crossover Cable

    A crossover cable is sometimes called a null modem. The coloured wires at either end are put into different pin numbers, or crossed over. Figure 107: Crossover Connectivity 1- TX+ TX+ -1 2- TX- TX- -2 3- RC+ RC+ -3 6- RC- RC- -6 Mediatrix 4102...

  • Page 441: Rj-11 (Telephone) Cable

    The RJ-11 pair of wires is wired so that pins 3 and 4 are connected to the Ring and Tip, which meets the following requirements:  EIA/TIA-IS 968  CS-03 Issue 8, Part III requirements. Warning: The RJ-11 cable should comply with UL 1863 and CSA C22.2 No 233 standards. Mediatrix 4102...
  • Page 442 Appendix C - Cabling Considerations RJ-11 (Telephone) Cable Mediatrix 4102...

  • Page 443: Country-Specific Parameters

    Impedance is the apparent resistance, in an electric circuit, to the flow of an alternating current, analogous to the actual electrical resistance to a direct current, being the ratio of electromotive force to the current. When representing an impedance, the following applies:  Symbol “//” means parallel.  Symbol “+” means serial. Mediatrix 4102...

  • Page 444: Distinctive Ring

    Terminal Balance Return Loss (TBRL) Impedance Input Impedance Impedance of the Mediatrix 4102 at the Tip and Ring wires. Terminal Balance Return Loss (TBRL) Impedance Balance return loss attributable to transmission loss between two points. It is used to characterize an impedance balancing property of the 2-wire analog equipment port.
  • Page 445 <http://127.0.0.1/Bellcore-dr4> or <Bellcore-dr4> Bellcore-dr4 0.3 – 0.2, 1.0 – 0.2, 0.3 – 4.0 The Mediatrix 4102 plays the default ring of the country selected if the Alert-Info value is not present or the value is not supported. Note: Since the first pause of the distinctive ring is lower that 1 second, a splash ring followed by an Off of 1 second precedes the distinctive ring pattern.

  • Page 446: Australia

    0.375 – 0.375 -18 dBm Ring AC: 45 VRMS, 25 Hz 0.4 – 0.2, 0.4 – 2.0 DC: 15 Vdc 600 Ω Input Impedance Default Caller ID BELLCORE FXS Line Attenuation (Input) 0 dBr FXS Line Attenuation (Output) -6 dBr Mediatrix 4102...

  • Page 447: Australia 2

    0.375 – 0.375 -18 dBm Ring AC: 45 VRMS, 25 Hz 0.4 – 0.2, 0.4 – 2.0 DC: 15 Vdc 600 Ω Input Impedance Default Caller ID BELLCORE FXS Line Attenuation (Input) -3 dBr FXS Line Attenuation (Output) -6 dBr Mediatrix 4102...

  • Page 448: Australia 3

    AC: 45 VRMS, 25 Hz 0.4 – 0.2, 0.4 – 2.0 DC: 15 Vdc 220 Ω + 820 Ω // 115 nF Input Impedance Default Caller ID BELLCORE FXS Line Attenuation (Input) -3 dBr FXS Line Attenuation (Output) -9 dBr Mediatrix 4102...

  • Page 449: Austria

    Ring AC: 45 VRMS, 50 Hz 1.0 – 5.0 DC: 15 Vdc 270 Ω + 750 Ω // 150 nF Input Impedance Default Caller ID BELLCORE FXS Line Attenuation (Input) -3 dBr FXS Line Attenuation (Output) -10 dBr Mediatrix 4102...

  • Page 450: Brazil

    425 Hz 0.2 – 0.2 -10 dBm Ring AC: 45 VRMS, 25 Hz 1.0 – 4.0 DC: 15 Vdc 900 Ω Input Impedance Default Caller ID TELEBRAS_DTMF FXS Line Attenuation (Input) 0 dBr FXS Line Attenuation (Output) -7 dBr Mediatrix 4102...

  • Page 451: Chile

    0.2 – 0.2 -10 dBm Ring AC: 45 VRMS, 20 Hz 1.0 – 3.0 DC: 15 Vdc 600 Ω Input Impedance 600 Ω Tbrl-Impedance Default Caller ID BELLCORE FXS Line Attenuation (Input) 0 dBr FXS Line Attenuation (Output) -7 dBr Mediatrix 4102...

  • Page 452: Chile 2

    0.2 – 0.2 -10 dBm Ring AC: 45 VRMS, 20 Hz 1.0 – 3.0 DC: 15 Vdc 900 Ω Input Impedance 900 Ω Tbrl-Impedance Default Caller ID BELLCORE FXS Line Attenuation (Input) 0 dBr FXS Line Attenuation (Output) -7 dBr Mediatrix 4102...

  • Page 453: China

    450 Hz 0.7 – 0.7 -10 dBm Ring AC: 45 VRMS, 20 Hz 1.0 – 4.0 DC: 15 Vdc 600 Ω Input Impedance Default Caller ID BELLCORE FXS Line Attenuation (Input) 0 dBr FXS Line Attenuation (Output) -9 dBr Mediatrix 4102...

  • Page 454: Czech Republic

    AC: 45 VRMS, 25 Hz 1.0 – 4.0 DC: 15 Vdc 220 Ω + 820 Ω // 115 nF Input Impedance Default Caller ID ETSI FSK FXS Line Attenuation (Input) 0 dBr FXS Line Attenuation (Output) -7 dBr Mediatrix 4102...

  • Page 455: Denmark

    Ring AC: 45 VRMS, 25 Hz 1.0 – 4.0 DC: 15 Vdc 300 Ω + 1000 Ω // 220 nF Input Impedance Default Caller ID TDK_DTMF FXS Line Attenuation (Input) 0 dBr FXS Line Attenuation (Output) -6 dBr Mediatrix 4102...

  • Page 456: France

    AC: 45 VRMS, 50 Hz 1.5 – 3.5 DC: 15 Vdc 215 Ω + 1000 Ω // 137 nF Input Impedance Default Caller ID FRANCE: BELLCORE FRANCE_ETSI_FSK: ETSI_FSK FRANCE_ETSI_DTMF:ETSI_DTM FXS Line Attenuation (Input) +1.9 dBr FXS Line Attenuation (Output) -8.9 dBr Mediatrix 4102...

  • Page 457: Germany

    Ring AC: 45 VRMS, 25 Hz 1.0 – 4.0 DC: 15 Vdc 220 Ω + 820 Ω // 115 nF Input Impedance Default Caller ID BELLCORE FXS Line Attenuation (Input) -3 dBr FXS Line Attenuation (Output) -10 dBr Mediatrix 4102...

  • Page 458: Germany 2

    Ring AC: 45 VRMS, 25 Hz 1.0 – 4.0 DC: 15 Vdc 220 Ω + 820 Ω // 115 nF Input Impedance Default Caller ID BELLCORE FXS Line Attenuation (Input) -3 dBr FXS Line Attenuation (Output) -10 dBr Mediatrix 4102...

  • Page 459: Hong Kong

    0.25 – 0.25 -13 dBm Ring AC: 45 VRMS, 20 Hz 0.4 – 0.2, 0.4 –3.0 DC: 15 Vdc 600 Ω Input Impedance Default Caller ID BELLCORE FXS Line Attenuation (Input) 0 dBr FXS Line Attenuation (Output) -6 dBr Mediatrix 4102...

  • Page 460: Indonesia

    425 Hz 0.25 – 0.25 -9 dBm Ring AC: 45 VRMS, 25 Hz 1.0 – 4.0 DC: 15 Vdc 600 Ω Input Impedance Default Caller ID BELLCORE FXS Line Attenuation (Input) -3 dBr FXS Line Attenuation (Output) -3 dBr Mediatrix 4102...

  • Page 461: Israel

    400 Hz 0.25 – 0.25 -15 dBm Ring AC: 45 VRMS, 25 Hz 1.0 – 3.0 DC: 15 Vdc 600 Ω Input Impedance Default Caller ID BELLCORE FXS Line Attenuation (Input) 0 dBr FXS Line Attenuation (Output) -9 dBr Mediatrix 4102...

  • Page 462: Italy

    Ring AC: 45 VRMS, 25 Hz 1.0 – 4.0 DC: 15 Vdc 180 Ω + 630 Ω // 60 nF Input Impedance Default Caller ID BELLCORE FXS Line Attenuation (Input) 0 dBr FXS Line Attenuation (Output) -7 dBr Mediatrix 4102...

  • Page 463: Japan

    400 Hz 0.5 – 0.5 -13 dBm Ring AC: 45 VRMS, 20 Hz 1.0 – 2.0 DC: 15 Vdc 600 Ω Input Impedance Default Caller ID BELLCORE FXS Line Attenuation (Input) 0 dBr FXS Line Attenuation (Output) -9 dBr Mediatrix 4102...

  • Page 464: Malaysia

    0. – 0.25 -18 dBm Ring AC: 45 VRMS, 20 Hz 0.4 – 0.2, 0.4 – 2.0 DC: 15 Vdc 600 Ω Input Impedance Default Caller ID BELLCORE FXS Line Attenuation (Input) 0 dBr FXS Line Attenuation (Output) -9 dBr Mediatrix 4102...

  • Page 465: Mexico

    425 Hz 0.25 – 0.25 -18 dBm Ring AC: 45 VRMS, 20 Hz 1.0 – 4.0 DC: 15 Vdc 600 Ω Input Impedance Default Caller ID BELLCORE FXS Line Attenuation (Input) -3 dBr FXS Line Attenuation (Output) -3 dBr Mediatrix 4102...

  • Page 466: Netherlands

    Ring AC: 45 VRMS, 20 Hz 1.0 – 4.0 DC: 15 Vdc 270 Ω + 750 Ω // 150 nF Input Impedance Default Caller ID BELLCORE FXS Line Attenuation (Input) 0 dBr FXS Line Attenuation (Output) -7 dBr Mediatrix 4102...

  • Page 467: New Zealand

    AC: 45 VRMS, 25 Hz 0.4 – 0.2, 0.4 – 2.0 DC: 15 Vdc 300 Ω + 1000 Ω // 220 nF Input Impedance Default Caller ID BELLCORE FXS Line Attenuation (Input) -3 dBr FXS Line Attenuation (Output) -9 dBr Mediatrix 4102...

  • Page 468: North America

    AC: 45 VRMS, 20 Hz 2.0 – 4.0 DC: 15 Vdc 600 Ω Input Impedance 600 Ω Tbrl-Impedance Default Caller ID BELLCORE FXS Line Attenuation (Input) -3 dBr FXS Line Attenuation (Output) -3 dBr a. TBRL-Impedance for “on-premise" or short loop ports. Mediatrix 4102...

  • Page 469: North America 2

    350 Ω + 1000 Ω // 210 nF Tbrl-Impedance Default Caller ID BELLCORE FXS Line Attenuation (Input) 0 dBr FXS Line Attenuation (Output) 0 dBr a. TBRL-Impedance for “off-premise" or long loop ports (wire length longer than 2.5 km). Mediatrix 4102...

  • Page 470: Russia

    425 Hz 0.2 – 0.2 -10 dBm Ring AC: 45 VRMS, 25 Hz 0.8 – 3.2 DC: 15 Vdc 600 Ω Input Impedance Default Caller ID BELLCORE FXS Line Attenuation (Input) +2 dBr FXS Line Attenuation (Output) -2 dBr Mediatrix 4102...

  • Page 471: Spain

    Ring AC: 45 VRMS, 25 Hz 1.5 – 3.0 DC: 15 Vdc 220 Ω + 820 Ω // 120 nF Input Impedance Default Caller ID BELLCORE FXS Line Attenuation (Input) 0 dBr FXS Line Attenuation (Output) -7 dBr Mediatrix 4102...

  • Page 472: Sweden

    Ring AC: 45 VRMS, 25 Hz 1.0 – 5.0 DC: 15 Vdc 200 Ω + 1000 Ω // 100 nF Input Impedance Default Caller ID BELLCORE FXS Line Attenuation (Input) 0 dBr FXS Line Attenuation (Output) -5 dBr Mediatrix 4102...

  • Page 473: Switzerland

    Ring AC: 45 VRMS, 25 Hz 1.0 – 4.0 DC: 15 Vdc 220 Ω + 820 Ω // 115 nF Input Impedance Default Caller ID BELLCORE FXS Line Attenuation (Input) 0 dBr FXS Line Attenuation (Output) -6.5 dBr Mediatrix 4102...

  • Page 474: Thailand

    400 Hz 0.3 – 0.3 -10 dBm Ring AC: 45 VRMS, 25 Hz 1.0 – 4.0 DC: 15 Vdc 600 Ω Input Impedance Default Caller ID BELLCORE FXS Line Attenuation (Input) -3 dBr FXS Line Attenuation (Output) -3 dBr Mediatrix 4102...

  • Page 475: United Arab Emirates

    1400+2060+2450+2600 Hz (0.1 – 0.1) -19 dBm Ring AC: 45 VRMS, 25 Hz 0.4 – 0.2, 0.4 – 2.0 DC: 15 Vdc 600 Ω Input Impedance FXS Line Attenuation (Input) 3 dBr FXS Line Attenuation (Output) -3 dBr Mediatrix 4102...
  • Page 476 0.4 – 0.2, 0.4 – 2.0 DC: 15 Vdc 300 Ω + 1000 Ω // 220 nF Input Impedance Default Caller ID UK: BRITISH_TELECOM UK_BELLCORE: BELLCORE UK_CCA: CCA UK_ETSI_FSK: ETSI_FSK FXS Line Attenuation (Input) -3 dBr FXS Line Attenuation (Output) -9 dBr Mediatrix 4102...

  • Page 477: Glossary

    Outside North America, the area code may have any number of digits, depending on the national telecommunication regulation of the country. In France, for instance, the numbering terminology is xZABPQ 12 34, where: Table 297: France Numbering Plan Description Operator forwarding the call. This prefix can be made of 4 digits. Mediatrix 4102...
  • Page 478 “#” or “*”, the “*” being reserved for special purposes. Dynamic Host Configuration Protocol (DHCP) TCP/IP protocol that enables PCs and workstations to get temporary or permanent IP addresses (out of a pool) from centrally-administered servers. Mediatrix 4102...
  • Page 479 A standard describing software that keeps track of the Internet’s addresses for different nodes, routes outgoing messages, and recognizes incoming messages. Jitter A distortion caused by the variation of a signal from its references which can cause data transmission errors, particularly at high speeds. Mediatrix 4102...
  • Page 480 A line condition caused when a telephone handset is resting in its cradle. Packet Includes three principal elements: control information (such as destination, origin, length of packet), data to be transmitted, and error detection. The structure of a packet depends on the protocol. Mediatrix 4102...
  • Page 481 Quality of Service (QoS) Measure of the telephone service quality provided to a subscriber. This could be, for example, the longest time someone should wait after picking up the handset before they receive dial tone (three seconds in most U.S. states). Mediatrix 4102...
  • Page 482 In most places of the Internet of today, NTP provides accuracies of 1-50 ms, depending on the characteristics of the synchronization source and network paths. Mediatrix 4102...
  • Page 483 Internet or a corporate Intranet. Wide Area Network (WAN) A large (geographically dispersed) network, usually constructed with serial lines, that covers a large geographic area. A WAN connects LANs using transmission lines provided by a common carrier. Mediatrix 4102...
  • Page 484 Appendix E - Glossary Wide Area Network (WAN) Mediatrix 4102...

  • Page 485: List Of Acronyms

    Media Access Control Mb/s Megabits Per Second Management Information Base Maximum Transmission Unit Message Waiting Indicator Name Address Translation Open Systems Interconnection Password Authentication Protocol Private Branch eXchange Pulse Code Modulation Personal Identification Number Point to Point Protocol Mediatrix 4102...
  • Page 486 TCP/IP Transmission Control Protocol/Internet Protocol Transport Layer Security Twisted-Pair Ethernet User Datagram Protocol Universal Time Coordinated Unshielded Twisted pair Voice Activity Detection VLAN Virtual Local Area Network VoIP Voice over Internet Protocol Wide Area Network eXtensible Markup Language Mediatrix 4102...

  • Page 487: List Of Mib Parameters

    ............................256 digitMapAllowedDigitMap ............................. 288 digitMapAllowedEnable ..............................288 digitMapAllowedLineToApply ............................288 digitMapPrefixedDigitRemovalCount .......................... 288 digitMapPrependedString ............................. 288 digitMapRefusedDigitMap ............................289 digitMapRefusedEnable ..............................289 digitMapRefusedLineToApply ............................289 digitMapSuffixStringToRemove ........................... 288 digitMapTimeoutCompletion ............................289 digitMapTimeoutFirstDigit ............................. 289 digitMapTimeoutInterDigit ............................289 Mediatrix 4102...
  • Page 488 ....................... 127 h323GroupMultipleRegRasPortSource ........................128 h323GroupMultipleRegRetryTime ..........................125 h323GroupMultipleRegStaticCallSignalingPort ......................129 h323GroupMultipleRegStaticRasPort ........................128 h323MultipleRegCallSignalingPortSource ........................ 129 h323MultipleRegEnable ..............................122 h323MultipleRegGkDiscoveryMode ........................... 124 h323MultipleRegLightweightEnable ........................... 126 h323MultipleRegLightweightTimeToLive ........................127 h323MultipleRegRasPortSource ..........................128 h323MultipleRegRetryTime ............................125 h323MultipleRegStaticCallSignalingPort ........................129 Mediatrix 4102...
  • Page 489 ..........................96 ipAddressConfigLanInterface ............................177 ipAddressStatusH323GkHost ............................118 ipRoutingBandwidthControlEnable ........................182, 189 ipRoutingDhcpServerLeaseTime ..........................182 ipRoutingEnable ..............................182, 189 ipRoutingMacAddress ..............................178 ipRoutingMacSpoofAddress ............................178 ipRoutingMacSpoofEnable ............................178 ipRoutingMode ................................182 ipRoutingQosDiffServSubstitution ..........................176 ipRoutingQosDiffServSubstitutionEnable ........................176 Mediatrix 4102...
  • Page 490 ..............................336 mwiConfigFetchAddress ............................... 336 mwiConfigUserSubscriptionAddress .......................... 335 mwiExpirationTime ................................ 336 mwiFetchDigitMap ................................. 335 mwiSubscriptionCmdRefresh ............................336 pinDialingDelay ................................334 pinDialingEnable ................................334 pinDialingPin ................................... 334 pppoeAcName ................................172 pppoeEnable ................................... 173 pppoeServiceName ............................... 173 pppSecuritySecretsIdentity ............................173 Mediatrix 4102...
  • Page 491 ........................161, 276 sipInteropRingingResponseCode ..........................278 sipInteropSdpDirectionAttributeEnable ........................273 sipInteropSendUAHeaderEnable ..........................262 sipInteropSessionTimersVersion ..........................263 sipInteropSymmetricUdpSourcePortEnable ......................270 sipInteropTransferVersion ............................267 sipInteropTransmissionTimeout .......................... 161, 269 sipOutboundProxyConfig .............................. 113 sipOutboundProxyDhcpSiteSpecificCode ......................95, 112 sipOutboundProxyHost ............................95, 111 sipOutboundProxyPort ............................95, 111 Mediatrix 4102...
  • Page 492 ..............................280 stunNatBindingQueryInterval ............................280 stunQueryCacheDuration ............................. 280 stunQueryTimeout ................................. 280 stunStaticHost ................................280 stunStaticPort ................................. 280 subscriberServicesAttendedTransferEnable ......................327 subscriberServicesAttendedTransferStatus ......................327 subscriberServicesBlindTransferEnable ........................326 subscriberServicesBlindTransferStatus ........................326 subscriberServicesCallForwardOnBusyActivation ....................318 subscriberServicesCallForwardOnBusyDisableDigitMap ..................318 subscriberServicesCallForwardOnBusyEnable ......................319 Mediatrix 4102...
  • Page 493 ............................. 94, 346 syslogStaticHost ................................346 syslogStaticPort ................................346 sysMacAddress ................................22, 98 sysMibVersion .................................. 81 telephonyAttributesAutomaticCallEnable ........................331 telephonyAttributesAutomaticCallTargetAddress ....................331 telephonyAttributesCallDirectionRestriction ......................332 telephonyAttributesHookFlashProcessing ......................... 332 telephonyAttributesIpAddressCallEnable ........................333 telephonyCountrySelection ............................165 telephonyDnsOverrideEnable ............................89 Mediatrix 4102...
  • Page 494 ........................... 247, 359 voiceIfUserInputGainOffset ............................251 voiceIfUserOutputGainOffset ............................251 analogScnGwDialEnable 363 analogScnGwDtmfDuration 199, 279 analogScnGwInterDigitDialDelay 199, 279 certificateExpirationDate 229, 249 certificateName 228, 248 certificateSubjectCommonName 229, 248 checkTcpIpStackForSuccessfulBoot 25 configFileAutoUpdateOnRestartEnable 236 configFileAutoUpdatePeriod 237 configFileAutoUpdatePeriodicEnable 238 configFileAutoUpdateTimeRange 238 configFileAutoUpdateTimeUnit 237 Mediatrix 4102...
  • Page 495 293 dataIfT38NoSignalEnable 293 dataIfT38NoSignalTimeout 293 digitMapAllowedDigitMap 332 digitMapAllowedEnable 333 digitMapAllowedLineToApply 333 digitMapPrefixedDigitRemovalCount 332 digitMapPrependedString 333 digitMapProcessDigitsWhenPressed 332 digitMapRefusedDigitMap 333 digitMapRefusedEnable 333 digitMapRefusedLineToApply 333 digitMapSuffixStringToRemove 332 digitMapTimeoutCompletion 334 digitMapTimeoutFirstDigit 334 digitMapTimeoutInterDigit 334 emergencyCallUrgentGatewayDigitMap 340 emergencyCallUrgentGatewayEnable 340 emergencyCallUrgentGatewayTargetAddress 340 Mediatrix 4102...
  • Page 496 263 imageAutoUpdateEnable 258, 259 imageAutoUpdateOnRestartEnable 258 imageAutoUpdatePeriod 259 imageAutoUpdateTimeRange 259 imageAutoUpdateTimeUnit 259 imageConfigSource 23 imageDhcpPrimarySiteSpecificCode 168, 249 imageDhcpSecondarySiteSpecificCode 168, 250 imageLocation 251, 252 imageLocationProvisionSource 252 imagePrimaryHost 23, 168, 249 imagePrimaryPort 23, 168, 249 imageSecondaryHost 23, 168, 249 Mediatrix 4102...
  • Page 497 23, 164 localHostSecondaryDns 23, 164 localHostSelectConfigSource 17, 164, 212 LocalHostSnmpPort 166 localHostSnmpPort 23, 166 localHostStaticDefaultRouter 212 localHostStaticPrimaryDns 17 localHostStaticSecondaryDns 17 localHostStaticSnmpPort 166 localHostStaticSubnetMask 17 localHostStaticWanAddress 165, 301 localHostSubnetMask 23, 164 LocalHostWanAddress 165 localHostWanAddress 214 localHostWanAddressSelectConfigSource 165, 214, 301 Mediatrix 4102...
  • Page 498 213 pppoeServiceName 213 pppSecuritySecretsIdentity 213 pppSecuritySecretsSecret 213 qosInteropUseVoiceQoSForRtcpEnable 375 qosSignalingDiffServ 374 qosSignalingIeee8021qEnable 374 qosSignalingIeee8021qUserPriority 374 qosT38FaxDiffServ 374 qosT38FaxIeee8021qEnable 226, 374 qosT38FaxIeee8021qUserPriority 226, 374 qosVlanIeee8021qDefaultUserPriority 376 qosVlanIeee8021qSubstitutionEnable 377, 378 qosVlanIeee8021qSubstitutionFiltering 378 qosVlanIeee8021qSubstitutionUserPriority 377 qosVlanIeee8021qSubstitutionVlanID 377 qosVlanIeee8021qTaggingEnable 376 qosVlanIeee8021qVirtualLanID 376 Mediatrix 4102...
  • Page 499 307 sipInteropDefaultRegistrationExpiration 305 sipInteropDtmfTransportDuration 279 sipInteropDtmfTransportMethod 279 sipInteropEscapePoundInSipUriUsername 320 sipInteropIgnoreUsernameParam 320 sipInteropIgnoreViaBranchIdInCancelEnable 314 sipInteropInternationalCodeMappingEnable 316 sipInteropInternationalCodeMappingString 316 sipInteropLocalRingOnProvisionalResponse 313 sipInteropLockDnsSrvRecordPerCallEnable 197 sipInteropMaxForwardsValue 310 sipInteropMwiMessageSummaryValidation 368 sipInteropOnHoldAnswerSdpStreamDirection 312 sipInteropOnHoldSdpStreamDirection 311 sipInteropProxyAuthenticationUriParametersEnable 315 sipInteropReferredByConfig 310 sipInteropRegisterHomeDomainHostOverride 296 sipInteropRemoveOutboundProxyRouteHeader 316 Mediatrix 4102...
  • Page 500 306 sipPublicationProposedExpirationValue 306 sipPublicationRefreshTime 306 sipRegistrarDhcpSiteSpecificCode 171, 186 sipRegistrarHost 171, 185 sipRegistrarPort 171, 185 sipRegistrarStaticHost 186 sipRegistrarStaticPort 186, 196 sipRegistrationCmdRefresh 304 sipRegistrationProposedExpirationValue 305 sipReRegistrationTime 304 sipServerSelectConfigSource 171, 185, 187, 189, 192 sipTransportContactEnable 302 sipTransportEnable 301 sipTransportQValue 301 Mediatrix 4102...
  • Page 501 324 stunKeepAliveInterval 324 stunQueryCacheDuration 324 stunQueryTimeout 324 stunStaticHost 324 stunStaticPort 324 subscriberServicesAttendedTransferEnable 354 subscriberServicesAttendedTransferStatus 354 subscriberServicesBlindTransferEnable 353 subscriberServicesBlindTransferStatus 353 subscriberServicesCallForwardOnBusyActivation 346 subscriberServicesCallForwardOnBusyDisableDigitMap 347 subscriberServicesCallForwardOnBusyEnable 347 subscriberServicesCallForwardOnBusyEnableDigitMap 346 subscriberServicesCallForwardOnBusyForwardingAddress 347 subscriberServicesCallForwardOnNoAnswerActivation 348 subscriberServicesCallForwardOnNoAnswerDisableDigitMap 348 subscriberServicesCallForwardOnNoAnswerEnable 349 subscriberServicesCallForwardOnNoAnswerEnableDigitMap 348 Mediatrix 4102...
  • Page 502 183 sysConfigProductNamePadding 175 sysConfigStatsBySyslogEnable 385 sysConfigStatsNumberPeriods 384 sysConfigStatsPeriodLength 383 syslogConfigSource 24 syslogDhcpSiteSpecificCode 170, 380 syslogHost 23, 170, 380 syslogMsgDisplayLocalHost 381 syslogMsgDisplayMacAddress 381 syslogMsgDisplayTime 381 syslogMsgLocalMaxNbr 382 syslogMsgLocalMaxSeverity 382 syslogMsgMaxSeverity 379, 392 syslogPort 23, 170, 380 syslogSelectConfigSource 170, 380 Mediatrix 4102...
  • Page 503 275 voiceIfCodecG72632kbpsPayloadType 273 voiceIfCodecG72640kbpsEnable 273 voiceIfCodecG72640kbpsMaxPTime 275 voiceIfCodecG72640kbpsMinPTime 275 voiceIfCodecG72640kbpsPayloadType 273 voiceIfCodecG729Enable 273 voiceIfCodecG729MaxPTime 276 voiceIfCodecG729MinPTime 276 voiceIfCodecPcmaEnable 273 voiceIfCodecPcmaMaxPTime 274 voiceIfCodecPcmaMinPTime 274 voiceIfCodecPcmuEnable 273 voiceIfCodecPcmuMaxPTime 274 voiceIfCodecPcmuMinPTime 274 voiceIfCodecPreferred 273 voiceIfDtmfDetectionRiseTimeCriteria 282 voiceIfDtmfDetectionUnitBreakPowerThreshold 281 voiceIfDtmfDetectionUnitMaxPowerThreshold 281 Mediatrix 4102...
  • Page 504 Appendix G - List of MIB Parameters voiceIfDtmfDetectionUnitMinPowerThreshold 281 voiceIfDtmfDetectionUnitNegativeTwist 281 voiceIfDtmfDetectionUnitPositiveTwist 281 voiceIfDtmfEnforceDefaultEvents 278 voiceIfDtmfPayloadType 278 voiceIfDtmfTransport 274, 276, 277, 278, 279 voiceIfEchoCancellationEnable 284 voiceIfG711ComfortNoiseGenerationEnable 285 voiceIfG711VoiceActivityDetectionEnable 283 voiceIfG729VoiceActivityDetectionEnable 284 voiceIfMaxJitterBufferLength 282, 391 voiceIfSignalLimiterLevel 285 voiceIfTargetJitterBufferLength 282, 391 voiceIfUserInputGainOffset 286 voiceIfUserOutputGainOffset 286 Mediatrix 4102...
  • Page 505 100 BaseT preferred call enabling automatic T.38 dialing sequence voice emergency, enabling defined forced SCN DTMF detection forward DTMF transport type on busy DTMF transport type over the SIP protocol on no answer echo cancellation unconditional enabling Mediatrix 4102...
  • Page 506 DHCP (dynamic), using telephone number MIB. see SNMP Differentiated Services (DS) Field, in QoS static substituting configured value setting configuration sources to digit map using # and * characters connecting the unit combining two expressions Mediatrix 4102...
  • Page 507 CED tone detection, enabling record lock, in SIP clear channel documentation T.38 Media5 download portal xxiii INVITE rejected with 606 Mediatrix download portal xxiii no-signal downgrading software, procedure user gain vs communication quality downloading software firmware download.
  • Page 508 DiagFailed international code mapping ImageDownloadError INVITE rejected with 606, in T.38 ImageDownloadInProgress IP address InitFailed default router NormalMode defining RebootPending decimal RecoveryMode hexadecimal RecoveryModePending octal ResetPending DHCP server Power DHCP, using Ready DNS, primary states static line mapping Mediatrix 4102...
  • Page 509 DHCP information, using OID, defined in configuration file download operating temperature static information, using outbound proxy usage with Route header using out-of-band DTMF Max-Forwards header, in SIP overview of the product MDI/MDIX, auto Media5 download portal xxiii Mediatrix 4102...
  • Page 510 RFC 2349 MIB files RFC 2459 publications expiration, in SIP RFC 2475 publications refresh, in SIP RFC 2516 via web interface RFC 2543 RFC 2543bis RFC 2616 RFC 2617 RFC 2705 802.1q RFC 2782 defined RFC 2818 RFC 2833 Mediatrix 4102...
  • Page 511 (#) character in SIP URI username user agents web interface, configuring via authentication information failed registration attempts authentification information from URI content display name home domain in Request URI header, customizing home domain override header, enabling to send Mediatrix 4102...
  • Page 512 RFC 2705 IP address RFC 2782 IP address, WAN RFC 2818 MAC address RFC 2833 standards compliance RFC 2976 agency approvals RFC 3164 CE marking RFC 3261 emissions RFC 3263 FCC Part 15 disclaimer RFC 3264 immunity RFC 3280 Mediatrix 4102...
  • Page 513 LAN interface configuring the application PPPoE service customizing messages connection local host Mediatrix 4102...
  • Page 514 WINS server not forwarded to the PC trusted sources, in SIP LAN interface MAC address spoofing local IP address message waiting indicator Monitoring port range password source port behaviour modify transport type reset unit, restarting Mediatrix 4102...
  • Page 515 SIP user agents SNTP status network parameters system STUN subnet mask system log system management user name, modify connection type default router local IP address PPP password PPP user name primary DNS secondary DNS static information subnet mask Mediatrix 4102...
  • Page 516 Index Mediatrix 4102...
