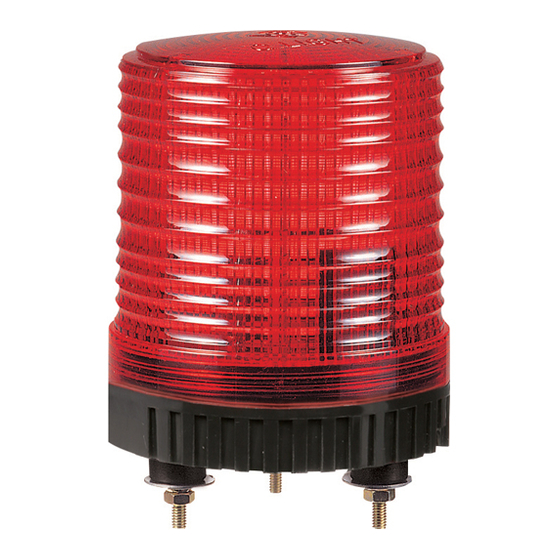

Xenon Strobe Light
S80S/ S80SM
30
50
54
Thank you for purchasing Qlight's products. Please read this user manual carefully
prior to installation and operation to ensure safe and correct use.
Precautions for Safety
Failure to follow the instructions below may cause a loss of life or serious physical injury.
1. During wiring or maintenance, please completely turn off the power of the product. (Failure to follow this may lead to an electric shock.)
2. Do not install the product in locations that subjects it to excessive dust or water other than the conditions designated by the IP protection
ratings indicated for each product. (Failure to follow these instructions may cause a fire to the product, electric shock, physical injury,
malfunction or damage to the product.)
3. Do not alter or repair this product. If maintenance or repair service is required, please contact your local Qlight contact point. (Failure to
follow these instructions may lead to fire, electric shock, or product damage.)
4. Please apply the correct voltage to the product. (Failure to follow these instructions may lead to fire, electric shock, or product damage.)
5. When the product is applied to a condition that may impact lives or property, please make sure to have a double safety device. (Failure to
follow this may cause damage to property, fire, electric shock and loss of life.)
Precautions for Correct Use
Failure to follow the proper instructions may cause damage to property, the product, or malfunction of the
product that would void the warranty.
1. Please remove any objects that can interrupt ventilation around the product.
2. Please turn off the power of the product immediately if it fails to operate properly.
3. Carefully wire the product according to each product's specification.
4. Please be careful in preventing chemicals such as thinner, benzene, etc. in contact with the surface of the product.
5. Do not apply excessive force/impact to the product.
6. Failure to follow any of the instructions above may cause malfunction or damage to the product, fire, and electric shock.
Ordering Specifications
S80S
-
220
[Model
[Voltage]
number]
|
|
• S80S
• 12 - DC12V
• S80SM
• 24 - DC24V
• 110 - AC110V
• 220 - AC220V
Please scan the QR code
for more detailed product
information.
S80S
S80SM
Product Specifications
-
R
Model
number
[Color]
|
S80S
R-Red
A-Amber
G-Green
B-Blue
S80SM
• Protection rating : IP54
• Ambient operating temperature : -30°C to +50°C
www.qlight.com
Bulb specifications
Voltage
Current
Volts/
Watts
DC12V
Max. 0.433A
DC24V
Max. 0.216A
AC110V Max. 0.076A
AC220V Max. 0.061A
220V
~350V
DC12V
Max. 0.433A
DC24V
Max. 0.216A
1
Certificate Weight
Configuration Part#
0.21kg
BGA2120
-
-BBC
47
I type
-
0.24kg
Color
R-Red
A-Amber
G-Green
B-Blue
Advertisement
Table of Contents
Related Manuals for Qlight S80S
Summary of Contents for Qlight S80S
- Page 1 3. Do not alter or repair this product. If maintenance or repair service is required, please contact your local Qlight contact point. (Failure to follow these instructions may lead to fire, electric shock, or product damage.) 4.
- Page 2 Black Black • DC/AC type cable specification : External power line - UL1015 AWG18(0.75sq) x 2C 400mm(S80S) External power line - IEC42(0.75sq) x 2P 2000mm(S80SM) • For S80SM models, please connect the cigarette lighter plug of the product to a cigarette lighter socket of a vehicle.
- Page 3 • In case of outdoor applications, install the product in the upright position. Do not install the product horizontal or upside- down positions where water can potentially penetrate into the product and impact it’s operation .• For further information, please visit our website (http://www.qlight.com). Product Operation Inquiry / Customer Support +82-55-328-4082 You can expect prompt service if you have exact information such as model name, symptom, telephone number and address.
