PWR-AVIS USER MANUAL

1 GENERAL

This manual describes the features, functions, and installation of the ADC Power Analog
Video Interface System (PWR-AVIS) which is available with single or dual (redundant)
power supplies.
PWR-AVIS provides centralized access for testing, monitoring, patching, or amplification of
digital, analog video, or baseband signals. Circuits are accessed via little coaxial jacks (LCJ)
mounted on jack access cards. A variety of active and passive jack access cards provide
various amplification and monitoring levels. The jack access card mates with a rear interface
unit (RIU) that is mounted in the chassis. A rear interface unit provides the interface for
permanent coaxial connections (F or BNC) to network elements (NE) (see
Note Jack access cards are used in the RIU only for testing or troubleshooting functions.
The number of access cards required in an office must be determined and ordered by the
user based on expected provisioning and maintenance activity.
The PWR-AVIS chassis contains one or two power supplies (depending upon configuration)
and wiring for powering amplifier and active jack access cards.
1 2 3 4 5 6 7 8
M
O
I
M
O
I
FRONT VIEW

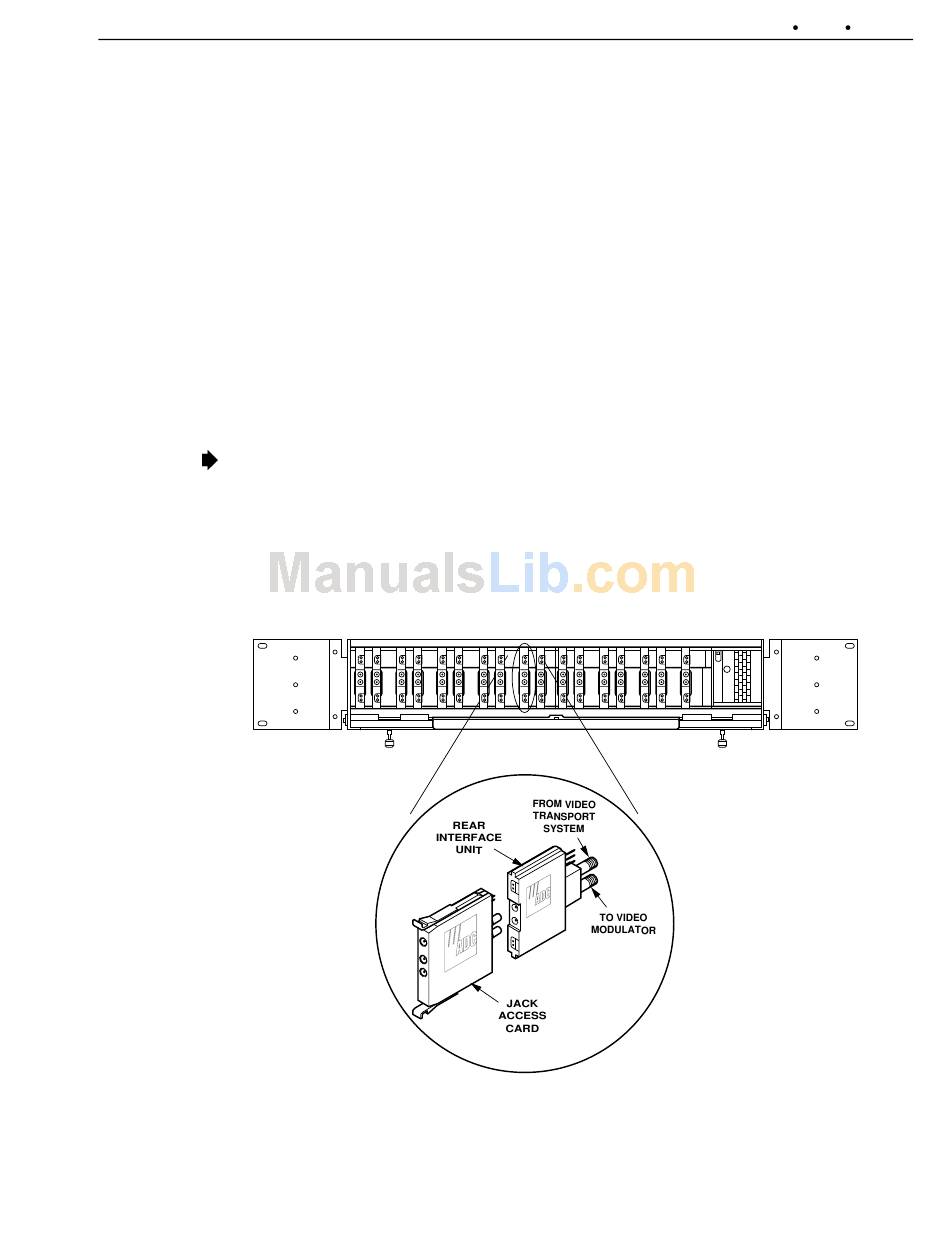

Figure 1. Jack Access Card and Rear Interface Unit
9 10 11 12 13 14 15 16 TEST PWR 1
© 1999, ADC Telecommunications, Inc.
ADCP-61-814 Issue 1 April 1999
Figure 1).
2
M
O
I
6965-B
