ADCP-61-814 Issue 1 April 1999

3.2 Cabling

Run and Cable the chassis as follows:
1. Obtain NE circuit IN and OUT assignments from local support staff.
2. Label all IN and OUT cables to identify NE associated with each card IN and OUT jack.
Ensure that the NE OUT cable terminates to the RIU OUT and the NE IN terminates to
the RIU IN.
3. Route the cables from the NE to the rear of the chassis.
Route circuits 1 through 10 on the right side of the rack, as viewed from the rear.
Route circuits 11 through 16 on the left side of the rack. See
Page 14
© 1999, ADC Telecommunications, Inc.
4 3
CHASSIS GROUND

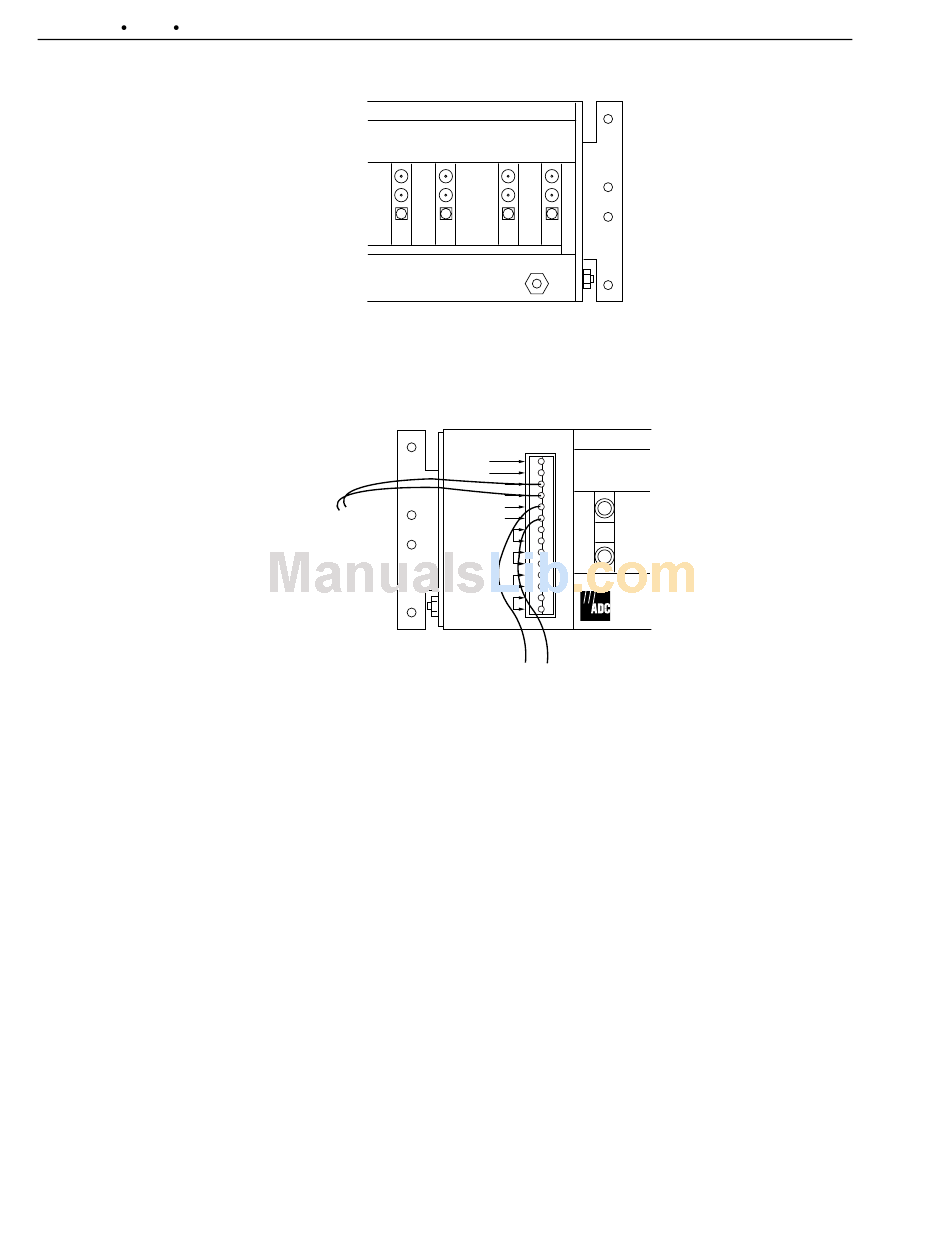

Figure 13. Chassis Ground Terminal
SPARE
SPARE
–48V (1)
RET (1)
OUT
–48V (2)
TO 110 VAC TO RET (2)
IN
–48VDC CONVERTER
PS1 ALM A
(OPTIONAL)
PS1 ALM B
PS2 ALM A
PS2 ALM B
Figure 14. Office Power Connection
2 1
OUT
IN
6967-B
CLASS 2
TEST
AVIS
12248-B
TO OFFICE
–48V FUSE
PANEL
Figure 15.
