AXIL AN 0264 L User Manual

Digital outdoor antenna

Download this manual

Digital Outdoor Antenna

AN 0264 L User's Manual

Thanks for your purchasing this AN 0264 L Digital Outdoor

Antenna. Before your installation, please read this manual

carefully and keep this manual for further information.

INTRODUCTION

The antenna AN 0264 L has been specially designed for digital terrestrial broad-

casting reception. With state-of-art low noise amplifier technology and circuitry,

it will provide best reception. It has a compact and stylish housing. With UV pro-

tected housing and water-proof sealing, AN 0264 L series antenna can be outdoor

installed on your wall, window-shelter and with bundle pole fixing kit, you can put

AN 0264 L series on the wooden or metal pole. With special multi-directional tunable

mechanism, you can turn your antenna to any direction to get the best reception.

Feature:

-Compact and Stylish design

- UV protected housing and water-proof sealing

-Outdoor and indoor mounting

-UHF 470~790MHz / VHF 47~230MHz

-Max gain 46dB

-Low noise amplifier technology

-High Directionality

-Feeding from the receiver (5Vdc) or by means of enclosed 230Vac adapter

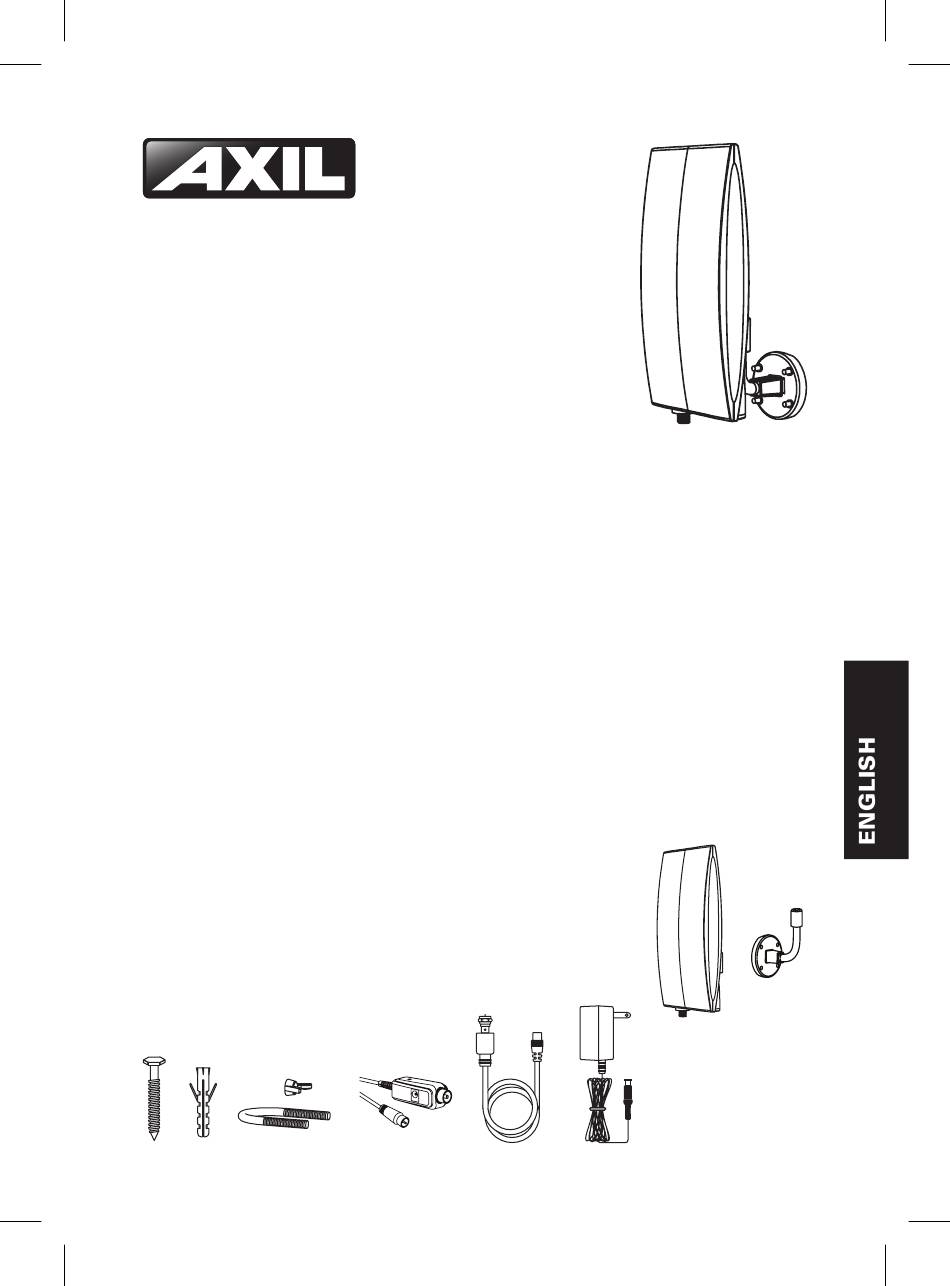

PACKAGE CONTENT

-Main unit

-Multi-directional base

-Wall mounting kit

-Pole mounting kit

-Power inserter

-Coaxial cable

-AC adaptor

Need help?

Do you have a question about the AN 0264 L and is the answer not in the manual?

Page 1 AN 0264 L series on the wooden or metal pole. With special multi-directional tunable mechanism, you can turn your antenna to any direction to get the best reception.
Page 2 INSTALLATION For the best reception, please install the antenna in the best place. Check the following conditions: 1. Keep away from big power consumption devices, such as air conditioner, elevator, hair dryer, microwave oven, etc... 2. For indoor mounting, install it close to a window, pointed to broadcaster (if it is possible) 3 In case of low level reception use outdoor mounting (with free view to the broadcaster if it is possible)
Page 3 INDOOR MOUNTING INTERIOR / INDOOR / INTERIEUR REC TDT/TNT...
Page 4 REC TDT/TNT Notes: Adjust the orientation of AN 0264 L. (Normally the signal is in horizontal direction.) -When you finish the installation, you can use your Set Top Box to check the signal strength and quality. If the quality is not good enough to have good picture, you can move the antenna to get the best reception position.
