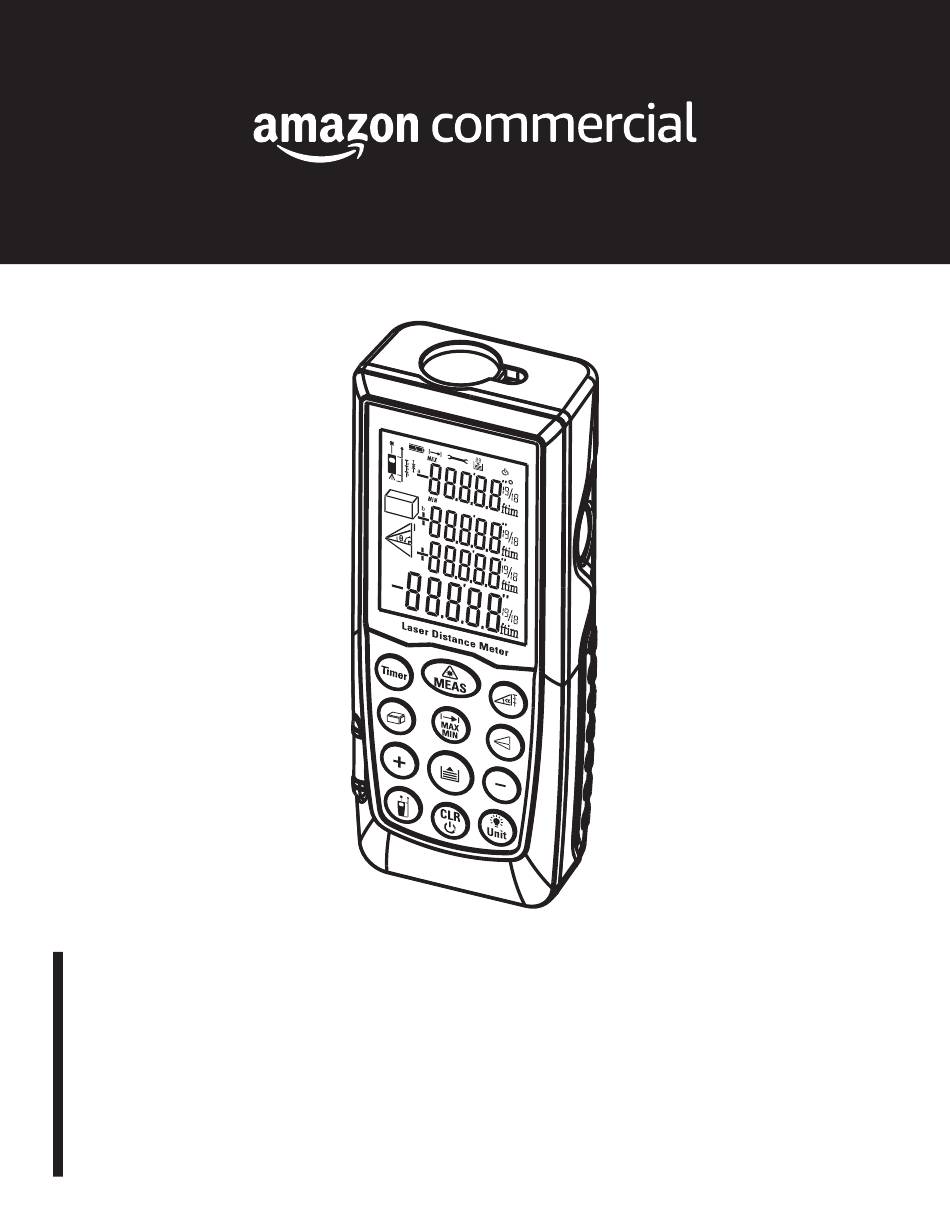

- Page 1 Laser 100m Distance Meter, Fast Measurement Ability of Outdoor Distanciómetro Láser de 100 m, Capacidad de Medir Rápidamente en Exteriores Télémètre Laser, Portée de 100 m, Capacité de Prise de Mesure Rapide en Extérieur B07VZ735PN...
- Page 2 English 3 Español 33 Français 64...
-
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS Read these instructions carefully and retain them for future use. If this product is passed to a third party, then these instructions must be included. When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons including the following: WARNING... -
Page 4: Laser Warnings
Take special precautions when WARNING working on scaffolding or heights, for example while using a ladder. Use the right type of ladder and ensure it is structurally sound. Use the ladder in accordance with the manufacturer’s instruction. • Never aim a laser beam at any aircraft. The laser beam can distract or flashblind pilots. - Page 5 • This device produces a visible laser beam which is emitted from the front of the product. • Do not stare into the laser beam or direct it towards other people. • Blinding by laser radiation can indirectly lead to serious accidents, especially for people who are driving a vehicle or operating machinery.
-
Page 6: Battery Warnings
• If your eyes have been irritated by laser radiation, do not continue to carry out tasks with safety implications, such as working with machines, working from great heights or close to high voltage. Also, do not operate any vehicles until the irritation has completely subsided. -
Page 7: Explanation Of Symbols
Explanation of Symbols The signal word that indicates WARNING a hazard with a medium level of risk which, if not avoided, could result in death or serious injury. The signal word that indicates CAUTION a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury. -
Page 8: Product Description
Product Description Keypad MEAS Timer Unit Backside... - Page 9 On/MEAS button Timer button Single/continuous distance measurement button Area/Volume button Storage button Plus (+) button CLR/Off button Reference button Tilt / take out button lndirect measurement button Minus (-) button lllumination/Unit button Measurement button Multifunctional endpiece Tripod thread Battery compartment cover...
- Page 10 Display 9 10 11 12 13 14 15 Laser on indicator Reference level (front) Reference level (rear) Reference level (tripod) Reference level (endpiece) Area/volume measuring functions Area measurement Volume measurement...
- Page 11 Variable measuring functions Single Pythagorean measurement Dual Pythagorean measurement Dual Pythagorean (partial height) measurement Tilt measurement Stake out function Battery status Single distance measurement Continuous measurement & Max and Min measurement Error warning Logbook Timer Tilt angle Intermediate line 1 Intermediate line 2 Intermediate line 3 Summary line...
-
Page 12: Intended Use
Intended Use • The product is intended for measuring distances, areas, volumes and angles. • The readings can be added and subtracted. Height can also be measured using the indirect measuring procedure. • The product is suitable for use in dry areas only. Contact with moisture, e.g. -
Page 13: Operation
Locking Operation Switching on/off Press to switch on the product and laser. Press and hold to switch off the meter. The product switches off automatically after 3 minutes of inactivity. Clear Button The last action is canceled or the data display is cleared. -
Page 14: Reference Level Setting
Reference Level Setting The default reference setting is from the rear of the meter. Press the button to set the reference setting from the front edge. A beep sounds whenever the reference setting is changed. Upon switching on, the reference returns automatically to the default setting (rear reference). -
Page 15: Multifunctional Endpiece
Multifunctional Endpiece NOTICE Use the multifunctional endpiece to take measurement from an edge or from a corner. • For measurements from an edge, unfold the endpiece and place it against the edge. • For measurements from a corner, unfold the endpiece, then push it to the left to unfold it further. -
Page 16: Display Backlight
Display Backlight When in poor lighting conditions, momentarily press to switch the backlight on. Momentarily press again to lower the brightness level and momentarily press a third time to turn the backlight off. Distance Unit Setting Press and hold to change the type of unit: m, ft. - Page 17 Continuous Measurement (Tracking) Press and hold for 2 seconds to activate continuous distance measurement. The single distance measurement icon disappears from the display. Press the button again to stop the measurement. NOTICE The product automatically stops the continuous measurement mode after 3 minutes. Max/Min and Continuous Measurement NOTICE In this mode, the product can be...
- Page 18 Minimum distance Maximum distance Functions Addition/Subtraction The next measurement is added to the previous one. The next measurement is subtracted from the previous one. The last measurement is canceled. Return to single distance measurement.
-
Page 19: Area Measurement
Area Measurement • Press the button once. The symbol appears on the display. • Press button to take the first length measurement (e.g. length). • Press again to take the second length measurement (e.g. width). • The result of the area measurement is displayed in the summary line. -
Page 20: Indirect Measurement
Indirect Measurement NOTICE Indirect measurement – determining a distance using 2 auxiliary measurements. This feature is useful for example when measuring heights that require the measurement of two or three measurements, proceed as follows: • Press the button once. The display shows . -
Page 21: Indirect Measurement - Determining A Distance Using 3 Measurements
Indirect Measurement – Determining a Distance Using 3 Measurements • Press the button twice. The display shows . The distance to be measured flashes in the symbol. • Aim at the lower point (1) and trigger the measurement. After the first measurement, the value is saved. - Page 22 Indirect Measurement – Determining a Distance Using 3 Measurements • Press the button 3 times. The display shows . The distance to be measured flashes in the symbol. • Keep the product aligned horizontally between the first, second and third measurement and press the button to trigger the measurement.
-
Page 23: Timer (Self-Triggering)
Logbook Press the button to open the logbook. The previous 99 records (measurements or calculated results) are shown in reverse order. Use the button to navigate through these records. Press and hold the button simultaneously to clear all records from the logbook. - Page 24 • 2 seconds before the measurement is taken the laser will flash and beep faster. • To cancel the timer, press the button. Stake out function The stake out function can be used to repeatedly measures a defined length (distance). Two lengths (A, and B) can be registered and then transferred to a surface.
- Page 25 • Use the buttons to adjust the values (first A and then B). Press and hold the buttons to speed up increasing/decreasing the values. • Once distance A is set, confirm it by pressing button. • Now set the distance B and confirm by pressing button.
-
Page 26: Tilt Measurement
Tilt Measurement NOTICE The inclination sensor measures tilts between ± 90°. During tilt measurement, the product should be held without a transverse tilt (± 10°). • Press the button once to activate the tilt sensor. • The display shows . The tilt value is displayed in the intermediate line 1. -
Page 27: Measuring Conditions
Measuring Conditions Measuring Range • The range is limited to that listed under technical specifications. • At night or dusk and if the target is in shadow, the measuring range without a target plate is increased. Use a target plate to increase the measurement range during daylight or if the target has poor reflection properties. -
Page 28: Troubleshooting
Troubleshooting Error Cause Solution Code • Calculation error • Repeat procedure • Received signal • Use target plate is too weak and measurement time is too long. Distance >50 m • Received signal is • Target is too too strong reflective (when using target plate) •... -
Page 29: Cleaning And Maintenance
Cleaning and Maintenance NOTICE Switch the product off before cleaning. NOTICE During cleaning do not immerse the product in water or other liquids. Never hold the product under running water. Cleaning • To clean the product, wipe with a soft, slightly moist cloth. -
Page 30: Specifications
Specifications Range (use target 0.16 in to 488 ft* plate from >50 m): (0.05 to 100 m*) Measuring accuracy Typically: ± 1.5 mm** up to 10 m (2 , (± 1/16 in**) standard deviation): Units of m, in, ft measurement: Laser class: Class II Laser type:... - Page 31 -4 °F to 140 °F Storage temperature: (-20 °C to 60 °C) AA (LR6, 15A), 2 x 1.5 V Power supply: batteries Battery life: up to 8000 measurements Auto laser after 30 seconds switch-off: Auto product after 3 minutes switch-off: Dimension 5.3 x 2.1 x 1.2 in (W x H x D):...
-
Page 32: Battery Disposal
Battery Disposal Do not dispose of used batteries with your household waste. Take them to an appropriate disposal/collection site. Feedback and Help Love it? Hate it? Let us know with a customer review. AmazonCommercial is committed to delivering customer-driven products that live up to your high standards. - Page 33 amazon.com/AmazonCommercial MADE IN CHINA HECHO EN CHINA FABRIQUÉ EN CHINE V04-11/19...
