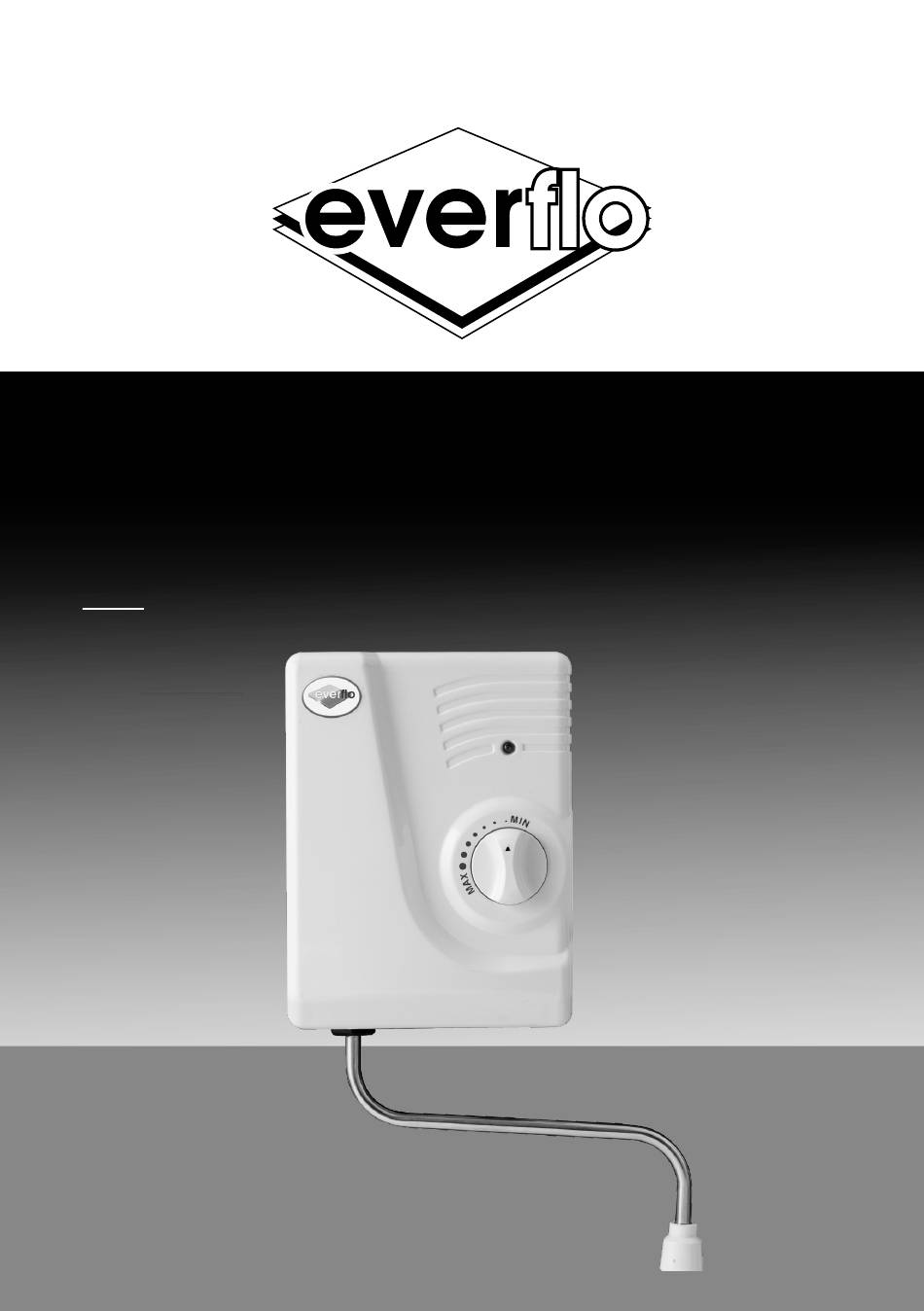

- Page 1 INSTALLATION INSTRUCTIONS — POINT OF USE WATER HEATERS EPU - HW...
- Page 2 CONTENTS PAGE INSTALL CONTENT Introduction Component List & Technical Specification Component Diagram Installation Commisioning & Maintenance Warranty Policy...
- Page 3 INTRODUCTION Thank you for purchasing this This appliance can be used by instantaneous water heater. This children aged from 8 years and handwash unit is manufactured above and persons with reduced to the highest standards and physical sensory or mental has been designed to meet capabilities or lack of experience all the latest relevant safety...
- Page 4 COMPONENT CHECKLIST Before commencing installation check that all the following components have been supplied with water heater. Heater Spout Fitting instructions TECHNICAL SPECIFICATION Power 2605 ~ 3100W Voltage 220 ~ 240V Current 11.8 ~ 12.9A Rated pressure 0 Pa Water pressure 1 ~ 7bar (0.1 ~ 0.7MPa) Water connection 1/2”...
- Page 5 COMPONENT DIAGRAM Figure 1. 1 - Inlet 5- Flow switch 2 - Outlet 6 - Cable clamp 3 - Water container assembly 7 - Main connector block 4 - Flow valve (To close: turn 8 - Thermal cut-out clockwise)
- Page 6 INSTALLATION Products are manufactured are In all the above cases turn off in accordance to International mains power and isolate water supply. Standards; IEC 60335-1. These appliances are safe and without ISOLATE the electrical and water risk, provided they are installed, supplies before removing the used and maintained in good cover.
- Page 7 INSTALLATION WALL MOUNTING PLUMBING Mount the unit to the wall using All plumbing work must comply suitable fixtures for the wall with national and applicable material. national and local plumbing regulations. Ensure the wall is suitable for supporting the load. The supply pipe must be flushed to clear debris.
- Page 8 INSTALLATION ELECTRICAL in the wiring of the appliance. CAUTION: In order to avoid a hazard due to inadvertent It is recommended that a resetting of the thermal cutout, residual current device (RCD) this appliance must not be is used to provide additional supplied through an external protection against electric switching device, such as a timer,...
- Page 9 Side Entry Wall Entry Figure 2.
- Page 10 COMMISIONING Open the isolating stop valve for a few minutes until water flow is continuous and all air is purged from water pipes. The unit’s plastic cover must be fitted before the handwash is turned on. Turn on main switch to bring electrical power to the unit. WATER HEATER READY FOR USE Adjust the water flow and/or temperature to the desired level using the knob on the front cover of the unit.
- Page 11 GUARANTEE AND SERVICE POLICY This product is guaranteed against faulty materials and manufacture for a period of one year from the date of purchase. In the event of issues with the product the customer shall contact the technical help line. The branch the product shall be returned to will be identified and a return number will be allocated.
- Page 12 We take every care and precaution to ensure that information in this document is accurate at the point of publish but with continuous product development the details given in this document are subject to alteration without notice. REF: 025208 Everflo - Hand Wash Installation Manual - English - February 2017...
