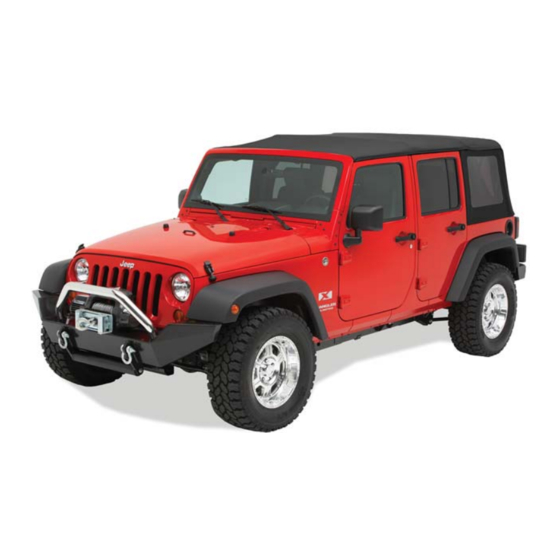

Front bumper 2007 jeep wrangler and wrangler unlimited

Advertisement

Quick Links

Installation Instructions
HighRock 4x4
www.Bestop.com
- We're here to help! Visit our web site and click on
INSTALLATION TIME
1-1/2 Hours
TOOLS
15mm, 18mm
and 1/2"
3/16" and
6mm
TM
Front Bumper
SKILL LEVEL
3 - Moderately Diffi cult
T55
18mm
Vehicle Application: 2007
Wrangler Unlimited
TM
• HighRock 4x4
Front Bumper
Part Number: 42910 / 44910
TM
• HighRock 4x4
Approach Roller
Part Number: 42905 (Sold Separately)
"Ask a Question"
. Click here for more
Jeep
®
Wrangler and
TM
• HighRock 4x4
Grill Guard
TM
Part Number: 42915 /
44915 (Sold Separately)
Jeep
®
Accessories by Bestop.
Tubular

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HighRock 4x4 42910 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bestop HighRock 4x4 42910

  • Page 1 - We’re here to help! Visit our web site and click on “Ask a Question” . Click here for more Jeep ® Accessories by Bestop. INSTALLATION TIME SKILL LEVEL 1-1/2 Hours 3 - Moderately Diffi cult TOOLS 15mm, 18mm 18mm and 1/2"...
  • Page 2 HighRock 4x4 Front Bumper Installation Instructions Parts List and Hardware Identifi cation 42910 HighRock 4x4 Front Bumper Front Bumper, Part Number 422.09(Gloss Finish), 42915 HighRock 4x4 Tubular Grill Guard – Part Number 498.24 (Matte Finish), Qty - 1 Sold Separately Fare Lead Roller Plate, Part Number 414.19 (Gloss Finish), Tubular Grill Guard,...
  • Page 3 HighRock 4x4 Front Bumper Installation Instructions Install Fare Lead Roller on NOTE If you intend to install a fare lead Fare Lead Plate roller and/or a winch on your bumper, If you have a Fare Lead Roller, use the mounting you will need to install them on the bumper before hardware provided with the roller to install it on the you install the bumper on the vehicle.
  • Page 4 HighRock 4x4 Front Bumper Installation Instructions NOTE If you intend to install a winch only, you Install Hole Plugs may install it directly on your bumper and do not need to use the Fare Lead Plate. If you are not installing an optional Grill Guard, in- stall the Plastic Hole Plugs from the parts kit in the Install Fare Lead Plate and/or holes in the bumper.
  • Page 5 HighRock 4x4 Front Bumper Installation Instructions Install 42905 HighRock 4x4 Two or more people are required to lift the bumper Approach Roller – Sold safely. Separately Install Bumper Assembly Place the Roller between the fl anges on the Front Bumper and align the holes in the Roller with the Lift the Front Bumper Assembly onto the front holes in the fl...
  • Page 6 This warranty gives you specifi c legal rights, and you may also have other rights which vary from state to state. For further information or request for warranty work, please contact: Bestop Inc. Customer Service (800) 845-3567 (303) 465-1755 Rev.
